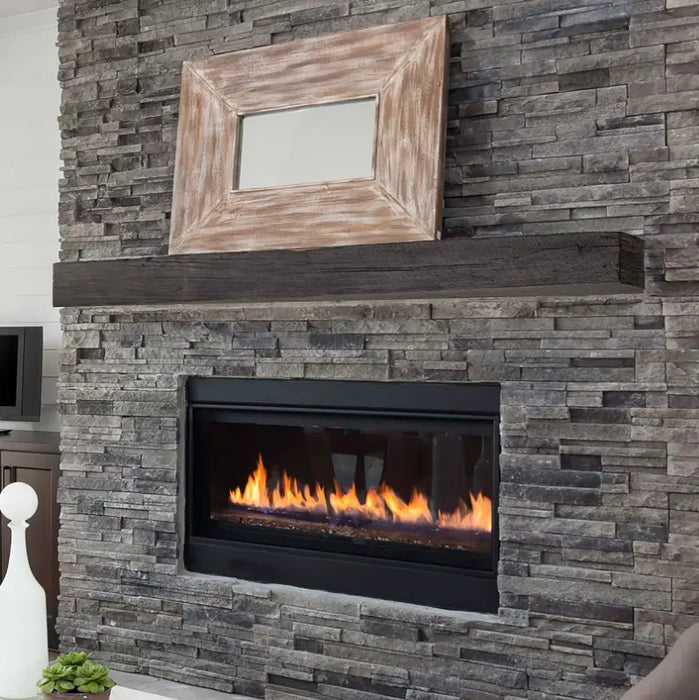

Lexington Grist Mill Series Fireplace Non-Combustible Mantel
The Grist Mill mantel is molded from a 6" x 5.75" beam salvaged from an old Kentucky barn, with the weathered look of the timbers in old water-wheel grist mills. The casting carries deep woodgrain, tool and saw marks, checks, splits, knots and insect damage.
It is cast in Burncrete and hand-painted in Lexington, Kentucky, in five colors. Model number GM-4-LH (48"), GM-5-LH (60") or GM-6-LH (72"), followed by the color code.
Grist Mill: Barnwood Character for Wood, Gas or Electric Fireplaces
Lexington rates the Grist Mill for wood-burning, gas and electric fireplaces, and its ASTM E136 certification lets it sit closer to the heat than a wood beam. Lexington's install guide calls for at least 6" of clearance above equipment under 50,000 Btu and 12" at 50,000 Btu or more; your fireplace's clearances and local code come first.
At 52 lb in the 48" length, it is the lightest of the 48" beams in the line, and the hollow core mounts on a framed wall with the included bracket. Set it over a wood burning fireplace or browse the full Lexington Hearth collection.
Features
-
Salvaged barn texture: woodgrain, tool and saw marks, checks, splits, knots and insect damage from the original beam.
-
Wood, gas or electric: Lexington rates it for all three fireplace types.
-

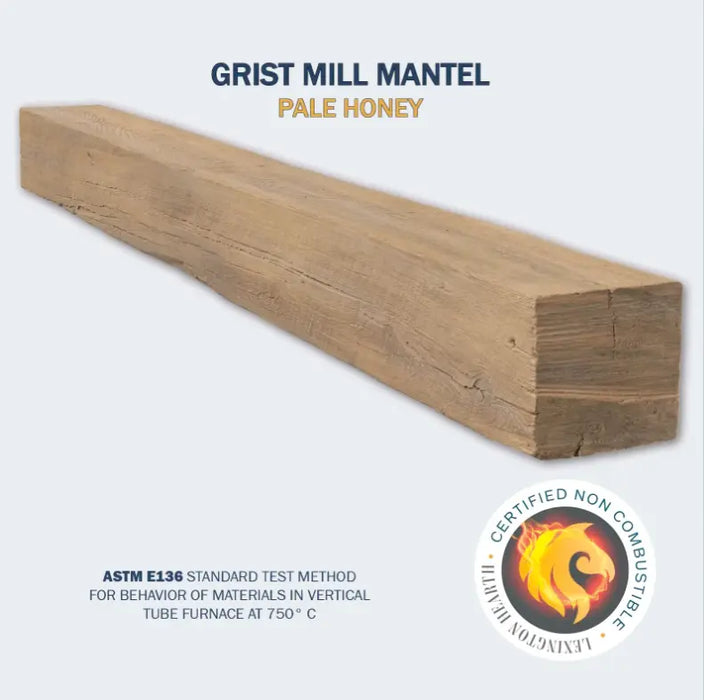

Non-combustible: certified under ASTM E136, a vertical tube furnace test at 750°C.
-

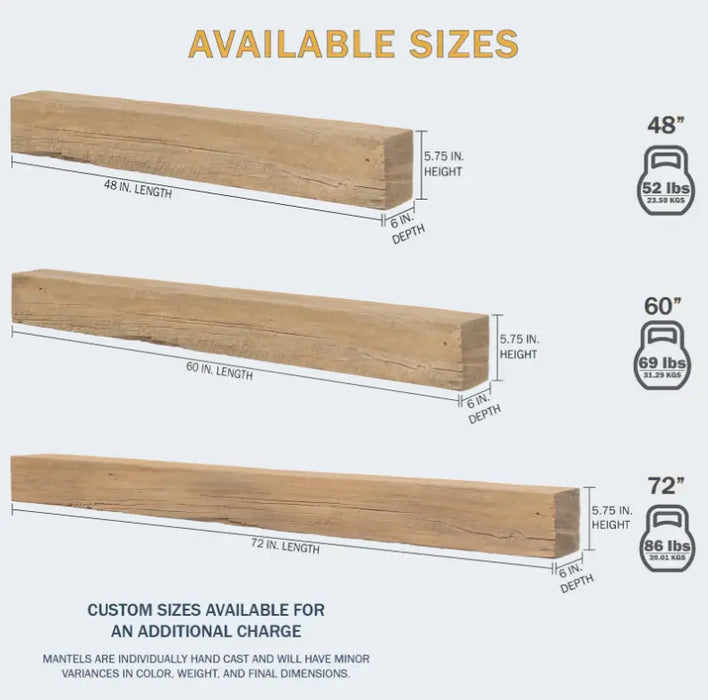

Three lengths: 48", 60" or 72", from 52 lb to 86 lb.
-
Room to grow: the matching extension, corner piece and bracket trim take it past 72" or around a corner.

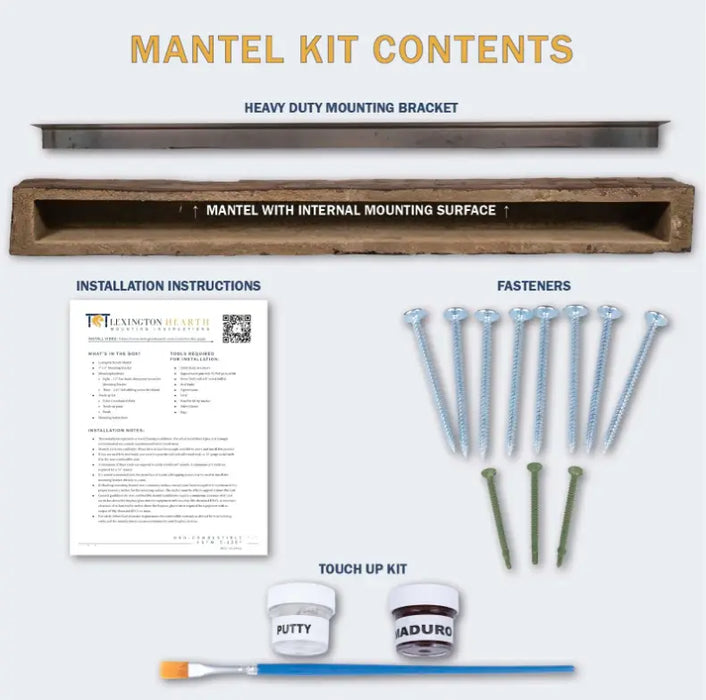

Package Contents
- Grist Mill mantel, in your chosen length and color
- 3" x 2" steel mounting bracket
- Bracket screws (8) and self-drilling mantel screws (3)
- Touch-up kit with filler putty, touch-up paint and a brush
- Installation instructions
What to Order With It
Longer runs and corners (optional):
Corbels (optional):
Specifications
| Model numbers |
48": GM-4-LH-MD, GM-4-LH-PH, GM-4-LH-WG, GM-4-LH-EC, GM-4-LH-RC
60": GM-5-LH-MD, GM-5-LH-PH, GM-5-LH-WG, GM-5-LH-EC, GM-5-LH-RC
72": GM-6-LH-MD, GM-6-LH-PH, GM-6-LH-WG, GM-6-LH-EC, GM-6-LH-RC |
| Color codes |

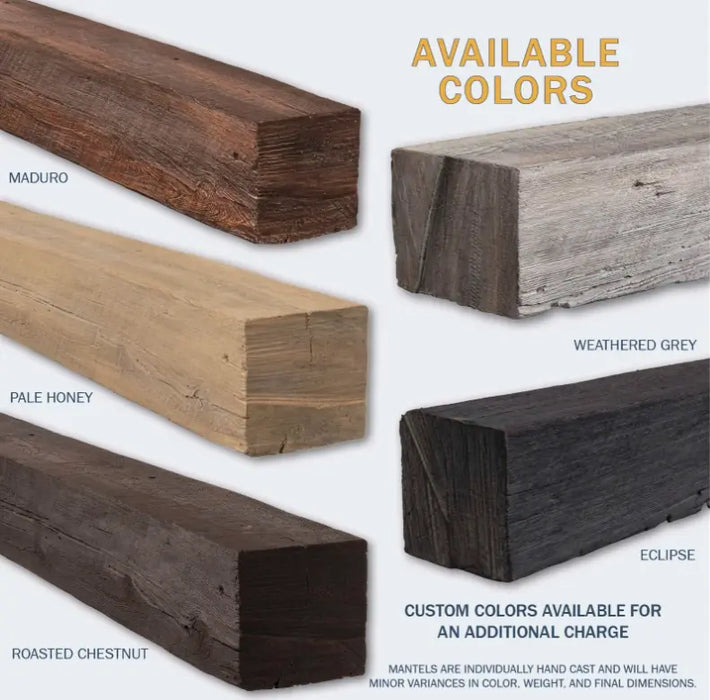

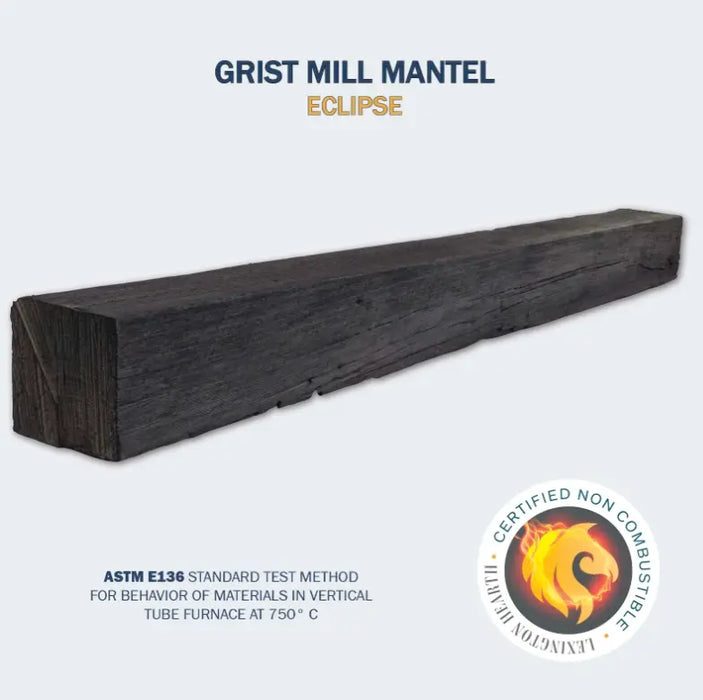

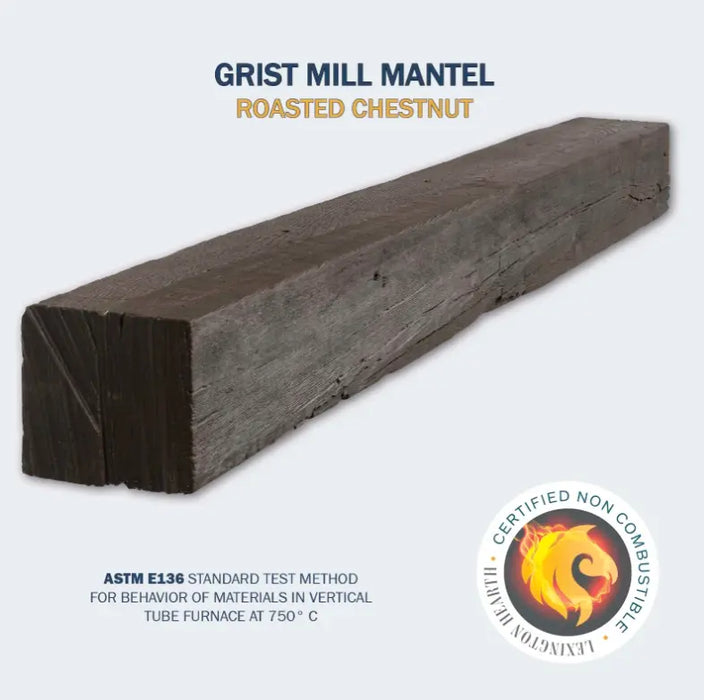

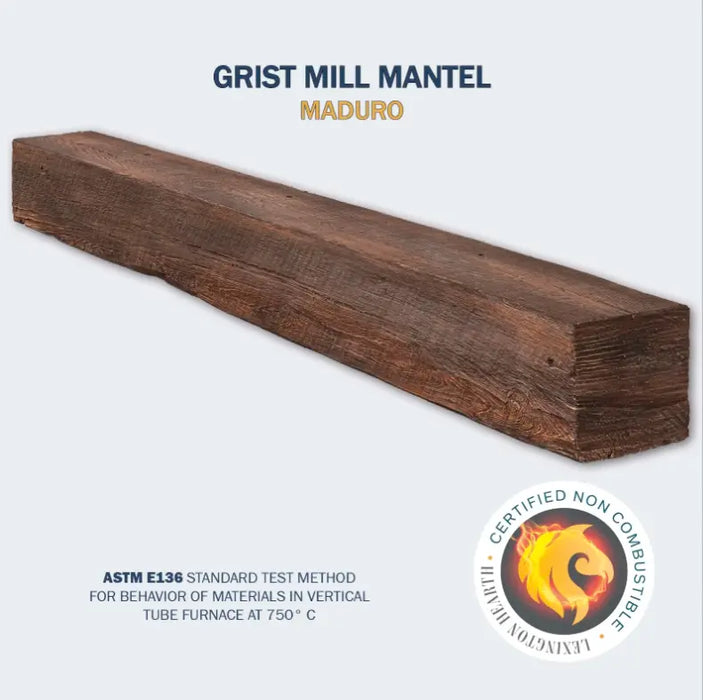

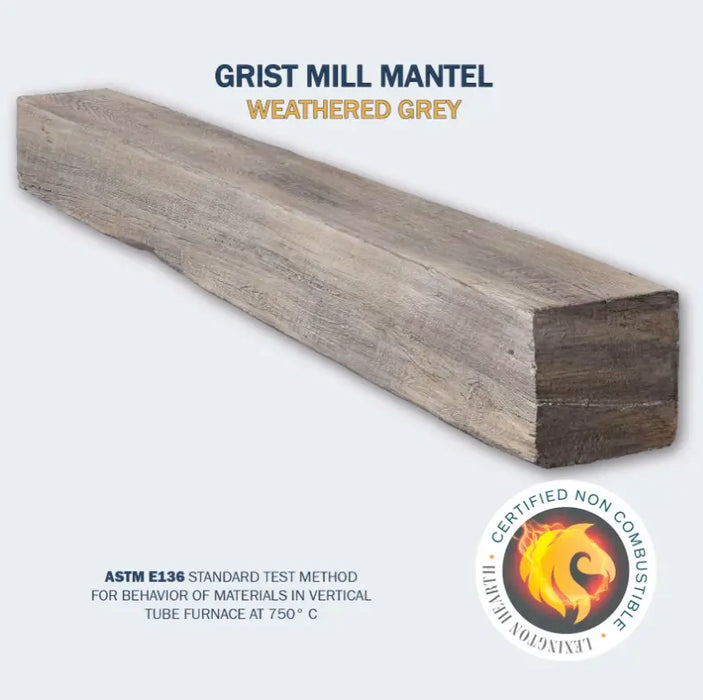

MD Maduro, PH Pale Honey, WG Weathered Grey, EC Eclipse, RC Roasted Chestnut |
| Lengths |
48", 60" or 72" |
| Profile |
6" deep x 5.75" high |
| Weight |
52 lb (48"), 69 lb (60"), 86 lb (72") |
| Fireplace types |
Wood-burning, gas or electric |
| Material |
Burncrete non-combustible casting, hollow core |
| Certification |
ASTM E136 non-combustible |
| Mounting |
3" x 2" steel bracket screwed into wall studs; mantel fastens through the top |
| Studs needed |
2 (48"), 3 (60"), 4 (72"); two screws per stud, at least 1.5" into the stud |
| Made in |
Lexington, Kentucky, USA |
FAQs
Can I get the Grist Mill in a custom length or color?
Yes. Lexington makes custom lengths between 48" and 72", and shorter on request. Past 72", add the 2 ft extension and bracket trim. Burncrete should not be cut or sanded on site, so order the length you need. Custom colors are matched at the factory. Reach out to our team for a quote.
How is it installed?
With two people and basic tools. Screw the bracket into the studs (2 for the 48", 3 for the 60", 4 for the 72"), set the mantel on it, drive three screws down through the top, then fill and touch up the holes. For walls other than wood framing, consult a professional.
Documents & Downloads
Warranty
Lexington Hearth one-year limited warranty:
- Covers manufacturing and workmanship defects for one year from the original purchase date, for the original purchaser.
- A confirmed defect is handled by replacing the product or the affected part.
- Not covered: cutting, drilling, painting or refinishing, improper installation or clearances, water or freezing damage, shipping damage and labor.
