Grand Canyon High Capacity Outdoor 350K Electronic Ignition System

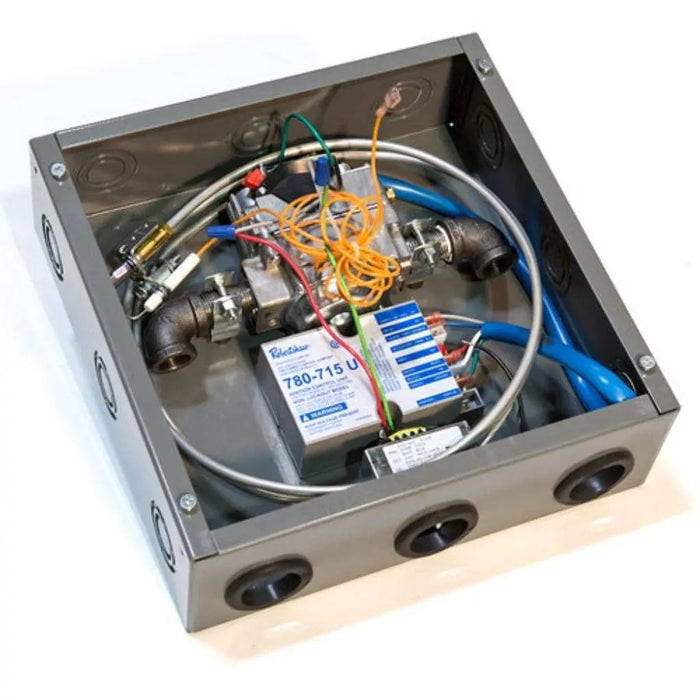

The Grand Canyon High Capacity Outdoor 350K Electronic Ignition System is an in-wall electronic ignition system for large outdoor fireplaces. The valve, ignition module and 24V transformer are mounted in a metal box that goes in the wall near the fireplace, and a pilot assembly on a long lead runs to the burner. When you switch the fire on, the pilot sparks, proves the flame and opens the burner; there is no standing pilot.
It is the high capacity outdoor version of the EIS (model EIS-OUTDOOR-350), rated to 350,000 BTU on natural gas, for Jumbo stainless steel burners and the largest outdoor sets.
What's Included
- Outdoor metal control box, 12" x 12" x 4"
- 350,000 BTU valve and ignition module
- 24V transformer
- Pilot tubing and spark igniter
- Pipe fittings
Key Features
- Pilot on demand: no standing pilot
- 24V electronic ignition
- Valve, module and transformer in a 12" x 12" x 4" metal box that mounts in the wall near the fireplace
- On/off operation
- Can be switched by a remote, wall switch or the Weather Beater power box, sold separately
- Rated for outdoor use
What to Order With It
Burners it goes on:
Optional:
Specifications
| Model Number |
EIS-OUTDOOR-350 |
| Capacity |
350,000 BTU natural gas at 3" to 7" W.C.; 560,000 BTU propane at 8" to 14" W.C. |
| Ignition |
24V electronic, pilot on demand |
| Control Box |
12" x 12" x 4" outdoor metal enclosure |
| Maximum Inlet Pressure |
14" W.C. |
| Valve Temperature Rating |
175°F |
| Use |
Outdoor |
Burner sizes it fits (2026 price guide)
| Burner |
Natural Gas |
Propane |
| 2-Burner, Glass, Kiva |
18" to 60" |
18" to 42" |
| 3-Burner |
18" to 42" |
18" to 42" |
| Jumbo, Jumbo Slimline |
24" to 120" |
24" to 120" |
The control box must be mounted where it can be reached later for service, within 5 ft of the fireplace with the 6 ft pilot lead or within 9 ft with the 10 ft lead. The system must be installed by a qualified installer.
The price guide does not state the pilot lead length for this model; our listing has it as 6 ft. If you are on propane, tell us so we can confirm how it ships.
Warranty
Valves and electrical components installed outdoors: one year from the purchase date, when installed by a certified gas installer and used with Grand Canyon products. Batteries are not covered. Warranty is limited to the original purchaser.
