Grand Canyon High Capacity Indoor 720K Electronic Ignition System

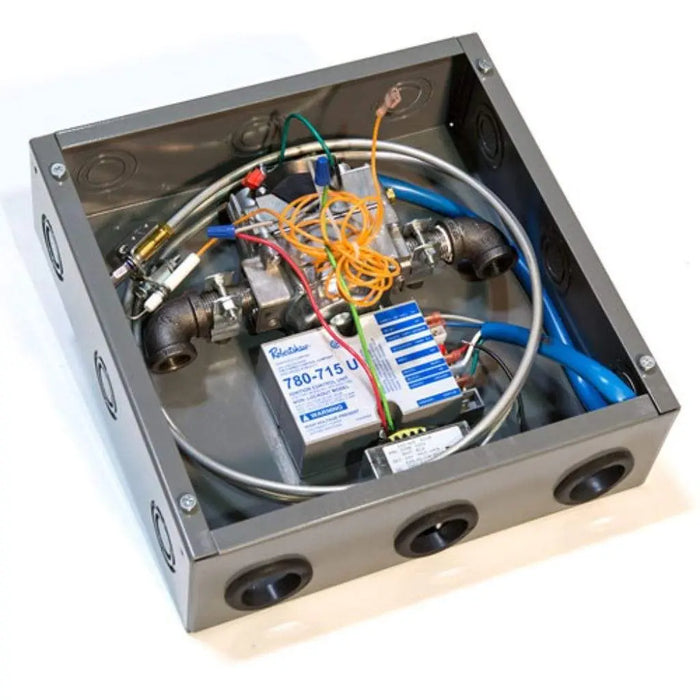

The Grand Canyon High Capacity Indoor 720K Electronic Ignition System is an in-wall electronic ignition system for the largest custom fireplaces. The valve, ignition module and 24V transformer are mounted in a metal box that goes in the wall near the fireplace, and a pilot assembly on a long lead runs to the burner. When you switch the fire on, the pilot sparks, proves the flame and opens the burner; there is no standing pilot.
It is the highest capacity EIS (model EIS-INDOOR-720), rated to 720,000 BTU on natural gas, with a 6 ft pilot lead.
What's Included
- Metal control box
- 720,000 BTU valve and ignition module
- 24V transformer
- 6 ft pilot assembly lead
Key Features
- 720,000 BTU on natural gas
- Pilot on demand: no standing pilot
- 24V electronic ignition
- In-wall control box
- On/off operation
What to Order With It
This system is specified for one-off, very large burners. Send us the burner size, fuel and gas supply pressure and we will confirm the match before you order.
Optional:
Specifications
| Model Number |
EIS-INDOOR-720 |
| Capacity |
720,000 BTU natural gas at 4" W.C.; 1,152,000 BTU propane at 11" W.C. (EIS manual) |
| Pilot Lead |
6 ft |
| Ignition |
24V electronic, pilot on demand |
The model name says indoor, but the 2026 price guide marks this system for outdoor use. Tell us where it is going and we will confirm the right version with Grand Canyon.
The control box must be mounted where it can be reached later for service, within 5 ft of the fireplace with the 6 ft pilot lead or within 9 ft with the 10 ft lead. The system must be installed by a qualified installer.
Warranty
Valves and electrical components: two years from the purchase date when installed indoors by a certified gas installer and used with Grand Canyon burners and logs; one year if installed outdoors. Batteries are not covered. Warranty is limited to the original purchaser.
