Grand Canyon 18" to 48" Outdoor Round Tall Stack Fire Pit Kit
The Grand Canyon Outdoor Round Tall Stack Fire Pit Kit is a stainless steel burner kit that drops into a new or existing round gas fire pit and is shaped to hold fire pit logs in a taller stack with a large center flame. Choose the size that matches your fire pit opening, natural gas or propane, and either match-lit or Weather Beater electronic ignition.
It comes in 5 sizes from 18" to 48"; the size is the smallest fire pit opening it fits. Model numbers are RTS-##-NG and RTS-##-LP for match-lit, and RTS-##-WBECS-NG and RTS-##-WBECS-LP for electronic ignition, where ## is the size. Logs are sold separately.
What's Included

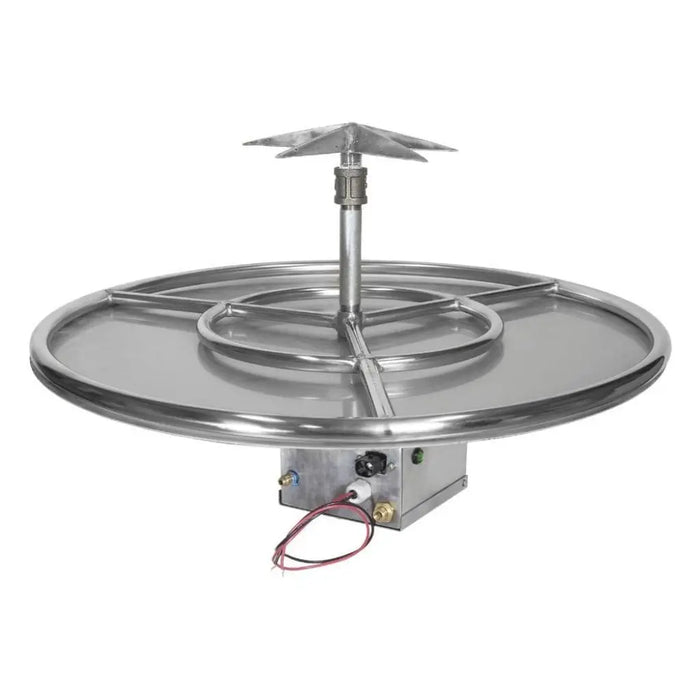

- Stainless steel burner
- Torch star
- Lava rock
- Key valve
- Connection fittings
- Stainless steel disc (propane and electronic ignition models only)
- Weather Beater electronic control system (electronic ignition models only)
Key Features
- 5 sizes: 18", 24", 30", 36", 48"
- Natural gas or propane
- Match-lit, or Weather Beater hot-surface electronic ignition
- Electronic ignition models need 120V power run to the fire pit
- Stainless steel
- For outdoor fire pits only
- Fire pit logs are required and sold separately (see below)
What to Order With It

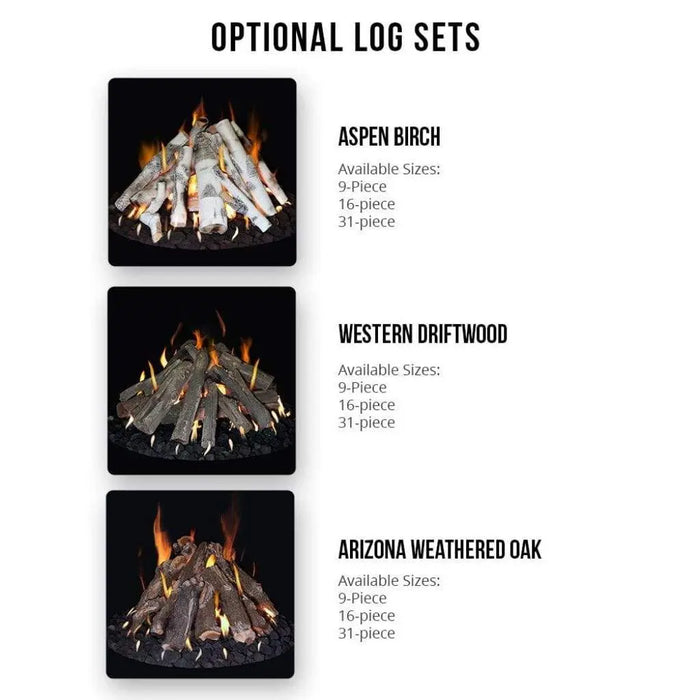

The kit includes the burner, lava rock, key valve and fittings. Pick one log set in the size that matches the kit.
Required (choose one):
-

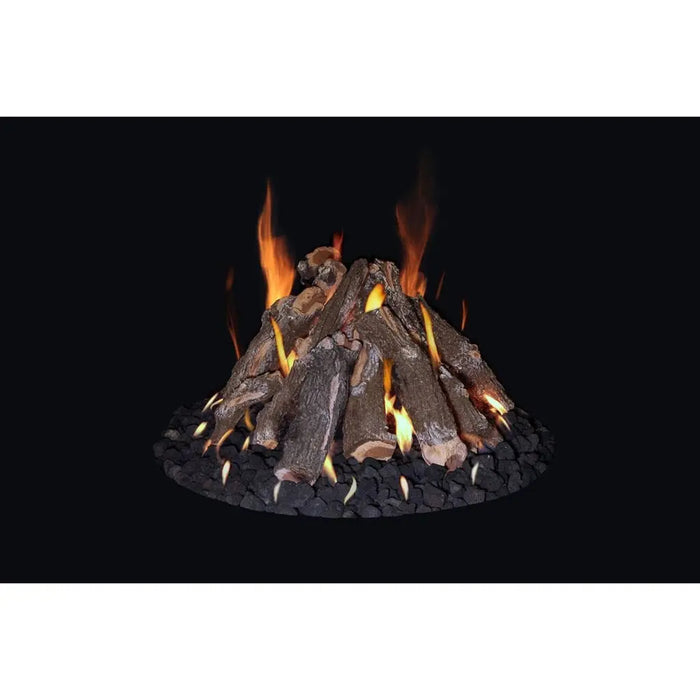

Arizona Weathered Oak Fire Pit Logs (FPAWO-18/24 nine-piece for 18" and 24" kits, FPAWO-30/36 sixteen-piece for 30" and 36", FPAWO-48 thirty-one-piece for 48")
-

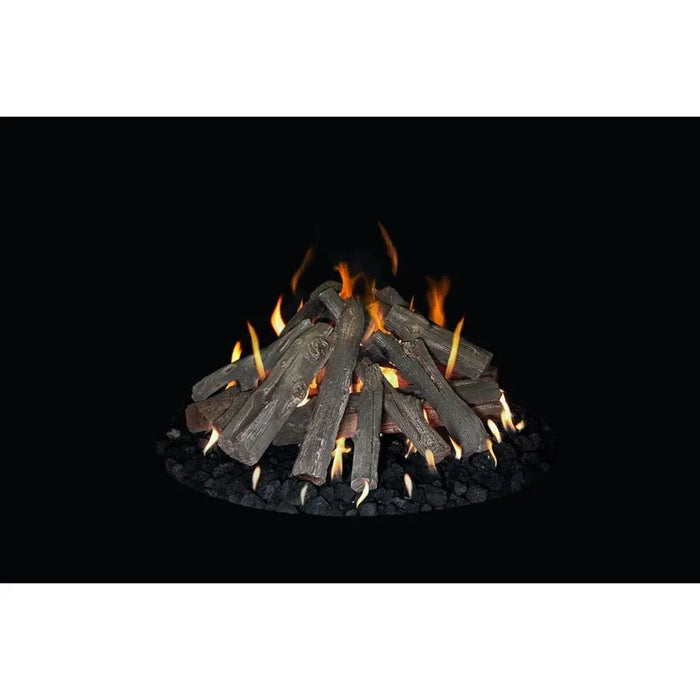

Western Driftwood Fire Pit Logs (FPWD-18/24 nine-piece for 18" and 24" kits, FPWD-30/36 sixteen-piece for 30" and 36", FPWD-48 thirty-one-piece for 48")
-

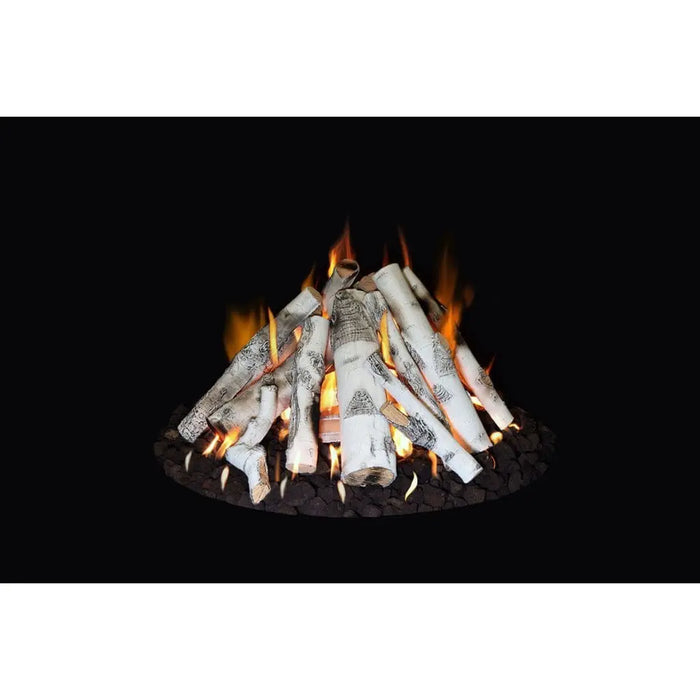

Aspen Birch Fire Pit Logs (FPASP-18/24 nine-piece for 18" and 24" kits, FPASP-30/36 sixteen-piece for 30" and 36", FPASP-48 thirty-one-piece for 48")
Optional:
Specifications
| Size (minimum fire pit opening) |
Match-Lit Models |
Electronic Models |
Ring Burner |
BTU Natural Gas or Propane |
| 18" |
RTS-18-NG, RTS-18-LP |
RTS-18-WBECS-NG, RTS-18-WBECS-LP |
12" |
92,000 |
| 24" |
RTS-24-NG, RTS-24-LP |
RTS-24-WBECS-NG, RTS-24-WBECS-LP |
18" |
147,000 |
| 30" |
RTS-30-NG, RTS-30-LP |
RTS-30-WBECS-NG, RTS-30-WBECS-LP |
24" |
296,000 |
| 36" |
RTS-36-NG, RTS-36-LP |
RTS-36-WBECS-NG, RTS-36-WBECS-LP |
30" |
435,000 |
| 48" |
RTS-48-NG, RTS-48-LP |
RTS-48-WBECS-NG, RTS-48-WBECS-LP |
36" |
443,000 |
| Inlet Pressure |
5" to 10.5" W.C. natural gas, 8" to 13" W.C. propane |
| Electrical |
120V at the fire pit for electronic ignition models; none for match-lit |
| Use |
Outdoor only |
For outdoor use only. Do not install indoors or in any enclosed structure.
Warranty
Stainless steel burner: lifetime warranty against manufacturing defects or breakage when installed by a professional installer. Valves and electrical components: one year outdoors. Warranty is limited to the original purchaser.
