Grand Canyon 110V Outdoor Electronic Ignition System

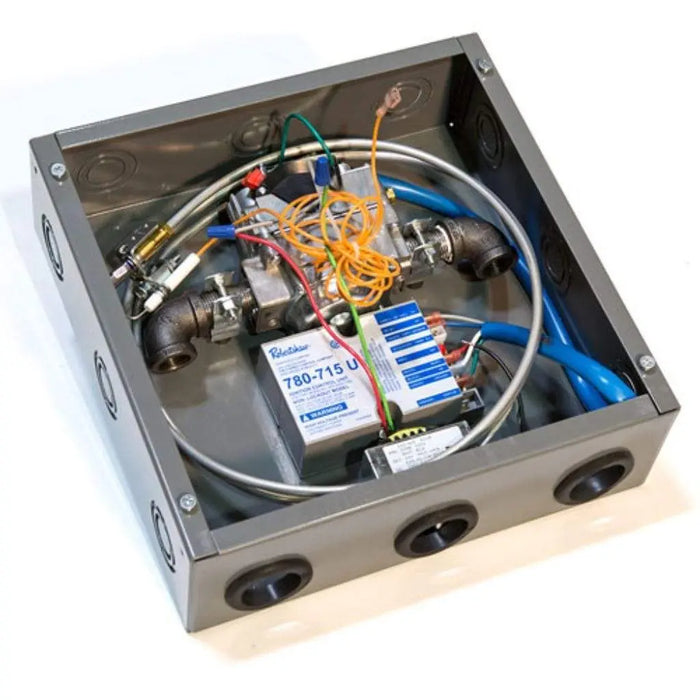

The Grand Canyon 110V Outdoor Electronic Ignition System is an in-wall electronic ignition system for outdoor fireplaces. The valve, ignition module and 24V transformer are mounted in a metal box that goes in the wall near the fireplace, and a pilot assembly on a long lead runs to the burner. When you switch the fire on, the pilot sparks, proves the flame and opens the burner; there is no standing pilot.
It comes in three versions: EIS-OUTDOOR (natural gas, 6 ft pilot lead), EIS-OUTDOOR-10 (natural gas, 10 ft lead) and EIS-OUTDOOR-LP (propane, 6 ft lead).
What's Included
- Outdoor metal control box, 12" x 12" x 4"
- Valve and ignition module
- 24V transformer
- Pilot tubing and spark igniter, 6 ft or 10 ft
- 90° pilot hood
- Pipe fittings
- LP conversion kit and propane pilot orifice
Key Features
- Pilot on demand: no standing pilot
- 24V electronic ignition
- Valve, module and transformer in a 12" x 12" x 4" metal box that mounts in the wall near the fireplace
- On/off operation
- Can be switched by a remote, wall switch or the Weather Beater power box, sold separately
- Rated for outdoor use
What to Order With It
Burners it goes on:
Optional:
Specifications
| Natural Gas Models |
EIS-OUTDOOR (6 ft lead), EIS-OUTDOOR-10 (10 ft lead): 200,000 BTU at 3" to 7" W.C. |
| Propane Model |
EIS-OUTDOOR-LP (6 ft lead): 320,000 BTU at 8" to 14" W.C. |
| Ignition |
24V electronic, pilot on demand |
| Control Box |
12" x 12" x 4" outdoor metal enclosure |
| Maximum Inlet Pressure |
14" W.C. |
| Valve Temperature Rating |
175°F |
| Listing |
CSA design certified to ANSI Z21.71 for field installation |
| Use |
Outdoor |
Burner sizes it fits (2026 price guide)
| Burner |
Natural Gas |
Propane |
| 2-Burner, Glass, Kiva |
18" to 60" |
18" to 42" |
| 3-Burner |
18" to 42" |
18" to 42" |
| Jumbo, Jumbo Slimline |
24" to 60" |
24" to 96" |
The control box must be mounted where it can be reached later for service, within 5 ft of the fireplace with the 6 ft pilot lead or within 9 ft with the 10 ft lead. The system must be installed by a qualified installer.
Outdoors, pair it with a stainless steel burner.
Warranty
Valves and electrical components installed outdoors: one year from the purchase date, when installed by a certified gas installer and used with Grand Canyon products. Batteries are not covered. Warranty is limited to the original purchaser.
