Grand Canyon 110V Indoor 350K Electronic Ignition System

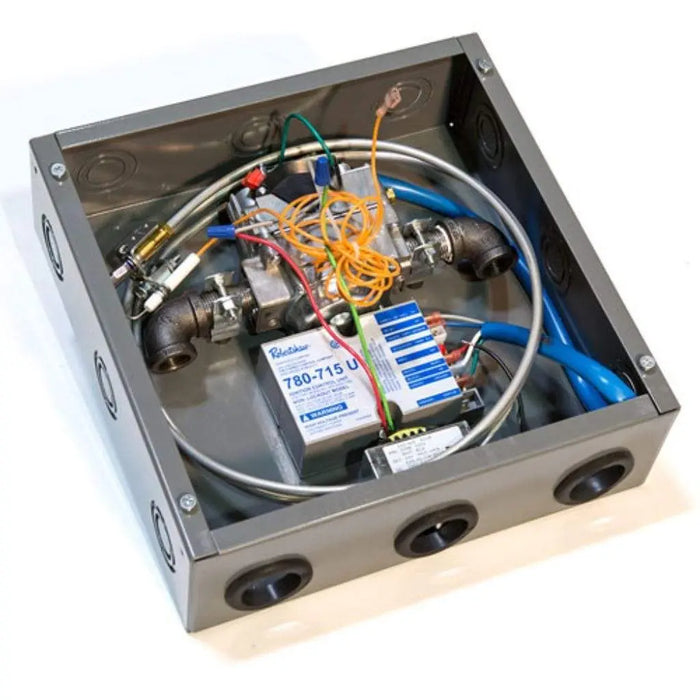

The Grand Canyon 110V Indoor 350K Electronic Ignition System is an in-wall electronic ignition system for large indoor fireplaces. The valve, ignition module and 24V transformer are mounted in a metal box that goes in the wall near the fireplace, and a pilot assembly on a long lead runs to the burner. When you switch the fire on, the pilot sparks, proves the flame and opens the burner; there is no standing pilot.
It is the high capacity version of the EIS, rated to 350,000 BTU on natural gas, for Jumbo burners and the largest see-through sets. It comes with a 10 ft pilot lead (model EIS-INDOOR-350-10).
What's Included
- Metal control box, 12" x 12" x 4"
- 350,000 BTU valve and ignition module
- 24V transformer
- Pilot tubing and spark igniter, 10 ft
- Pipe fittings
Key Features
- Pilot on demand: no standing pilot
- 24V electronic ignition
- Valve, module and transformer in a 12" x 12" x 4" metal box that mounts in the wall near the fireplace
- On/off operation
- Can be switched by a remote, wall switch or the Weather Beater power box, sold separately
- Indoor use only
What to Order With It
Burners it goes on:
Optional:
Specifications
| Model Number |
EIS-INDOOR-350-10 (10 ft pilot lead) |
| Capacity |
350,000 BTU natural gas at 3" to 7" W.C.; 560,000 BTU propane at 8" to 14" W.C. |
| Ignition |
24V electronic, pilot on demand |
| Control Box |
12" x 12" x 4" metal enclosure |
| Maximum Inlet Pressure |
14" W.C. |
| Valve Temperature Rating |
175°F |
| Use |
Indoor only |
Burner sizes it fits (2026 price guide)
| Burner |
Natural Gas |
Propane |
| 2-Burner, Glass, Kiva |
18" to 60" |
18" to 42" |
| 3-Burner |
18" to 42" |
18" to 42" |
| Jumbo, Jumbo Slimline |
24" to 120" |
24" to 120" |
The control box must be mounted where it can be reached later for service, within 9 ft of the fireplace, which is what the 10 ft pilot lead allows. The system must be installed by a qualified installer.
The 6 ft version is no longer available. If you are on propane, tell us so we can confirm how it ships.
Warranty
Valves and electrical components: two years from the purchase date when installed indoors by a certified gas installer and used with Grand Canyon burners and logs; one year if installed outdoors. Batteries are not covered. Warranty is limited to the original purchaser.
Documents
