Empire Stove 38" St. Clair 4300 Wood Burning Fireplace with Blower
The Empire Stove St. Clair 4300 (model number WB43FP) is an EPA-certified, factory-built wood burning fireplace rated by Empire for 1,000 to 2,800 sq ft. It takes logs up to 25" long, has double glass doors with cast iron frames and a built-in blower, and it is listed to UL 127 for installation in a framed enclosure.
Order the traditional faceplate, the classic brick refractory panels and one door overlay with the fireplace. It vents through an 8" solid-pack chimney from one of the brands listed in the manual.
Key Features
- EPA certified; 1.6 g/h average particulate emissions
- Heats 1,000 to 2,800 sq ft (Empire recommendation)
- Takes logs up to 25" long, loaded east-west

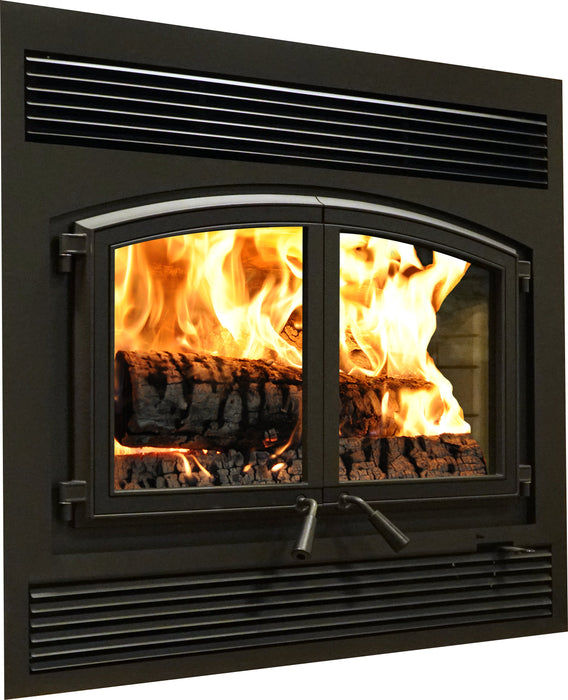

- Double glass doors with cast iron frames
- Blower included, up to 176 CFM
- Optional fresh air, forced air and warm air grill kits
What to Order With It
Required for the St. Clair 4300 (order with the fireplace):
Optional – Fresh air and heat distribution:
Specifications
| Model numbers |
WB43FP |
| Type |
Factory-built wood burning fireplace, dry cordwood |
| Recommended heating area |
1,000 to 2,800 sq ft |
| Heat output range |
16,900 to 43,000 Btu/h |
| Average efficiency |
64.0% (HHV), dry cordwood |
| Particulate emissions |
1.6 g/h average (EPA) |
| Log length |
25" maximum, east-west |
| Flue outlet |
8" |
| Chimney |
8" listed solid-pack chimney from the brands in the manual (UL 103 HT, 2100 °F); 15 ft minimum height |
| Blower |
Included (up to 176 CFM) |
| Door |
Double doors, glass with cast iron frames |
| Alcove |
Not approved |
| Safety listing |
UL 127 |
Installation Requirements
-
Enclosure and framing: framing dimensions, clearances to combustibles and mantel limits are in the installation manual. Do not fill the required air spaces inside the enclosure with insulation.
-
Hearth extension: a non-combustible hearth extension 49" wide, extending 8" past each side of the door opening. Its depth in front (16" to 32") and R-value (none, 1.00 or 2.00) depend on how high the fireplace sits above the floor, per the hearth extension table in the manual.
-
Chimney: use only the 8" solid-pack chimney systems listed in the manual, at least 15 ft tall for a straight installation.
-
Outdoor air: some US jurisdictions require an outdoor combustion air supply; the optional fresh air kit provides one, and Empire recommends a carbon monoxide alarm when one is installed. The fireplace may not be installed outdoors.
-
Mobile homes: not approved for mobile (manufactured) homes in the US.
-
Installation: must be installed by a qualified installer per the installation manual and local codes; check with your local building official for permits and inspection.
Options & Accessories
Downloads
Warranty
Empire limited warranty, from the warranty section of the installation manual:
- Factory-installed glass: limited lifetime parts
- Combustion chamber and heat exchanger: limited lifetime parts
- All other components, except remote controls, thermostats, lights, accessories and replacement parts: 3 years parts
- Remote controls, thermostats, lights, accessories and replacement parts: 1 year parts
The warranty is for the original purchaser. Travel, diagnostic and freight charges and removal and reinstallation costs are not covered. Full terms are in the warranty section of the installation manual.
