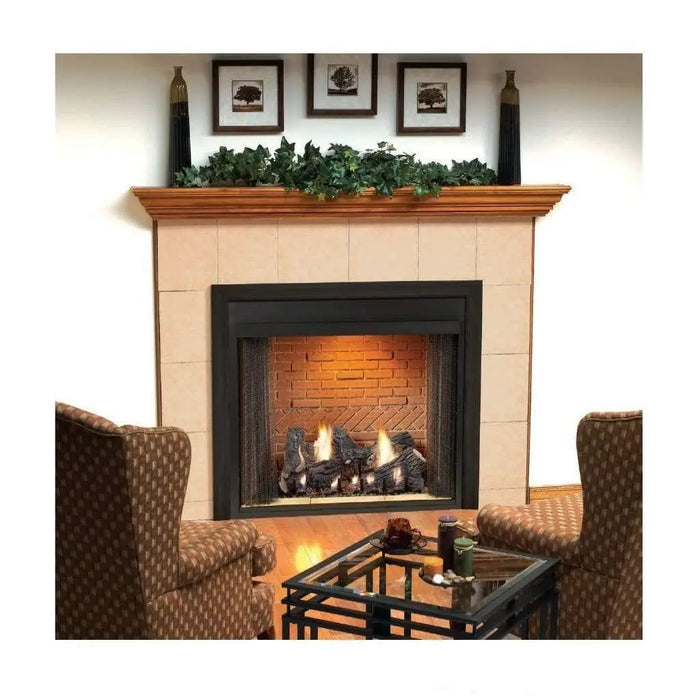

Empire 36" Breckenridge Select Vent-Free Firebox

• Available in 32", 36" and 42" sizes
• Opening: 31 5/8 H x 36 W x 17 1/4 D
• Framing: 38 7/8 H x 40 3/8 W x 23 3/8 D

• Flush Front Circulating
• Decorative Accessories Tailor the Look to Your Decor
• Flush Front Model in Matte Black
• Blower available for Flush Front model
• Accepts Any Certified Vent-Free Burner and Log Set
• Zero Clearance Certified

Includes:

• Junction Box
• Standard Hood, Matte Black

Requires:

• Extended hoods for installation where surround materials are thicker than 1-inch
• Burner and Log Set

*PLEASE NOTE:

• This is a Firebox ONLY.
• Burner and Log set required to complete this unit.

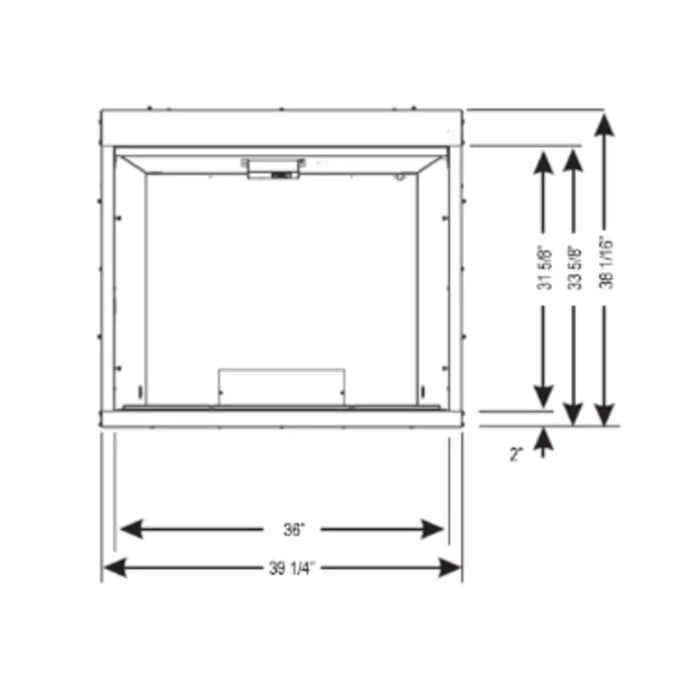

Dimensions:

Installation Requirements

• Venting: Vent-free. No chimney, flue or vent pipe is required.
• Burner and log set: Sold separately. Install only an ANSI Z21.11.2 vent-free burner and log set (a listed gas-fired unvented decorative room heater) rated no more than 40,000 Btu/hr, and follow the log set's own installation instructions as well as this firebox's. The firebox manual does not name specific burner or log set models.
• Clearances to combustibles: Side and back flanges 0"; combustible finishing materials 3/4" from the top of the unit; 6" minimum from the inside of the firebox to a perpendicular combustible side wall; 36" clear in front of the firebox; ceiling height at least 84" measured from the bottom of the firebox
• Framing: Rough opening 38-7/8" H x 40-3/8" W x 23-3/8" D. Framing headers may rest on the top of the firebox standoffs.
• Mantel clearance: Follow the mantel chart in the installation manual for any combustible mantel above the unit.
• Floor: If the firebox sits directly on carpeting, tile or other combustible material other than wood flooring, install it on a metal or wood panel extending the full width and depth of the unit.
• Room size, bedrooms and bathrooms: The firebox manual sets no room-size rule of its own; follow the room-size and bedroom/bathroom rules in the installation manual of the vent-free burner/log set you install, and local codes. In the Commonwealth of Massachusetts, unvented propane and natural gas-fired space heaters are prohibited in bedrooms and bathrooms.
• Power: Electrical connections (such as the optional blower) must be grounded per local codes or, where there are none, the National Electrical Code, ANSI/NFPA 70. The three-prong grounding plug must go directly into a properly grounded three-prong receptacle.
• Installation: Must be installed by a qualified installer per the installation manual and local codes.

OPTIONS & ACCESSORIES

Click to see Liner Kits

	Herringbone Brick Liner Ceramic fiber liner Finish: Herringbone Brick Gives your firebox the look of a real masonry fireplace.
	Banded Brick Liner Ceramic fiber liner Finish: Banded Brick Gives your firebox the look of a real masonry fireplace.
	Stacked Limestone Liner Ceramic fiber liner Finish: Stacked Limestone Gives your firebox the look of a real masonry fireplace.

Click to see Accessories

	Ember Kit Comes with Traditional Log Burnt Log Pieces, White Ash and Lava Rock Included
	Automatic Single-speed Blower
	Variable Speed Control for FBB5 Blower Type: Speed Control Allows you to adjust fan speed of FBB5 firebox blower For use with FBB5 Blower
	Fresh Air Kit
	Lighting Kit 120V 120V lighting kit Creates dramatic shadows inside the firebox Provides visual interest even when the fire isn't burning Suitable for use with Premium and Select Breckenridge Vent-Free Gas Fireboxes *Please Note: Requires switch or rheostat.
	Hood– Extended - Matte Black Matte black Extended hood  Extended hoods are used for installations with extended empire mantels. *Required for thick surrounding materials - such as stone or brick.

Click to see Door Set & Frames

	Door Set - Mission Arch Standard mission arch doors Finish: Matte Black / Hammered Pewter Door Set - Requires Door Frame with Barrier
	Door Set - Arch Standard arch doors Finish: Matte Black / Hammered Pewter Door Set - Requires Door Frame with Barrier
	Arch Door Frame - Matte Black Arched door frame with hinges Finish: Attractive matte black Door Frame - Required for Door Set
	Steel Frame (EZ Attach) - Matte Black Attractive matte black finish Transitions fireplace to adjoining surface Durable three-piece steel construction Extremely easy to install

WARRANTY

• All Vent-Free products carry a five-year limited warranty with a five-year limited labor warranty.
• All remote controls carry a one-year limited warranty
