Empire Breckenridge Deluxe 36" Vent-Free Gas Firebox
The Empire Breckenridge Deluxe 36" (model numbers VFD36FB0F flush and VFD36FB0L louvered, VFD36FB2MF and VFD36FB2ML with a refractory liner) is a universal vent-free firebox: a zero-clearance enclosure that holds a vent-free gas log set, with no chimney or vent. It is 19" deep.
The log set and burner are sold separately; any listed vent-free log set up to 40,000 Btu/hr that fits the firebox can be used. The models ending 0F/0L have a plain interior and take an optional liner; the 2MF/2ML models come with a refractory liner. A blower, doors, louvers, an outer frame and a cabinet mantel can be added.
Key Features
- Universal vent-free firebox for log sets up to 40,000 Btu/hr
- Flush or louvered front

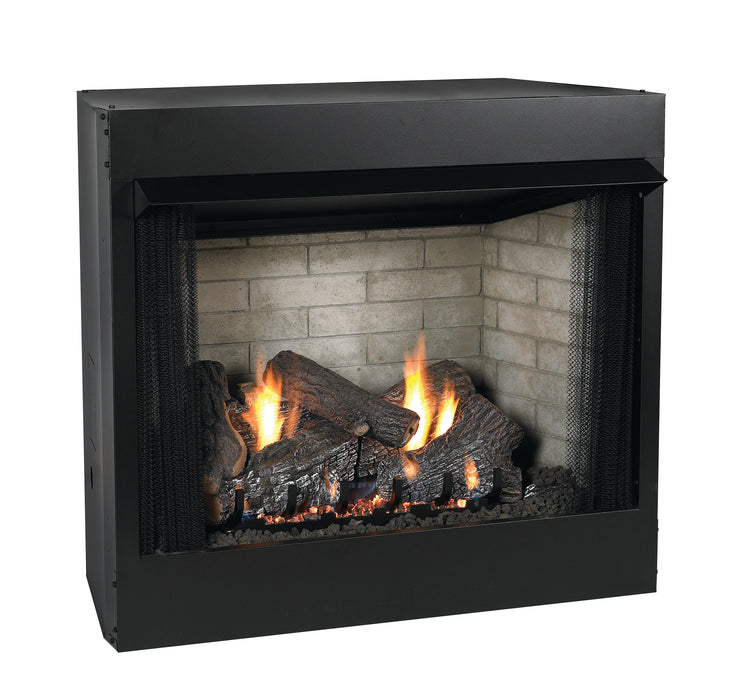

- Refractory liner included on 2MF/2ML models; optional liners for the others
- Zero clearance to the side and back flanges
- Optional blower, door set, louvers, outer frame and cabinet mantel
What to Order With It
The firebox ships with its black hood. A vent-free log set is required before it can be used.
Required – Vent-free log set:
- Any listed ANSI Z21.11.2 vent-free gas log set of no more than 40,000 Btu/hr whose minimum firebox size fits this firebox (see the log set's manual); sold separately
Optional – Liners:
Optional – Accessories:
Optional – Extended hood (needed when the facing material is more than 1" thick, such as stone or brick):
Optional – Louvers (louvered models only):
Optional – Door set (needs the VFY36SBL door frame with barrier):
-
Door Set, Black, Mission Arch (VFR36SMBL)
-
Door Set, Hammered Pewter, Mission Arch (VFR36SMHP)
-
Door Set, Black, Arch (VFR36SCBL)
-
Door Set, Hammered Pewter, Arch (VFR36SCHP)
-
Door Frame, Black, Arch (VFY36SBL)
Optional – Outer frame, for flush or louvered models:

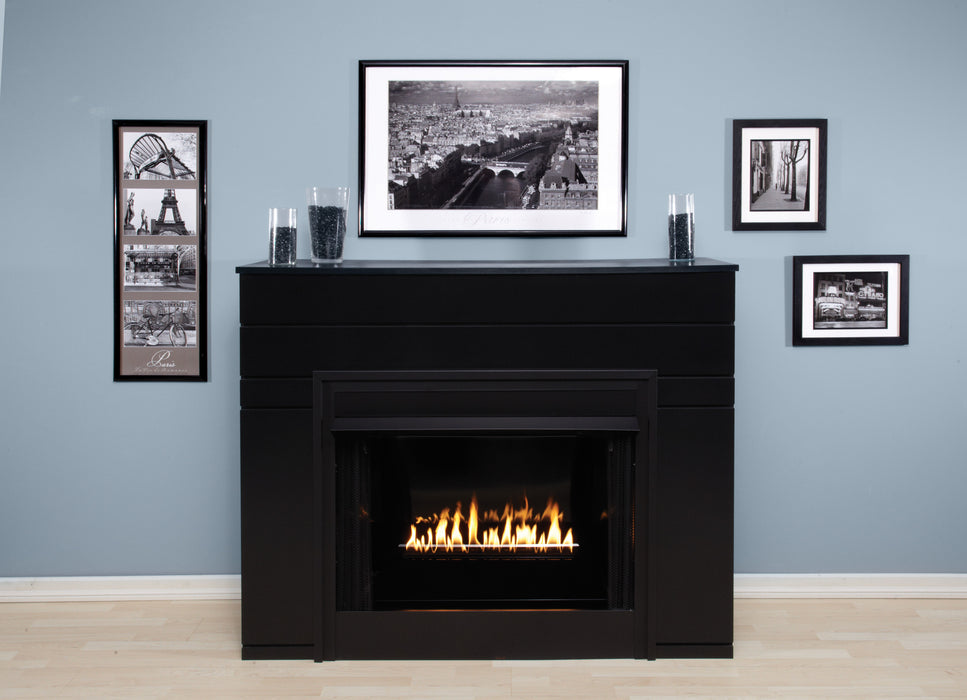

Optional – Mantels (cabinet mantels need the 3-piece outer frame):
-
Cabinet Mantel with Base, Cherry (EMBF3SC)
-
Cabinet Mantel with Base, Dark Oak (EMBF3SDO)
-
Cabinet Mantel with Base, Oak (EMBF3SO)
-
Cabinet Mantel with Base, Unfinished Hardwood (EMBF3SUH)
-
Cabinet Mantel with Base, White (EMBF3SW)
-
Corner Cabinet Mantel with Base, Cherry (EMBC3SC)
-
Corner Cabinet Mantel with Base, Dark Oak (EMBC3SDO)
-
Corner Cabinet Mantel with Base, Oak (EMBC3SO)
-
Corner Cabinet Mantel with Base, Unfinished Hardwood (EMBC3SUH)
-
Corner Cabinet Mantel with Base, White (EMBC3SW)
Specifications
| Model numbers |
VFD36FB0F, VFD36FB0L, VFD36FB2MF, VFD36FB2ML |
| Type |
Universal vent-free firebox (ANSI Z21.91 ventless fireplace enclosure) |
| Log set |
Required, sold separately: a listed ANSI Z21.11.2 vent-free gas log set of no more than 40,000 Btu/hr whose minimum firebox size fits this firebox (check the log set's manual) |
| Framing (rough opening) |
40 1/2" W x 35 3/4" H x 18 3/4" D (add 3 3/4" to the height with the flush mantel base) |
| Firebox dimensions |
40" W x 35" H x 19" D |
| Firebox opening |
36" x 24 1/4" (W x H) |
| Front |
Flush (models ending F) or louvered (models ending L) |
| Liner |
Refractory liner included on 2MF/2ML models; optional on 0F/0L models |
| Hood |
Black hood included |
| Gas connection |
3/8" line for the log set, either side |
| Blower |
Optional (FBB5) |
| Manufactured (mobile) home |
May be installed in an aftermarket, permanently located manufactured home (USA only) or mobile home where local codes allow |
| Style |
Traditional |
Installation Requirements
-
Log set: install only a listed ANSI Z21.11.2 vent-free gas log set of no more than 40,000 Btu/hr that fits this firebox, and follow the log set's own instructions, including its room-size and bedroom/bathroom rules, as well as this manual.
-
Clearances: the side and back flanges are zero clearance to combustibles; keep at least 6" from the inside of the firebox to a perpendicular combustible side wall.
-
Top and framing: combustible finishing materials need 3/4" clearance to the top of the unit; frame with 2 x 4 lumber or heavier, with headers at least 3/4" above the firebox.
-
Ceiling: at least 42" from the top of the hood to the ceiling, and at least 84" from floor to ceiling.
-
Front: leave at least 36" clear in front of the firebox. The supplied hood (or an optional hood) must be installed before use.
-
Mantel: a combustible mantel must meet the mantel chart in the installation manual.
-
Floor: on carpet, tile or any combustible floor other than wood, set the firebox on a metal or wood panel the full width and depth of the unit. Hearth extensions are recommended but not required.
-
Gas: the firebox takes a 3/8" gas line for the log set, through access holes on either side; propane installs need an external regulator limiting supply pressure to 14" w.c. In Massachusetts a flexible connector may not exceed 3 ft, the installation must be made by a licensed plumber or gas fitter, and unvented heaters are not allowed in bedrooms or bathrooms.
-
Power: only needed for the optional blower or light: the junction box on the lower right must be pre-wired when the firebox is installed, grounded per code, controlled by a wall switch or the SCV1 speed control.
-
Installation: must be installed by a qualified installer per the installation manual and local codes.
Downloads
Warranty
Empire limited warranty for Breckenridge vent-free fireboxes, from the warranty section of the installation manual:
- Combustion chamber and heat exchanger: limited lifetime parts, with 5 years of limited labor
- All other components, except remote controls, thermostats, accessories and replacement parts: 5 years parts and labor
- Remote controls, thermostats, accessories and parts: 1 year parts
The vent-free log set installed in the firebox has its own warranty. The firebox warranty applies to the original purchaser. Full terms, including what is not covered, are in the warranty section of the installation manual.
