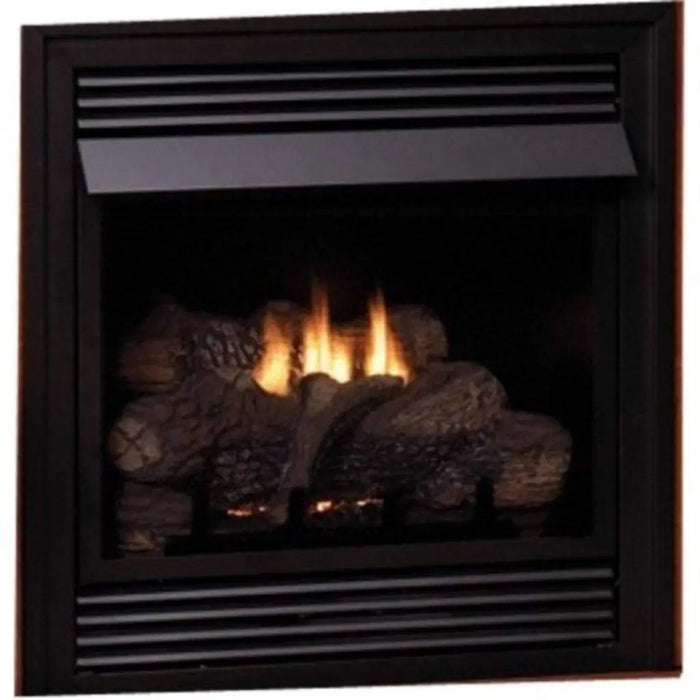

Empire 26" Vail Vent-Free Fireplace with Contour Burner - IP Control with On/Off Switch
A Vent-Free system uses room air for combustion and delivers 99.9% of the available heat energy directly to the room. Vent-Free systems have an unmatched safety record, thanks in part to their clean-burning technology and their Oxygen Depletion Sensor, which instantly shuts of the valve if oxygen in the room drops to an unsafe level. Because no venting is required, Vent-Free systems offer more installation options.
Vent-Free systems are limited to 40,000 Btu and must be operated as supplemental heating sources in conjunction with a central furnace that circulates air.
Advantages:
- Unmatched efficiency – 99.9%
- Offers the most installation versatility
- Usually less expensive to buy and to install
- Can operate with a remote or thermostat
- Most systems can provide life-saving heat during a winter power outage
Vail Vent-Free Fireplaces
At 99.9 percent efficient, the Vent-Free Vail Fireplace delivers more heat for your energy dollars – 32,000 Btu for the Vail 32 and 36,000 Btu for the Vail 36. Ceramic glazed pellets in the burner tumble and swirl the gas to produce a natural flickering flame.
The Vail 24 delivers the beauty of hand-painted ceramic fiber logs and natural flickering flames to dens, halls, and even bedrooms (10,000 Btu models only, where local codes allow).
The Vail 26 Special Edition is the American-made fireplace system that ships complete in one package, and is also offered as a separate fireplace – perfect for built-in and custom mantel applications.
Vail Deluxe 26 (VFD26FP)

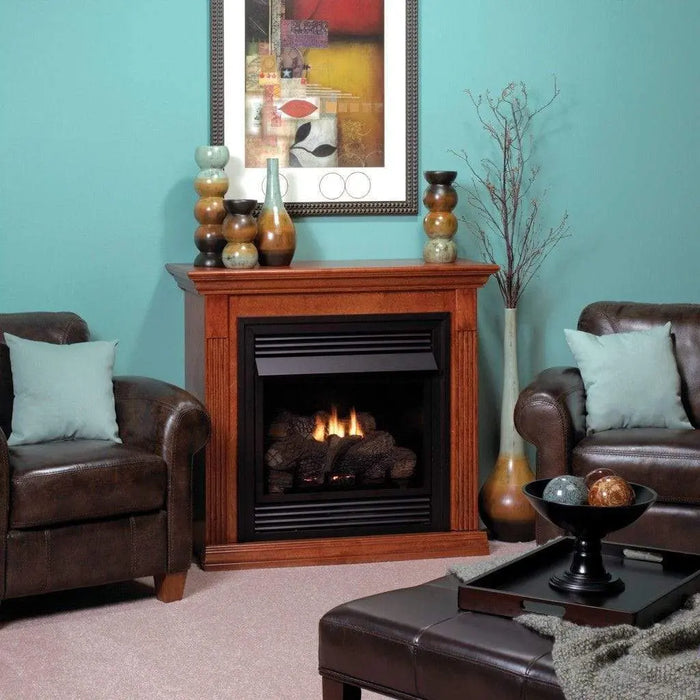

The Vail 26 is perfect for built-in and custom mantel applications. Or choose one
of our standard cabinet or corner cabinet mantels, available in five finishes – cherry, dark oak, nutmeg, oak, and white – plus unfinished hardwood or oak.
The 10,000 Btu Millivolt and Intermittent Pilot versions may be installed in bedrooms, where allowed by code.
The Vail 26 Special Edition is the American-made fireplace system that ships complete in one package – fireplace, assembled mantel, Flint Hill log set with 20,000 Btu vent-free Contour burner, matte black hood, frame and louvers – even glowing embers.
This package system installs in as little as 30 minutes, minimizing labor costs. A total mantel footprint of just over 17 by 45 inches makes the Vail 26 Special Edition ideal for tight spaces and small rooms that meet the minimum room size in the installation manual.
The Vail 26 Special Edition is available in two mantel colors – cherry and white – and in modulating hydraulic thermostat and Millivolt control. The Millivolt system allows you to add a wall thermostat, remote control, or thermostat remote control.
FEATURES
-
Includes:
- Ceramic Fiber Log Set
- Outer Frame and Louvers in Matte Black
- Intermittent Pilot with On/Off Switch Includes AC Power Adapter (120VAC) with battery backup (switches to battery during power outage)
- Empire contour burner system
- Intermittent Pilot Control with On/Off Switch
Installation Requirements
-
Clearances to combustibles: At least 2" from either side of the fireplace opening to a combustible side wall; at least 36" from the top of the fireplace opening to the ceiling. The fireplace can be installed with zero (0") clearance to combustible material. If installed directly on carpeting, tile or other combustible material other than wood flooring, it must sit on a metal or wood panel extending the full width and depth of the appliance.
-
Mantel clearance: Follow the mantel chart in the installation manual for any combustible mantel above the unit.
-
Venting: Vent-free. No chimney, flue or vent pipe is required.
-
Minimum room size: The room must have at least 50 cubic feet of volume per 1,000 Btu/hr of the combined input of all appliances drawing combustion air from it (the manual's "unconfined space" rule). At maximum input that is at least 1,000 cubic feet for the 20,000 Btu/hr models and 500 cubic feet for the 10,000 Btu/hr (L10) models.
-
Bedrooms and bathrooms: The manual prohibits unvented room heaters rated over 10,000 Btu/hr in a bedroom or bathroom, and over 6,000 Btu/hr in a bathroom. Only the 10,000 Btu/hr models (VFD26FP70L10N/P) may go in a bedroom, subject to the room-size rule and local codes; the 20,000 Btu/hr models may not, and no model may go in a bathroom. In the Commonwealth of Massachusetts, unvented propane and natural gas-fired space heaters are prohibited in bedrooms and bathrooms.
-
Local codes: Per the manual, state and local codes in some areas prohibit the use of unvented fireplaces. Always consult your local Building Department regarding regulations, codes or ordinances that apply to installing an unvented room heater.
-
Altitude: Above 2,000 feet, input ratings should be reduced 4 percent for each 1,000 feet above sea level.
-
Gas input (BTU/hr): 20,000 Btu/hr models (VFD26FP70LN/P): natural gas and propane 20,000 max / 14,000 min. 10,000 Btu/hr models (VFD26FP70L10N/P): 10,000 max.
-
Power: Intermittent pilot control runs on an AC power adapter, with 4 AA batteries as backup.
-
Installation: Must be installed by a qualified installer per the installation manual and local codes.
OPTIONS & ACCESSORIES
 |
Variable Remote for IP
(Includes Stepper motor, Thermostat Remote, and Wiring)
- Remote Kit for Natural Gas / Propane
- Model #: RVKN - Natural Gas ; RVKP - Propane
- Type: Remote Kit
- Variable Flame Height Kit
|
 |
Banded Brick Liner
- Ceramic fiber liner
- Realistic dark bricks with charcoal mortar
- Accent band of diagonal bricks
|
 |
Cabinet Mantels and Corner Cabinet Mantels with Bases
- Color: Oak, Dark Oak, Cherry, White
- Product Dimensions: 37 3/4" W x 38 1/2" H x 12 1/2" D(EMF22DO, EMF22C)
- Built-in base
- Compact design
- Traditional styling
- Five finishes available
- Cabinet Mantels require 3-piece frame (a black frame is included with the fireplace)
|
Click to see Hood / Steel Frame & Bottom Trim
|
|
Hammered Pewter Fireplace Hood
- Protective hood for
- Attractive hammered pewter finish
|
|
|
Steel Frame, Hammered Pewter
- Transitions fireplace to adjoining surface
- Durable three-piece metal construction
- Available in an attractive Hammered Pewter finish
|
|
|
Hammered Pewter Bottom Fireplace Trim
- Bottom trim
- Attractive hammered pewter finish
|
Click to see Accessories
 |
Automatic Single-Speed Fireplace Blower
- Automatic single-speed blower
- Improves fireplace efficiency and hot air distribution
|
 |
Traditional Log and Ember Bed Kit
- Includes: six (6) burnt log pieces, white ash, and lava rock
- *This kit is not for use atop a burner.
|
|
|
Wire extension kit for FBB4 variable-speed blower
|
|
|
Flexible Stainless Steel Gas Line
- Stainless steel flexible gas line
- 24" length
- Ideal for the connection of a variety of gas appliances
|
|
|
Platinum Glowing Fireplace Embers
- Platinum glowing fireplace embers
- Can be placed directly on burner
- Includes approximately 1 gram of ember material
|
