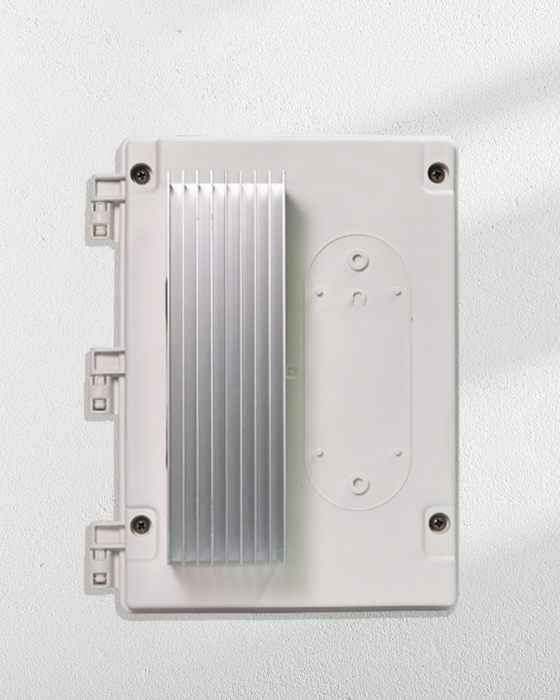

Bromic Heating Affinity Smart-Heat Dimmer Control - 1 Channel

The Bromic Affinity Smart-Heat Dimmer Control, 1 channel (BH3130061), adjusts Bromic Platinum and Tungsten electric heaters in 1% steps from the Bromic Heating app or a schedule. The channel handles up to 6000W.

Key Features

• Heat output adjustable in 1% steps
• Wi-Fi (2.4 GHz) and Bluetooth control through the Bromic Heating app
• Timers, schedules and heating zones; manage more than one site
• Multi-user access with admin controls
• For Platinum Electric and Tungsten Electric heaters (not gas)

What to Order With It

• Heaters: Platinum Electric 2300W, 3400W or 4500W; Tungsten Electric 4000W or 6000W
• More zones: Affinity Dimmer, 2 channel or Affinity Dimmer, 5 channel

Specifications

A licensed electrician must install the control following the Affinity manual and local codes. A 0-10V / Ethernet expansion board is available as an option.

Downloads

• Bromic Affinity Dimmer Control Spec Sheet
• Bromic Affinity Smart-Heat Control Instruction Manual (bromic.com)

Warranty

Bromic Heating warranty for the original owner: one year on Affinity controllers. Under the warranty Bromic supplies a replacement heater or part; labor, removal, reinstallation and shipping are the owner's cost. Read the full terms on the Bromic Heating warranty page.
