Bromic Heating Affinity Smart-Heat Control Expansion Board

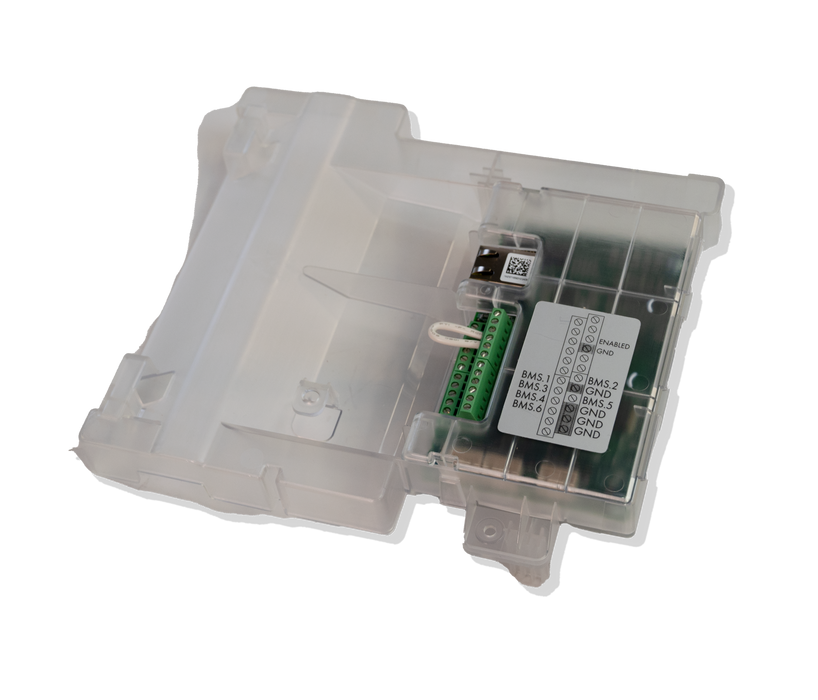

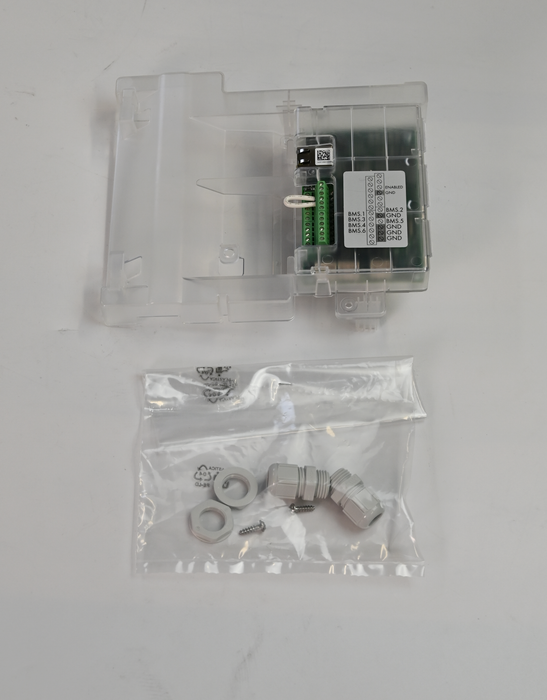

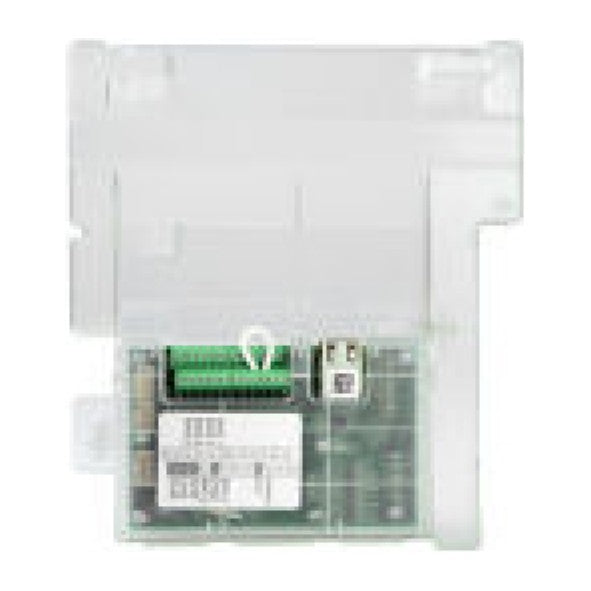

The Bromic Affinity expansion board (BH3130070) adds 0-10V and Ethernet connections to an Affinity Smart-Heat control, for linking the heaters to a building management system. It comes already fitted in the 5 channel Affinity controls and is an add-on for the 1 and 2 channel models.

Key Features

• 0-10V and Ethernet connections
• Fits Affinity On/Off, Dimmer and Eclipse controls
• Included with every 5 channel Affinity control

What to Order With It

• Control: Affinity On/Off, 1 channel or Affinity Dimmer, 2 channel

Specifications

A licensed electrician should fit the board following the Affinity manual.

Downloads

• Bromic Affinity On/Off Control Spec Sheet
• Bromic Affinity Dimmer Control Spec Sheet
• Bromic Affinity Smart-Heat Control Instruction Manual (bromic.com)

Warranty

Bromic Heating warranty for the original owner: one year on Affinity controllers. Under the warranty Bromic supplies a replacement heater or part; labor, removal, reinstallation and shipping are the owner's cost. Read the full terms on the Bromic Heating warranty page.
