The Ortal Holographic 60 is a frameless built-in electric fireplace that uses dual screens to project a three-dimensional flame over a Woodland log set. Flame height and speed are adjustable, there are six flame styles, and a crackling fire sound can be switched on. Configure it as front facing, left corner, right corner or three-sided by removing the side conversion panels. It runs on a standard 120V outlet with a 1200W heater and built-in thermostat, and it is made in Britain. The Holographic also comes in a 74" width.
Key Features
-
Holographic 3D flame: dual-screen projection behind UHD anti-reflective glass, with six flame styles and high, medium or low flame height.
-
Crackling sound: optional fire sound effect you can switch on or off.
-
Frameless glass: no visible frame around the viewing area.
-
Logs included: Woodland log set with amber and clear glass and black vermiculite.
-

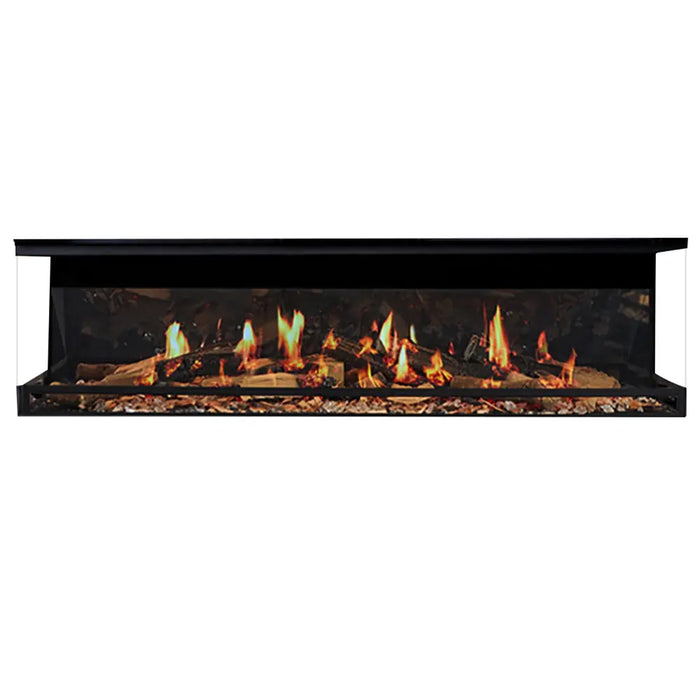

One, two or three-sided: front facing, left corner, right corner or three-sided.
-
Heater with thermostat: 1200W fan heater that runs separately from the flame.
-
Remote, app and voice: Ortal remote, the Ortal Electric Fireplace app (iOS and Android), Amazon Alexa and Google Assistant.
-
Plug-in power: 120V with a 6.5 ft power cord.
Specifications
| Model |
Holographic 60 |
| SKU |
US150TELXXXXXBXXX |

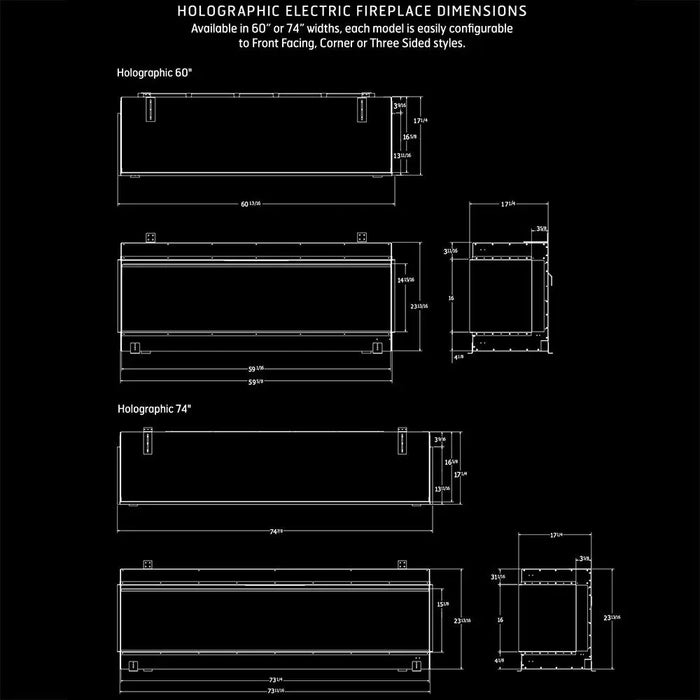

| Framing / unit size (W x H x D) |
60 5/8" x 23 13/16" x 17 1/4" |
| Viewing area |
59 1/16" W x 15 15/16" H |
| Weight |
120 lb |
| Power |
1200W at 120V, 60Hz |
| Power cord |
6.5 ft |
| Configurations |
Front facing, left corner, right corner, three-sided |
| Flame |
Holographic 3D, six styles, adjustable height and speed |
| Included media |
Woodland log set, amber and clear glass, black vermiculite |
| Controls |
Ortal remote, Ortal Electric Fireplace app, Amazon Alexa, Google Assistant |
| Certification |
UL 2021 and CAN/CSA E60335-2-30 |
| Made in |
Britain |

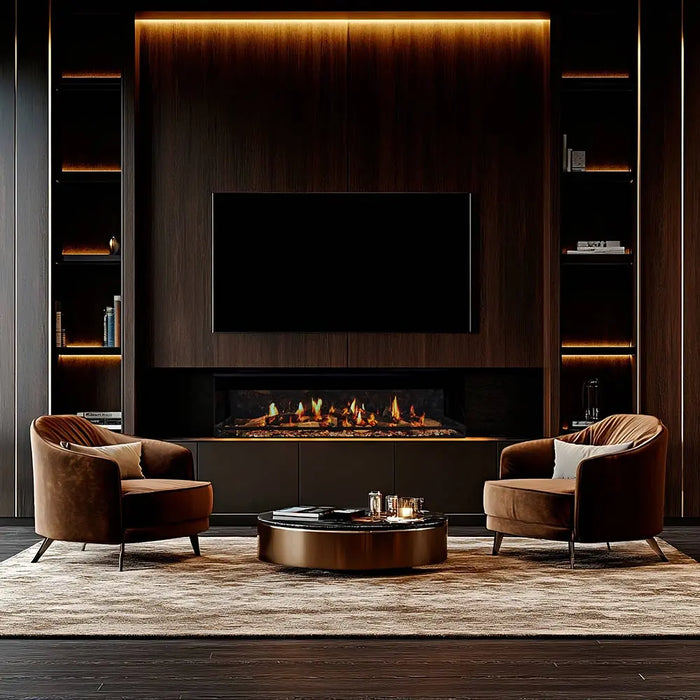

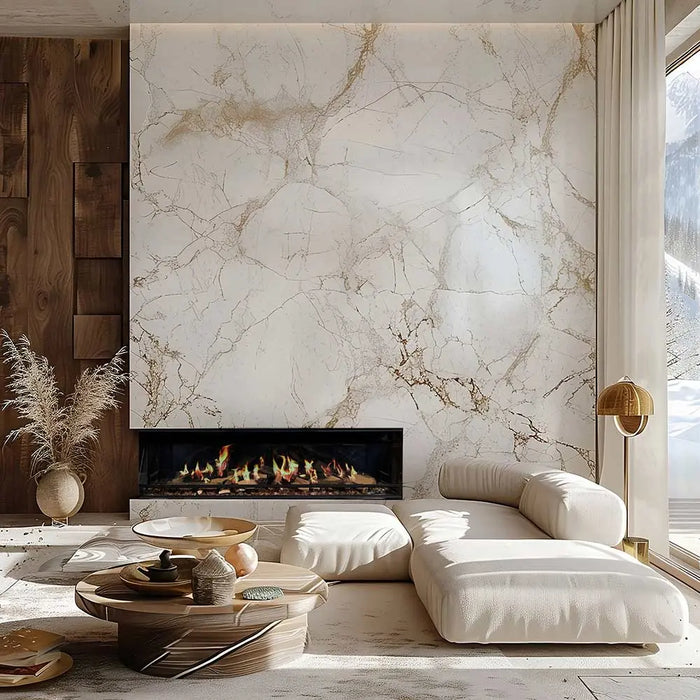

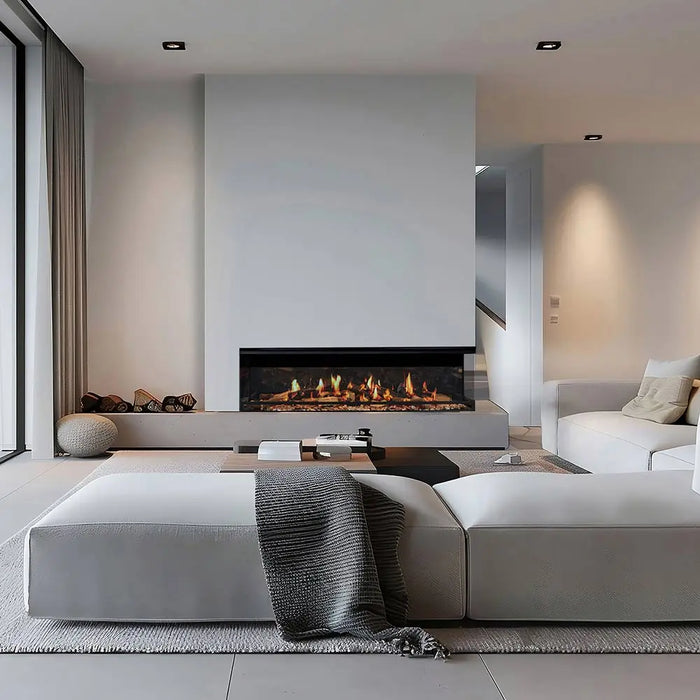

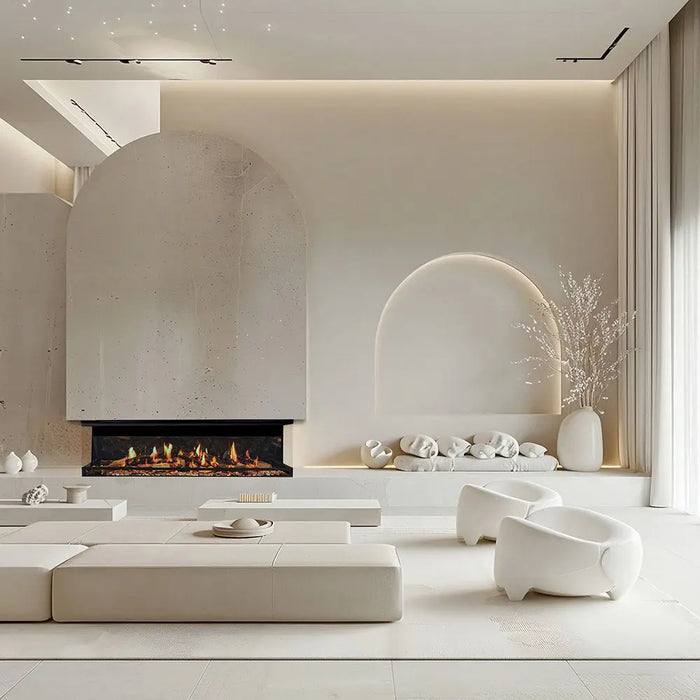

Install it into a stud and drywall frame or an existing chimney breast. It is not made for floating or wall-hung installs. Ortal suggests mounting the unit 16" to 18" off the floor for the best view of the flame. Leave the 2" internal air gap below the unit described in the manual, and keep a TV or artwork at least 8" above the top of the glass. Indoor use only, and not in bathrooms or other wet areas.
Downloads
Warranty
Ortal lists a 5-year limited warranty on the Holographic series, as stated in the Ortal Holographic brochure. Contact us for the full written warranty terms before you buy.
