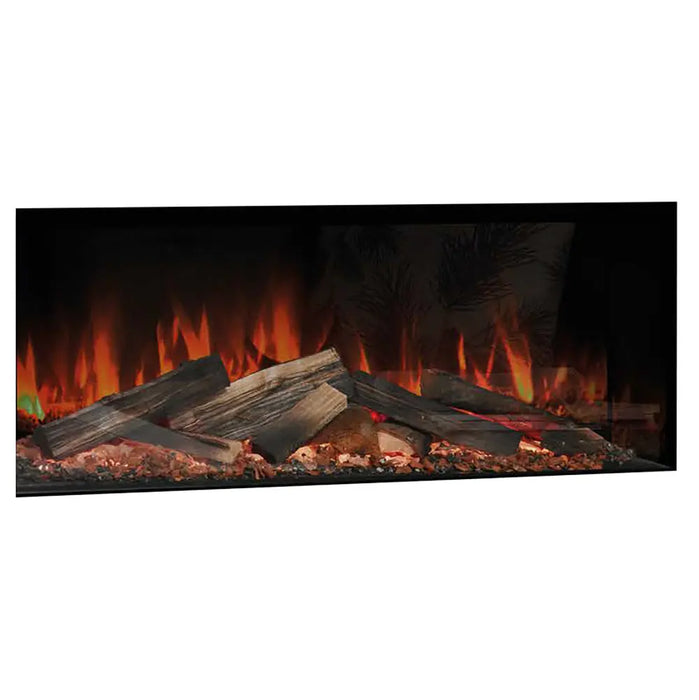

The Evonic E-Lectra 40 is a linear built-in electric fireplace from Ortal, made in Britain. An LED flame effect plays across a Woodland Split ceramic log set behind a glass front, with 11 flame styles and colors to choose from. It ships as a single-sided unit and converts to a corner (two-sided) or three-sided fireplace by removing the side conversion panels. It plugs into a standard 120V outlet, and the 1200W heater runs separately from the flame, so you can enjoy the fire with the heat on or off.
Key Features
-
LED flame effect: adjustable-speed LED flame with 11 styles and colors, plus separate brightness control for the log lighting and the fuel bed (five levels each).
-
Logs included: Woodland Split ceramic log set with wood chippings and black vermiculite comes in the box.
-
One, two or three-sided: front facing, left corner, right corner or three-sided, set by removing side conversion panels.
-
Heater with thermostat: 1200W fan heater with low, medium and high thermostat settings and one-degree adjustment.
-
E-Smart remote and app: the remote comes paired out of the box; the E-Smart Cloud app (iOS and Android, 2.4GHz Wi-Fi) adds separate fire and heater timers.
-
Voice control: works with Amazon Alexa and Google Assistant for power, heat and flame effect.
-
Plug-in power: 120V with a 6.5 ft power cord, so no hardwiring is needed.
What to Order With It
-
Optional E-Lectra log sets: swap the included Woodland Split logs for Silver Birch Split, Woodland Continental or Silver Birch Continental ceramic logs (choose the E-LECTRA 40 size).
Specifications
| Model |
E-LECTRA 40 |
| SKU |
E-LECTRA40 |
| Framing / unit size (W x H x D) |
40 11/16" x 23 1/8" x 11 3/4" |
| Viewing area |
39 9/16" W x 16 5/16" H |
| Weight |
90 lb |
| Power |
1200W at 120V, 60Hz |
| Power cord |
6.5 ft, three-prong grounded plug |
| Configurations |
Front facing, left corner, right corner, three-sided |
| Flame |
LED, 11 styles and colors, adjustable speed |
| Included media |
Woodland Split ceramic logs, wood chippings, black vermiculite |
| Controls |
E-Smart remote, E-Smart Cloud app, Amazon Alexa, Google Assistant |
| Certification |
UL 2021 and CAN/CSA E60335-2-30 |
| Made in |
Britain (CK Fires Ltd / Evonic) |

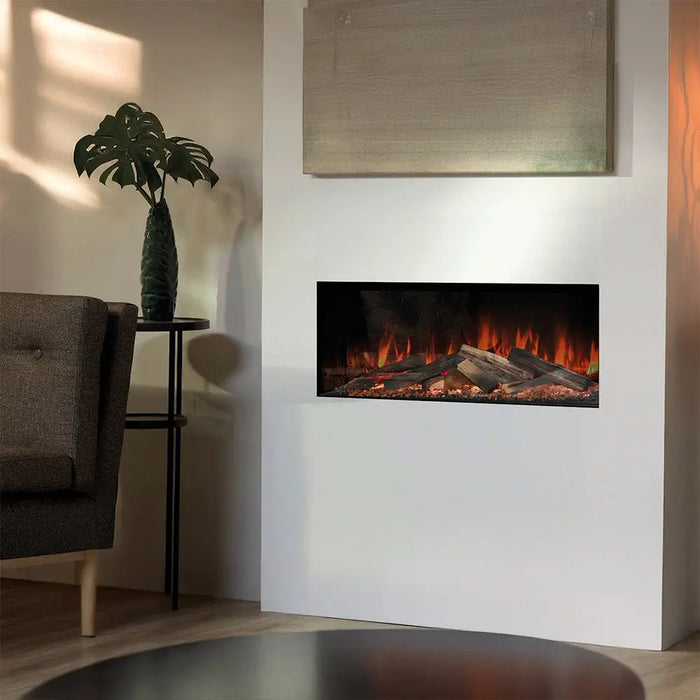

Install it into a stud and drywall frame or an existing chimney breast, flush or recessed. It is not made for floating or wall-hung installs. Leave the 2" internal air gap below the unit described in the manual, and keep a TV or artwork at least 8" above the top of the glass. Indoor use only, and not in bathrooms or other wet areas.
Downloads
Warranty
Ortal lists a 5-year limited warranty on the E-Lectra range: the first year covers parts and labor, and years two through five cover parts supplied by Ortal. Consumable items such as glass, LEDs, LED boards, filters and power supplies are covered for the first 12 months. Coverage starts on the date of purchase and needs proof of purchase from an authorized Ortal dealer. Read the full terms in the warranty section of the E-Lectra installation and user manual (V12).
