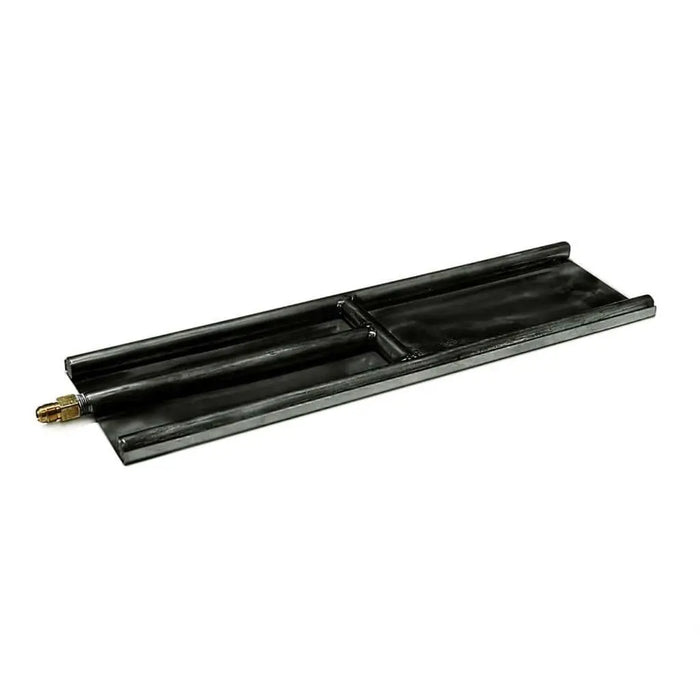

Grand Canyon 18" to 42" H-Style Assembled Glass Burner
Grand Canyon 18" to 42" H-Style Assembled Glass Burner offers a premium burner system for your fireplace. With its impressive H-burner design, this burner offers a full and lively flame inside of your fireplace.
Designed for use with either reflective glass or lava rock, this burner allows for either a contemporary or more traditional look for your hearth. Grand Canyon H-Style glass burners are available in sizes ranging from 18 inches to 42 inche, while three different valve options are available to meet the needs of your space.
Features
-
Standards: Built to ANSI Standards
-
Usage: Indoor
-
Materials: Stainless Steel Chassis
-
Warranty: Standard Model Lifetime Warranty Indoors
-
Piping: ½” Piping, ¾” Piping on (48”-120”)
-
Fittings: N/A
-
Convertible to LP: NG Burner Convertible to LP
-
Media: Includes Connection Fittings
-
Pilot: Concealed Pilot Mounting Brackets
-
Design: Fully Welded System with Sandless Design
Configurable Options
-
Burner Size - 18", 24", 30", 36" and 42-inch options
-
Fuel Type - Choose from Propane or Natural Gas
-
Media - Lava Rock Granules or Premium Reflective Fire Glass
-
Valve Kit - Millivolt and Remote System, Modulating Millivolt and Remote System and Battery Electronic and Remote System
Specifications
18-Inch
- Front Width: 30"
- Rear Width: 18"
- Depth: 12"
- Height: 14"
- BTU Rating NG: 52K
- BTU Rating LP: 49K
|
24-Inch
- Front Width: 36"
- Rear Width: 24"
- Depth: 12"
- Height: 14"
- BTU Rating NG: 64K
- BTU Rating LP: 66K
|
30-Inch
- Front Width: 42"
- Rear Width: 30"
- Depth: 14"
- Height: 14"
- BTU Rating NG: 76K
- BTU Rating LP: 79K
|
36-Inch
- Front Width: 48"
- Rear Width: 36"
- Depth: 14"
- Height: 14"
- BTU Rating NG: 81K
- BTU Rating LP: 83K
|
42-Inch
- Front Width: 54"
- Rear Width: 42"
- Depth: 14"
- Height: 14"
- BTU Rating NG: 90K
- BTU Rating LP: 85K
|
Options & Accessories
|
Black Granules -10 lbs
- 10 pound bag
- Optional accessory
- Black lava granules
- Enhances the realistic appearance of gas logs
|
Click to see Reflective Fire Glass
|
Terra Copper
- Terra Copper
- Indoor/outdoor use
- 1/2" reflective premium fire glass
- Compatible with all Grand Canyon glass and fire pit burners
|
|
Vesper Black
- Vesper Black
- Indoor/outdoor use
- 1/2" reflective premium fire glass
- Compatible with all Grand Canyon glass and fire pit burners
|
|
|
Apollo Bronze
- Apollo Bronze
- Indoor/outdoor use
- 1/2" reflective premium fire glass
- Compatible with all Grand Canyon glass and fire pit burners
|
|
|
Krystallo Diamond
- Krystallo Diamond
- Indoor/outdoor use
- 1/2" reflective premium fire glass
- Compatible with all Grand Canyon glass and fire pit burners
|
|
|
Adriatic Topaz
- Adriatic Topaz
- Indoor/outdoor use
- 1/2" reflective premium fire glass
- Compatible with all Grand Canyon glass and fire pit burners
|
|
|
Poseidon Blue
- Poseidon Blue
- Indoor/outdoor use
- 1/2" reflective premium fire glass
- Compatible with all Grand Canyon glass and fire pit burners
|
|
|
Amber Diamond
- Amber Diamond
- Indoor/outdoor use
- 1/2" reflective premium fire glass
- Compatible with all Grand Canyon glass and fire pit burners
|
