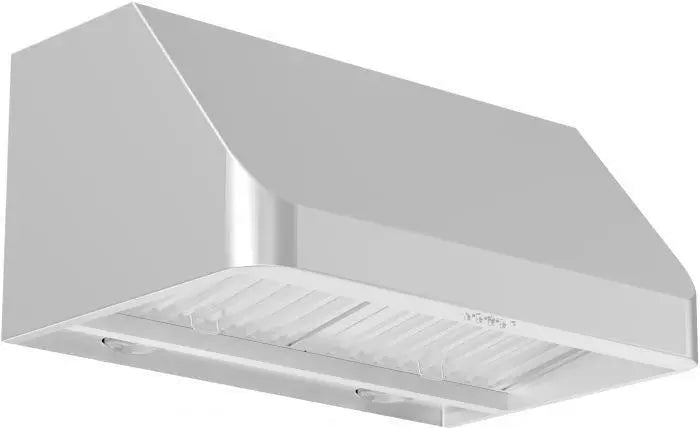

ZLINE 30" Convertible Vent Under Cabinet Range Hood in Stainless, 523-30

by ZLINE
SKU 523-30
Original price $1,349.99 - Original price $1,349.99
Original price
$1,349.99
$1,349.99 - $1,349.99
Current price $1,349.99

Free Shipping and No Sales Tax on All Orders

  • FREE SHIPPING : All Over United States

  • NO SALES TAX : All USA Orders/except WI

  • SPEAK TO AN EXPERT : Call 888-486-2909 or email at cs@dreamwoodliving.com

ZLINE 30" Convertible Vent Under Cabinet Range Hood in Stainless, 523-30

Luxury isn’t meant to be left desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Convertible Vent Under Cabinet Range Hood in Stainless Steel (523) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.

OPTIONS & ACCESSORIES

Ductless/Recirculate Option - Yes, requires RK-30 attachment
Rear Ducting Option - Yes, requires 520/523/527-RDUCT attachment
Ceiling Heights Options:
12", 2 Pc. Chimney - requires 520/523/527-30-1FTEXT
24", 2 Pc. Chimney - requires 520/523/527-30-2FTEXT
36", 2 Pc. Chimney - requires 520/523/527-30-3FTEXT

Crown Molding(s) -
NA
Certified Outdoor Use -
No
Available in -
36"(523-36), 42"(523-42), 48”(523-48)

Key Features

  • Convertible range hood - this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number RK) to reduce harmful odors
  • Easy-to-use push button controls let you easily control fan speed and lighting
  • 4-Speed fan control (480/560/650/700 CFM) to choose the appropriate air flow for your cooking situation
  • 700 CFM air flow (highest speed setting) efficiently exhausts large amounts of air away from your cooking area
  • Ductwork easily connects to the top of the range hood for external venting

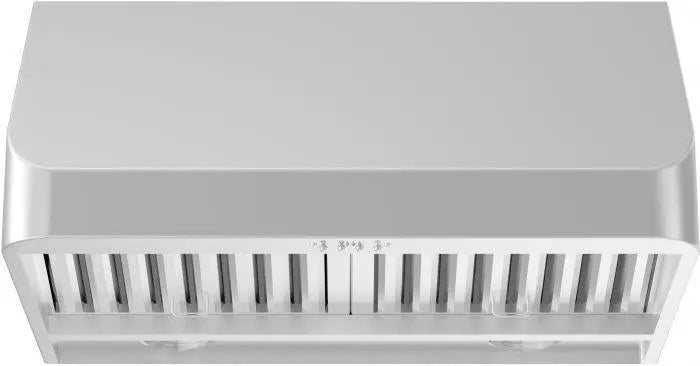

  • Dishwasher-safe Stainless Steel Baffle Filters
  • LED lighting illuminates the cooktop beneath the hood

Specifications

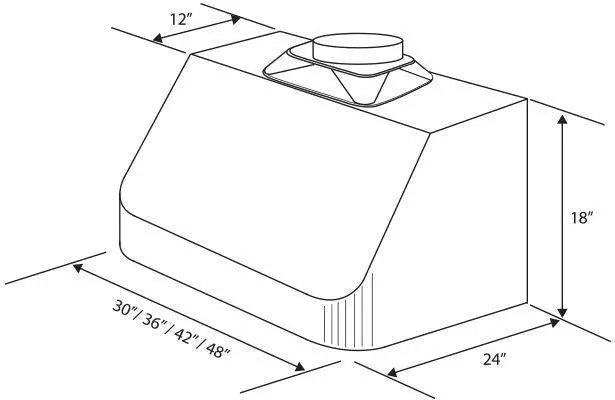

Dimension:
30" W x 24" D x 18" H

Venting Size:
8" Outlet (Transition piece to round ducting included)
Airflow (Q/L/M/H): 480/560/650/700 (CFM) (CFM)
Lighting: 2 Directional LED Lights (3-Watt)
Hood is equipped with heat lamp, white heat lamp bulbs sold separately through local hardware store
Noise Level: 48/55/63/65 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 700 CFM/4-Speed Motor
Mount Type: Under Cabinet Mounted
Speeds: 4 speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters:
Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 19g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Features: Manufactured by ZLINE Kitchen & Bath
Model No. 523-30 (ETL Listed)
UPC: 814118020399
Certifications: ETL and UL Listed


Documents & Downloads

Installation/User Manual
