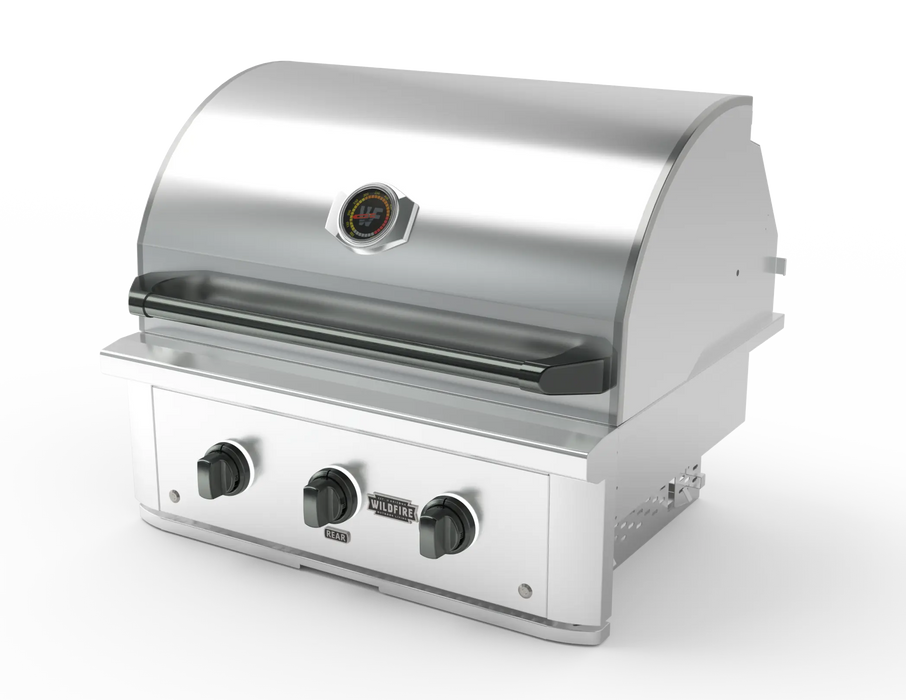

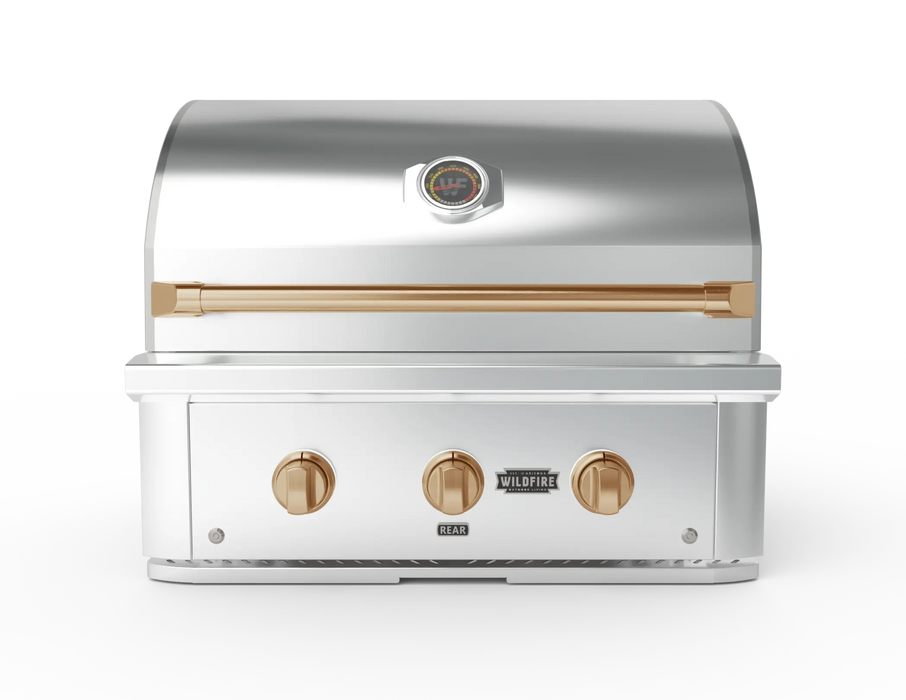

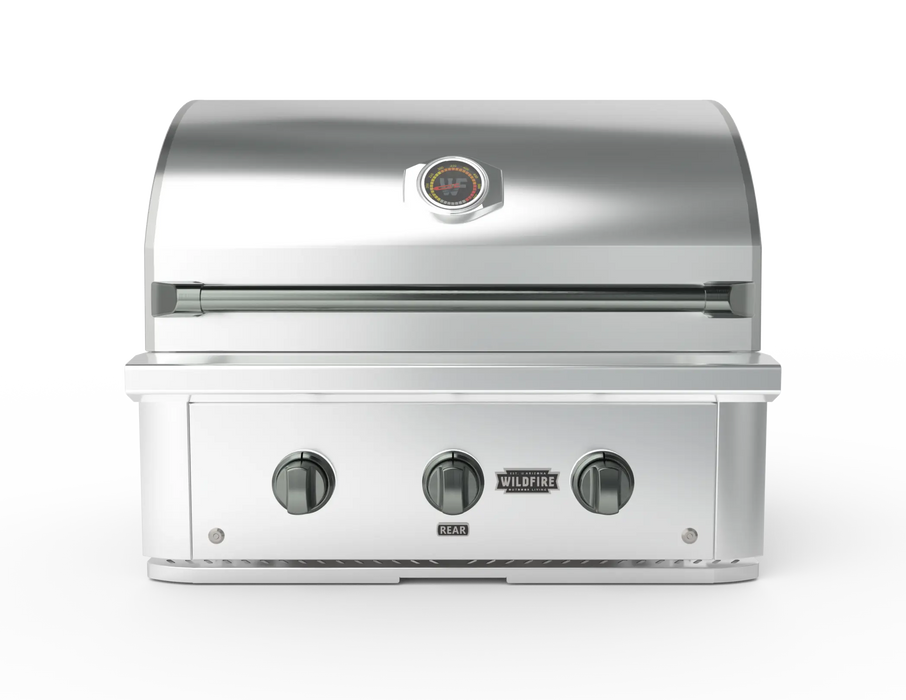

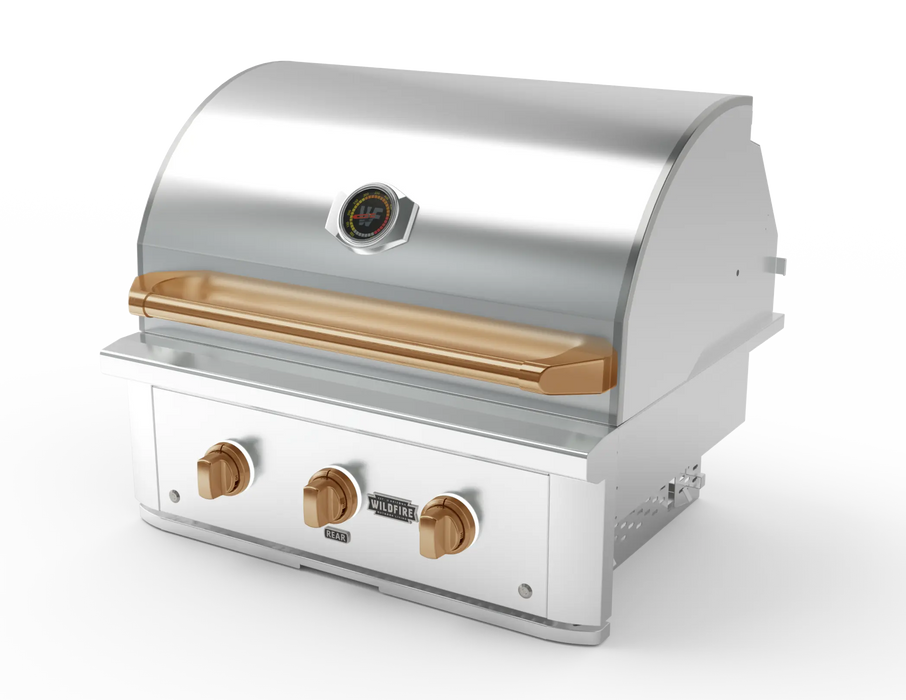

Wildfire Ranch Pro 30" Built-In Gas Grill, 304 Stainless Steel
The Wildfire Ranch Pro 30" built-in gas grill in 304 stainless steel is order number WFPRO30G-SS-NG for natural gas and WFPRO30G-SS-LP for liquid propane. It is a two-burner, 42,000 BTU grill that drops into a 29" W x 21-1/2" D x 10-1/2" H cut-out and gives you 685 sq. in. of cooking surface: 526 sq. in. primary and 159 sq. in. secondary.
The two cast stainless steel burners put out 32,000 BTU between them, and a 10,000 BTU infrared rear burner is built in for rotisserie cooking. Stainless steel heat dividers separate the burners so each one works as its own zone, and the warming rack stows away when you need the full height for the spit. The same grill is also made in black 304 stainless steel, and it can sit on a Wildfire cart if you would rather not build it in.
Key Features
- Two triangular-top cast stainless steel burners, shaped so grease runs off the burner ports
- 10,000 BTU infrared rear rotisserie burner (rotisserie kit sold separately)
- Laser-cut 304 stainless steel cooking grates
- Stainless steel heat dividers between burners, and flame tamers over them
- Seamlessly welded hood on a spring assist, with a temperature gauge
- Full-width warming rack that stows away
- Two interior halogen lights and LED-lit knob bezels
- Piezo flame-thrower ignition
- Traditional 304 stainless steel construction
What to Order With It
Pick natural gas or liquid propane above. Nothing else is required to install the grill in a non-combustible island.
Optional:
Specifications
| Order Numbers |
WFPRO30G-SS-NG (natural gas)
WFPRO30G-SS-LP (liquid propane) |
| Cut-Out Dimensions |
29" W x 21-1/2" D x 10-1/2" H |
| Overall Dimensions |
30" W x 27-1/8" D x 24-7/8" H |
| Main Burners |
2 cast stainless steel burners, 32,000 BTU total |
| Rear Burner |
10,000 BTU infrared rotisserie burner |
| Total Output |
42,000 BTU |
| Cooking Area |
685 sq. in. (526 sq. in. primary, 159 sq. in. secondary) |
| Construction |
Traditional 304 stainless steel |
| Cooking Grates |
Laser-cut stainless steel |
| Lighting |
Two interior halogen lights; LED-lit knob bezels |
| Ignition |
Piezo flame-thrower |
| Fuel |
Natural gas or liquid propane (choose when ordering) |
| Gas Connection |
3/8" |
| Electrical |
120V GFCI outlet for the lighting transformer |
| Clearance to Combustibles |
24" in every direction |
| Configuration |
Built-in, or freestanding on the optional cart |
| Use |
Outdoor only |
| Listing |
ETL listed to ANSI Z21.58-2022 |
Installation Notes
- For outdoor use only, in a well-ventilated area. Never install it in a garage, breezeway, shed or other enclosed space.
- Keep at least 24" between the grill and any combustible material, in every direction. Wildfire makes its warranty conditional on this clearance.
- Do not place the grill under combustible construction unless an outdoor-rated vent hood is installed above it.
- If a wall or partition behind the grill would block ventilation, leave at least 7" behind it. With nothing behind it, allow 2" so the hood can open fully. Leave about 6" of counter on each side if you plan to use the rotisserie.
- The island needs at least two vents of 20 sq. in. each in every cabinet that holds a gas supply or connection. A propane cylinder must sit in its own vented compartment, separate from the appliance.
- Gas supply: 4" W.C. for natural gas, 11" W.C. for propane. The appliance is set up at the factory for the fuel you order, and the regulator for that fuel is included.
- The lights run from the included transformer, which plugs into a 120V GFCI outlet.
- Wildfire notes that tape measures and appliance bodies can vary by 1/8", so measure the unit you receive before the island is cut.
Warranty
Wildfire covers this appliance with a limited warranty for the original purchaser, in normal residential use, with proof of purchase:
-
Limited lifetime: stainless steel housing and frame, cooking grids, warming rack and flavor grids, cast stainless and infrared burners.
-
Limited five-year: valves, manifold and ignition systems.
-
Limited two-year: electric and plastic components.
-
Limited one-year: all parts and components, including shipping and handling, plus a labor credit on pre-approved repairs.
Installations in common areas shared by more than one household carry a limited two-year warranty, and the warranty does not apply to rental or commercial use. Surface corrosion, scratches and discoloration from normal use are not covered. Register the appliance with Wildfire before making a claim. Full terms are in the Wildfire limited warranty.
Manuals and Documents
