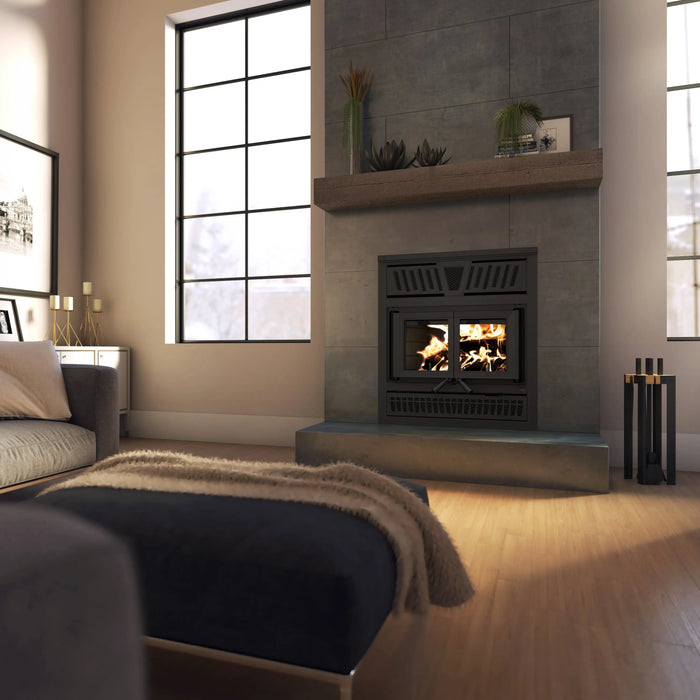

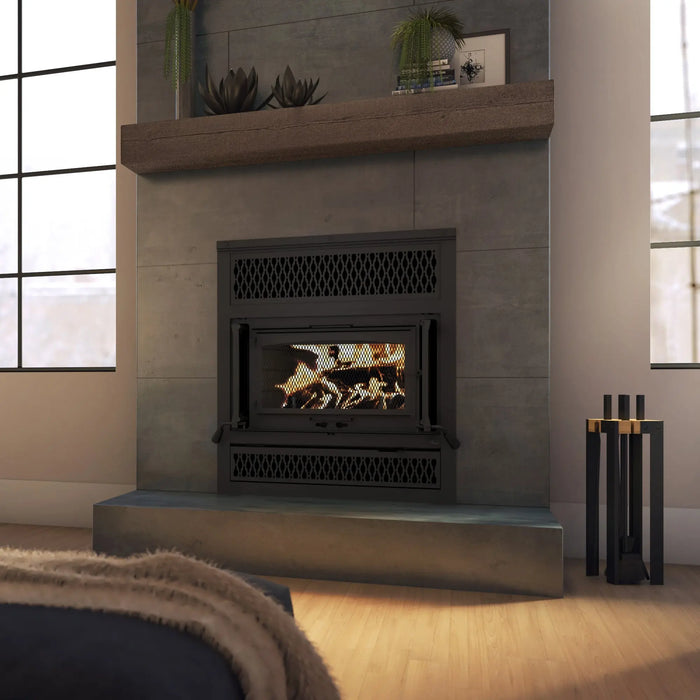

Valcourt Dallaire II Wood Burning Fireplace — FP18R
The Valcourt Dallaire II Wood Burning Fireplace (FP18R) embodies comfort, refinement and high-efficiency performance. Expertly crafted in Canada, this premium wood burning fireplace features retractable cast iron doors that slide discreetly to each side, creating a stunning, unobstructed view of the flames. Designed for both elegance and functionality, it enhances any living space while delivering powerful, reliable heat.
Rated for 750 to 2,500 square feet at a maximum output of 85,000 BTU/h, the Dallaire II offers long-lasting, efficient combustion with the doors closed, or an authentic open-hearth experience when paired with the optional firescreen (AC01226). With customizable louvre styles and optional ROBAX® NightFlame ceramic glass, this built-in fireplace blends timeless craftsmanship with modern innovation.
Features
-
Retractable cast iron doors — a sliding door system that gives a full, unobstructed flame view.
-
High-efficiency wood heating — 750 to 2,500 sq ft at up to 85,000 BTU/h, with a 71.6% optimum overall efficiency.
-
Open or closed door operation — efficient combustion when closed; authentic open-fire ambiance with the optional firescreen (AC01226).
-
Customizable faceplate (5 louvre styles) — personalize the fireplace to match your décor.
-
Optional ROBAX® NightFlame ceramic glass — conceals the firebox when not in use and gives a clear flame view while burning.
-
176 CFM blower, with optional fresh air intake, forced air and gravity hot air kits.
-
Premium Canadian craftsmanship — durable materials and precision engineering for long-lasting performance.
-
Elegant built-in design — zero clearance at the back, sides and floor, for luxury hearth installations.
What to Order With It
The Dallaire II FP18R needs a faceplate and a faceplate louver to be complete. Choose from each required group below.
Osburn and Valcourt are both built by SBI and share many parts, so some links below open our Osburn listing for the same part number.
Required – faceplate:
Required – faceplate louver (choose one):
Optional:
Performance
| Maximum heat output (dry cordwood) |
85,000 BTU/h (24.9 kW) |
| Overall heat output range |
25,900 – 78,200 BTU/h (7.6 – 22.9 kW) |
| Recommended heating area |
750 – 2,500 sq ft (70 – 232 m²) |
| Average overall efficiency (HHV) |
65% |
| Optimum overall efficiency |
71.6% |
| Average particulate emissions |
1.9 g/h (EPA / CSA B415.1-10) |
| Average carbon monoxide |
1.7 g/min |
| Maximum burn time |
8 hours |
| Overall firebox volume |
3.04 cu ft (0.086 m³) |
| EPA usable firebox volume |
2.61 cu ft (0.074 m³) |
| Recommended log length |
16" (406 mm), loaded east-west |
| Blower |
Up to 176 CFM |
Framing Dimensions
Give these to your builder before framing. Note the taller header height on this model, and the alternate widths — a fresh air intake or a forced air kit needs a wider framed opening for a centred installation:
| Framing width — standard |
41 7/8" (1,062 mm) |
| Framing width — with fresh air intake |
60 3/4" (1,543 mm) |
| Framing width — with forced air kit |
72 3/4" (1,848 mm) |
| Height to first header |
49 5/8" (1,260 mm) |
| Framing depth |
24 1/2" (622 mm) |
| Total framing height |
80" (2,032 mm) |
Clearances to Combustible Material
| Maximum mantel depth |
3" (76 mm) |
| Minimum mantel distance from the door opening |
8" (203 mm) |
| Side wall, measured from the door opening |
21" (533 mm) |
| Minimum distance to the wall in front |
36" (914 mm) |
| Minimum ceiling height, measured from the base of the fireplace |
80" (2,032 mm) |
| Enclosure — back, sides and floor beneath the fireplace |
0" (zero clearance) |
| Chimney clearance to combustibles |
2" (51 mm) |
| Minimum chimney height |
15' (4.6 m) |
The 21" side wall clearance is considerably more generous than the Lafayette II's 13", so the Dallaire II needs a wider wall than its framing width alone suggests. Worth checking early.
Specifications
| Specifications |
Details |
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Fuel type |
Dry cordwood |
| Maximum log length |
20" |
| Log positioning |
Loading over width |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
UL 103 HT (2100 °F) |
| Minimum chimney height (feet) |
15' |
| Baffle type |
C-Cast |
| Approved for a mobile home installation |
No |
| Shipping Weight |
525 lb (238 kg) |
| Door type |
Double, retractable, glass with cast iron frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
18 3/4" X 11" |
| Glass air-wash system |
N.A. |
| Overall dimension (Height) |
49 1/8" |
| Overall dimension (Width) |
41 7/8" |
| Overall dimension (Depth) |
29" |
| Door opening – dimension (Height) |
9 5/8" |
| Door opening - dimension (Width) |
20 3/4" |
| Firebox – dimension (Height) |
16 7/8" |
| Firebox – dimension (Width) |
18 3/4" |
| Firebox – dimension (Depth) |
17" |
| Moulded refractory bricks |
N.A. |
| Stainless-steel secondary-air system improving gas combustion |
N.A. |
| USA standard (emissions) |
EPA |
| USA standard (safety) |
UL 127 |
| Tested and listed as per applicable standards |
By an accredited laboratory |
| Warranty |
Limited lifetime |
