TrueFlame Power Burner Liner - GL-TFPB

TrueFlame Power Burner Liner - GL-TFPB

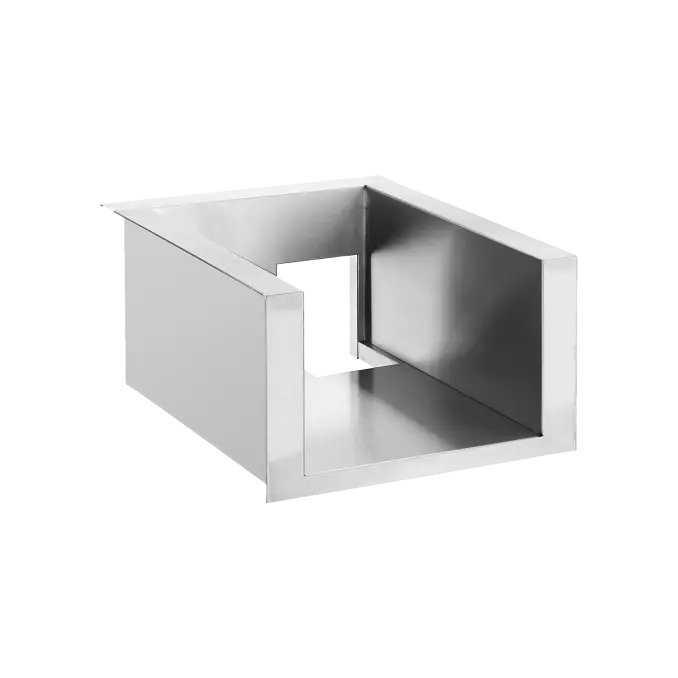

The TrueFlame GL-TFPB is a double-walled #304 stainless steel insulating jacket for the TrueFlame power burner (TFPB or TFPBL). It is required when the power burner is installed in a combustible surround such as wood or plastic framing.

Key Features

• #304 stainless steel, easy to clean
• Inch-thick double-walled insulation blocks heat from reaching combustible surfaces or framing such as wood or plastic
• Double-walled design protects the appliance chassis against corrosion
• Made in the USA
• Fits the TrueFlame power burner, TFPB and TFPBL

What to Order With It

Optional:

• TrueFlame Power Burner Cover (GRILLCOV-TFPB): Cover for the power burner

Specifications

Dimensions

Installation

• Required when the TFPB power burner is installed in a combustible surround.
• Cut the island opening to the liner cutout (16 1/4" W x 20 1/4" D x 9 1/4" H), not to the power burner cutout.
• The power burner's own clearance, ventilation and gas requirements still apply.

Please Note

• Confirm the cutout against the GL-TFPB line drawing or with us before cutting. The line drawing recommends adding 1/4" to the inner dimension.

Warranty

Gold Standard Lifetime Warranty on construction, workmanship and materials for stainless steel parts, including grill and side burner liners. Register online within 30 days of purchase; the warranty covers replacement parts only.

Documents

• TrueFlame Double Side Burner and Power Burner Manual (rev. 07/30/26)
• GL-TFPB Line Drawing
• TrueFlame Cutout Dimensions Sheet (rev. 09/09/26)
