TrueFlame Drop-In Infrared Sear Burner for TrueFlame TF Series

TrueFlame Drop-In Infrared Sear Burner for TrueFlame TF Series

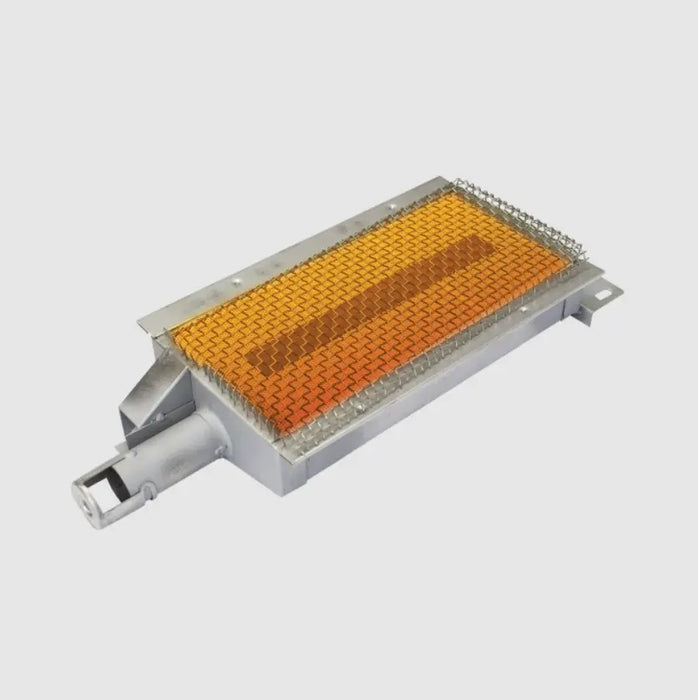

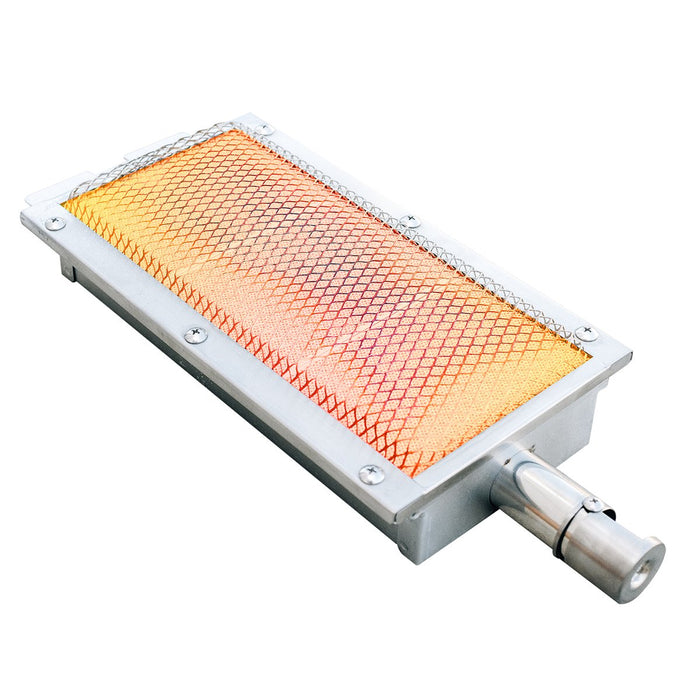

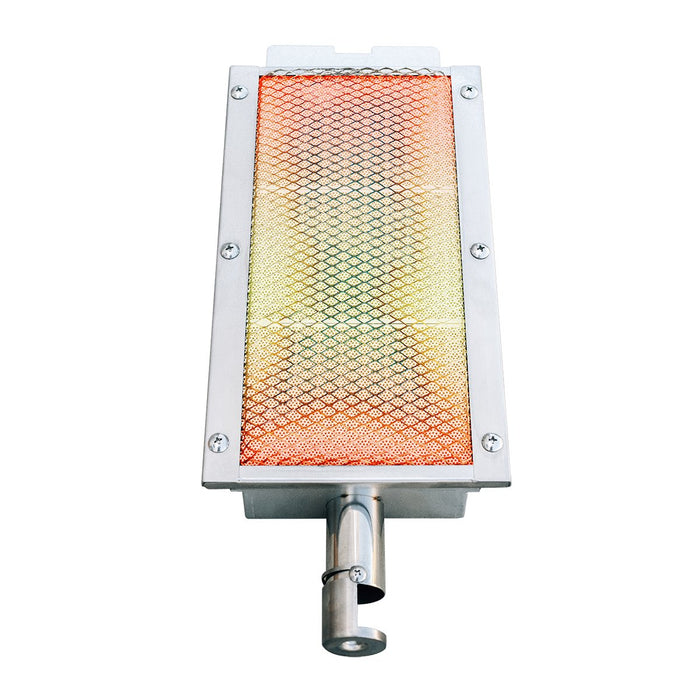

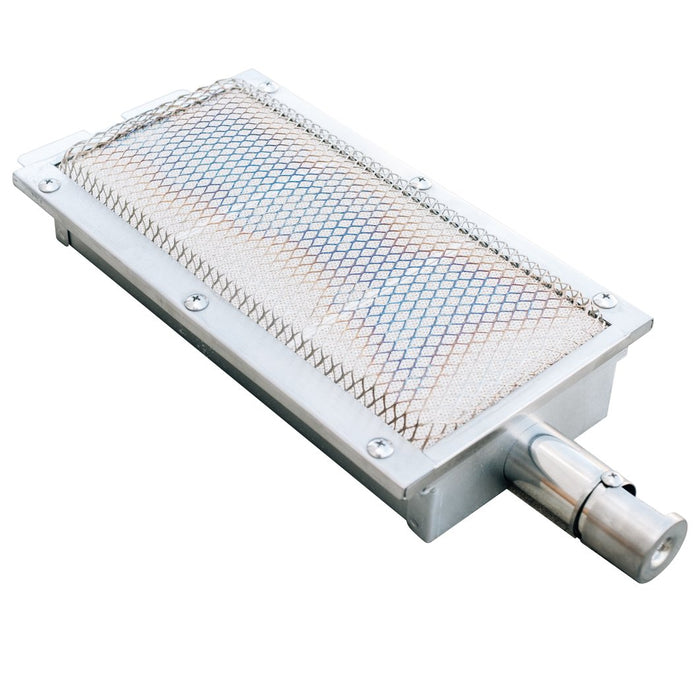

The TrueFlame TF-IRB is a 14,000 BTU ceramic infrared sear burner that drops in to replace one main burner on a TrueFlame TF Series grill. It fits the TF25, TF32 and TF40 grills in natural gas or propane, and is not compatible with TFE Series grills.

Key Features

• 14,000 BTU ceramic infrared sear burner
• Plug-and-play drop-in design
• Replaces one existing main burner on a TrueFlame TF Series grill
• Adds a high-heat sear zone while keeping the other main burners for regular grilling
• Preferred position is the far left of the grill
• Fits TF Series grills only (TF25, TF25L, TF32, TF32L, TF40, TF40L); not compatible with TFE Series grills

Specifications

Dimensions

Installation

• The preferred position is the far left of the grill, which gives a sear zone and keeps the most main-burner grilling space.
• Remove the cooking grate and burner covers, the cotter pin that holds the main burner (if fitted), and the main burner.
• Remove the cross tube between the main burners if needed so the sear burner rests flat.
• Set the sear burner with the center of the orifice in the center of the burner and the back resting flat on the rear of the grill. Seat the locating pin at the rear correctly.
• It runs on the grill's existing valve for that burner position. Always open the hood before lighting.

Please Note

• For TrueFlame TF Series grills only. It is not compatible with TrueFlame TFE Series grills. Contact us if you are unsure which series you have.

Warranty

Covered by the TrueFlame Gold Standard Lifetime Warranty.

Documents

• TrueFlame TF Series Grill Manual (TF25, TF32, TF40) (rev. 08/27/26)
