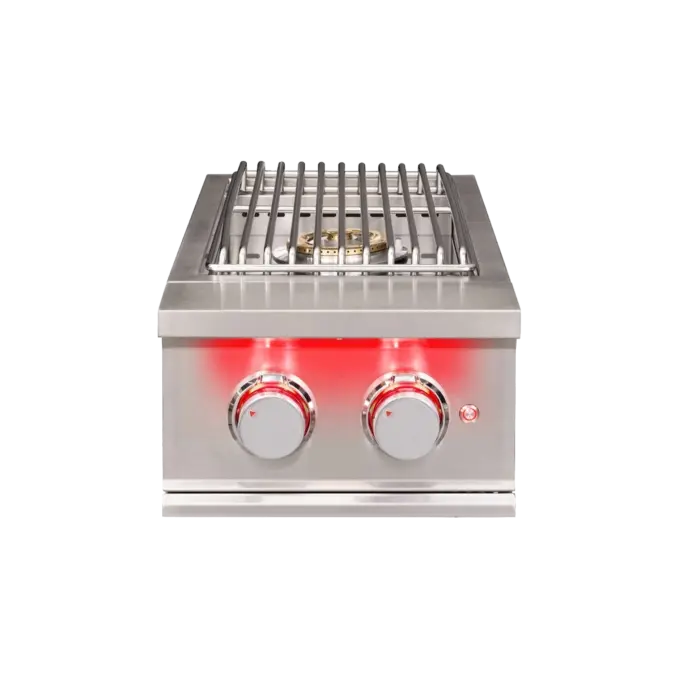

TrueFlame Double Side Burner - TFSB2
The TrueFlame double side burner is a built-in unit with two ring burners (24,000 BTU total), a removable stainless steel lid and LED front-panel lighting. Choose TFSB2 for natural gas or TFSB2L for liquid propane; orifices for the other gas are included.
What's Included
- Cooking grate
- Lid and lid handle
- Drip tray
- Transformer for the LED lighting
- Orifices for the other gas type (conversion)
Key Features

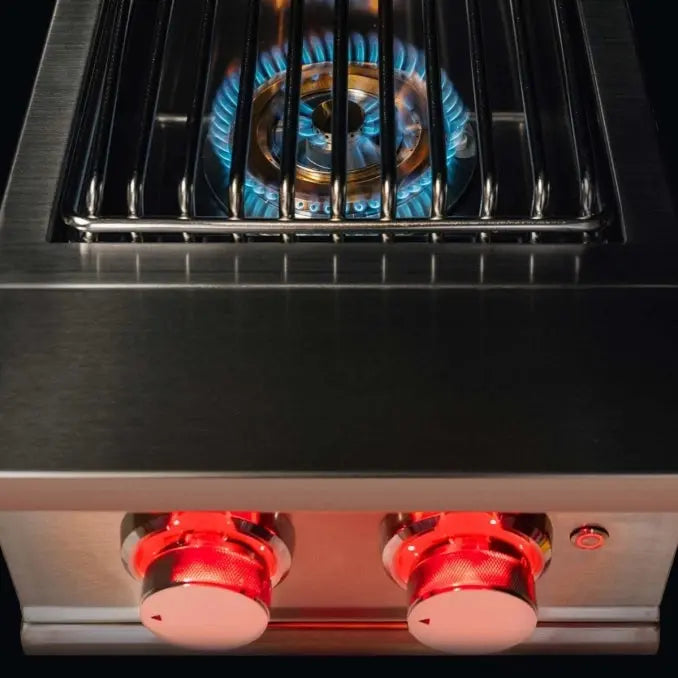

- Two ring burners, 24,000 BTU total, for pan-searing, frying and finishing sauces

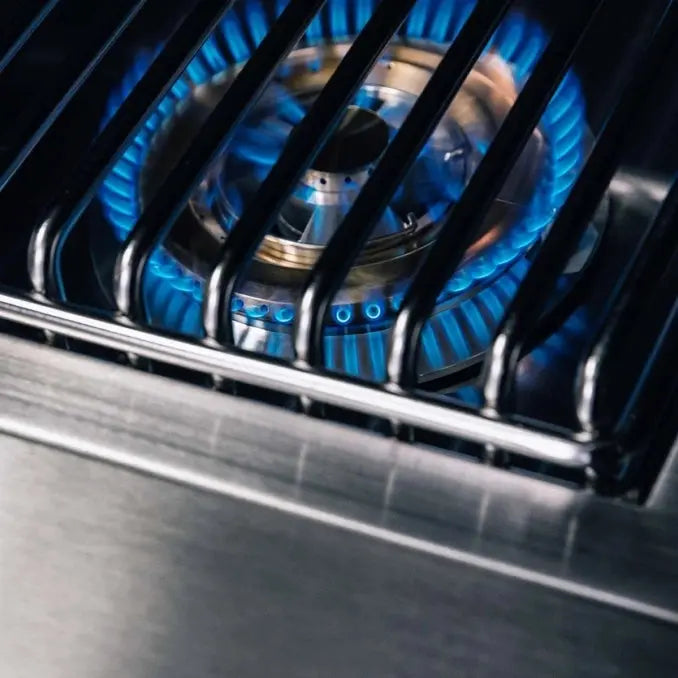

- Inner round brass-plated burner and outer stainless steel burner

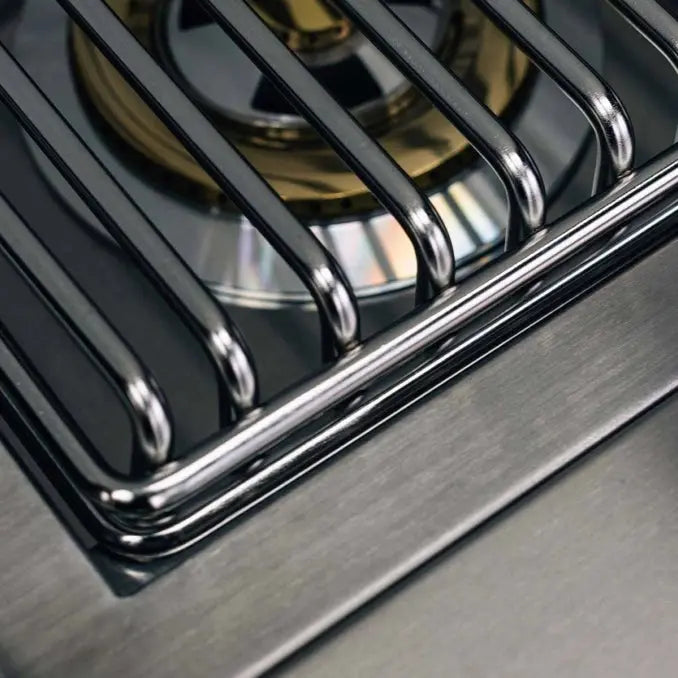

- 8mm round cooking grate
- 205 sq. in. cooking area

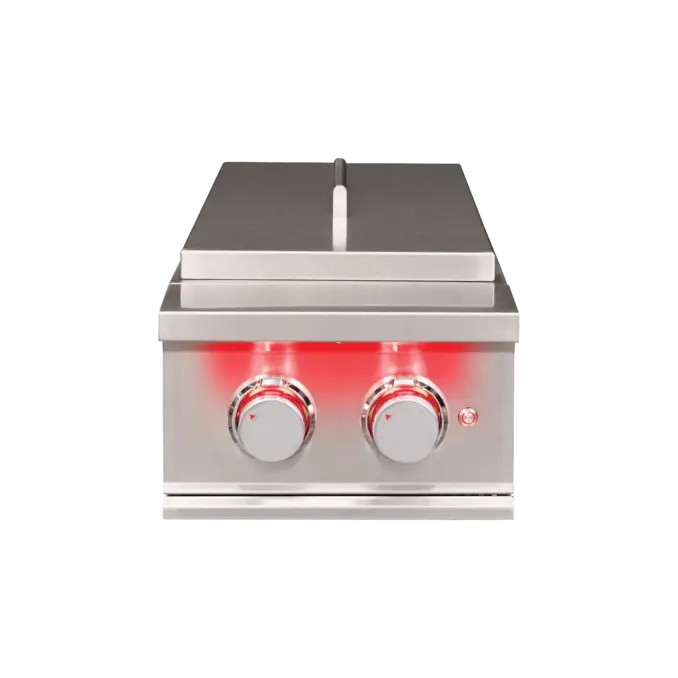

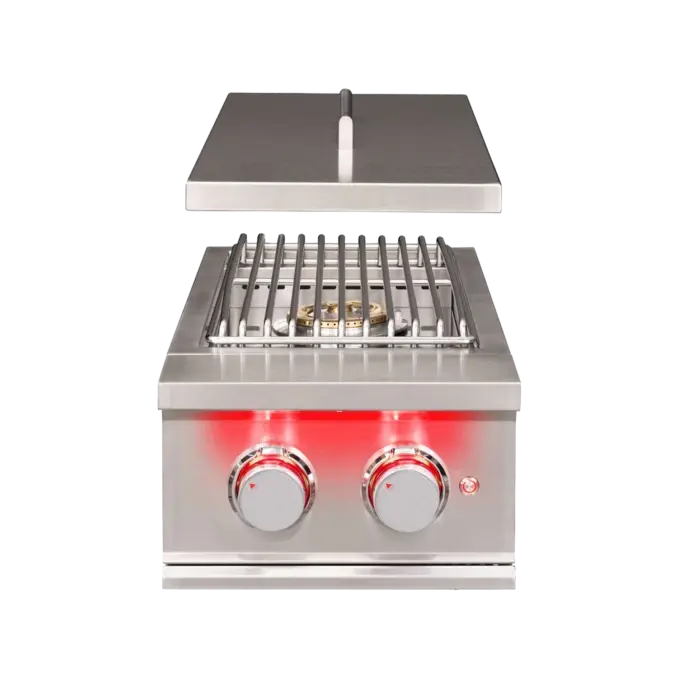

- Removable stainless steel lid protects the grate and burners

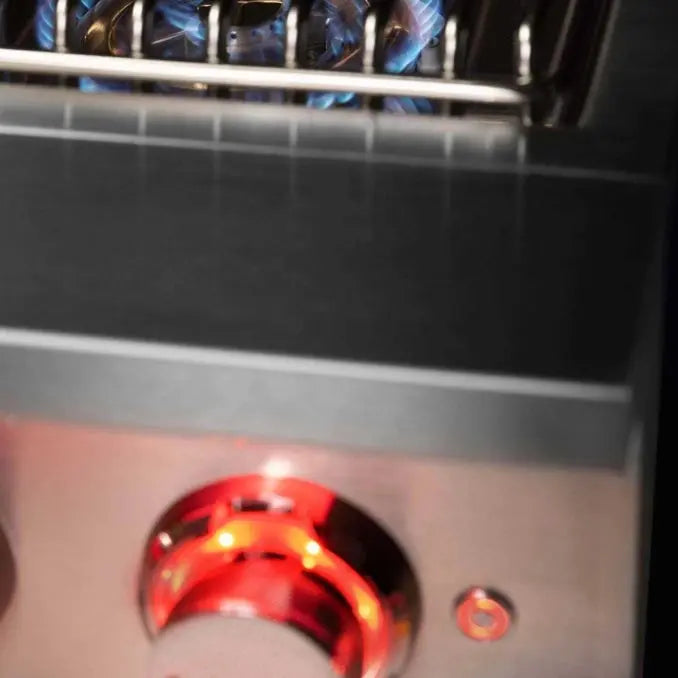

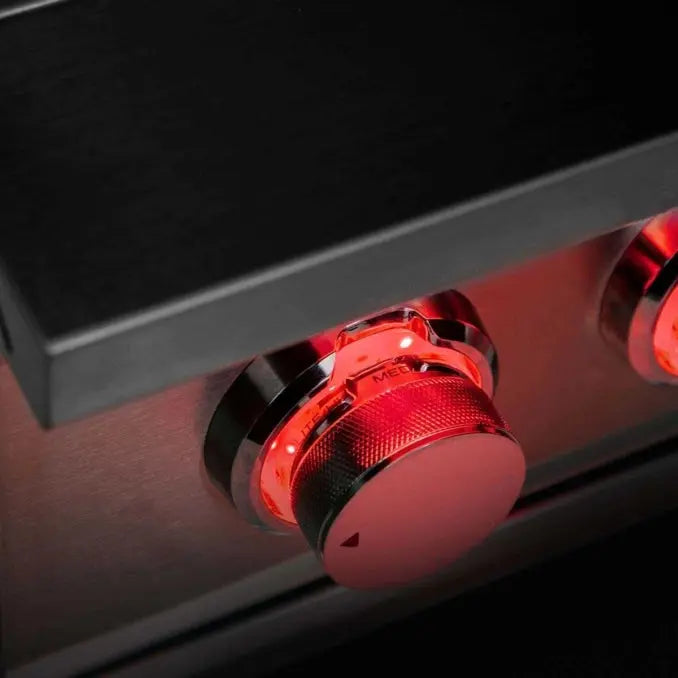

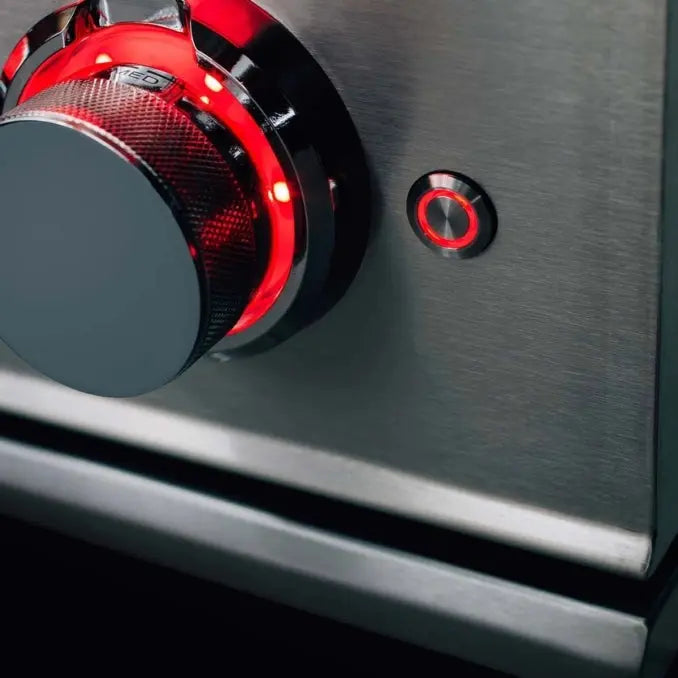

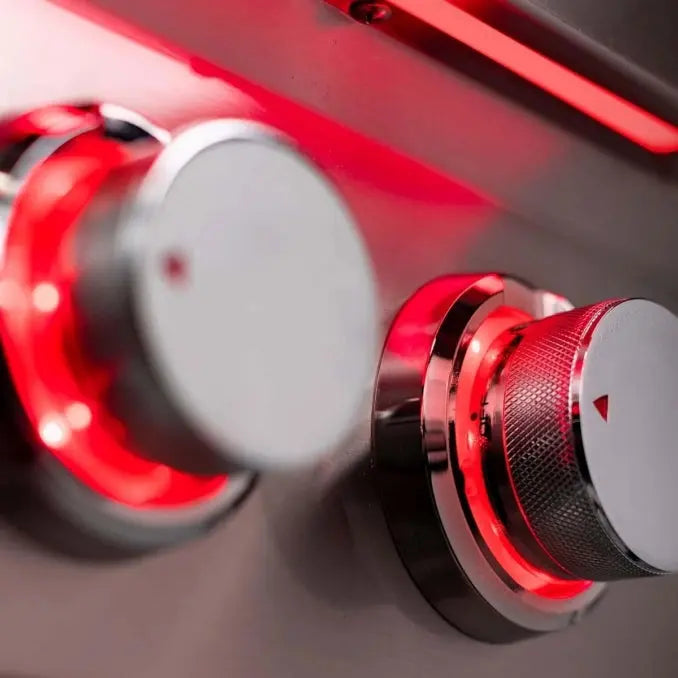

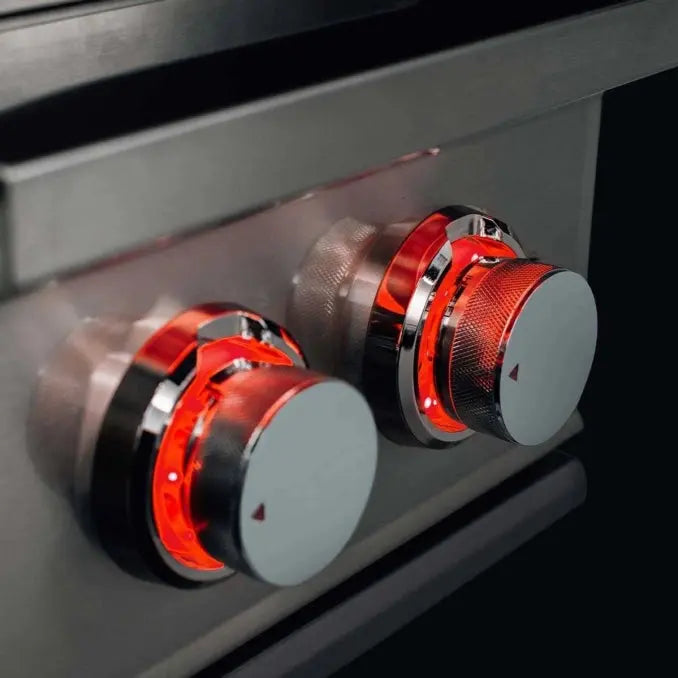

- LED lighting over each knob illuminates the front panel
- Spark ignition, with match-light backup through the flash tube
What to Order With It
Required:
Optional:
Specifications
Order numbers:
| Order Number |
Option |
Description |
| TFSB2L |
Liquid Propane |
TrueFlame Double Side Burner - Liquid Propane |
| TFSB2 |
Natural Gas |
TrueFlame Double Side Burner - Natural Gas |
| Fuel |
Natural gas (TFSB2) or liquid propane (TFSB2L) |
| Burners |
2 ring burners (inner round brass plated, outer stainless) |
| BTU |
24,000 BTU total |
| Cooking area |
205 sq. in. |
| Grate |
8mm round |
| Ignition |
Spark ignition with flash-tube match-light backup |
| Lighting |
LED lighting over each knob |
| Lid |
Removable stainless steel |
| Material |
Stainless steel |
| Certification |
ETL |
| Made in |
China |
Dimensions
| Overall (W x D x H) |
12 1/2" W x 25 1/2" D x 10 3/4" H |
| Cutout (W x D x H) |
10 3/4" W x 20 1/2" D x 7 3/4" H |
| Cutout with GL-TFSB2 liner (W x D x H) |
13 1/4" W x 22" D x 9 5/8" H |
Installation
- Built-in unit for a non-combustible island. In a combustible surround, a TrueFlame insulating jacket (side burner liner) must be used.
- Clearance to a non-combustible wall: minimum 2" right, left and rear. To a protected combustible wall: minimum 10". To a combustible wall: minimum 14".
- Minimum 5 ft between the countertop and any overhead construction. Under any overhead construction an exhaust hood larger than the cooking area with a blower of at least 1,200 CFM is required. Do not install under unprotected combustible overhead construction.
- Enclosure ventilation: a combined minimum free area of 40 sq. in. across at least two openings, 1"-5" from the countertop or floor (natural gas vents near the top, liquid propane vents near the bottom). Keep 6" clear in front of vents outside and 2" inside.
- Gas pressure: natural gas 4.0" WC minimum to 7.0" WC maximum; liquid propane 10.0" WC minimum to 14.0" WC maximum.
- Natural gas units must use the supplied natural gas regulator set to 4.0" w.c. Liquid propane units must use an LP regulator set to 11" w.c. Never connect to an unregulated supply.
- Gas pipe no less than 1/2" inside diameter. To share a line with a grill, use a 3/8" threaded 'T' adapter (not provided).
- Liquid propane models use a standard 20 lb. LP tank with a Type 1 (Acme) coupler, approximately 12" diameter x 18" high (tank not included).
- Electrical: plug the included transformer into a grounded outlet rated for it, per local codes or NEC ANSI/NFPA 70.
- Outdoor use only; not in a building, garage or enclosed area.
Please Note
- Confirm the cutout against the TFSB2 line drawing or with us before cutting. The line drawing recommends adding 1/4" to the inner dimension.
- If you use the GL-TFSB2 liner, cut the island to the liner cutout (13 1/4" W x 22" D x 9 5/8" H).
Warranty
TrueFlame Gold Standard Lifetime Warranty with all replacement parts 100% non-prorated, for purchases as of 3/1/23. Register online within 30 days of purchase; the warranty covers replacement parts only and is void on transfer of ownership.
