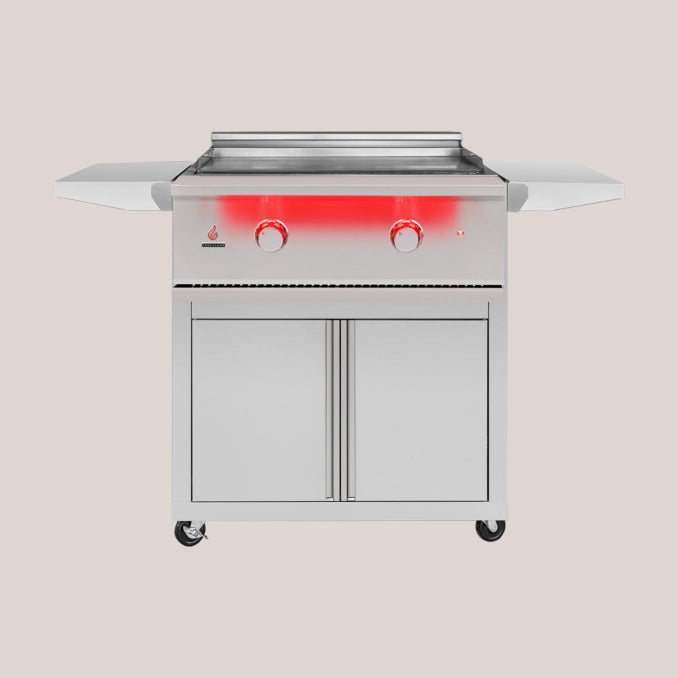

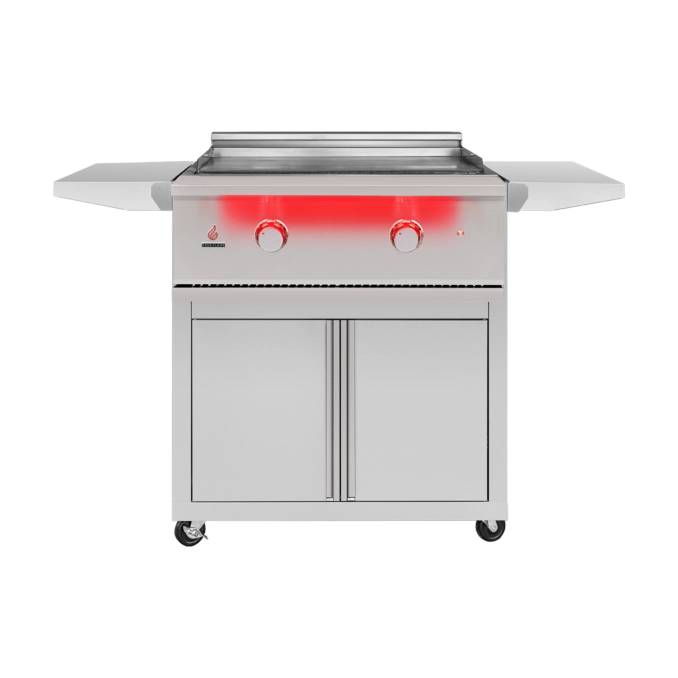

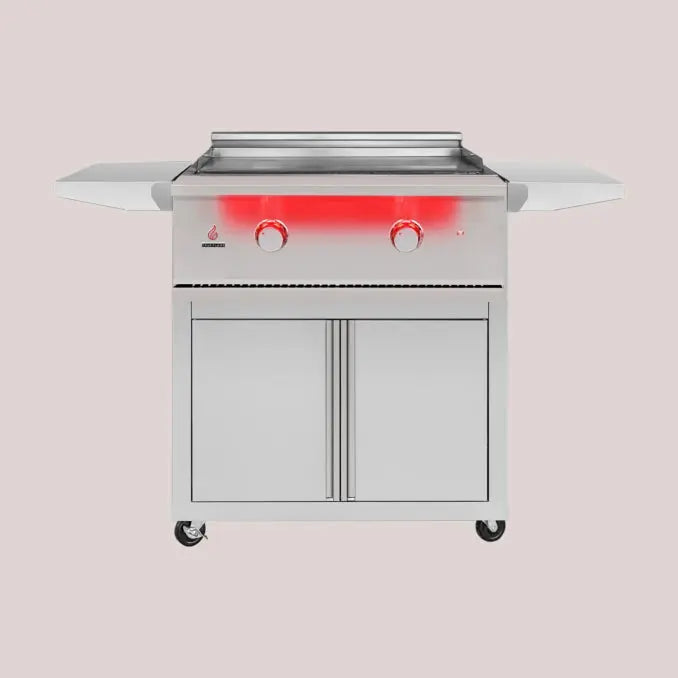

TrueFlame 30" Freestanding Griddle Grill - TFG30+CART-TF-GRID30
This freestanding package pairs the TrueFlame TFG30 30" gas griddle (two 18,000 BTU burners, 495 sq. in. stainless cooking surface) with the CART-TF-GRID30 stainless steel cart. Order TFG30+CART-TF-GRID30 for natural gas or TFG30L+CART-TF-GRID30 for liquid propane.
What's Included
- Removable #304 stainless steel lid
- Drip tray
- Gas conversion kit (natural gas / liquid propane)
- Transformer for the front-panel LED lighting
- CART-TF-GRID30 cart, shipped unassembled: panels, beams, two doors, two side shelves, locking and non-locking casters, magnet assembly and propane cylinder lock-down
- Cart hardware pack with screwdriver
Key Features
- Griddle: two 18,000 BTU #304 stainless steel U-tube burners (36,000 BTU total)
- Griddle: 495 sq. in. cooking surface of 1/2" thick stainless steel, removable #304 stainless lid, large drip tray
- Griddle: full-length exterior LED bar above the knobs, with lighting behind each knob that shows whether a burner is on or off
- Cart: stainless steel construction
- Cart: two folding side shelves and front locking casters
- Cart: magnetic-latch double doors with propane tank storage and an interior paper towel holder
- Cart: side, rear and bottom ventilation
- The griddle bolts to the cart, and its LED transformer mounts to the cart's rear lower panel
What to Order With It
Optional:
Specifications
Order numbers:
| Order Number |
Option |
Description |
| TFG30L+CART-TF-GRID30 |
Liquid Propane |
TrueFlame 30" Griddle Grill - Liquid Propane + Cart for 30" Trueflame Griddle |
| TFG30+CART-TF-GRID30 |
Natural Gas |
TrueFlame 30" Griddle Grill - Natural Gas + Cart for 30" Trueflame Griddle |
| Fuel |
Natural gas (TFG30) or liquid propane (TFG30L) |
| Burners |
2 #304 stainless steel U-tube burners |
| BTU |
18,000 BTU per burner; 36,000 BTU total |
| Cooking surface |
495 sq. in., 1/2" thick stainless steel |
| Burger count |
22 |
| Material |
#304 stainless steel |
| Ignition |
Push-and-turn sure-strike ignition, with match-light backup |
| Lighting |
Full-length exterior LED bar above the knobs, with lighting behind each knob |
| Flash tube |
Yes |
| Heat zone separators |
Yes |
| Certification |
CSA |
| Cart material |
Stainless steel |
| Made in |
China (griddle and cart) |
Dimensions
| Griddle (W x D x H) |
30.000" W x 26.260" D x 13.8" H |
| Cart (W x D x H) |
54.5" W x 22.5" D x 36" H |
Installation
- The cart ships unassembled; two-person assembly is recommended.
- Outdoor use only; not in a building, garage or other enclosed area, or in or on a recreational vehicle or boat.
- Keep a minimum of 18" from the sides and back of the griddle to combustible construction.
- Do not use under unprotected overhead combustible construction. Under a patio roof, cover the cooking area with an exhaust hood; an exhaust fan rated up to 1,000 CFM may be necessary. Fully enclosed patio installation is not allowed.
- Level the griddle in all directions, and check it each time the unit is moved.
- Never store spare or empty propane cylinders in the cart or near the griddle.
- Electrical: the LED lighting runs through the included transformer; use a grounded outlet per local codes or NEC ANSI/NFPA 70.
- Gas pressure: natural gas 4" w.c. minimum to 7" w.c. maximum; liquid propane 11" w.c. minimum to 14" w.c. maximum.
- Use the regulator supplied with the griddle; it is required for the warranty. Never connect an unregulated gas supply.
- Liquid propane models are designed for a standard 20 lb. LP tank with a Type 1 valve and OPD (tank not included), up to approximately 12" diameter x 18 1/2" high.
- The conversion kit is included; converting gas type may require additional parts not included.
- Gas hookup by a qualified technician, with an accessible shutoff valve, to local codes or the National Fuel Gas Code (ANSI Z223.1/NFPA 54).
Please Note
- The cart's assembly instructions refer to it as CART-GRID30; the current part number is CART-TF-GRID30.
- The manufacturer's documents give 11" w.c. as the minimum liquid propane pressure in one place and a factory LP regulator setting of 10" w.c. in another; confirm with us before connecting.
Warranty
Griddle: TrueFlame (AMD Direct) Gold Standard Lifetime Warranty on construction, stainless steel construction, burners, valves and heat zone separators, with all replacement parts 100% non-prorated; 3 year warranty on other parts and electrical, including LED bulbs, wire harness, switches, power source wire and transformer. Register online within 30 days of purchase; the warranty covers replacement parts only (no labor) and is void on transfer of ownership. Cart: Gold Standard Lifetime Warranty on construction, workmanship and materials for all stainless steel parts, including carts.
