TrueFlame 24" Outdoor Rated Refrigerator w/ Glass Door - AMD-RFR-24G

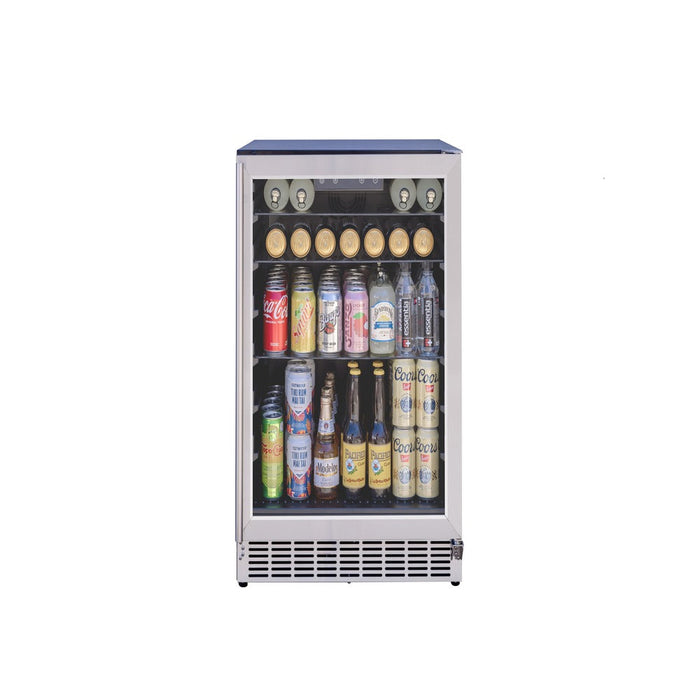

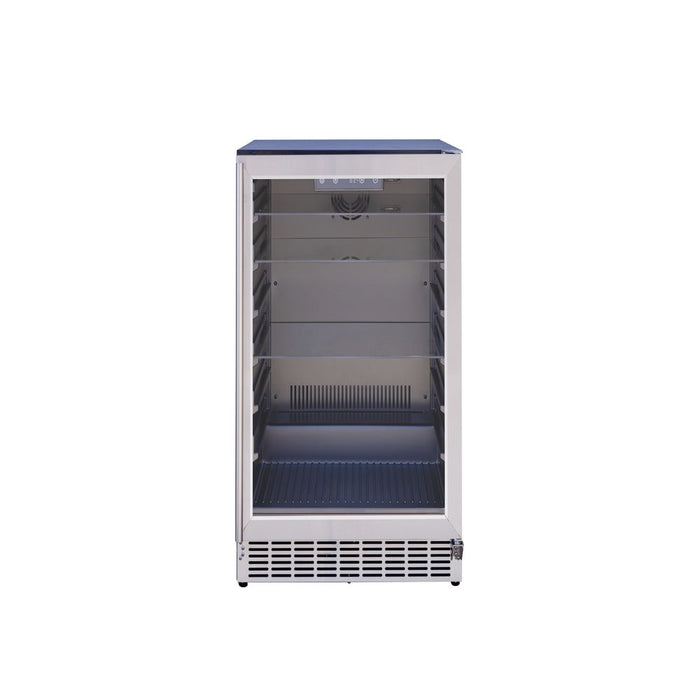

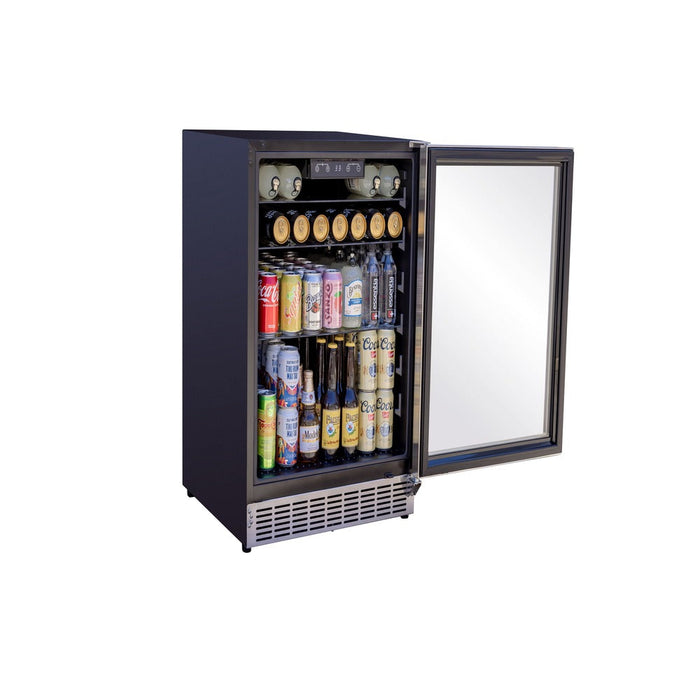

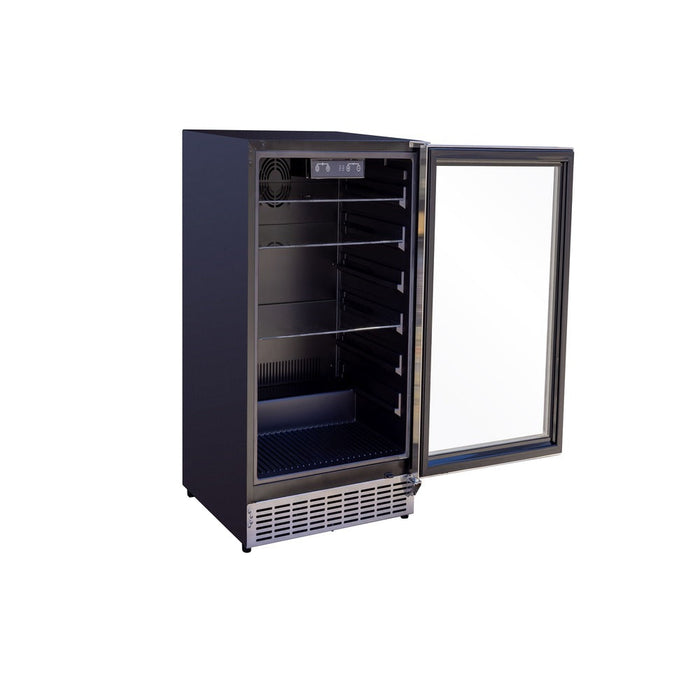

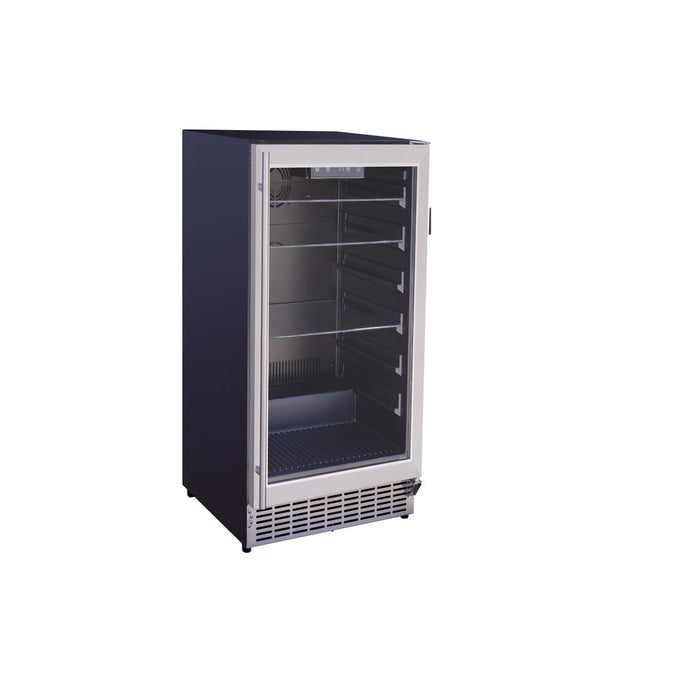

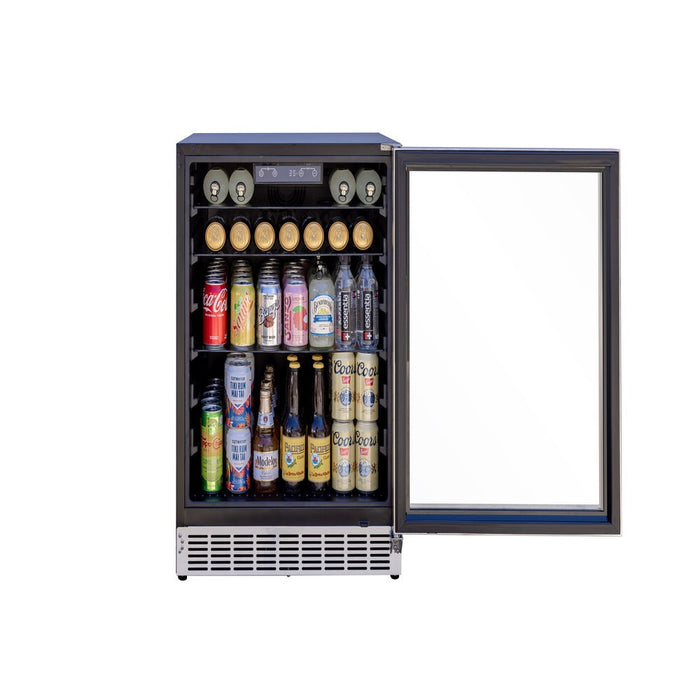

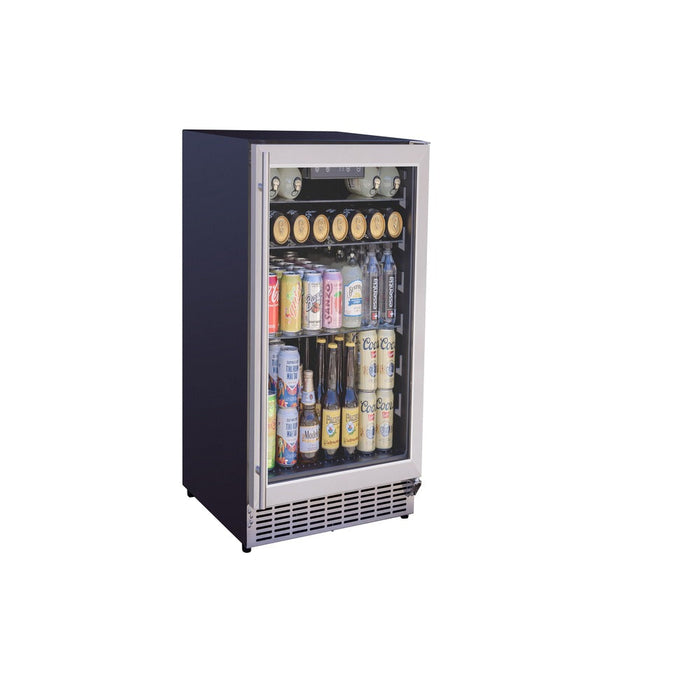

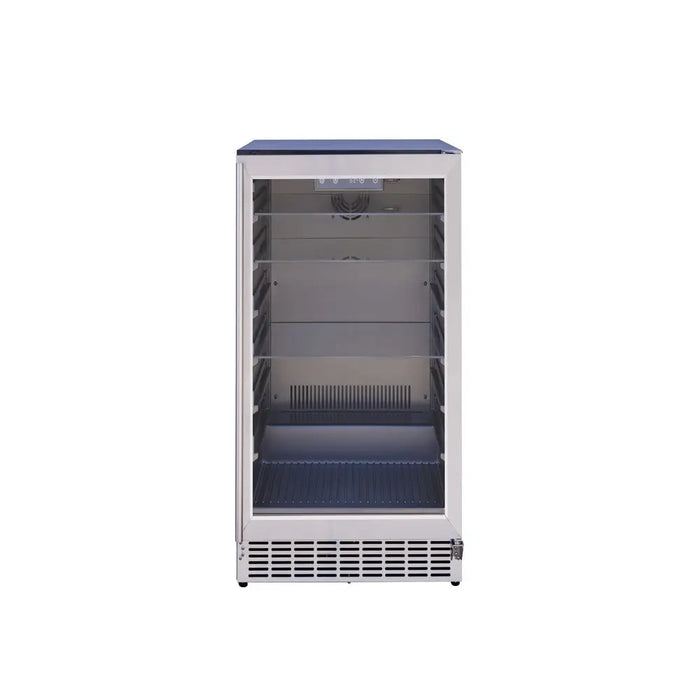

The AMD-RFR-24G is an AMD Direct 24" outdoor-rated refrigerator with a stainless-framed glass door and glass shelves, sold under the TrueFlame name. It holds 5.1 cu. ft. and can be built in or used freestanding.
What's Included
- Stainless steel handle with screws
- Four adjustable leveling legs
- Glass shelves
Key Features
- 5.1 cu. ft. capacity (161 cans)
- #304 stainless steel door frame with triple-glazed tinted glass

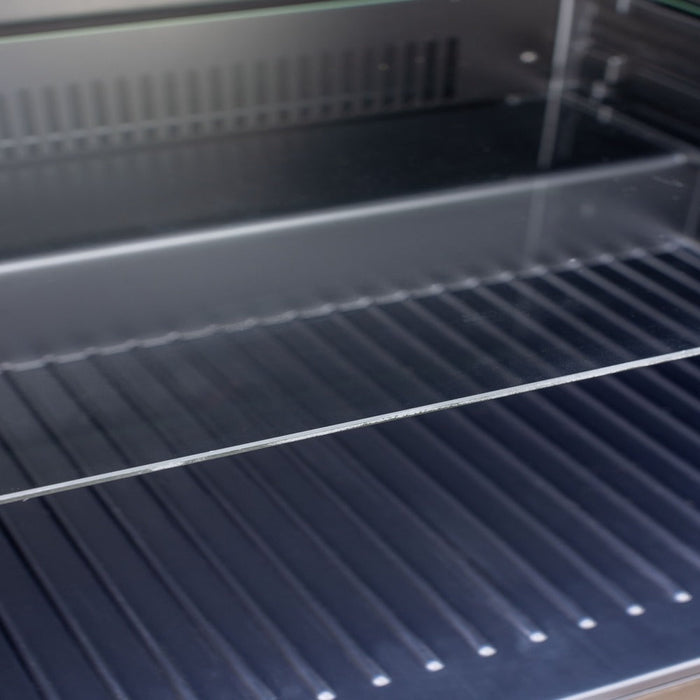

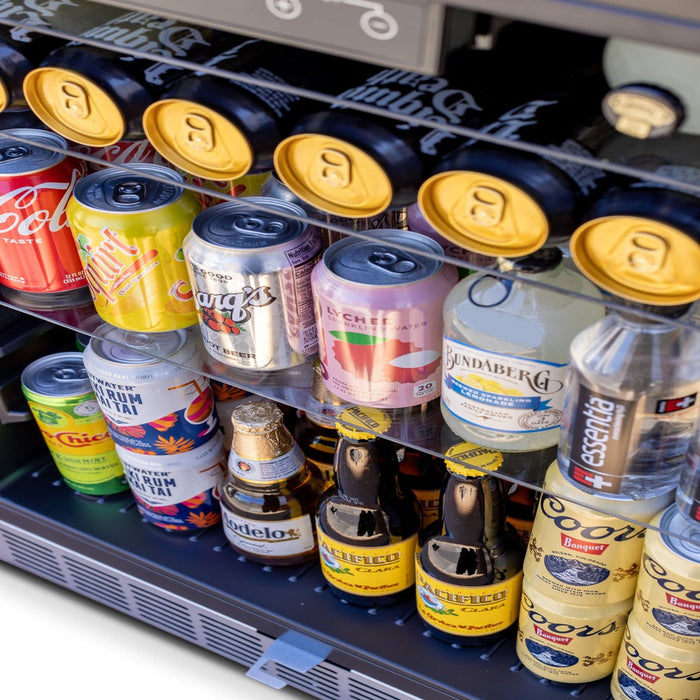

- Glass shelves
- Locking door

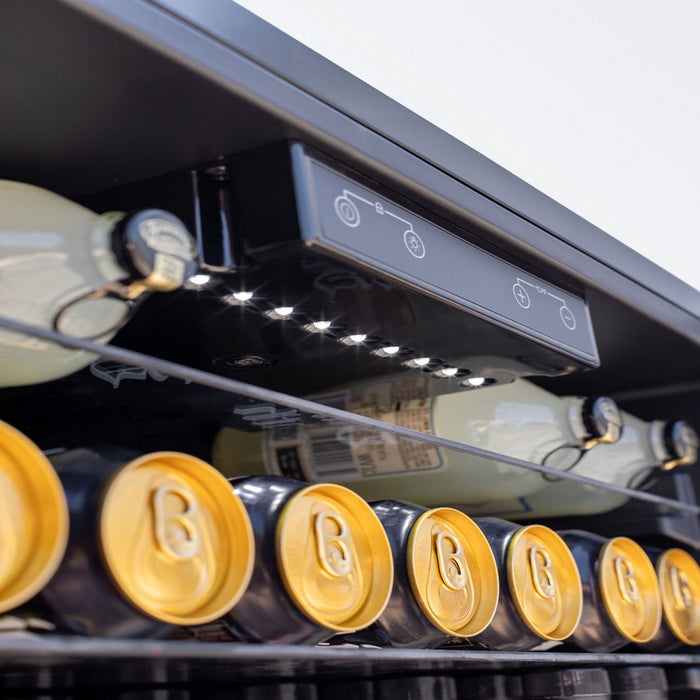

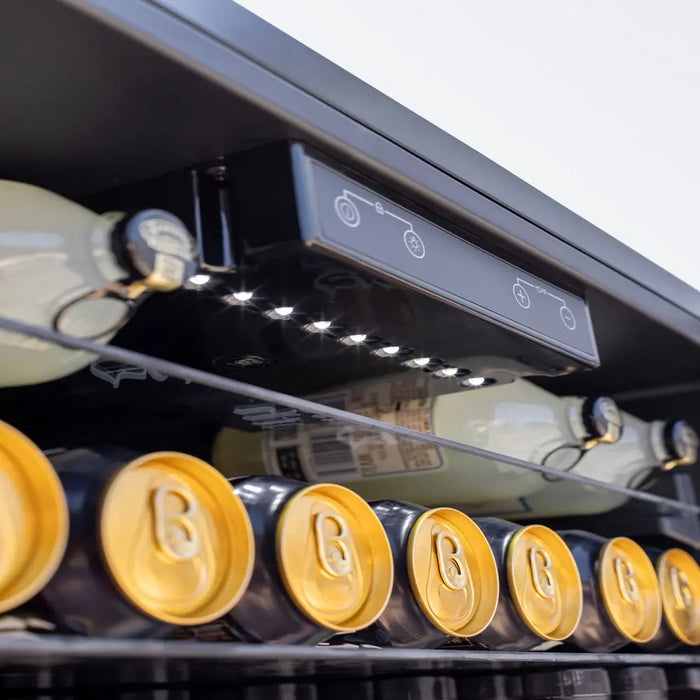

- Electronic control with display, control panel lock and °F/°C switch
- Temperature set in 1°F steps

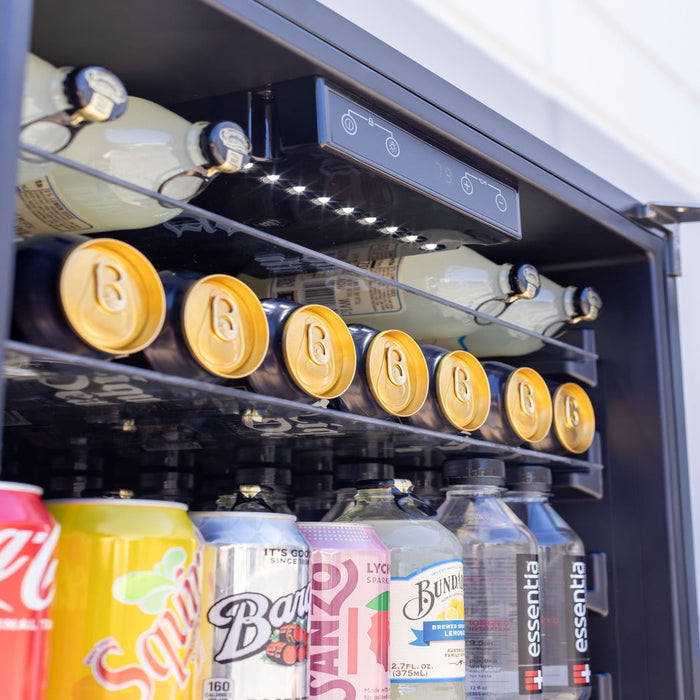

- Interior LED light
- Temperature alarm and door-open alarm after 60 seconds
- Automatic defrost, plus manual defrost
- Front venting for built-in applications
Specifications
| Model Number |
AMD-RFR-24G |
| Capacity |
5.1 cu. ft. |
| Can capacity |
161 cans |
| Door |
#304 stainless steel frame, triple-glazed tinted glass; locking |
| Shelves |
Glass |
| Temperature range |
32°F to 50°F |
| Interior light |
LED |
| Electrical |
115 V AC, 60 Hz |
| Certification |
ETL, DOE, CE (manufacturer data sheet) |
Dimensions
| Overall (W x D x H) |
23.425" W x 22.8346" D x 32.2835" H |
| Cutout (W x D x H) |
24-1/8" W x 24" D x 32-3/4" H |
Installation
- Built-in or freestanding installation.
- When built in, no additional air space is needed at the top, sides or rear. The front grille must not be obstructed.
- Operating ambient: 50°F to 109.4°F. Do not install where the temperature falls below 50°F.
- Keep the unit away from ovens, grills and other high heat.
- Power: 115 V AC, 60 Hz, three-prong grounded outlet connected to a Ground Fault Interrupter (GFI).
- Fuse or circuit breaker: 1.3 amperes. Use an exclusive grounded outlet.
Please Note
- The cutout is from TrueFlame's cutout sheet. Check with us before you cut your island.
- Some manufacturer documents list 5 or 5.01 cu. ft.; the 5.1 cu. ft. figure is from the manual.
Warranty
AMD Direct's warranty for 15" and 24" refrigeration models gives 3 years on all construction, including compressors, and 1 year on the transformer, LED bulbs, LED harness, power source wire, LED switches and interior halogen light wire/bulbs.
