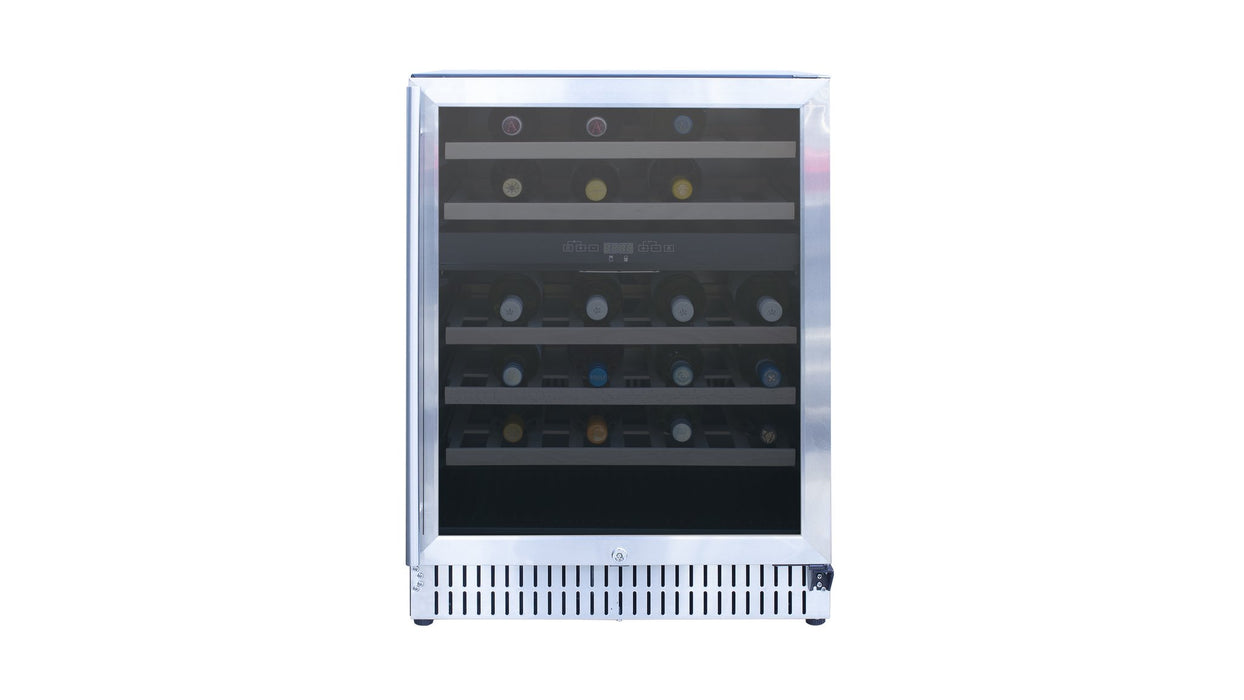

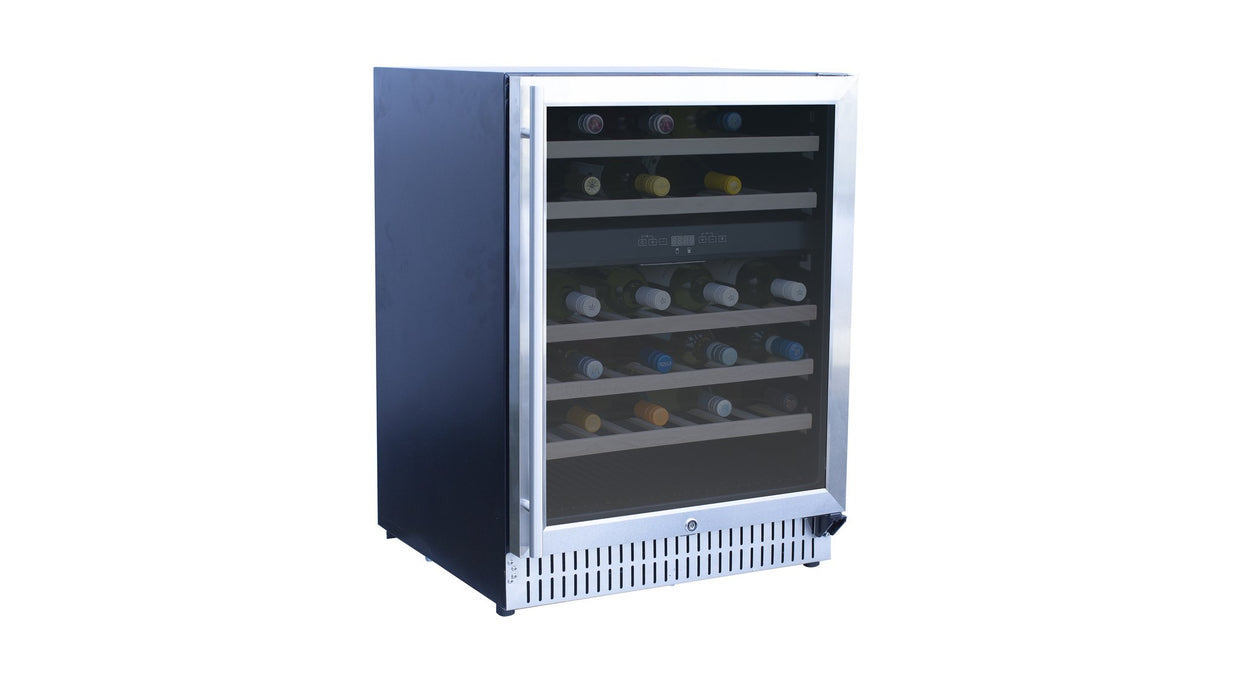

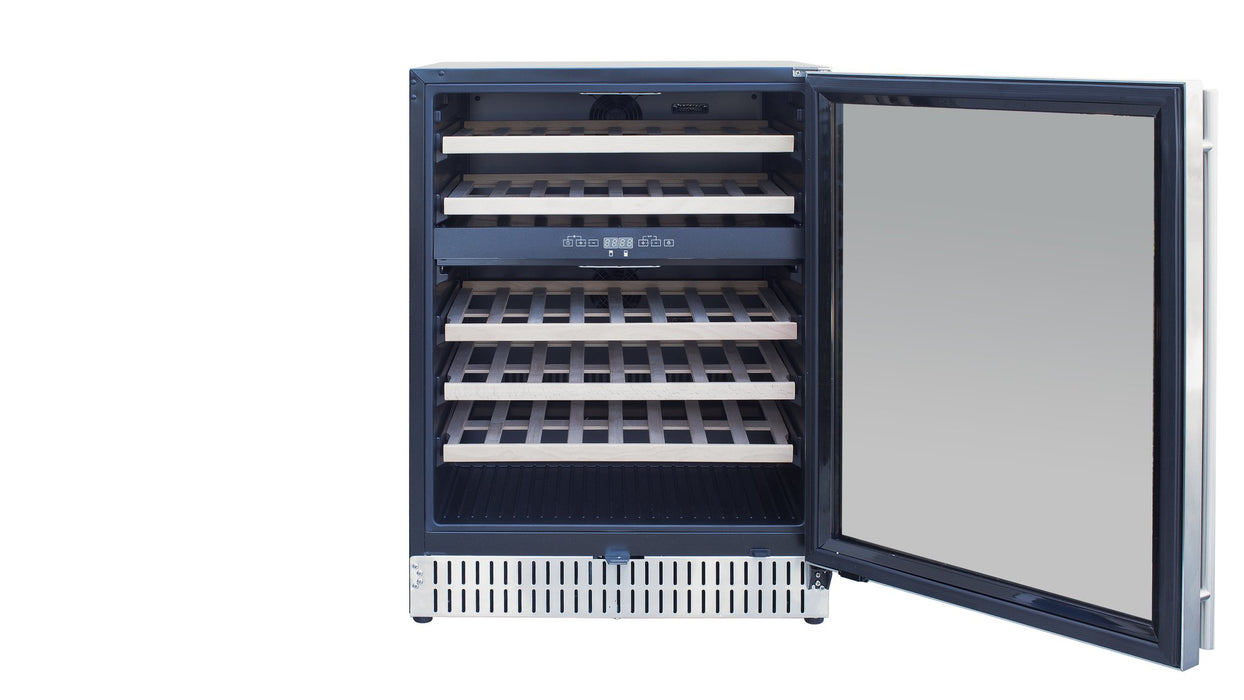

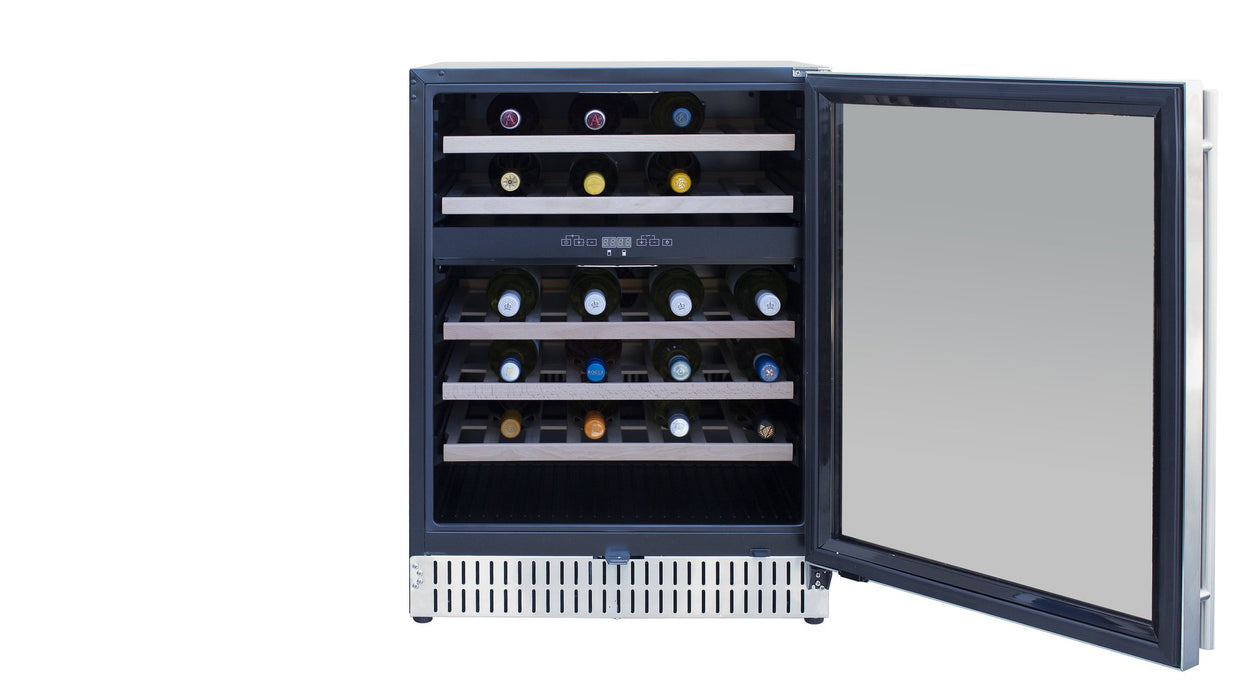

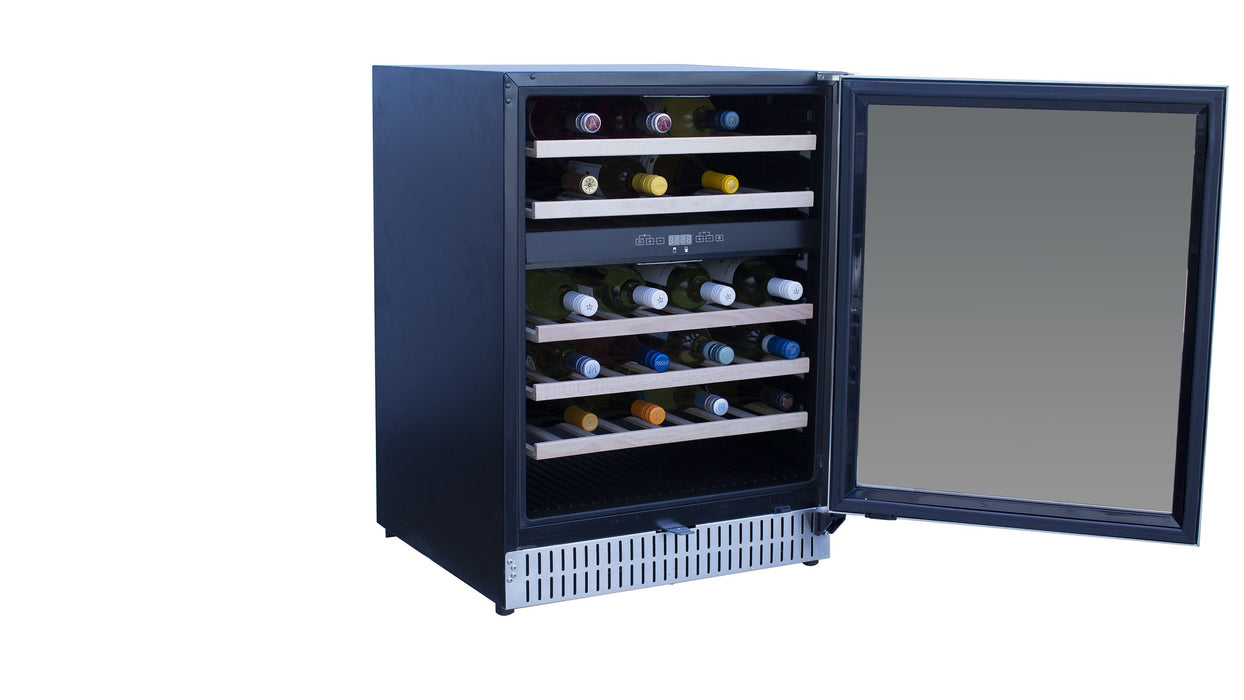

TrueFlame 24" Outdoor Rated Dual Zone Wine Cooler - AMD-RFR-24WD
The AMD-RFR-24WD is an AMD Direct 24" dual-zone outdoor-rated wine cooler, sold under the TrueFlame name. Upper and lower zones are set separately, it holds 46 bottles (5.3 cu. ft.), and it can be built in or used freestanding.
What's Included
- Stainless steel handle with screws
Key Features

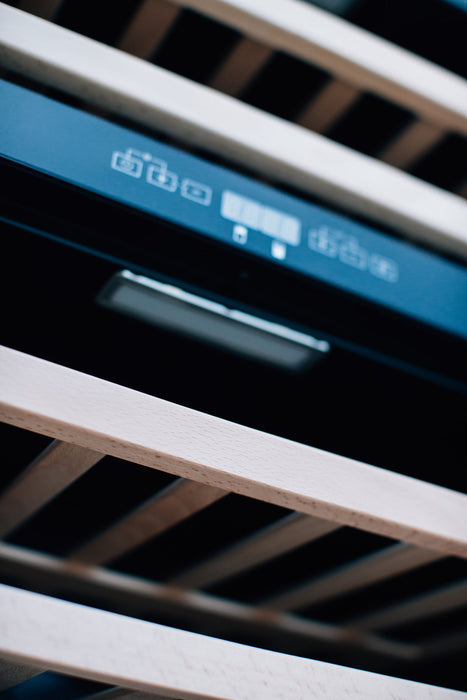

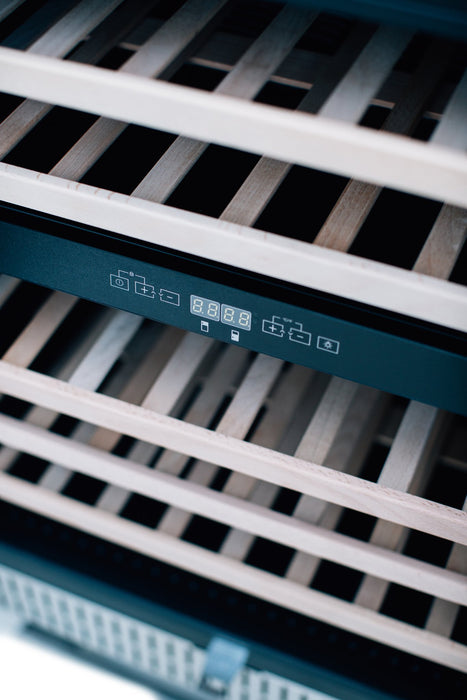

- Two temperature zones, upper and lower
- Upper zone as low as 39°; lower zone as low as 54°
- Factory preset 46.4°F upper zone and 53.6°F lower zone

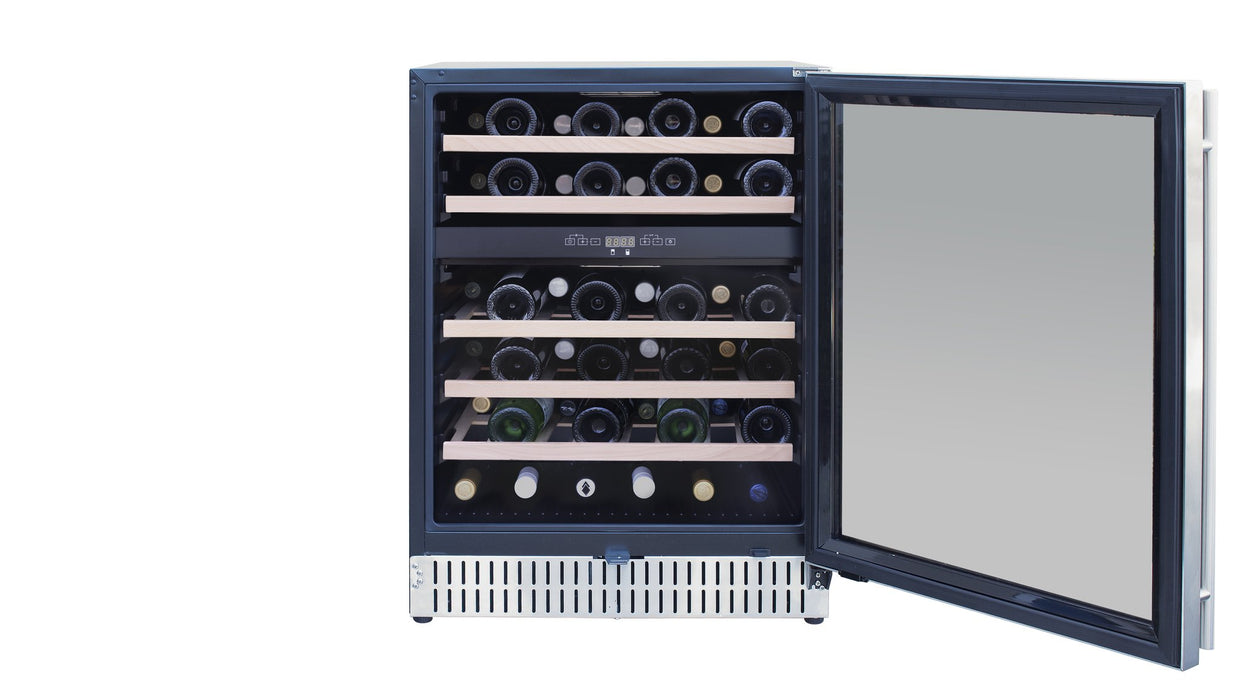

- 46-bottle capacity
- #304 stainless steel door construction with tinted glass
- Locking door and control lock
- Door-open alarm after 60 seconds
- Automatic defrost every 4 hours for 20 minutes
- Front venting for built-in applications
Specifications
| Model Number |
AMD-RFR-24WD |
| Capacity |
5.3 cu. ft. |
| Bottle capacity |
46 bottles |
| Zones |
Dual (upper and lower) |
| Lowest settings |
Upper zone 39°, lower zone 54° |
| Factory preset |
46.4°F upper / 53.6°F lower |
| Door |
#304 stainless steel door construction with tinted glass; locking |
| Electrical |
115 V AC, 60 Hz |
| Certification |
ETL, DOE, CE (manufacturer data sheet) |
Dimensions
| Overall (W x D x H) |
23.4252" W x 22.8346" D x 32.2835" H |
| Cutout (W x D x H) |
24-1/8" W x 24" D x 32-3/4" H |
Installation
- Built-in or freestanding installation.
- The air vent at the front must never be covered or blocked.
- Recommended ambient: 60°F to 90°F. Do not install where the temperature will fall below 50°F or rise above 110°F.
- Avoid areas with excessive moisture. Keep the unit away from ovens, grills and other high heat.
- Power: 115 V AC, 60 Hz, three-prong grounded outlet.
- Fuse or circuit breaker: 1.3 amperes. Use its own individual outlet; do not use a power strip or extension cord.
Please Note
- The cutout is from TrueFlame's cutout sheet. Check with us before you cut your island.
- The price list shows 4.5 cu. ft.; the 5.3 cu. ft. figure is from the manufacturer's line drawing.
Warranty
AMD Direct's warranty for 15" and 24" refrigeration models gives 3 years on all construction, including compressors, and 1 year on the transformer, LED bulbs, LED harness, power source wire, LED switches and interior halogen light wire/bulbs.
