TrueFlame 24" 5.01C Deluxe Outdoor Rated 2-Drawer Refrigerator - AMD-RFR-24DR2-A
The AMD-RFR-24DR2-A is an AMD Direct 24" deluxe outdoor-rated refrigerator with two soft-closing stainless steel drawers, sold under the TrueFlame name. It holds 5.01 cu. ft. and can be built in or used freestanding. It must be secured with the anti-tip bracket packed with the unit.
What's Included
- Anti-tip bracket
- Drawer handles with screws
- Four adjustable leveling legs
Key Features

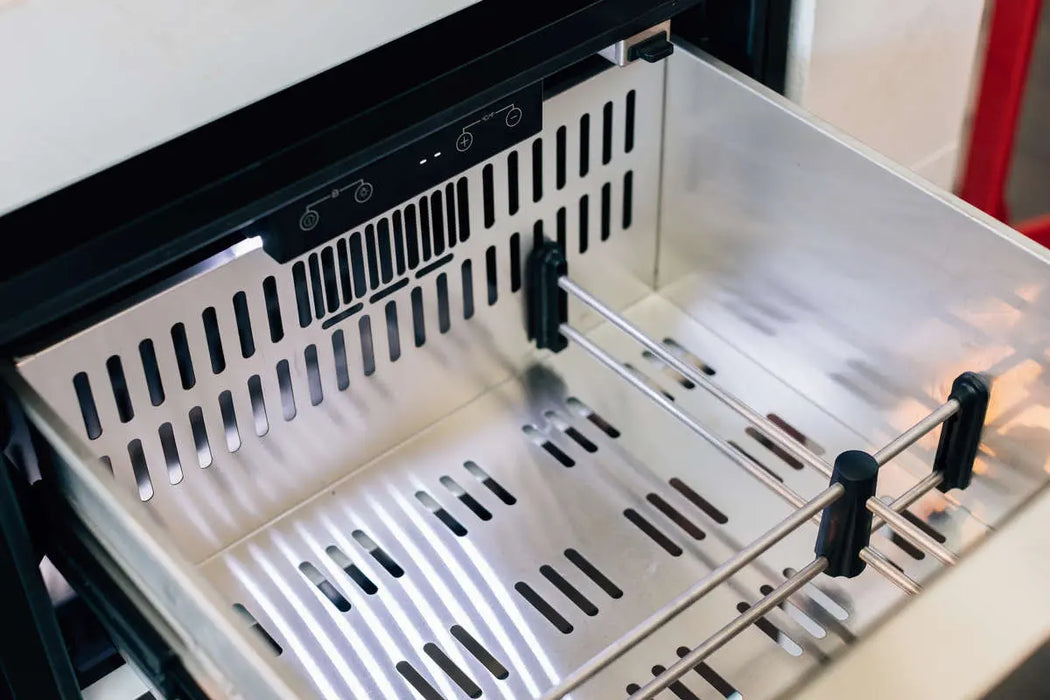

- Two soft-closing #304 stainless steel drawers
- 5.01 cu. ft. capacity

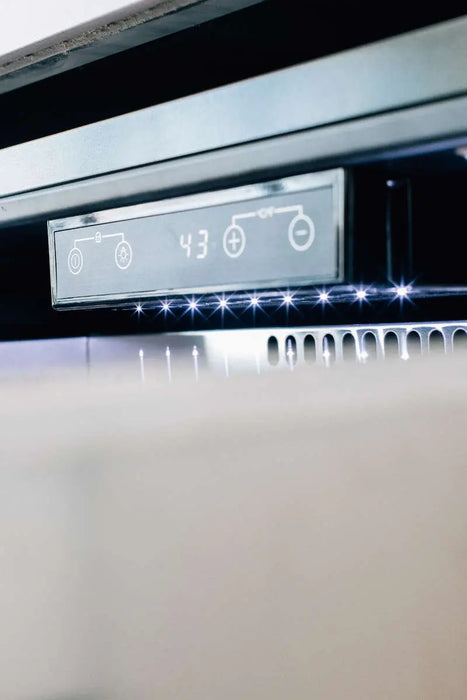

- Electronic temperature control, 32°F to 72°F in 1° steps
- Factory preset 36°F
- Interior LED light
- Temperature alarm
- Automatic defrost, plus manual defrost
- Front grille ventilation for built-in installation
Specifications
| Model Number |
AMD-RFR-24DR2-A |
| Capacity |
5.01 cu. ft. |
| Drawers |
2, soft-closing, #304 stainless steel |
| Temperature range |
32°F to 72°F |
| Factory preset |
36°F |
| Interior light |
LED |
| Electrical |
115 V AC, 60 Hz |
| Certification |
ETL, DOE, CE (manufacturer data sheet) |
Dimensions
| Overall (W x D x H) |
23.622" W x 22.667" D x 32.331" H |
| Cutout (W x D x H) |
24-1/8" W x 24" D x 32-3/4" H |
Installation
- Built-in or freestanding installation.
- When built in, the drawers need no additional air space at the top, sides or rear. The front grille must not be obstructed.
- Install the anti-tip bracket before use. Do not double-stack units; the manual warns this may cause serious personal injury.
- Operating ambient: 50°F to 109.4°F. Do not install where the temperature falls below 50°F.
- Power: 115 V AC, 60 Hz, three-prong grounded outlet connected to a Ground Fault Interrupter (GFI).
- Fuse or circuit breaker: 1.3 amperes.
Please Note
- The cutout is from TrueFlame's cutout sheet. Check with us before you cut your island.
- Some manufacturer documents list 5, 5.1 or 5.3 cu. ft.; the 5.01 cu. ft. figure is from the manual.
Warranty
AMD Direct's warranty for 15" and 24" refrigeration models gives 3 years on all construction, including compressors, and 1 year on the transformer, LED bulbs, LED harness, power source wire, LED switches and interior halogen light wire/bulbs.
