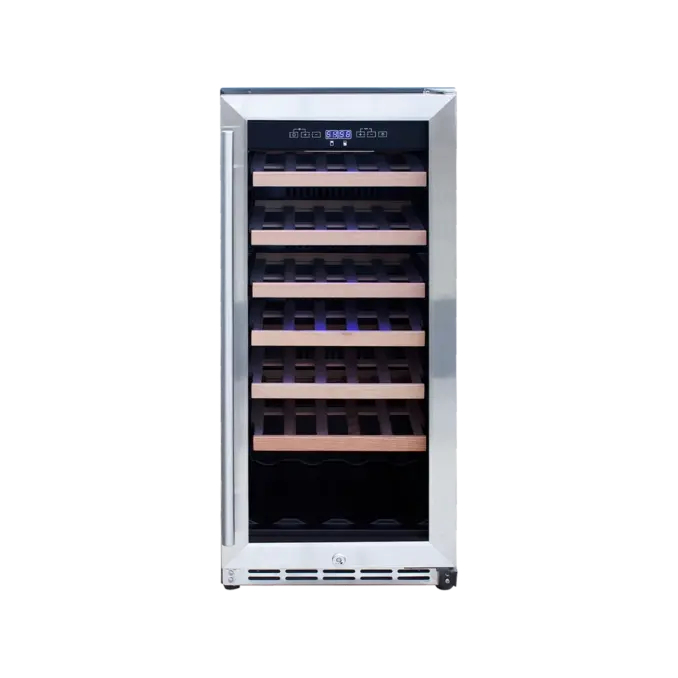

TrueFlame 15" Outdoor Rated Wine Cooler - AMD-RFR-15W
The AMD-RFR-15W is an AMD Direct 15" single-zone outdoor-rated wine cooler with a tinted glass door, sold under the TrueFlame name. It holds 28 bottles (3.2 cu. ft.) and can be built in or used freestanding.
What's Included
- Stainless steel handle with screws
Key Features
- Single temperature zone
- 28-bottle capacity
- #304 stainless steel door construction with tinted glass

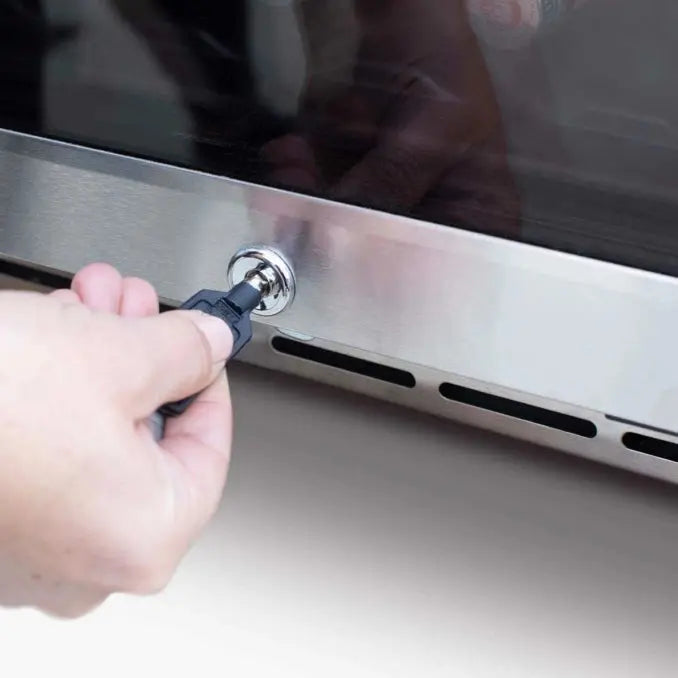

- Locking door

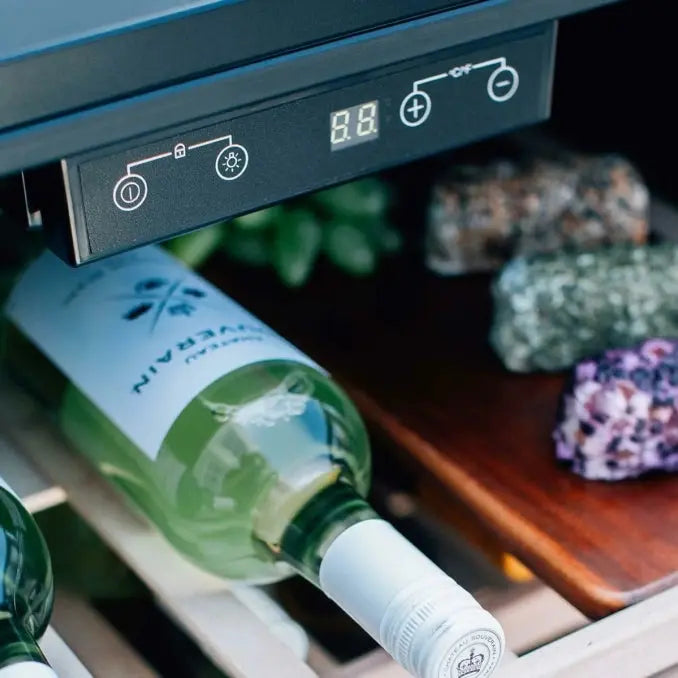

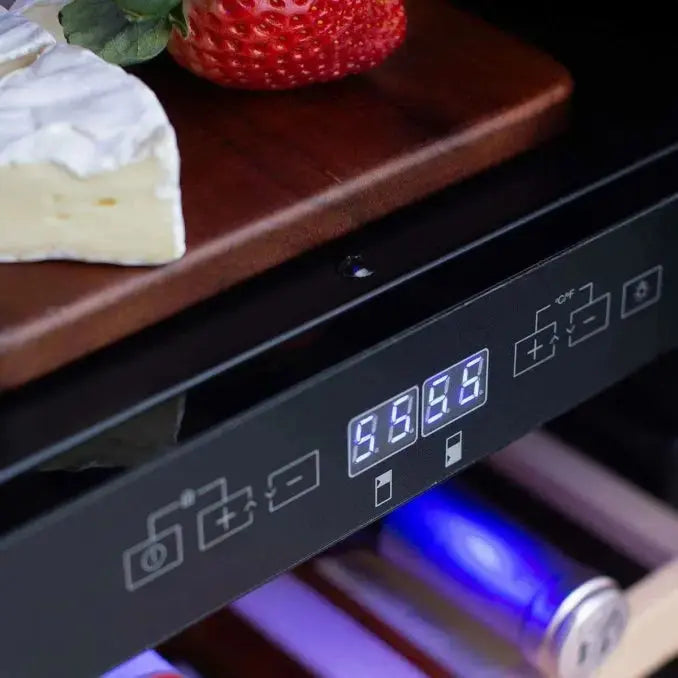

- Electronic temperature control with digital display and control lock
- Interior LED lighting
- Door-open alarm after 60 seconds
- Automatic defrost every 4 hours for 20 minutes
- Front venting for built-in applications
Specifications
| Model Number |
AMD-RFR-15W |
| Capacity |
3.2 cu. ft. |
| Bottle capacity |
28 bottles |
| Zones |
Single |
| Door |
#304 stainless steel door construction with tinted glass; locking |
| Interior light |
LED |
| Electrical |
115 V AC, 60 Hz |
| Certification |
ETL, DOE, CE (manufacturer data sheet) |
Dimensions
| Overall (W x D x H) |
14.8819" W x 23.425" D x 34.0551" H |
| Cutout (W x D x H) |
15-5/8" W x 23-1/2" D x 34-3/8" H |
Installation
- Built-in or freestanding installation.
- The air vent at the front must never be covered or blocked.
- Recommended ambient: 60°F to 90°F. Do not install where the temperature will fall below 50°F or rise above 110°F.
- Avoid areas with excessive moisture. Keep the unit away from ovens, grills and other high heat.
- Power: 115 V AC, 60 Hz, three-prong grounded outlet.
- Fuse or circuit breaker: 1.3 amperes. Use its own individual outlet; do not use a power strip or extension cord.
Please Note
- The cutout is from TrueFlame's cutout sheet. Check with us before you cut your island.
Warranty
AMD Direct's warranty for 15" and 24" refrigeration models gives 3 years on all construction, including compressors, and 1 year on the transformer, LED bulbs, LED harness, power source wire, LED switches and interior halogen light wire/bulbs.
