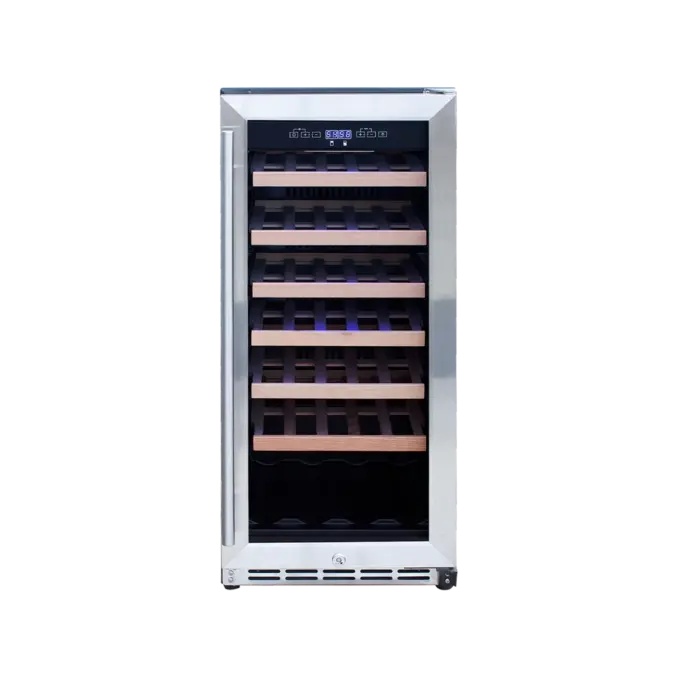

TrueFlame 15" Outdoor Rated Dual Zone Wine Cooler - AMD-RFR-15WD
The AMD-RFR-15WD is an AMD Direct 15" dual-zone outdoor-rated wine cooler, sold under the TrueFlame name. Upper and lower zones are set separately, it holds 20 bottles, and it can be built in or used freestanding.
What's Included
- Stainless steel handle with screws
Key Features

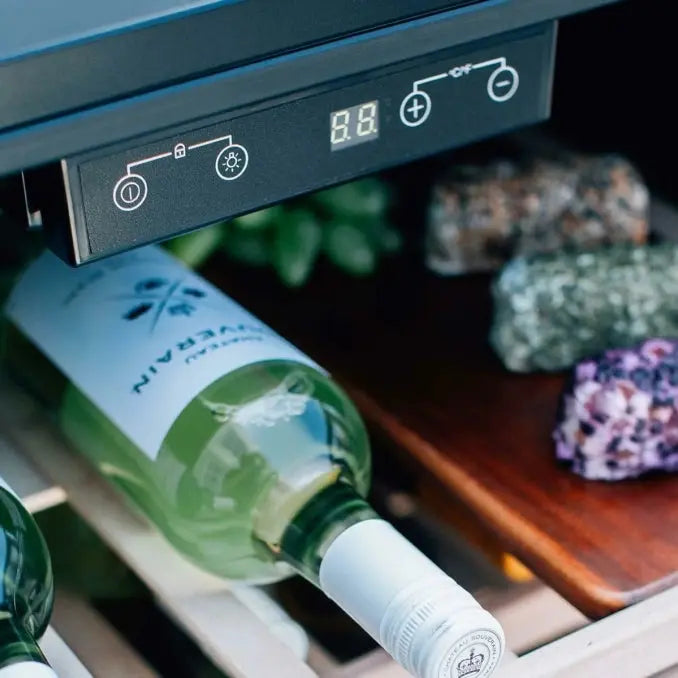

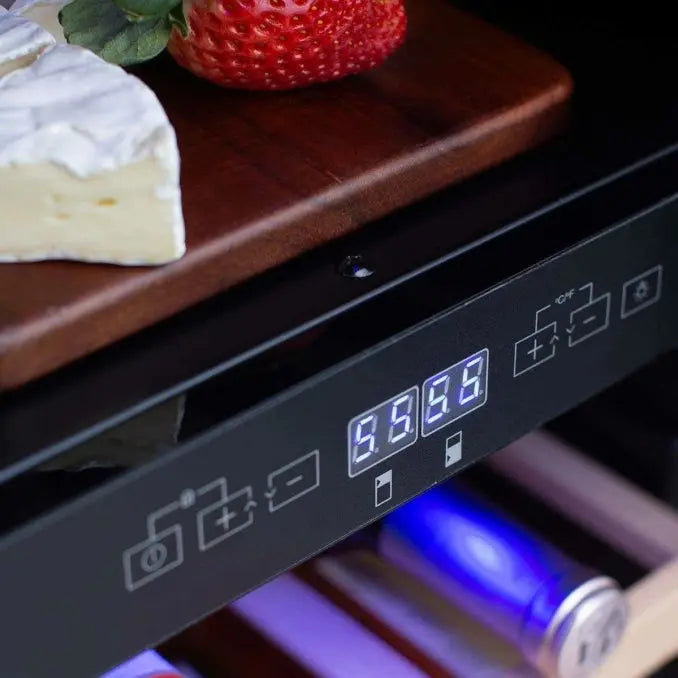

- Two temperature zones, each set with its own +/- buttons
- Upper zone as low as 39°; lower zone as low as 54°
- Factory preset 46.4°F upper zone and 53.6°F lower zone
- 20-bottle capacity
- #304 stainless steel door construction with tinted glass

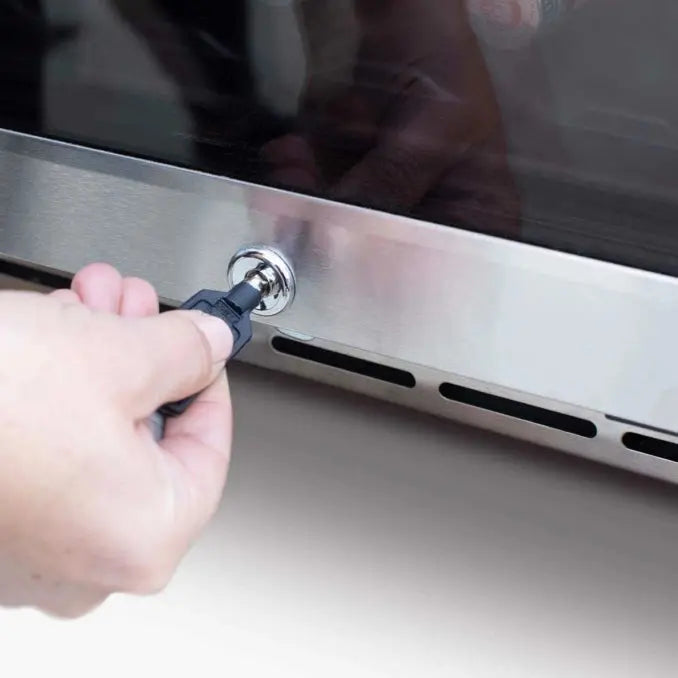

- Locking door and control panel lock
- Light can be set to turn on when the door opens
- Door-open alarm after 60 seconds
- Automatic defrost every 4 hours for 20 minutes
- Front venting for built-in applications
Specifications
| Model Number |
AMD-RFR-15WD |
| Width class |
15" |
| Bottle capacity |
20 bottles |
| Zones |
Dual (upper and lower) |
| Lowest settings |
Upper zone 39°, lower zone 54° |
| Factory preset |
46.4°F upper / 53.6°F lower |
| Door |
#304 stainless steel door construction with tinted glass; locking |
| Electrical |
115 V AC, 60 Hz |
| Certification |
ETL, DOE, CE (manufacturer data sheet) |
Dimensions
| Overall (W x D x H) |
14.8819" W x 23.425" D x 34.0551" H |
| Cutout (W x D x H) |
15-5/8" W x 23-1/2" D x 34-3/8" H |
Installation
- Built-in or freestanding installation.
- The air vent at the front must never be covered or blocked.
- Recommended ambient: 60°F to 90°F. Do not install where the temperature will fall below 50°F or rise above 110°F.
- Avoid areas with excessive moisture. Keep the unit away from ovens, grills and other high heat.
- Power: 115 V AC, 60 Hz, three-prong grounded outlet.
- Fuse or circuit breaker: 1.3 amperes. Use its own individual outlet; do not use a power strip or extension cord.
Please Note
- The cutout is from TrueFlame's cutout sheet. Check with us before you cut your island.
- The manufacturer's documents give the interior volume as 2.9 cu. ft. in one place and 3.2 cu. ft. in another; confirm with us if volume matters for your order.
Warranty
AMD Direct's warranty for 15" and 24" refrigeration models gives 3 years on all construction, including compressors, and 1 year on the transformer, LED bulbs, LED harness, power source wire, LED switches and interior halogen light wire/bulbs.
