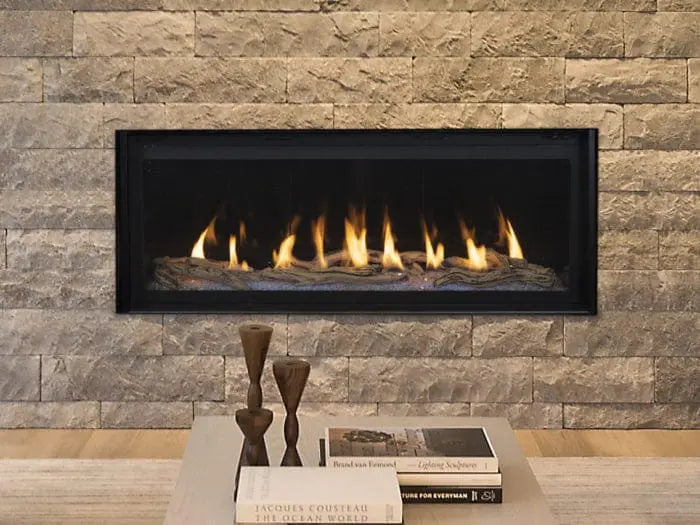

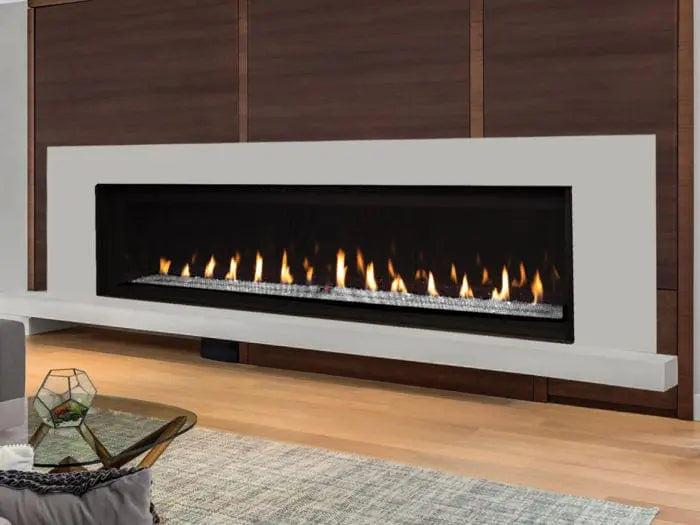

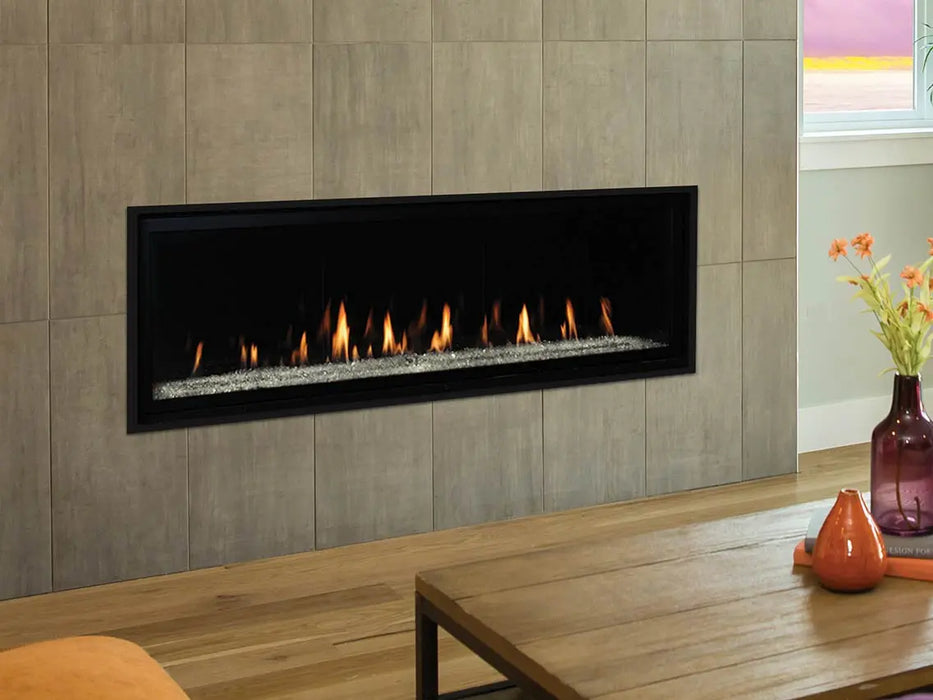

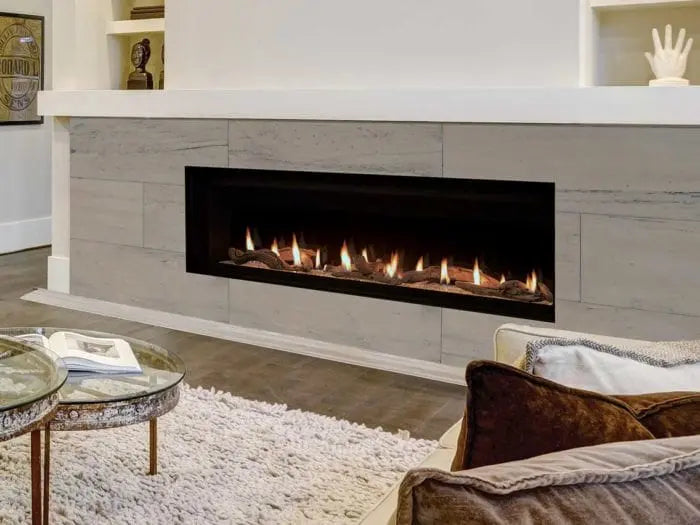

Superior DRL6060 60" Linear Contemporary Direct Vent Gas Fireplace
The Superior DRL6060 60" Linear Contemporary Direct Vent Gas Fireplace boasts a chic, modern aesthetic that seamlessly fits into contemporary and transitional spaces. Its expansive ceramic glass opening offers an exceptional view of the gracefully dancing flames as they rise through the stunning reflective platinum glass floor media.
This fireplace also features floor lighting to enhance the ambiance. The Superior DRL6000 comes fully equipped with a heat-circulating blower and a multi-function remote, providing the ultimate comfort and control.
This clean-faced fireplace is available in 60", 72", and 84" linear configurations and includes integrated tile stops for easy finishing. You even have the option to convert it into a see-through unit, allowing for a dual-sided view. With the Superior DRL6060 60" Linear Contemporary Direct Vent Gas Fireplace, you can achieve the dream look you've always envisioned for your space.
Key Features
Available in 48″, 60”, 72″ and 84″ linear configured models

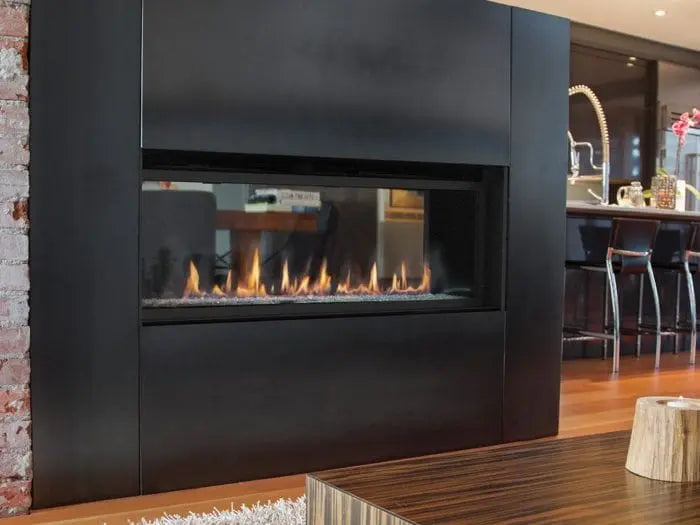

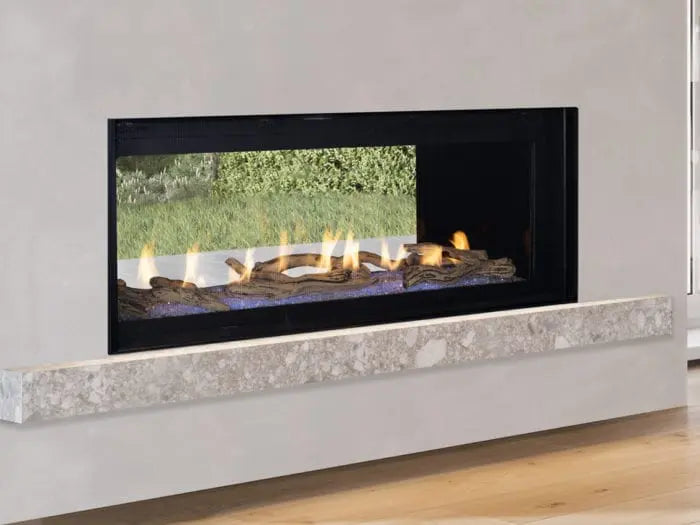

See through conversion kit available to allow viewing from two living spaces
HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
Electronic ignition with battery backup provides continued operation in the event of a power outage
Six flame settings with up to a 30% turn down for precise heat control
Outstanding heating efficiency for increased comfort and lower operating costs
Clean-face design with integrated tile stops for easy finishing
Ceramic glass for optimum heat transfer and a protective screen*
Factory installed blower with six speed settings to fine tune your heating needs**
Black porcelain liner interior for a reflective view of the fire
Platinum crushed glass media included with several optional colors available to customize the look
Mood enhancing floor lighting enhances the fireplace interior with or without a fire
Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
Optional Power-Vent system available for down-and-out installations
20-year limited warranty
Specifications
Model : DRL6060
Product Type : Direct Vent Gas Fireplace
Framing Width : 74-1/4"
Framing Height : 48-1/2"
Framing Depth : 19-1/2", 18-1/2" (See Through)
BTU : 40,000 - 28,000
Design Style : Contemporary
View Style : Front-View
Controls : Remote Control
Model
A
B
C
D
E
DRL6060
74"
37"
56-5/8"
61-1/2"
76-5/8"
Framing Dimensions
Model
A
B
C
DRL6060
74-1/4"
19-1/2"
48-1/2"
E*
F*
G
H
84"
3"
62"
7-1/2"
*E. Minimum height from appliance base to ceiling *F. Minimum Opening Distance from Ceiling to Allow for Min Distance from HeatFlo Register to Ceiling of 6"
THE WARRANTY Innovative Hearth Products ("IHP") 20 Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture.
The product body, firebox and barrier carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only.
After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the 20 Year Limited Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components.
If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable.
IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS to this 20 Year Limited Warranty as described herein.
