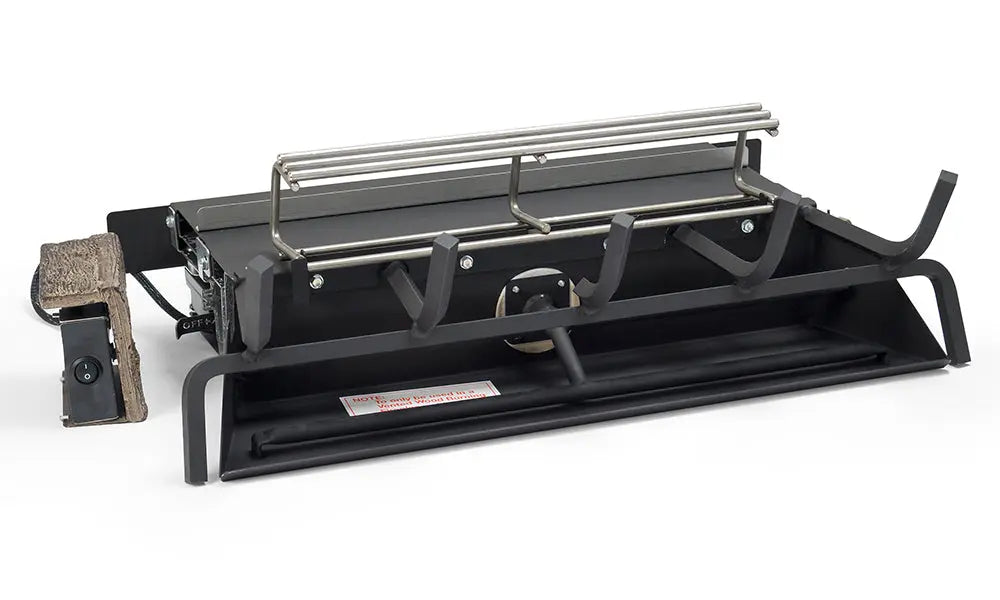

Real Fyre G52 Indoor Burner System with Manual Valve and Standing Pilot
The Real Fyre G52 Radiant Fyre is a vented gas log burner system from R.H. Peterson Co. Manual safety valve with a standing pilot. A knob on the burner lights the pilot and turns the burner on and off.
This listing is the burner system only. The logs are ordered separately. Choose the size that matches your log set and the fuel you have.
What's Included
- G52 Radiant Fyre burner
- Radiant stainless steel booster grid
- Custom grate
- Platinum embers
- Glowing embers
- Sand (natural gas) or vermiculite (propane)
- Connector kit
- Damper clamp
Key Features
- Manual safety valve with a standing pilot.
- Vented burner, sizes 18/20", 24/30"
- Natural gas or propane; order the fuel you have (not field convertible)
- Logs sold separately
What to Order With It
Every size ships with what is listed above. You still need a log set: Real Fyre lists the G52 Radiant Fyre for Charred Evergreen Oak, Charred Evergreen Split Oak, Colonial Oak and Burnt Aspen.
Specifications
| Size |
Natural Gas Model |
Propane Model |
BTU Natural Gas |
BTU Propane |
| 18/20" |
G52-18/20A |
G52-18/20PA |
46,000 |
36,000 |
| 24/30" |
G52-24/30A |
G52-24/30PA |
55,000 |
46,000 |
| Vent Type |
Vented |
| Fireplace |
Front view |
| Use |
Indoor |
| Control |
Manual safety valve with a standing pilot. A knob on the burner lights the pilot and turns the burner on and off. |
| Gas Supply |
Natural gas 5" to 10.5" w.c.; propane 11" to 13" w.c.; 1/2" minimum supply pipe |
BTU ratings are from the 2026 Real Fyre price list.
Check your local code for the maximum input allowed in your area.
Minimum Fireplace Dimensions
From the owner's manual. These are the smallest fireboxes each size fits; the widths allow the set to be centered, and rear width is measured at the depth shown.
| Size |
Front Width |
Rear Width |
Depth |
Height |
| 18" log set |
28" |
20" |
15" |
17" |
| 24" log set |
32" |
24" |
15" |
17" |
| 30" log set |
34" |
28" |
15" |
17" |
Vented gas logs go only in a wood-burning fireplace with a working flue. The damper must be clamped open with the damper clamp supplied with the burner, glass doors must be fully open while the burner is on, and an adult must be present whenever it is burning. Do not install the burner in a fireplace with an ash lip or recess deeper than 3/4".
Warranty
Indoor burners and stainless steel burners, excluding controls: ten years. SPK-26 safety pilot kit: three years. APK-17 kit and the 17 series valve: two years. All other valves, pilots and controls: one year. Batteries are not covered. Logs carry their own warranty. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.
