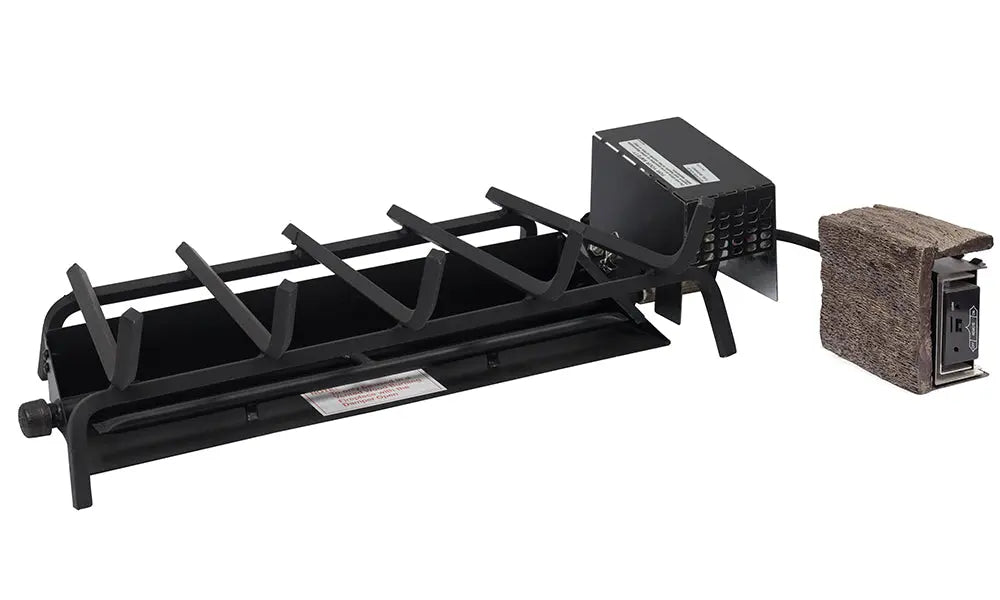

Real Fyre G45 Indoor Burner Systems with “15” Series Safety Valve & Variable Remote
The Real Fyre G45 Triple T is a vented gas log burner system from R.H. Peterson Co. 15 series safety valve with a variable remote that turns the burner on and off and adjusts flame height. The basic transmitter and receiver are included.
This listing is the burner system only. The logs are ordered separately. Choose the size that matches your log set and the fuel you have.
What's Included

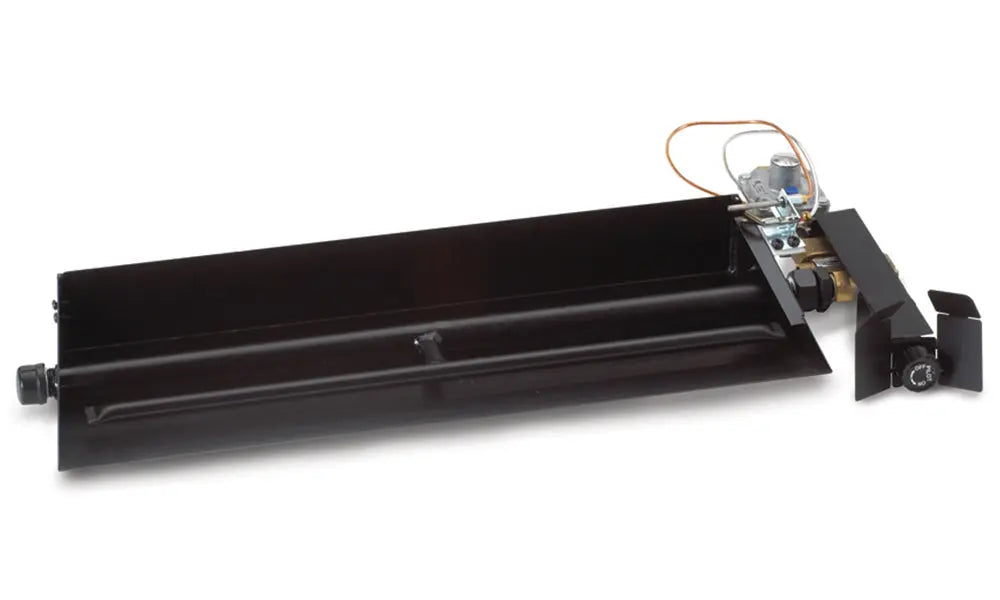

- ANSI certified G45 Triple T burner with the control valve and regulator installed
- Custom grate (heavy duty grate on 36" and larger)
- Glowing embers
- Sand (natural gas) or vermiculite (propane)
- Connector kit
- Log locators
- Damper clamp
- Remote transmitter and receiver
Key Features
- 15 series safety valve with a variable remote that turns the burner on and off and adjusts flame height.
- Vented burner, sizes 16/19", 18/20", 24", 30", 36"
- Natural gas or propane; order the fuel you have (not field convertible)
- Logs sold separately
What to Order With It
Every size ships with what is listed above. You still need a log set: Real Fyre lists the G45 Triple T for Charred, Designer and Classic Series log sets.
Specifications
| Size |
Natural Gas Model |
Propane Model |
BTU Natural Gas |
BTU Propane |
| 16/19" |
G45-16/19-15 |
G45-16/19-15P |
40,000 |
30,000 |
| 18/20" |
G45-18/20-15 |
G45-18/20-15P |
70,000 |
45,000 |
| 24" |
G45-24-15 |
G45-24-15P |
90,000 |
65,000 |
| 30" |
G45-30-15 |
G45-30-15P |
95,000 |
75,000 |
| 36" |
G45-36-15 |
G45-36-15P |
110,000 |
90,000 |
| Vent Type |
Vented |
| Fireplace |
Front view |
| Use |
Indoor |
| Control |
15 series safety valve with a variable remote that turns the burner on and off and adjusts flame height. The basic transmitter and receiver are included. |
| Gas Supply |
Natural gas 5" to 10.5" w.c.; propane 11" to 13" w.c.; 1/2" minimum supply pipe |
BTU ratings are from the owner's manual.
Check your local code for the maximum input allowed in your area.
Minimum Fireplace Dimensions
From the owner's manual. These are the smallest fireboxes each size fits; the widths allow the set to be centered, and rear width is measured at the depth shown.
| Size |
Front Width |
Rear Width |
Depth |
Height |
| 16/19" |
29" |
22" |
11" |
17" |
| 18/20" |
30" |
24" |
13" |
17" |
| 24" |
34" |
28" |
13" |
17" |
| 30" |
40" |
34" |
16" |
17" |
| 36" |
46" |
40" |
16" |
17" |
Vented gas logs go only in a wood-burning fireplace with a working flue. The damper must be clamped open with the damper clamp supplied with the burner, glass doors must be fully open while the burner is on, and an adult must be present whenever it is burning. Do not install the burner in a fireplace with an ash lip or recess deeper than 3/4".
Warranty
Indoor burners and stainless steel burners, excluding controls: ten years. SPK-26 safety pilot kit: three years. APK-17 kit and the 17 series valve: two years. All other valves, pilots and controls: one year. Batteries are not covered. Logs carry their own warranty. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.
