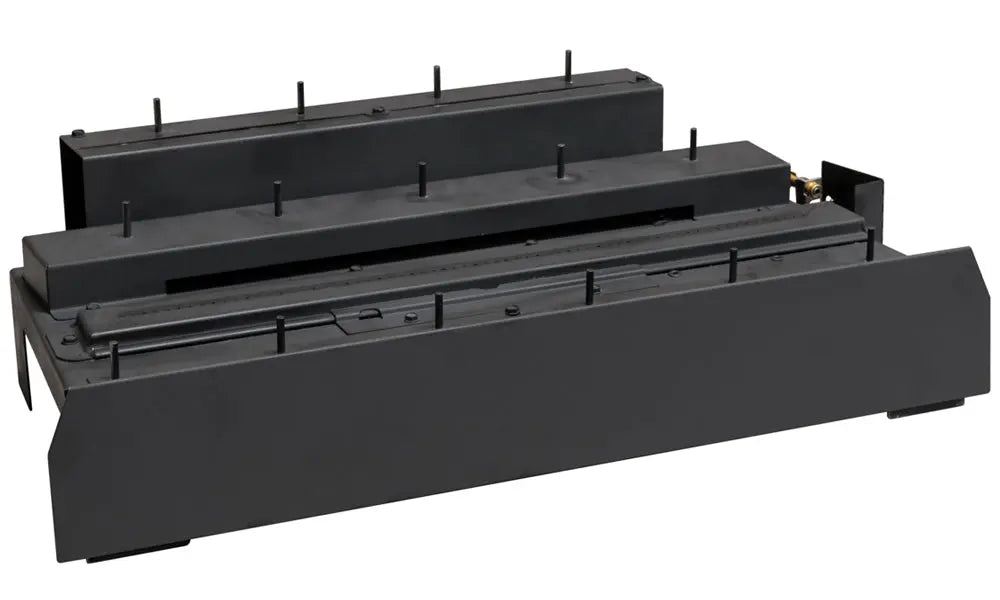

Real Fyre G23 Vent-Free Fyre Spheres Burner with On/Off Remote

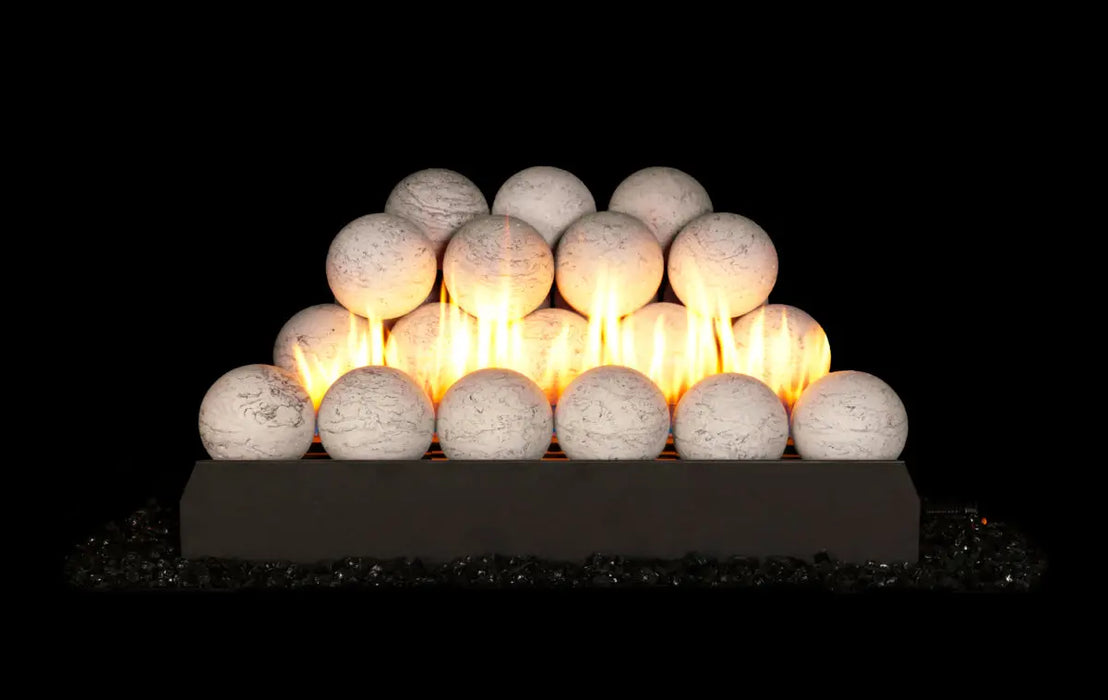

The Real Fyre G23 is a vent-free contemporary burner made for Fyre Spheres: 4" ceramic spheres stacked on the burner take the place of logs. This listing is the G23 burner with on/off remote, in 18" or 24", for natural gas or propane (for example G23-24-12 and G23-24-12P).
The Fyre Spheres are not included. The burner needs the 4" Fyre Spheres set in the same size, ordered separately. Only Real Fyre decorative media is certified for this burner. Black glass for the fireplace floor comes with the burner.
What's Included
- Certified G23 vent-free burner with control valve and ODS safety pilot installed
- Removable front cover
- Black glass media for the fireplace floor (10 lbs with the 18", 15 lbs with the 24")
- Flex connector kit
- Damper clamp
- Remote transmitter and receiver, with batteries
Key Features
- 2 sizes: 18" and 24"
- On/Off Remote included
- Natural gas or propane; order the fuel you have (not field convertible)
- Fyre Spheres sold separately
- Indoor use only
What to Order With It
The burner cannot be used without the spheres.
Required:
Other control option:
Order the fuel you have. Vent-free burners cannot be converted from one gas to the other.
Specifications
| Size |
Natural Gas |
Propane |
BTU, Natural Gas |
BTU, Propane |
Spheres Needed |
| 18" |
G23-18-12 |
G23-18-12P |
28,000 |
28,000 |
16 (4") |
| 24" |
G23-24-12 |
G23-24-12P |
37,000 |
37,000 |
22 (4") |
| Vent Type |
Vent-free; may also be installed as a vented appliance where codes require |
| Control |
On/off remote with standing ODS pilot; RR-1A basic transmitter and receiver included |
| Certification |
ANSI Z21.11.2 unvented room heater and ANSI Z21.60 vented decorative appliance |
| Use |
Indoor only |
BTU ratings are from the G23 owner's manual.
Minimum Fireplace Dimensions
From the G23 owner's manual. Rear width is at the minimum depth.
| Size |
Front Width |
Rear Width |
Depth |
Height |
| 18" |
24" |
20" |
15" |
17" |
| 24" |
30" |
22" |
15" |
17" |
For a solid-fuel masonry fireplace, a UL 127 factory-built fireplace or a listed ventless firebox enclosure.
Vent-free burners are heaters and have room-size limits: the manual requires at least 50 cubic feet of room volume per 1,000 BTU. Burners over 10,000 BTU cannot go in a bedroom and burners over 6,000 BTU cannot go in a bathroom. Some states and cities restrict or prohibit vent-free gas appliances, so check your local code before ordering. Glass doors must be fully open while the burner is on.
Warranty
Indoor burners and stainless steel burners, excluding controls: ten years. Valves, pilots and controls: one year. Batteries are not covered. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.
