Real Fyre EPK-2V-TR 110V Electronic Pilot Kit with Variable Remote

The Real Fyre EPK-2V-TR is a 110 volt electronic pilot kit with intermittent pilot ignition and a variable remote that also adjusts flame height. It is sold as a kit to add to a match-lit Real Fyre vented burner. Order EPK-2V-TR for natural gas or EPK-2VP-TR for propane.

This kit is not field convertible: order the model for the gas you have.

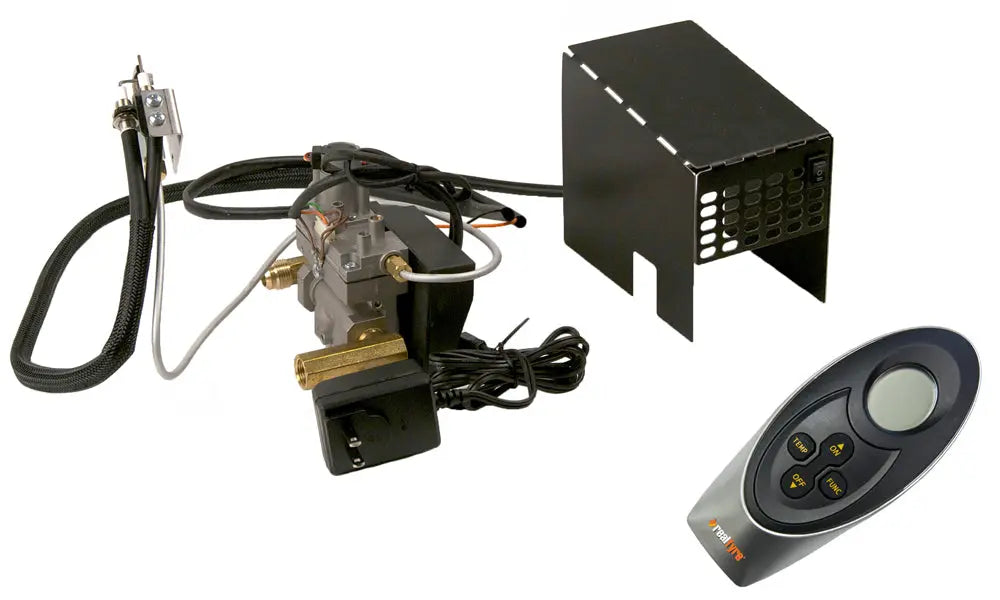

What's Included

• 110V electronic valve with heat shield
• Non-standing pilot assembly
• Variable remote transmitter and receiver
• Transformer

Key Features

• 110V AC powered
• Variable flame height from the remote
• Intermittent pilot ignition

What to Order With It

The kit fits Real Fyre match-lit vented burners within the size and BTU limits in the table below.

Burners it fits:

• G4 Glowing Ember Burner (G4-24)
• G45 Triple T Burner, match lit (G45-24)
• G45-2 See-Thru Triple T Burner, match lit (G45-2-24)
• GX45 Triple T Burner with Heavy Duty Grate

A gas appliance control must be installed by a qualified gas technician and checked for leaks before use.

Specifications

Limits are from the 2026 Real Fyre price list and assume a Real Fyre burner.

Warranty

Valves, pilots and controls: one year. Batteries are not covered. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.

Documents

• EPK-2V-TR and EPK-3V-TR Instructions (A2-376)
• Real Fyre Vented Product Catalog
