Real Fyre APK-10 High Capacity Automatic Pilot Kit with On/Off Remote

The Real Fyre APK-10 is a high capacity automatic pilot kit: a safety valve with a standing pilot and an on/off remote, for the largest burners. It is sold as a kit to add to a match-lit Real Fyre vented burner. Order APK-10 for natural gas or APK-10P for propane.

A propane orifice is included and the kit is field convertible, but order the model for the gas you have.

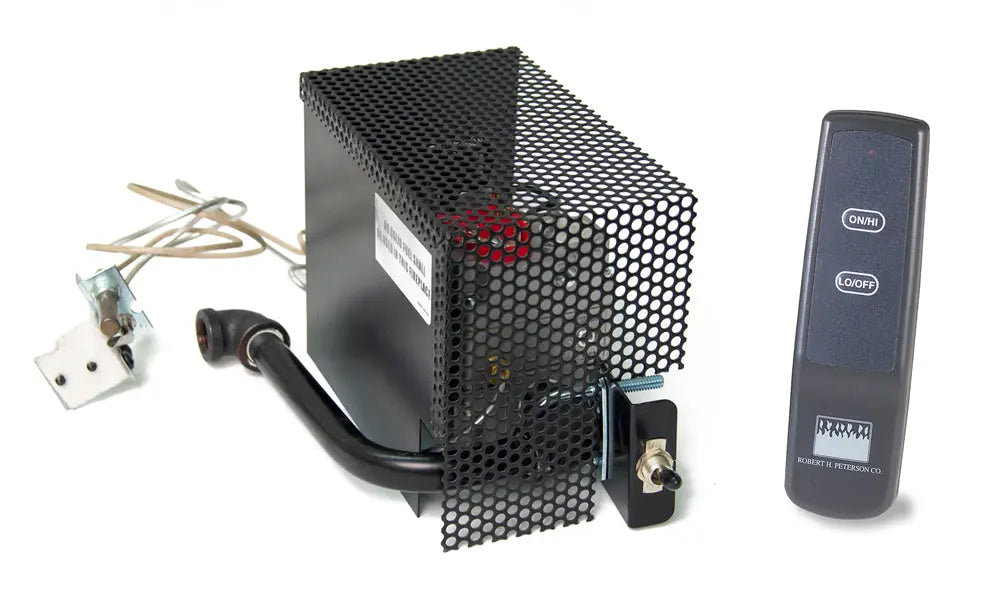

What's Included

• High capacity safety valve with heat shield
• Standing pilot assembly
• RR-1A basic on/off remote transmitter and receiver

Key Features

• On/off remote included
• Manual on/off switch
• High capacity for burners up to 60"

What to Order With It

The kit fits Real Fyre match-lit vented burners within the size and BTU limits in the table below.

Burners it fits:

• G4 Glowing Ember Burner (G4-24)
• G45 Triple T Burner, match lit (G45-24)
• G45-2 See-Thru Triple T Burner, match lit (G45-2-24)
• GX45 Triple T Burner with Heavy Duty Grate

A gas appliance control must be installed by a qualified gas technician and checked for leaks before use.

Specifications

Limits are from the 2026 Real Fyre price list and assume a Real Fyre burner.

Warranty

Valves, pilots and controls: one year. Batteries are not covered. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.

Documents

• APK-10 Instructions (A2-018)
• RR-1A On/Off Remote Instructions (A2-280)
• Real Fyre Vented Product Catalog
