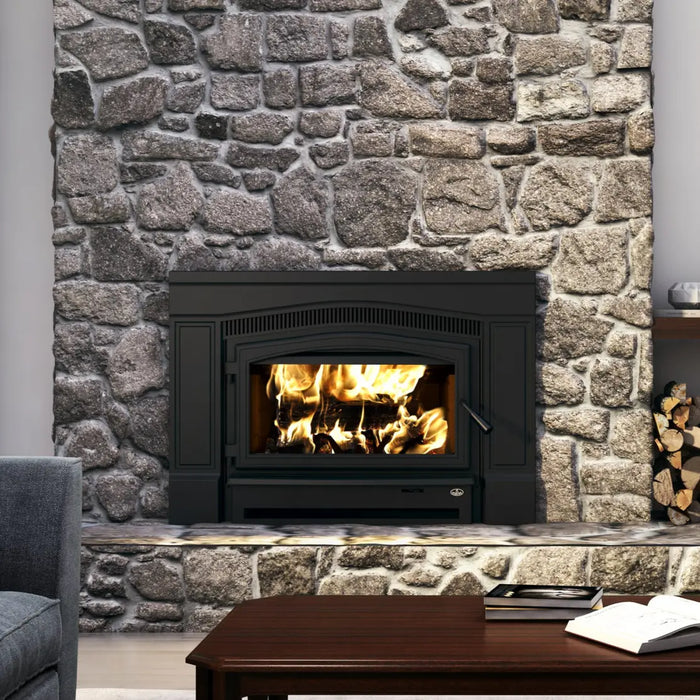

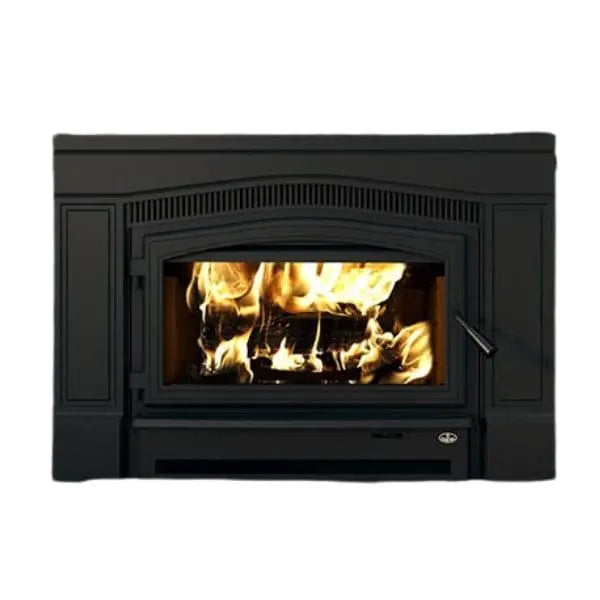

Osburn Matrix 2700 Fireplace Insert
This updated version of the Matrix 2700 runs at an average particulate emission rate of just 1.2 g/h — the cleanest-burning appliance in the Osburn insert range and comfortably inside the EPA 2020 standard. The latest modifications made to this box are well in tune with the industry standards required for 2020.
Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.

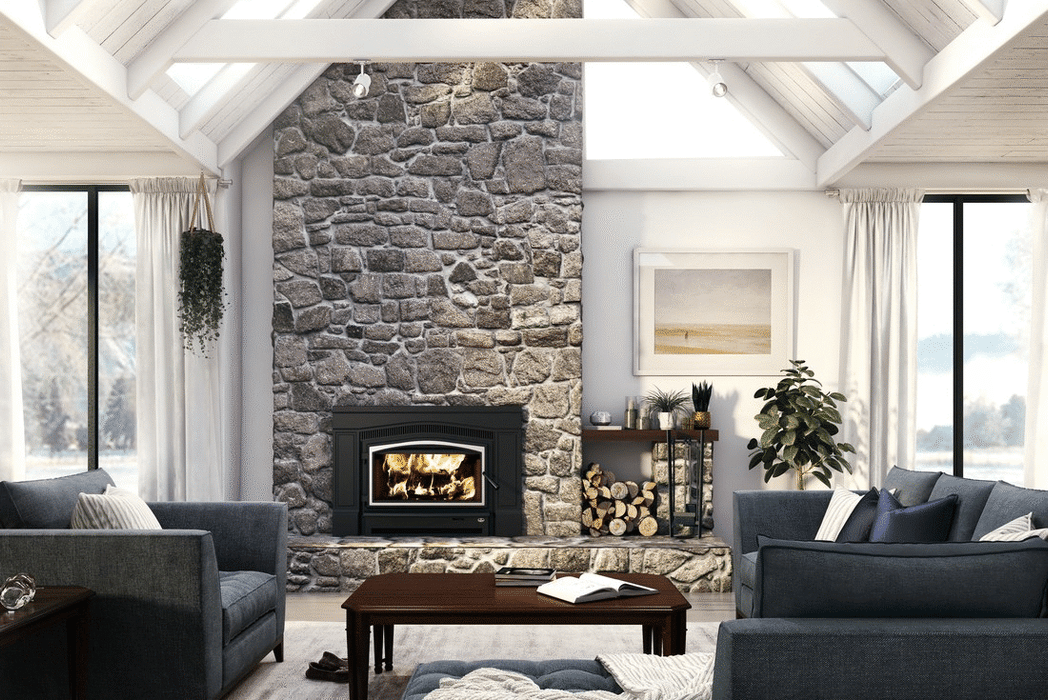

Inspired by nature, the Matrix 2700 insert is a fusion of traditional style and technological innovation. Located in the heart of your living space, the generous viewing area of the Matrix 2700 will invite you to sit back, relax and take in the calm and warmth of its flames. Eco-savvy consumers will appreciate its efficient combustion, quality performance and classic beauty. Customize the look of this non-catalytic appliance by choosing from a black or brushed silver-plated door overlay and fire screen.
Features
- Blower included, up to 176 CFM
- Heats 750 to 2,200 sq ft with up to 80,000 BTU/h
- 2.5 cu ft firebox that takes logs up to 20"
- Maximum burn time of 8 hours
- EPA 2020 approved, non-catalytic, 1.2 g/h average particulate emissions
- Ceramic glass door with cast iron frame and glass air-wash system
- Moulded refractory bricks
- Stainless-steel secondary-air system
- Adjustable threaded legs
- 3/16" steel body and 3/16" steel top
- Limited lifetime warranty
Will It Fit?
Measure your existing masonry fireplace opening before ordering. The Matrix 2700 needs at least:
| Minimum fireplace opening height |
27 1/8" |
| Minimum fireplace opening width |
31 3/4" |
| Minimum fireplace opening depth |
22 1/8" |
| Fireplace type |
Masonry |
| Chimney liner |
6" listed liner required, minimum 12' height |
This is the largest hearth requirement in the Osburn insert range. If your opening is smaller, the 2000-I or Inspire 2000-I cover most of the same heating range from a smaller firebox.
What to Order With It
The Matrix 2700 Wood Insert needs a door overlay to be complete. Choose from each required group below.
Required – door overlay (choose one):
Optional:
Performance
| Maximum heat output (dry cordwood) |
80,000 BTU/h (23.4 kW) |
| Overall heat output range |
12,700 – 60,700 BTU/h (3.72 – 17.79 kW) |
| Recommended heating area |
750 – 2,200 sq ft (70 – 204 m²) |
| Average overall efficiency (HHV) |
64% |
| Average overall efficiency (LHV) |
68% |
| Optimum overall efficiency |
70% |
| Average particulate emissions |
1.2 g/h (EPA / CSA B415.1-10) |
| Average carbon monoxide |
98 g/h |
| Maximum burn time |
8 hours |
| Overall firebox volume |
2.5 cu ft (0.071 m³) |
| EPA loading volume |
1.94 cu ft (0.055 m³) |
| Recommended log length |
16" (406 mm), loaded east-west |
| Blower |
Included, up to 176 CFM |
Specifications
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Fuel type |
Dry cordwood |
| Maximum log length |
20" |
| Log positioning |
Loading over width |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
Liner - UL1777 |
| Minimum liner height (feet) |
12' |
| Baffle type |
C-Cast or equivalent |
| Approved for an alcove installation |
Not applicable |
| Approved for a mobile home installation |
No |
| Shipping Weight |
535 lb (243 kg) |
| Door type |
Single, glass with cast iron frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
24 3/8" X 12 5/8" |
| Glass air-wash system |
Yes |
| Premium quality blower included (CFM) |
176 |
| Overall dimension (Height) |
30 1/8" |
| Overall dimension (Width) |
43 5/8" |
| Overall dimension (Depth) |
27 1/4" |
| Door opening – dimension (Height) |
10 1/2" |
| Door opening - dimension (Width) |
25 3/8" |
| Firebox – dimension (Height) |
12 3/8" |
| Firebox – dimension (Width) |
22 5/8" |
| Firebox – dimension (Depth) |
12 7/8" |
| Fireplace opening – minimum (Height) |
27 1/8" |
| Fireplace opening – minimum (Width) |
31 3/4" |
| Fireplace opening – minimum (Depth) |
22 1/8" |
| Moulded refractory bricks |
Yes |
| Stainless-steel secondary-air system improving gas combustion |
Yes |
| Adjustable threaded legs |
Yes |
| Steel thickness – body |
3/16'' |
| Steel thickness – top |
3/16'' |
| USA standard (emissions) |
EPA |
| USA standard (safety) |
UL 1482, UL 737 |
| Tested and listed as per applicable standards |
By an accredited laboratory |
| Warranty |
Limited lifetime |
