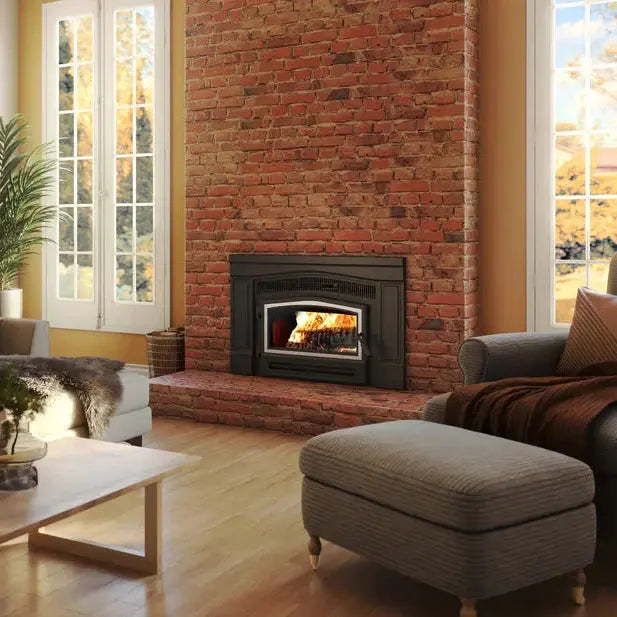

Osburn Matrix 1900 Wood Insert

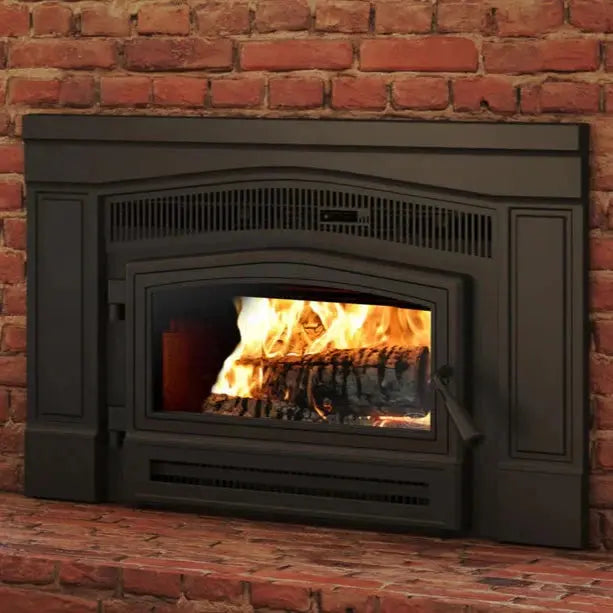

Treat your family to incomparable comfort with the Osburn Matrix 1900 Wood Insert. Its magnificent cast-iron faceplate is adorned with a patterned upper louver and columns that frame its large door.
Its discreet black wooden handle, air control with removable handle as well as flush mount blower disappear to leave room for the delicate details of its faceplate. Osburn Matrix 1900 Wood Insert's large glass surface highlights a panoramic view of the flames to fully enjoy your moments near the fire.
The Osburn Matrix 1900 Wood Insert is a compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.
Features
- Blower included, up to 90 CFM
- Heats 250 to 1,200 sq ft with up to 45,000 BTU/h
- 1.1 cu ft firebox that takes logs up to 17"
- Maximum burn time of 7 hours
- EPA 2020 approved, non-catalytic, 1.5 g/h average particulate emissions
- Ceramic glass door with cast iron frame and glass air-wash system
- Moulded refractory bricks
- Stainless-steel secondary-air system
- 3/16" steel body and 3/16" steel top
- Limited lifetime warranty
Will It Fit?
Measure your existing masonry fireplace opening before ordering. The Matrix 1900 needs at least:
| Minimum fireplace opening height |
19" |
| Minimum fireplace opening width |
25" |
| Minimum fireplace opening depth |
15 1/2" |
| Fireplace type |
Masonry only — factory-built fireplaces are not permitted |
| Chimney liner |
6" listed liner required, minimum 12' height |
Its tapered top and sides are what let it into hearths that won't take a squarer insert, so it's worth measuring even if a larger unit has already been ruled out.
What to Order With It
The Matrix 1900 Wood Insert needs a door overlay to be complete. Choose from each required group below.
Required – door overlay (choose one):
Optional:
Performance
| Maximum heat output (dry cordwood) |
45,000 BTU/h |
| Overall heat output range |
8,471 – 31,700 BTU/h (2.48 – 9.29 kW) |
| Recommended heating area |
250 – 1,200 sq ft (23 – 111 m²) |
| Average overall efficiency (HHV) |
75% |
| Average overall efficiency (LHV) |
80% |
| Optimum overall efficiency |
82% |
| Average particulate emissions |
1.5 g/h (EPA / CSA B415.1-10) |
| Average carbon monoxide |
34 g/h |
| Maximum burn time |
7 hours |
| Overall firebox volume |
1.1 cu ft (0.031 m³) |
| EPA loading volume |
1.03 cu ft (0.029 m³) |
| Recommended log length |
16" (406 mm), loaded east-west |
| Blower |
Included, up to 90 CFM |
Specifications
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Fuel type |
Dry cordwood |
| Maximum log length |
17" |
| Log positioning |
Loading over width |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
Liner - UL1777 |
| Minimum liner height (feet) |
12' |
| Baffle type |
C-Cast or equivalent |
| Approved for an alcove installation |
No |
| Approved for a mobile home installation |
No |
| Fireplace type |
Masonry only |
| Shipping Weight |
332 lb (151 kg) |
| Door type |
Single, glass with cast iron frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
18" X 8 1/8" |
| Glass air-wash system |
Yes |
| Premium quality blower included (CFM) |
90 |
| Overall dimension (Height) |
23 7/8" |
| Overall dimension (Width) |
36" |
| Overall dimension (Depth) |
21" |
| Door opening – dimension (Height) |
7 7/8" |
| Door opening - dimension (Width) |
18 1/4" |
| Firebox – dimension (Height) |
8 7/8" |
| Firebox – dimension (Width) |
16 3/4" |
| Firebox – dimension (Depth) |
12 3/8" |
| Fireplace opening – minimum (Height) |
19" |
| Fireplace opening – minimum (Width) |
25" |
| Fireplace opening – minimum (Depth) |
15 1/2" |
| Moulded refractory bricks |
Yes |
| Stainless-steel secondary-air system improving gas combustion |
Yes |
| Steel thickness – body |
3/16" |
| Steel thickness – top |
3/16" |
| USA standard (emissions) |
EPA |
| USA standard (safety) |
UL 1482, UL 737 |
| Tested and listed as per applicable standards |
By an accredited laboratory |
| Warranty |
Limited lifetime |
