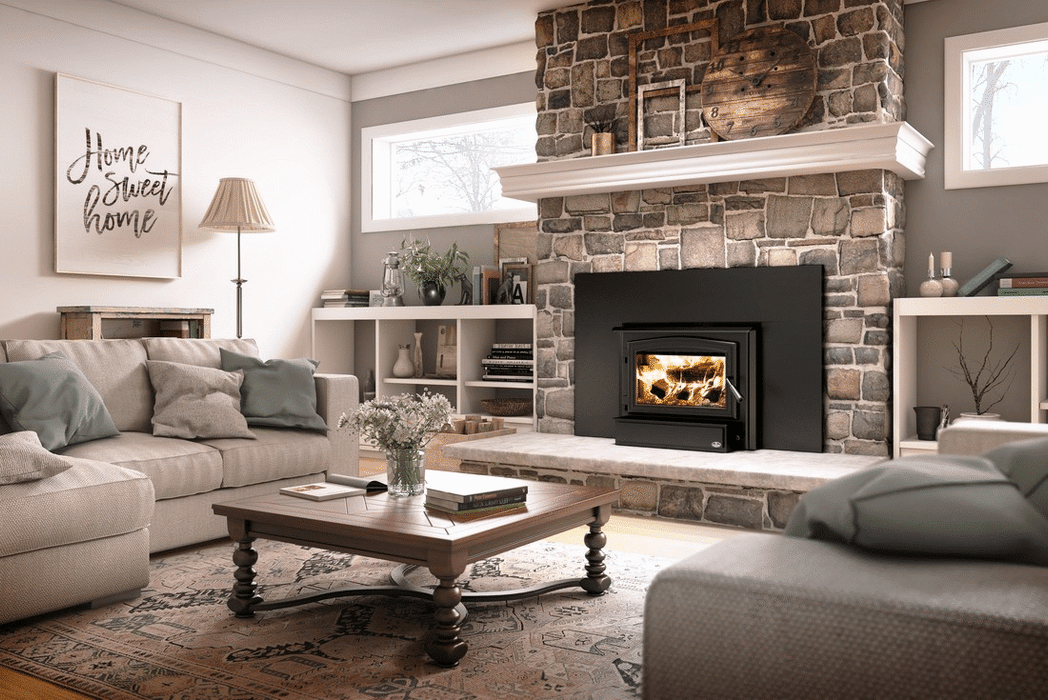

Osburn 1700 Wood Insert
Like its larger counterpart the Osburn 2000, the 1700 Wood Insert offers a revamped version of perfect size to provide ambiance and warmth. At 1.9 g/h of particulate emissions and an 85% optimum overall efficiency, it is EPA 2020 certified and among the cleaner-burning inserts in its size class.
Inside and out, this Osburn 1700 Wood Insert is engineered from high quality materials that put you at the center of a heating experience for many years: high-density bricks, cast iron door and quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates and faceplate trims.
Features
- Blower included, up to 144 CFM
- Heats 500 to 1,800 sq ft with up to 65,000 BTU/h
- 1.86 cu ft firebox that takes logs up to 18"
- Maximum burn time of 7 hours
- EPA 2020 approved, non-catalytic, 1.9 g/h average particulate emissions
- Ceramic glass door with cast iron frame and glass air-wash system
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system
- Adjustable threaded legs
- 3/16" steel body and 5/16" steel top
- Limited lifetime warranty
Will It Fit?
Measure your existing masonry fireplace opening before ordering. The 1700 Wood Insert needs at least:
| Minimum fireplace opening height |
21 1/2" |
| Minimum fireplace opening width |
27 1/2" |
| Minimum fireplace opening depth |
12 7/8" |
| Fireplace type |
Masonry |
| Chimney liner |
6" listed liner required, minimum 12' height |
What to Order With It
The 1700 Wood Insert needs a door overlay, a faceplate and faceplate trims to be complete. Choose from each required group below.
Required – door overlay (choose one):
Required – faceplate (choose one):
Required – faceplate trims, same size as the faceplate (choose one):
Optional:
Performance
| Maximum heat output (dry cordwood) |
65,000 BTU/h (19 kW) |
| Overall heat output range |
11,500 – 43,300 BTU/h (3.37 – 12.69 kW) |
| Recommended heating area |
500 – 1,800 sq ft (46 – 167 m²) |
| Average overall efficiency (HHV) |
73% |
| Average overall efficiency (LHV) |
78% |
| Optimum overall efficiency |
85% |
| Average particulate emissions |
1.9 g/h (EPA / CSA B415.1-10) |
| Average carbon monoxide |
78.7 g/h |
| Maximum burn time |
7 hours |
| Overall firebox volume |
1.86 cu ft (0.053 m³) |
| EPA loading volume |
1.44 cu ft (0.041 m³) |
| Recommended log length |
16" (406 mm), loaded east-west |
| Blower |
Included, up to 144 CFM |
Specifications
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Fuel type |
Dry cordwood |
| Maximum log length |
18" |
| Log positioning |
Loading over width |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
Liner - UL1777 |
| Minimum liner height (feet) |
12' |
| Baffle type |
C-Cast or equivalent |
| Approved for an alcove installation |
Not applicable |
| Approved for a mobile home installation |
No |
| Shipping Weight |
361 lb (164 kg) |
| Door type |
Single, glass with cast iron frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
15 3/4" x 9 3/8" |
| Glass air-wash system |
Yes |
| Premium quality blower included (CFM) |
144 |
| Overall dimension (Height) |
21 1/4" |
| Overall dimension (Width) |
27 1/8" |
| Overall dimension (Depth) |
22 3/8" |
| Door opening – dimension (Height) |
8 3/4" |
| Door opening - dimension (Width) |
17 1/4'' |
| Firebox – dimension (Height) |
11 7/8" |
| Firebox – dimension (Width) |
19 5/8" |
| Firebox – dimension (Depth) |
13 1/2" |
| Fireplace opening – minimum (Height) |
21 1/2" |
| Fireplace opening – minimum (Width) |
27 1/2" |
| Fireplace opening – minimum (Depth) |
12 7/8" |
| Firebox lined with refractory bricks for better heat distribution |
Yes |
| Stainless-steel secondary-air system improving gas combustion |
Yes |
| Adjustable threaded legs |
Yes |
| Steel thickness – body |
3/16" |
| Steel thickness – top |
5/16" |
| USA standard (emissions) |
EPA |
| USA standard (safety) |
UL 1482, UL 737 |
| Tested and listed as per applicable standards |
By an accredited laboratory |
| Warranty |
Limited lifetime |
