Napoleon Vector 50" See-Through Direct Vent Gas Fireplace
If you’ve been looking for the ideal fireplace to add flair to an otherwise dull wall, the Napoleon Vector 50" See-Through Direct Vent Gas Fireplace offers a two-sided see-through display, and the Divinity™ flame pattern delivers a complete linear fireplace experience. The Bluetooth-enabled eFIRE app lets you manage your flames and LED colors from your smart device.
Play video
Why the Napoleon Vector 50" See-Through Stands Out

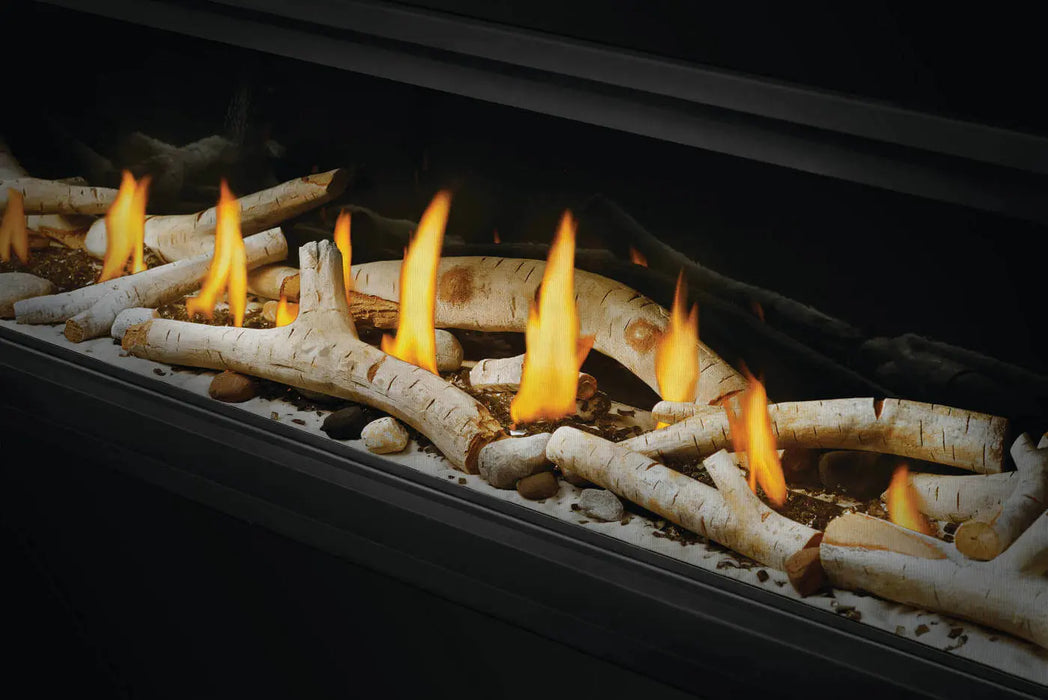

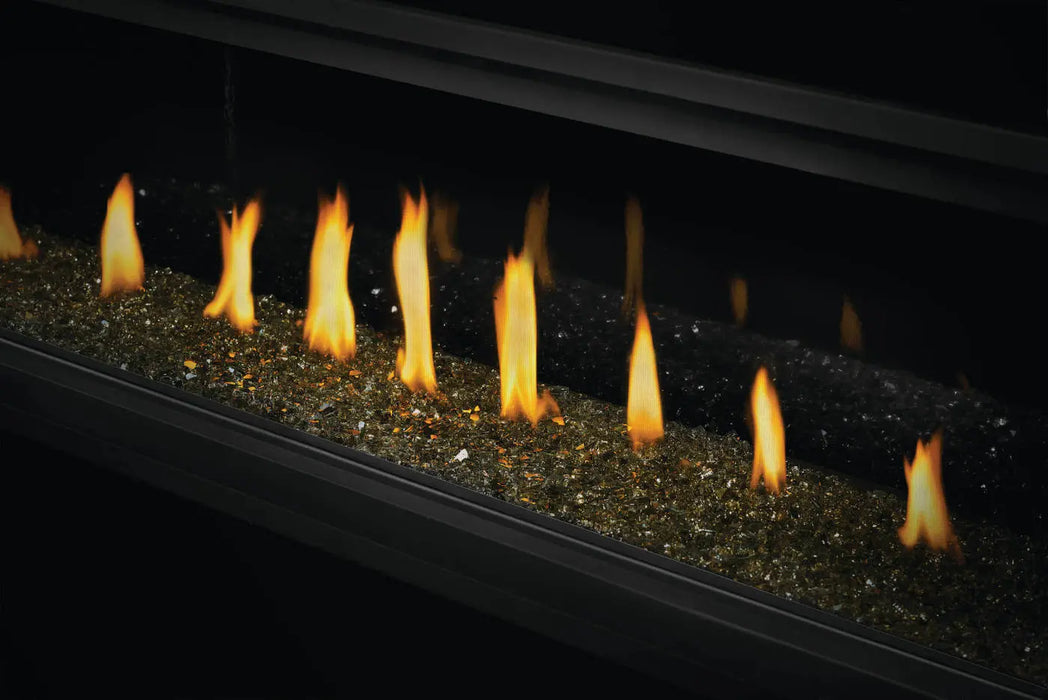

One fireplace serves two rooms: the see-through design shows the flame from both sides, and the black premium safety barrier is included. You choose the burning display: a High Definition oak, driftwood or birch log set, glass embers or glass beads, or the Beach Fire log set is required and sold separately.
The tube-style burner produces the Divinity™ flame pattern with heightened peaks and valleys. Multi-colored LED lights beneath the ember bed and the NIGHT LIGHT™ system add a glow even when the fire is off. The included ProFlame II remote and wall switch, plus the eFIRE Bluetooth controller, put flame and lighting within easy reach, and a battery back-up keeps the fireplace operable during a power outage.
Explore Gas Fireplaces
Key Features
- Up to 36,000 BTU/hr input (natural gas)
- Divinity™ flame pattern from a tube-style burner with flame adjustment
- Log set, glass or Beach Fire media required (sold separately)
- Heat-radiating ceramic glass
- Black premium safety barrier included (both sides)
- Multi-color LED lighting and accent lighting with the NIGHT LIGHT™ system
- ProFlame II remote and eFIRE Bluetooth controller included
- Wall switch with battery back-up control system
- MIRRO-FLAME™ porcelain reflective radiant panels included
- Firestop / vent shield
- Stainless steel flex connector
- Easy-access air control
- Optional heat management: LHAD, DHC, DHC+ or DHM
- Appliance does not need to be elevated above the floor
- President’s Lifetime Limited Warranty
What to Order With It
Required (choose one):
Optional – Vent terminal kits:
Optional:
Specifications
| Model |
LV50N2-2 (natural gas) |
| Type |
Direct Vent |
| Installation |
Built-in |
| Style |
Linear, see-through |
| Fuel Type |
Natural Gas |
| Ignition |
Electronic with battery back-up |
| Certification |
Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50) |
| Maximum Input, Natural Gas |
36,000 BTU/hr |
| Viewing Area |
52-3/4" W x 18-5/8" H (each side) |
| Venting |
Top 5" exhaust / 8" air intake |
| Burner |
Tube-style burner with flame adjustment |
| Media |
Log set, glass or Beach Fire media required (sold separately) |
| Controls |
ProFlame II remote, wall switch and eFIRE Bluetooth controller (included); wall mount control optional |
| Heat Management Kit |
LHAD, DHC, DHC+ or DHM (optional) |
| Warranty |
President’s Lifetime Limited Warranty |
Appliance Dimensions
| Overall Width |
65-5/16" |
| Overall Height |
41-3/16" |
| Overall Depth |
16-3/16" |
Minimum Framing Dimensions
| Framing Width |
65-13/16" |
| Framing Depth |
16-3/16" |
| Minimum Enclosure / Ceiling Height |
73" (measured from the bottom of the appliance) |
The finishing flange defines the perimeter of the fireplace opening; framing or finishing materials must never encroach inside it. Some venting configurations that require more vertical rise need a larger enclosure. Refer to the installation manual for complete framing, venting and clearance requirements.
Frequently Asked Questions
What is the gas input of the Vector 50?
The LV50N2-2 has a maximum input of 36,000 BTU/hr on natural gas. It is certified as a vented decorative gas appliance.
What size enclosure does it need?
Frame 65-13/16" wide by 16-3/16" deep, with a minimum enclosure/ceiling height of 73" measured from the bottom of the appliance. Always confirm against the installation manual for your venting configuration.
Does the fireplace still work during a power outage?
Yes. The wall switch battery back-up (4 AA batteries) allows the fireplace to be operated during a power failure.
What media do I need to order?

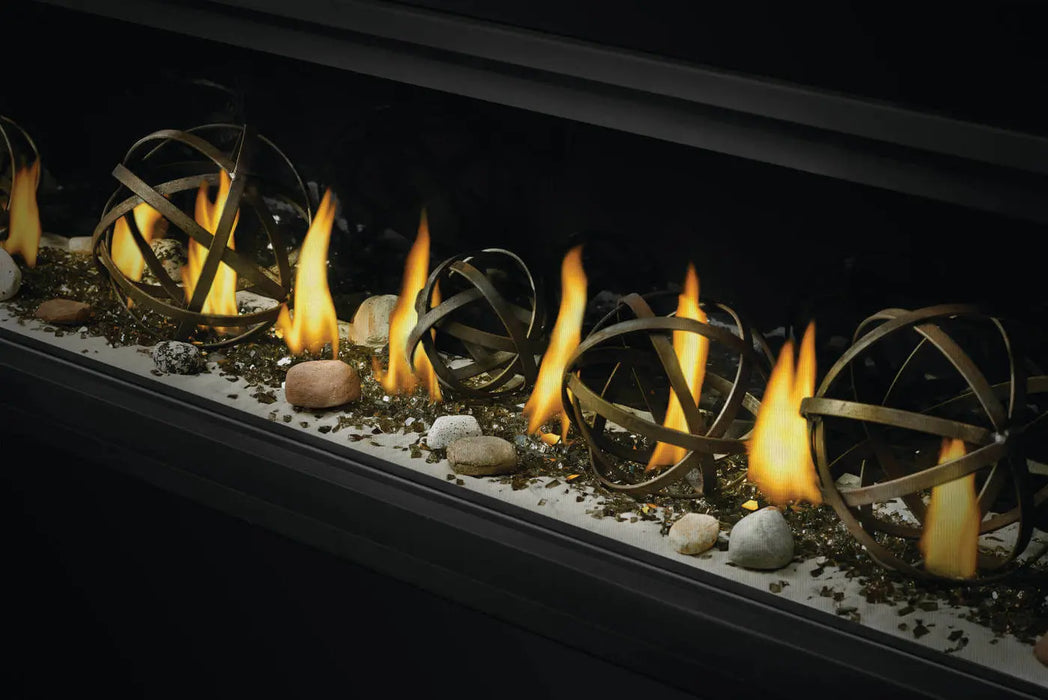

One burning display is required: a High Definition oak, driftwood or birch log set, glass embers or glass beads, or the Beach Fire log set (Napoleon recommends 2 glass kits for the 50). The Woodland kit, wrought iron globes, mineral rocks and Ambient-Glow embers are optional extras.
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Fireplaces – President’s Lifetime Limited Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
