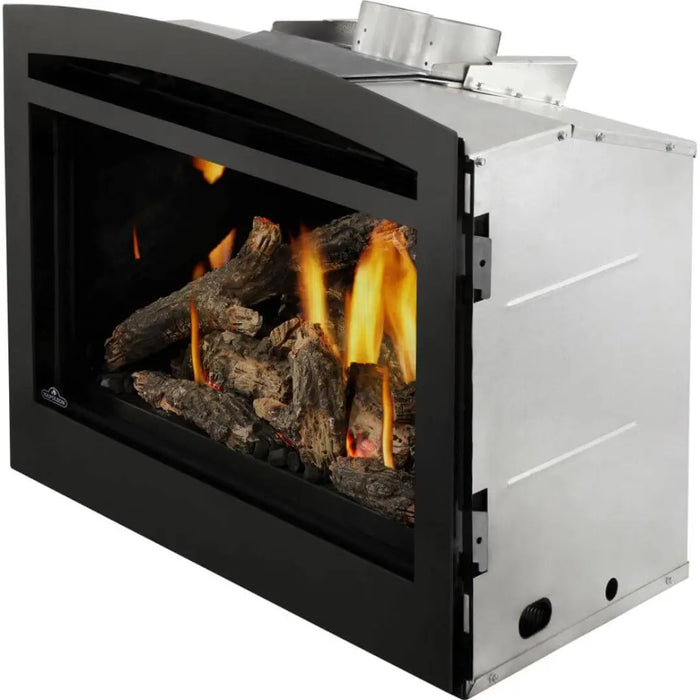

Napoleon Rosedale 3 Single Sided Gas Insert

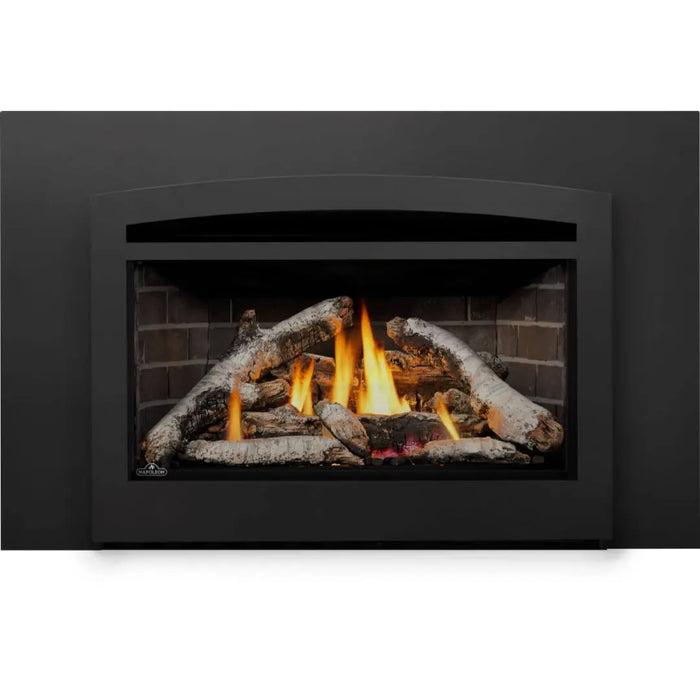

The Napoleon Rosedale™ 3 turns an existing wood-burning fireplace into a gas fireplace with a large 25" x 13" view of the flames. It is rated up to 25,000 BTU/hr input on natural gas. An optional hybrid gas/electric blower raises heat output by about 20%, to up to 30,000 BTU, and can supply up to 5,000 BTU of electric-only heat for milder days.
The Rosedale 3 uses 7-day millivolt ignition, so it keeps operating during a power outage, and the F60 thermostatic remote is included. Choose a Birch or Oak log set, a backerplate and a faceplate to complete it, and add MIRRO-FLAME™ or brick panels if you like. It is certified as a vented gas fireplace heater and vents through two 3" liners.
Key Features
- Up to 25,000 BTU/hr input on natural gas
- Optional hybrid gas/electric blower: up to 30,000 BTU combined, or 5,000 BTU electric-only heat
- Optional standard heat circulating blower
- 7-day millivolt ignition that operates in power outages
- F60 thermostatic remote included
- Standard safety screen included
- Heat radiating ceramic glass
- Flame/heat adjustment

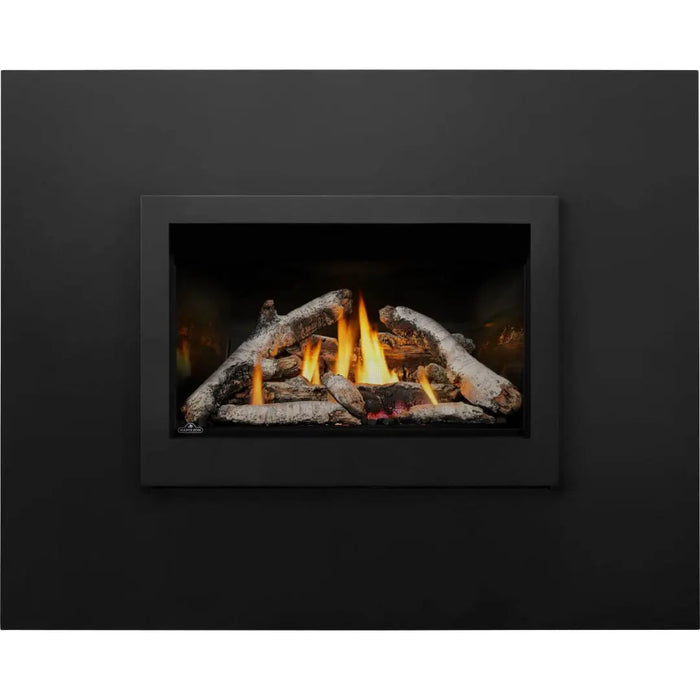

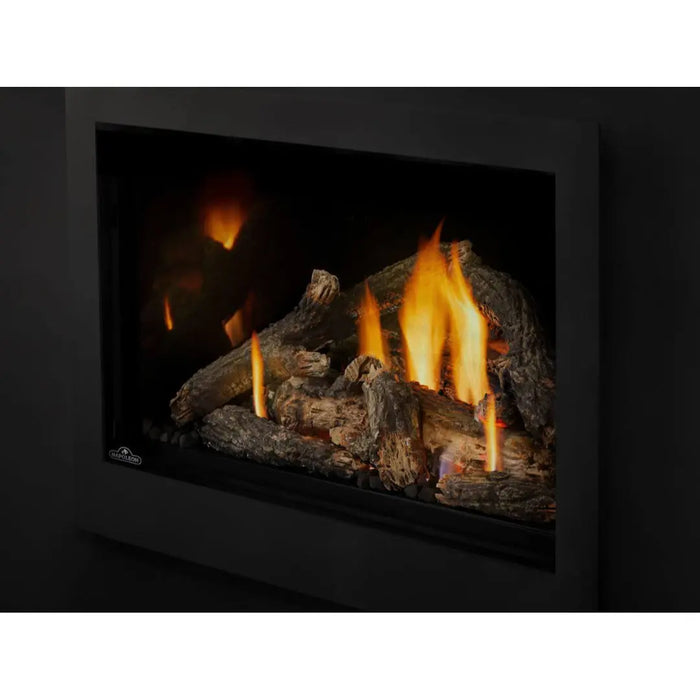

- Birch or Oak log set, with MIRRO-FLAME™, Westminster™ or Newport™ panels available
- Optional co-axial/co-linear venting with an adjustable plate
- President’s Limited Lifetime Warranty
What to Order With It
The Rosedale 3 needs a log set, a backerplate and a faceplate to be complete. Choose from each required group below.
Required – log set (choose one):
Required – backerplate (choose one):

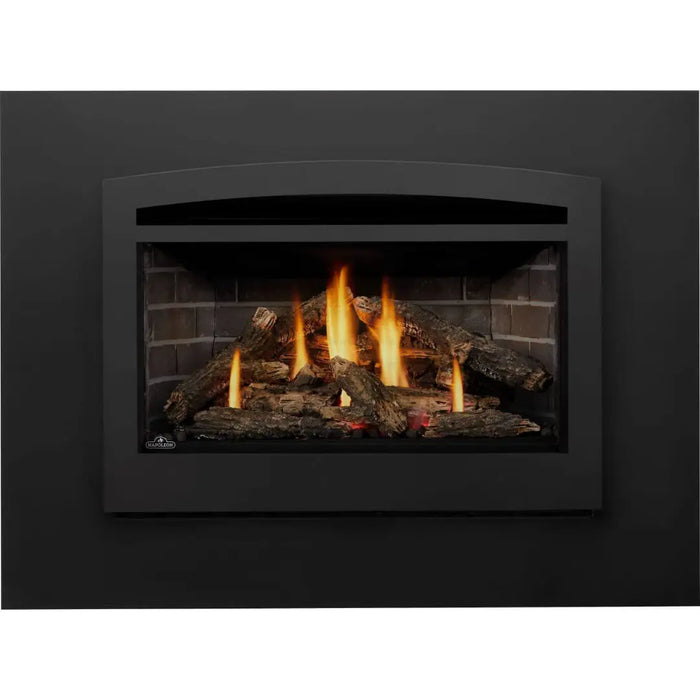

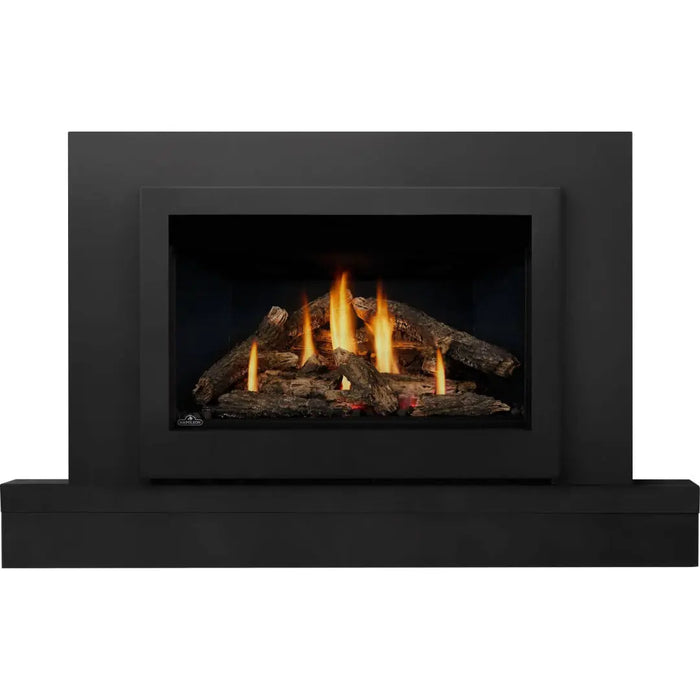

Required – faceplate (choose one, both fit the 3-sided backerplate):
Optional:
Specifications
- Type: Direct Vent Insert
- Fuel Type: Natural Gas (propane conversion kit available)
- Viewing Area: 25" x 13"

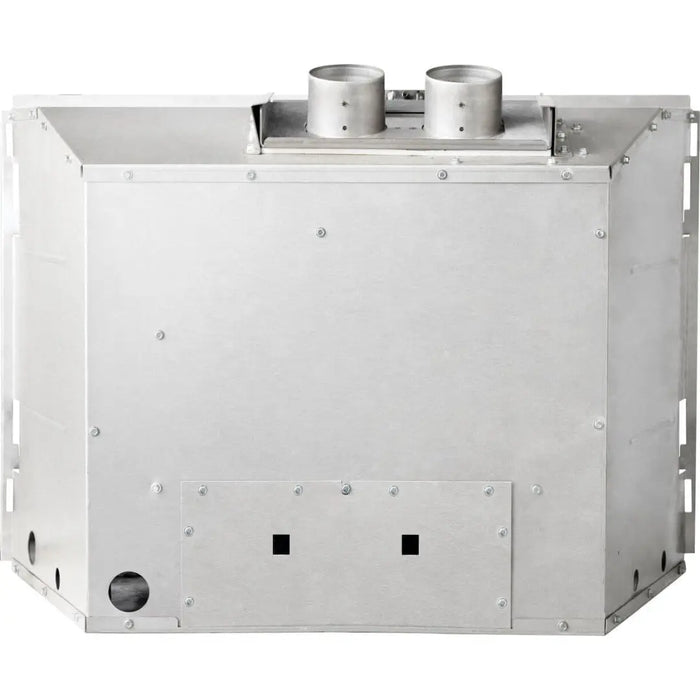

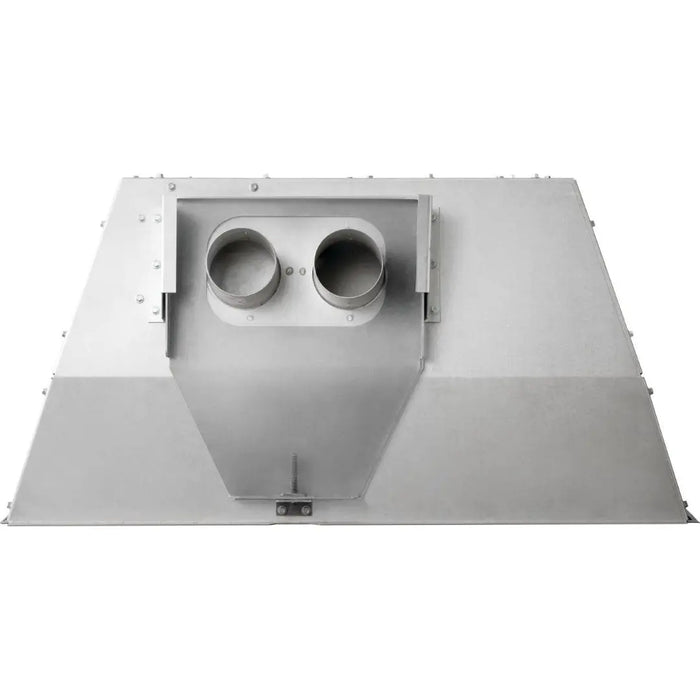

- Venting: Two 3" liners (intake and exhaust), 10 ft to 45 ft
- Ignition System: 7-day millivolt
- Max. Input: 25,000 BTU/hr natural gas
- Blower: Optional (standard or hybrid gas/electric)
- Remote: F60 thermostatic remote included
- Certification: Vented gas fireplace heater (CSA 2.33 / ANSI Z21.88)
- Mobile Home Approved: Yes
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Inserts – President’s Limited Lifetime Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
