Napoleon Oakville X3 Direct Vent Gas Fireplace Insert

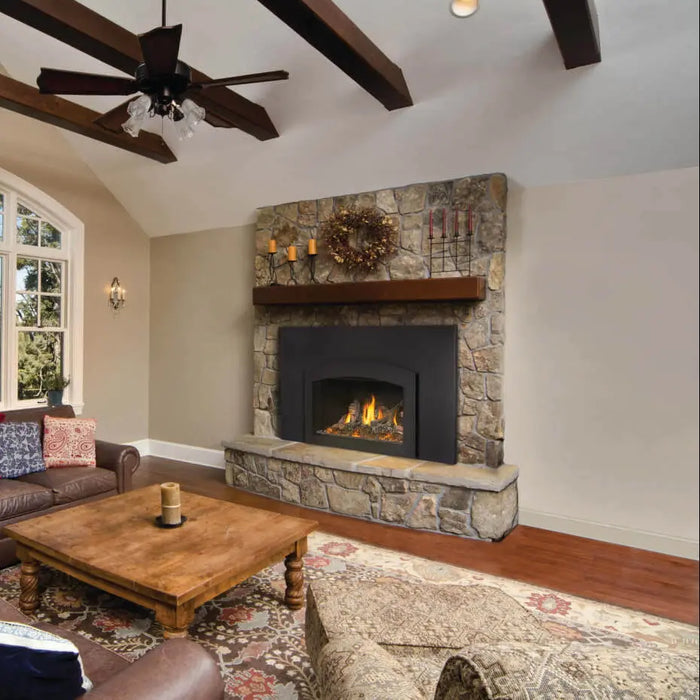

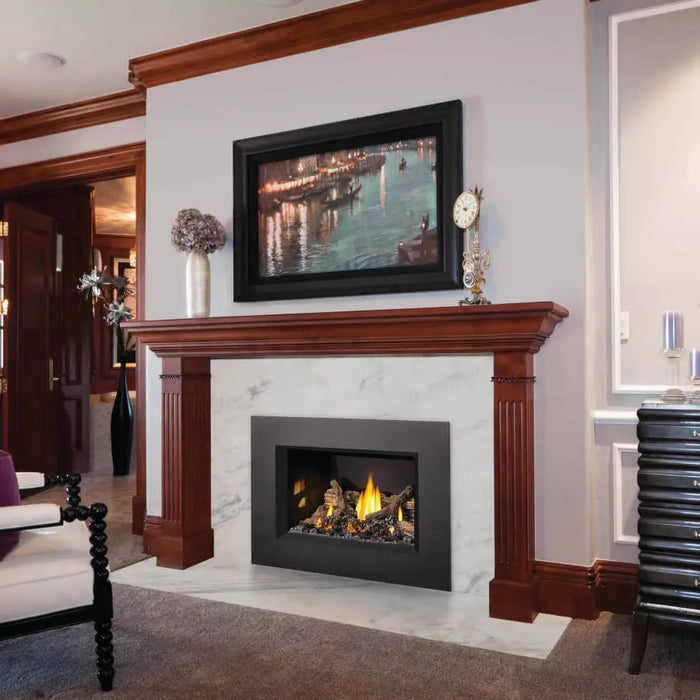

The Napoleon Oakville™ X3 is a direct vent gas insert that converts an existing fireplace into a gas fireplace. Its high performance "H" style burner fills the firebox with flame and is rated up to 30,000 BTU/hr input, and the full view design shows 340 sq. in. of fire behind a premium clean face safety barrier.
Napoleon’s exclusive NIGHT LIGHT™ gives the room a warm glow even when the fire is off. A heat circulating blower, a split oak log set, a Proflame II remote control and the eFIRE controller are included; decorative panels are required, and faceplates, backerplates and log upgrades let you finish it to suit the room. The X3 slides all the way back into the fireplace cavity, is certified as a vented gas fireplace heater, vents through two 3" liners and is approved for mobile home installation.
Key Features
- Up to 30,000 BTU/hr input
- High performance "H" style burner with a full-firebox flame display
- Full view design with a 340 sq. in. viewing area
- Exclusive NIGHT LIGHT™ glows even when the fireplace is off
- Premium clean face safety barrier
- SIT Proflame II electronic ignition with remote control
- eFIRE controller included for app control
- Split oak log set included
- Heat circulating blower included
- Back-up control system
- Flex connector included
- Flame/heat adjustment
- Clean face design with flush finish faceplates and backerplates
- Slides all the way back into the fireplace cavity
- Approved for mobile home installation
- President’s Limited Lifetime Warranty
What to Order With It

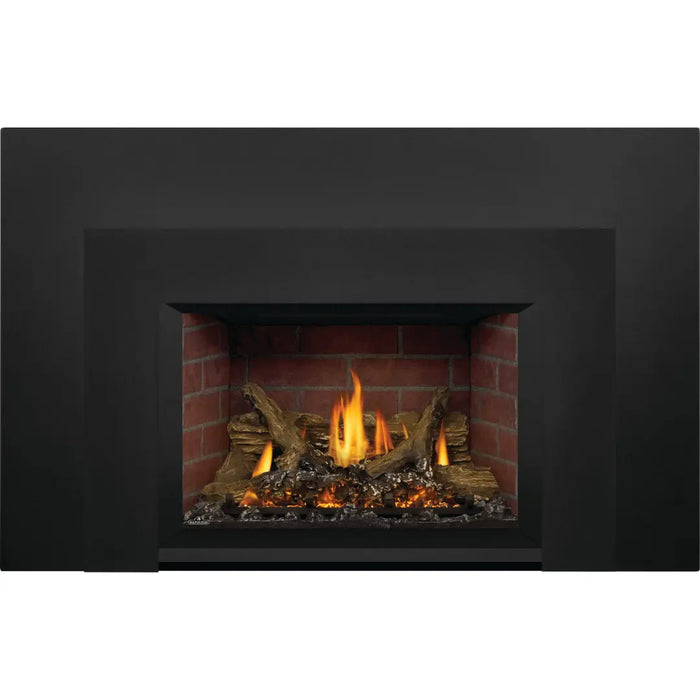

The Oakville X3 needs decorative panels to be complete. Choose one set below.
Required – decorative panels (choose one):
Optional:

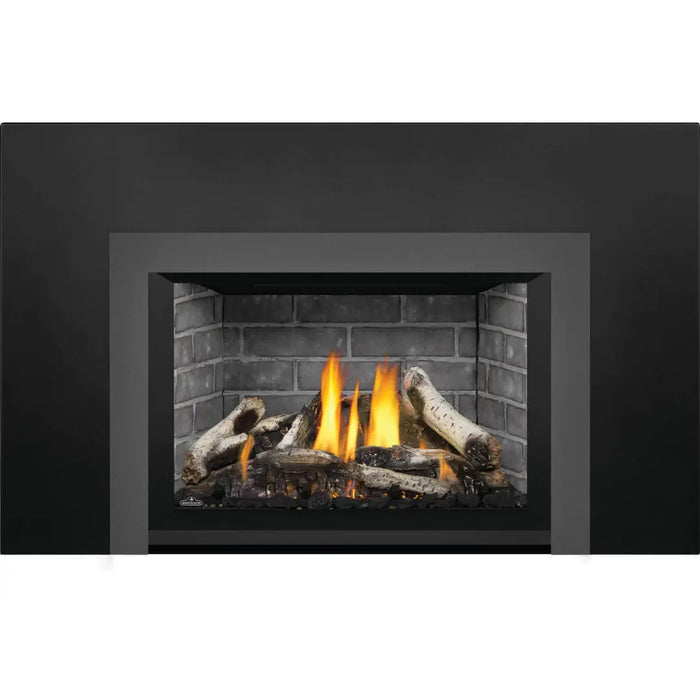

- Log upgrade: Standard Birch Logs (BLKIX3) or Standard Driftwood Logs (DLKIX3)
- Backerplate: 4-Sided (BK4B3142), Medium 3-Sided (MBK3B2846), Large 3-Sided (LBK3B3048) or Small 6" (SBK3B2540)
-

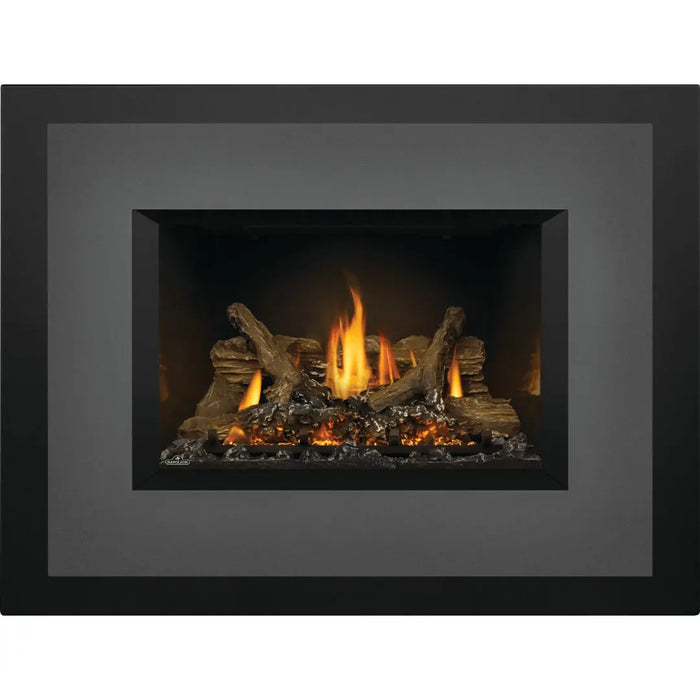

Faceplates in 2.5" or 5" widths, 3- or 4-sided, black or charcoal, plus 2.5" arched (for X3: SBK3F3B3, SBK4F3B3, SBK4F4B3, LBK3F3B3, LBK4F4B3, SABK4F3B3 and charcoal versions)
-

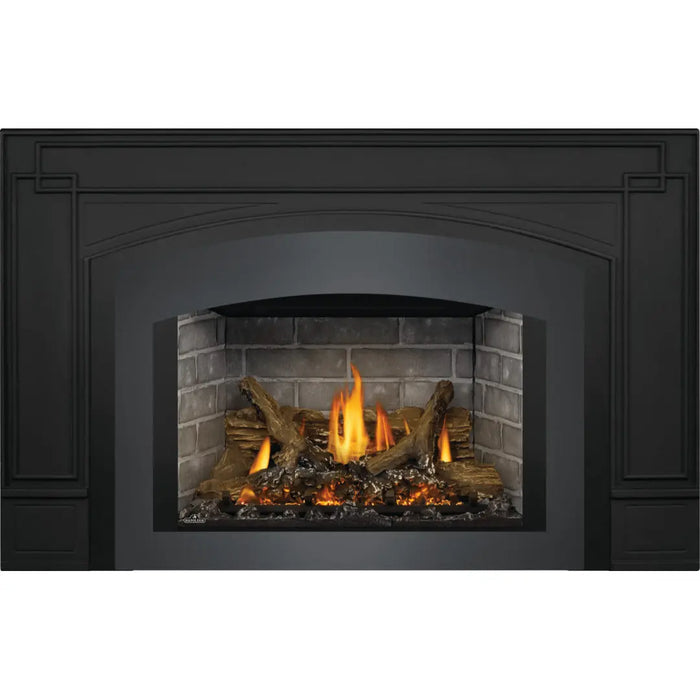

7" Black Decorative Cast Iron Surround (CISI3BK)
-
Riser Box, 3" H x 48" W (GI-RB3)
-
Natural Gas to Propane Conversion Kit (W175-0823)
- Venting: 3" liner kit (intake and exhaust) sized to your chimney, 20 ft (GDI-320KT), 25 ft (GDI-325KT) or 35 ft (GDI-335KT)
Specifications
- Type: Direct Vent Insert
- Fuel Type: Natural Gas (propane conversion kit available)
- Minimum Fireplace Opening (H x W x D): 21 1/2" x 29" x 14 3/8" (add 4" to the depth with the blower installed)
- Appliance Dimensions (W x H x D): 28 5/8" x 20 15/16" x 14 3/8"
- Viewing Area: 22 11/16" x 15" (340 sq. in.)
- Venting: Two 3" liners (intake and exhaust), 10 ft to 45 ft
- Ignition System: Electronic (SIT Proflame II)
- Max. Input: 30,000 BTU/hr natural gas; 30,000 BTU/hr propane
- Remote: Proflame II remote control included
- Blower: Included
- Certification: Vented gas fireplace heater (CSA 2.33 / ANSI Z21.88)
- Mobile Home Approved: Yes
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Inserts – President’s Limited Lifetime Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
