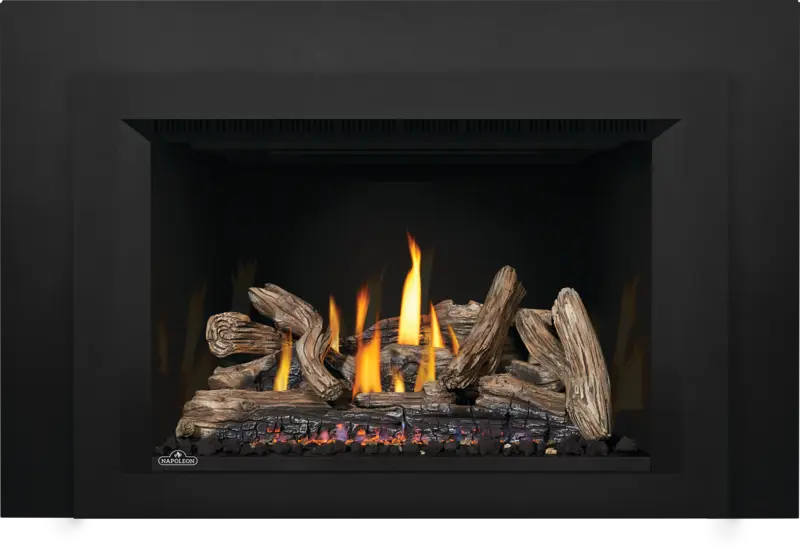

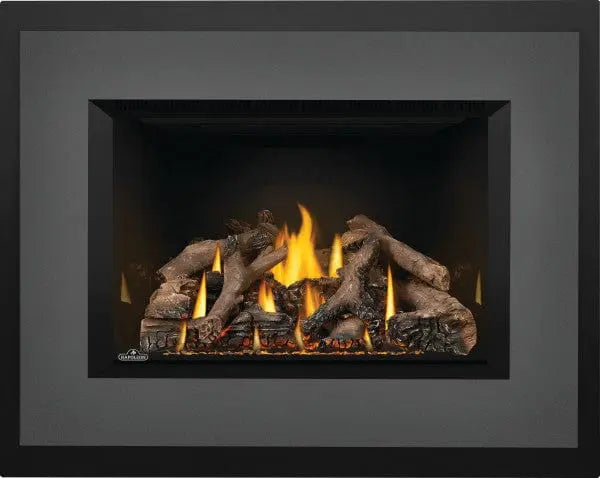

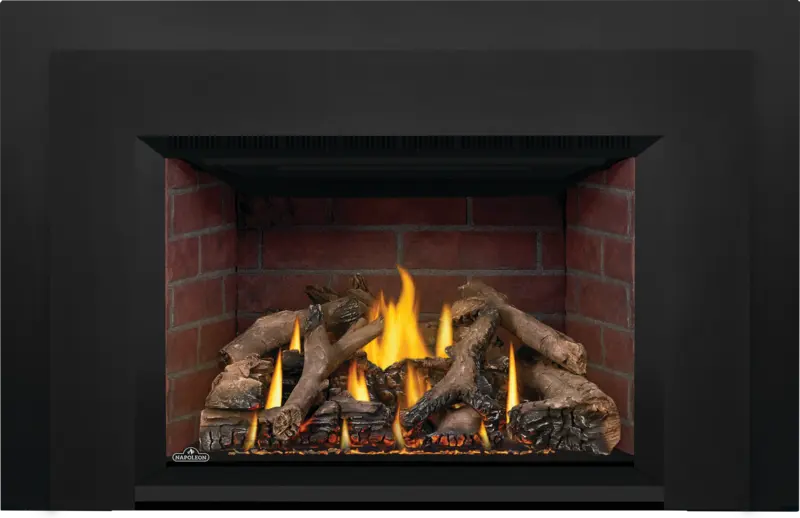

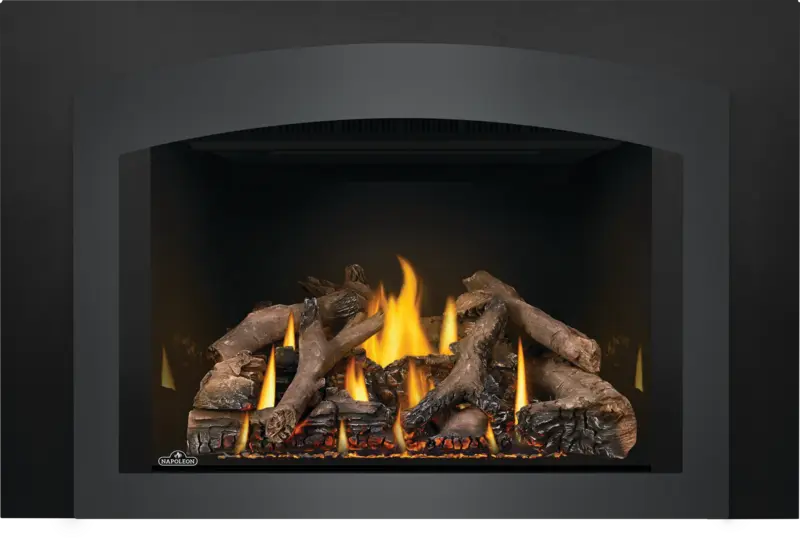

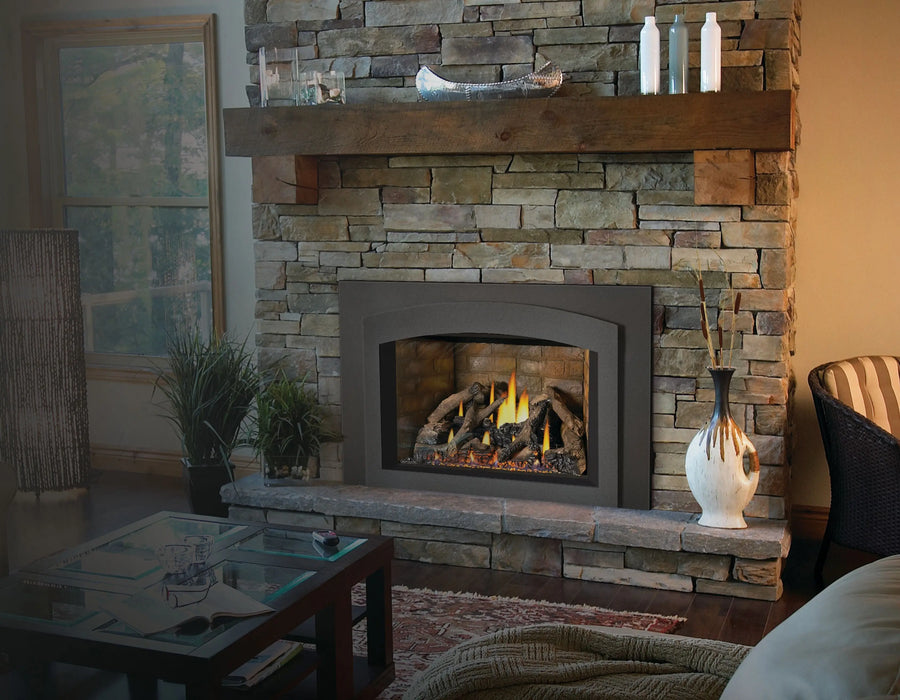

Napoleon Oakville X4 Direct Vent Gas Fireplace Insert
The Napoleon Oakville™ X4 gas insert uses an exclusive dual burner split flow system that fills the firebox with a triple flame. The front and rear burners can be operated independently and modulate from 16,000 up to 40,000 BTU/hr input, and the full view design shows 518 sq. in. of fire behind heat radiating ceramic glass.
A heat circulating blower, Proflame II remote control and eFIRE controller are included, and directional baffles improve the blower’s airflow. The X4 comes with a split oak log set; decorative panels are required, and faceplates, backerplates and log upgrades let you finish it to suit the room. It is certified as a vented decorative gas appliance, vents through two 3" liners and is approved for mobile home installation.
Play video
Key Features
- Up to 40,000 BTU/hr input with a triple flame
- Dual burner split flow system: front and rear burners modulate from 16,000 to 40,000 BTU/hr
- Full view design with a 518 sq. in. viewing area
- Heat radiating ceramic glass with premium clean face safety barrier
- Heat circulating blower included, with directional baffles
- SIT Proflame II electronic ignition with remote control
- eFIRE controller included for app control
- Exclusive NIGHT LIGHT™
- Back-up control system
- Flex connector included
- Flame/heat adjustment
- Clean face design with flush finish faceplates and backerplates
- Approved for mobile home installation
- President’s Limited Lifetime Warranty

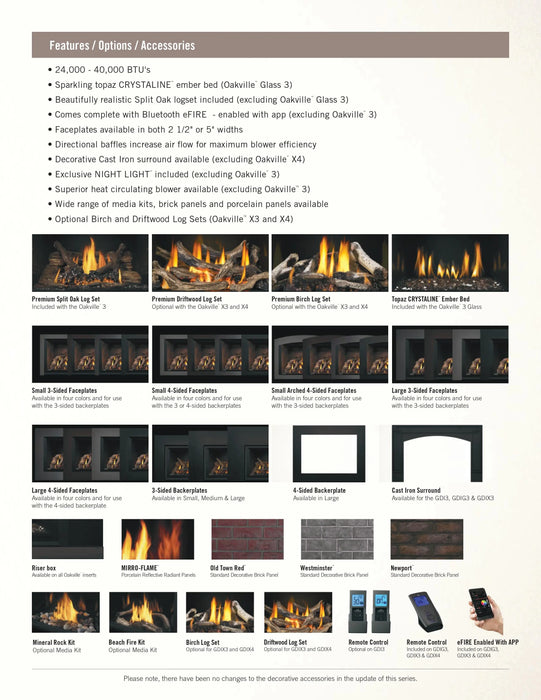

What to Order With It

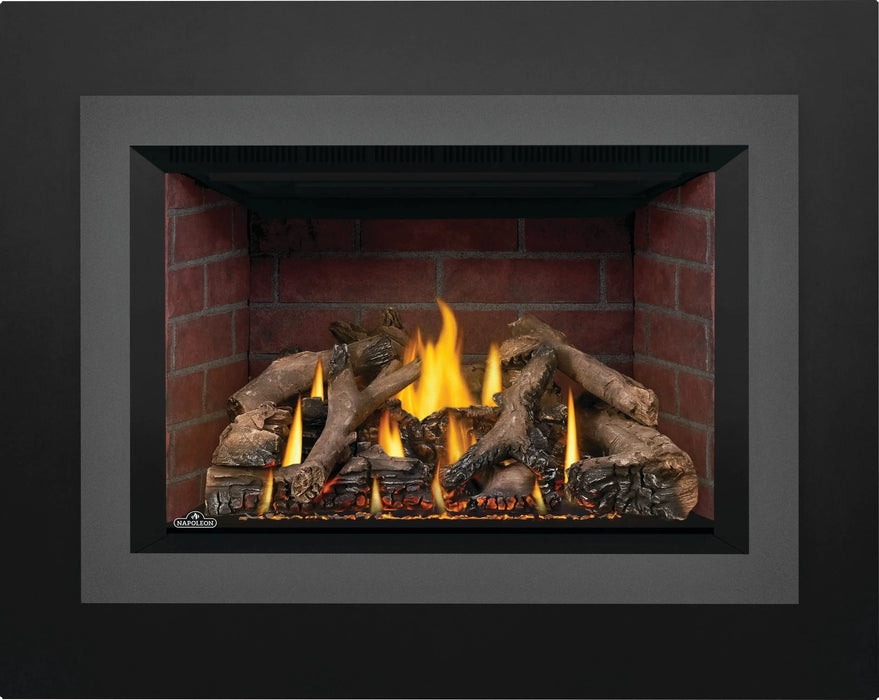

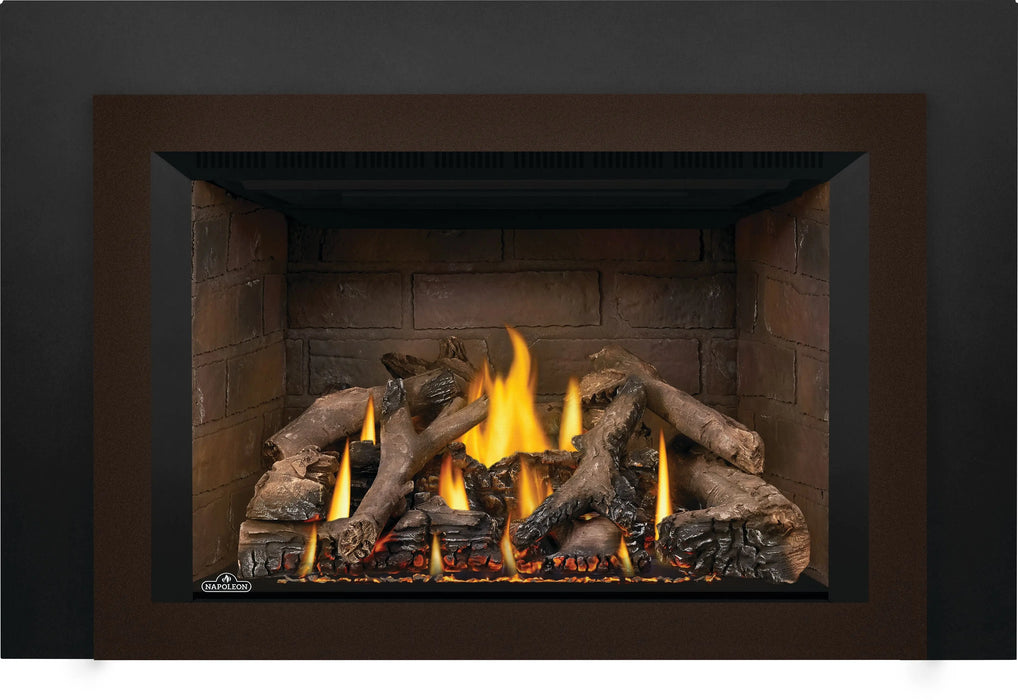

The Oakville X4 needs decorative panels to be complete. Choose one set below.
Required – decorative panels (choose one):
Optional:

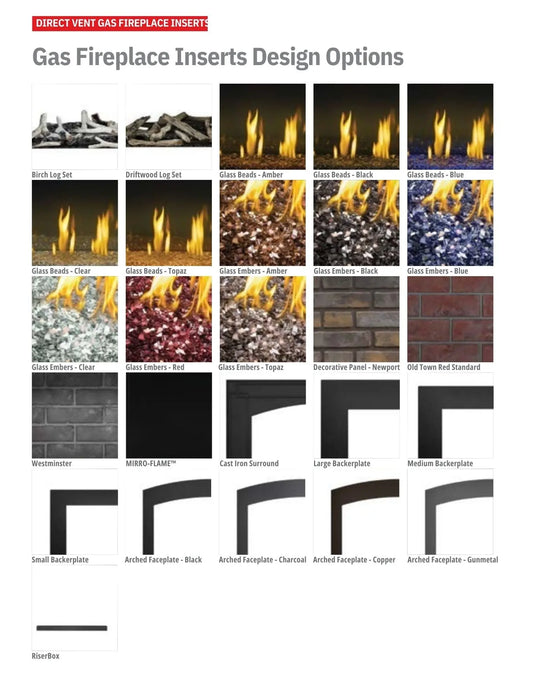

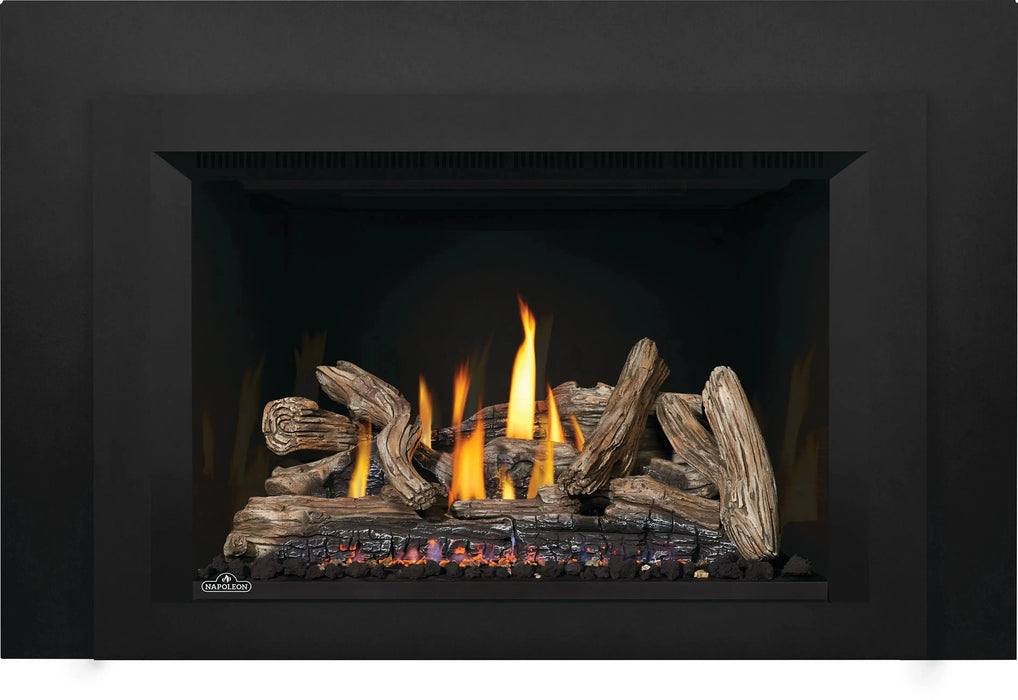

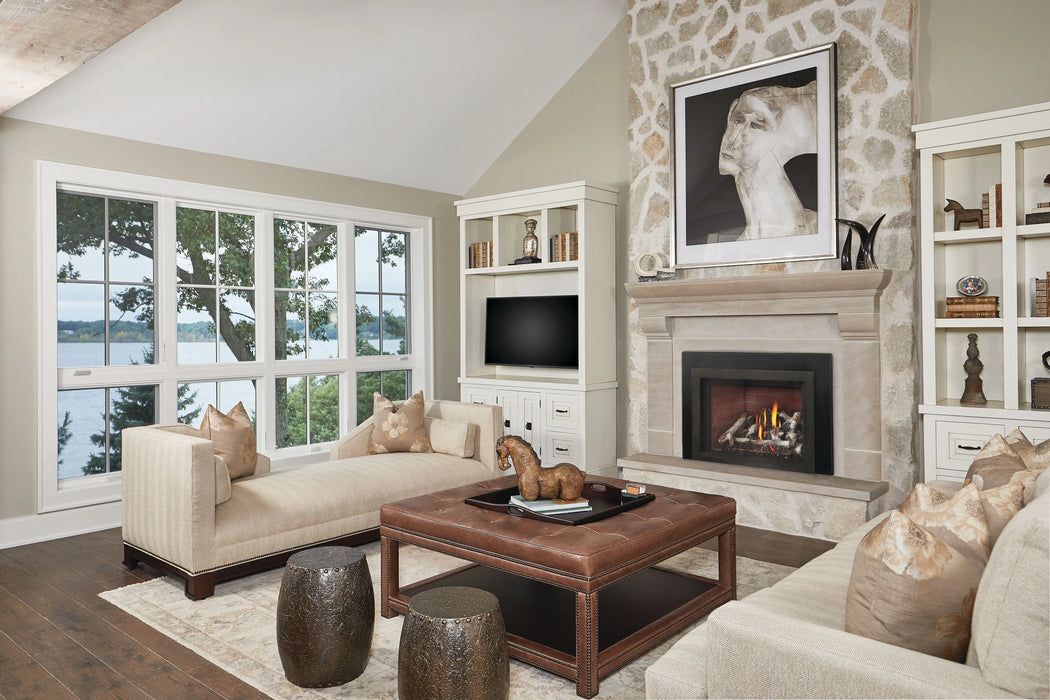

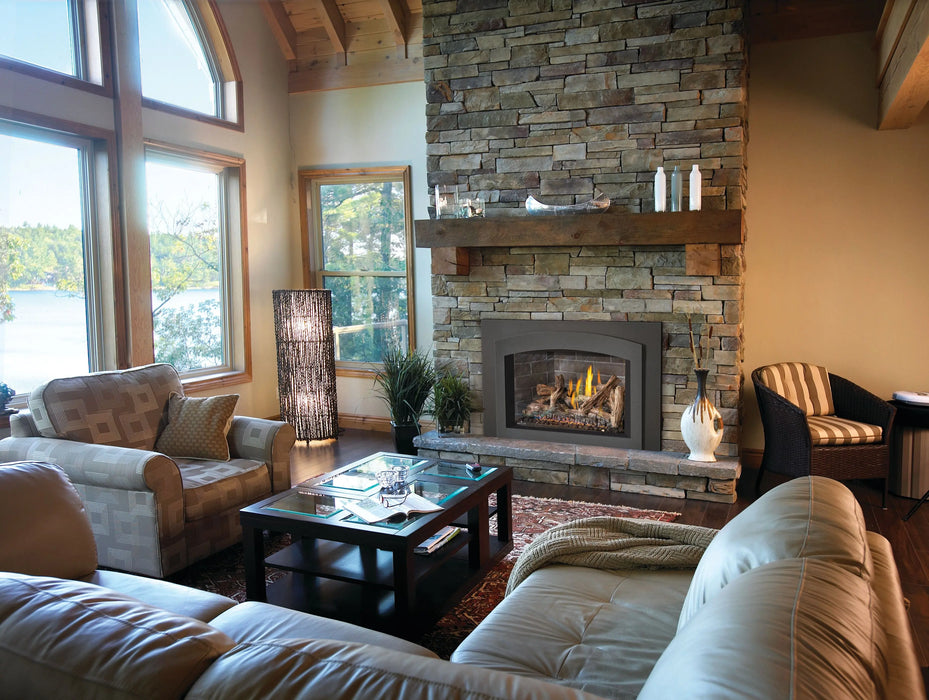

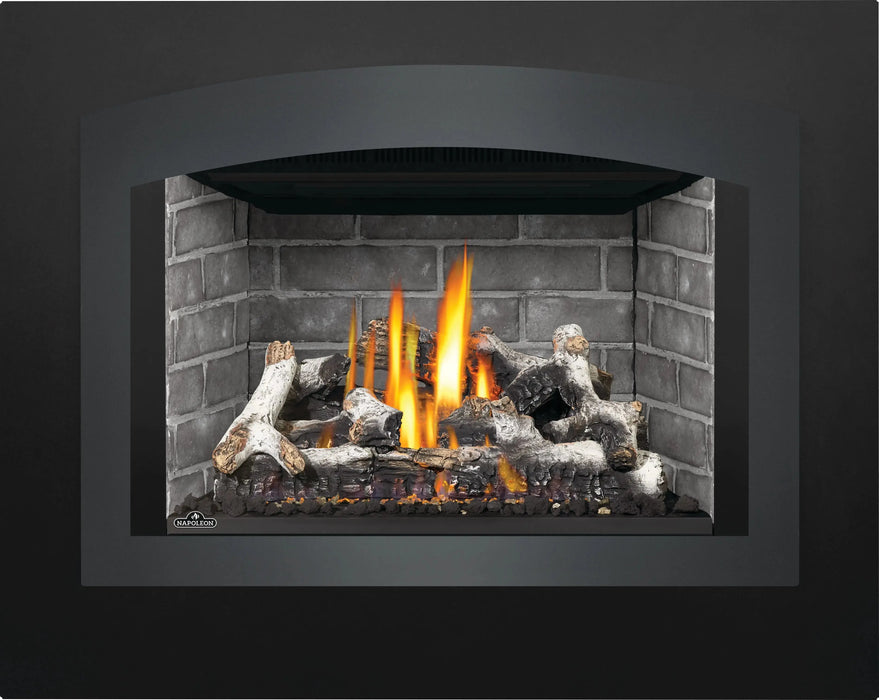

- Log upgrade: Standard Birch Logs (BLKIX4) or Standard Driftwood Logs (DLKIX4)

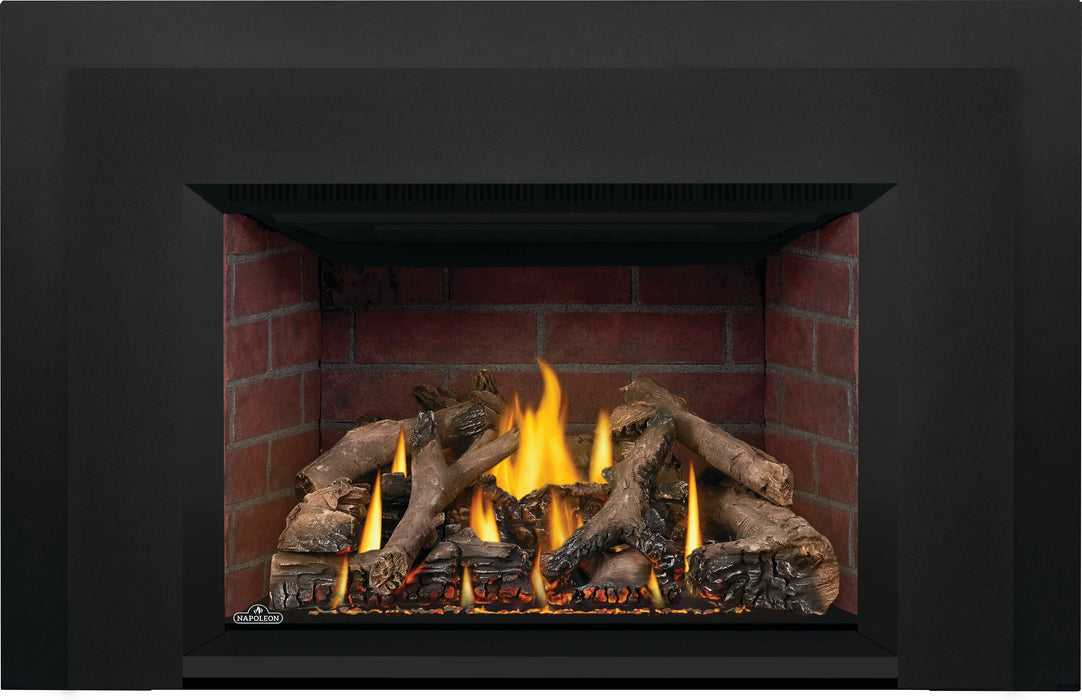

- Backerplate: 4-Sided (BK4B3544), Medium 3-Sided (MBK3B2844) or Large 3-Sided (LBK3B3047)
-

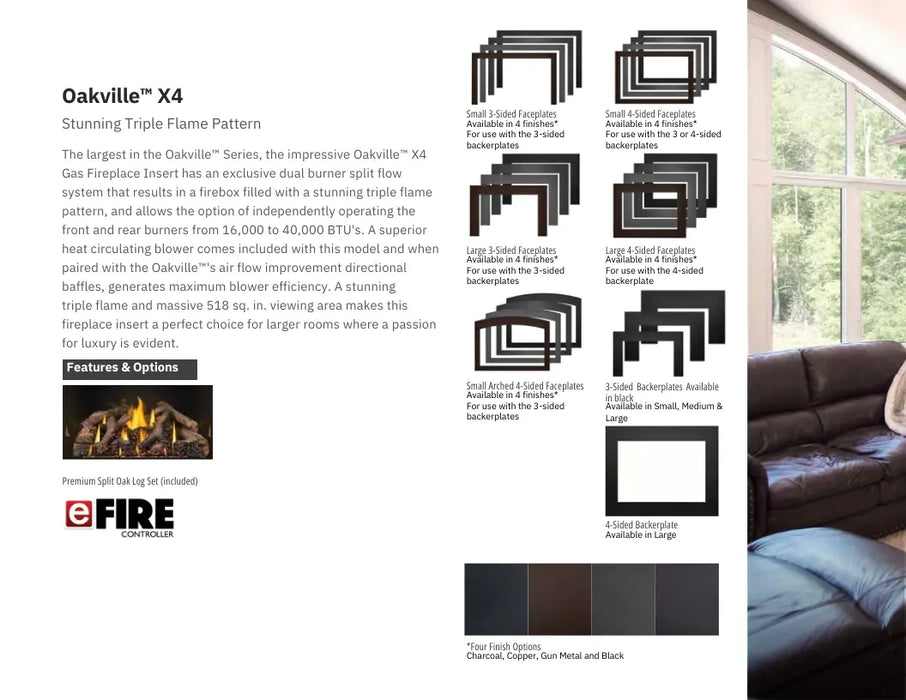

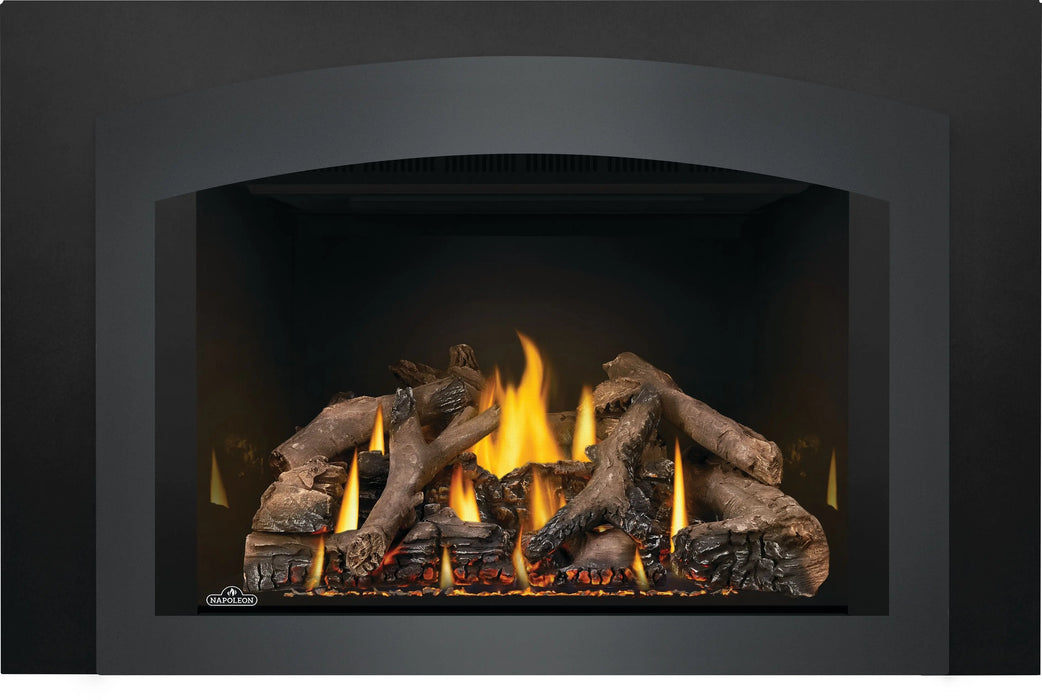

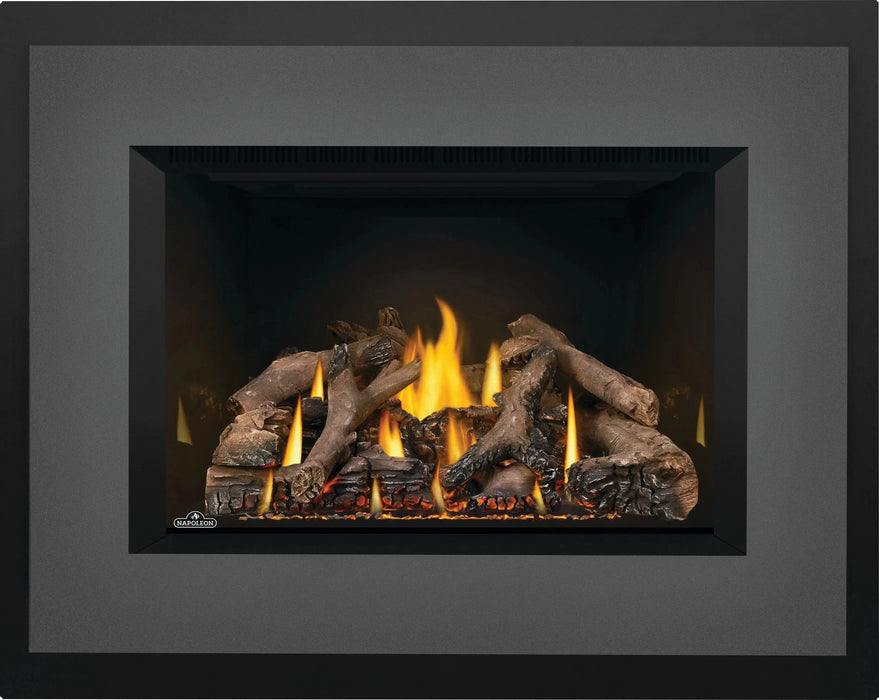

Faceplates in 2.5" or 5" widths, 3- or 4-sided, black or charcoal, plus 2.5" arched (for X4: SBK3F3B4, SBK4F3B4, SBK4F4B4, LBK3F3B4, LBK4F4B4, SABK4F3B4 and charcoal versions)
-

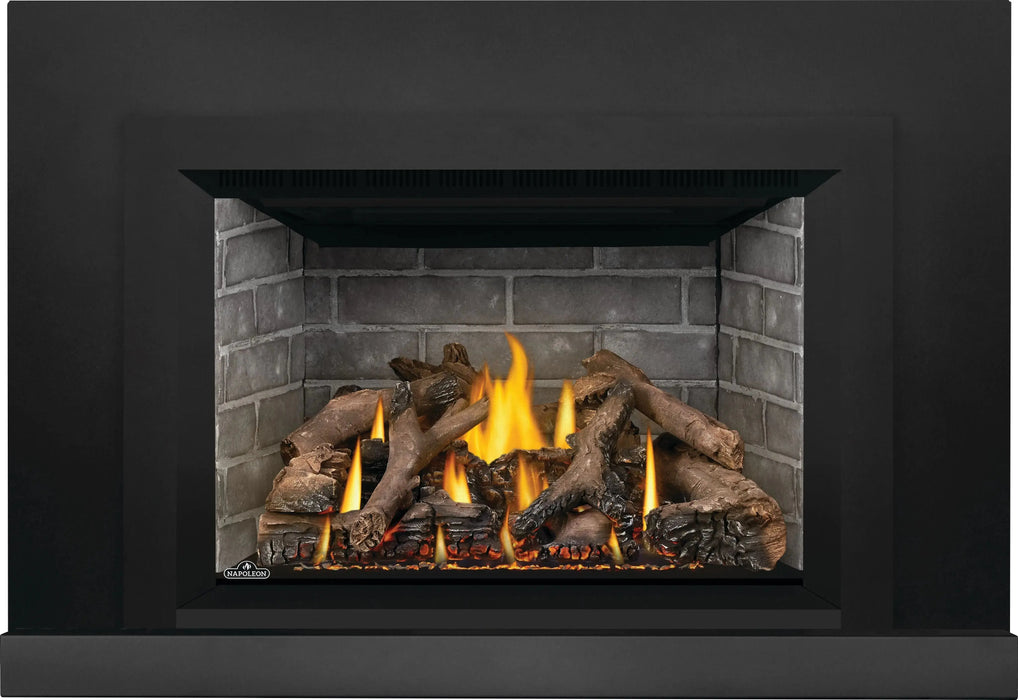

Riser Box, 3" H x 48" W (GI-RB4)
-
Natural Gas to Propane Conversion Kit (W175-0726)
- Venting: 3" liner kit (intake and exhaust) sized to your chimney, 20 ft (GDI-320KT), 25 ft (GDI-325KT) or 35 ft (GDI-335KT)
Specifications
- Type: Direct Vent Insert
- Fuel Type: Natural Gas (propane conversion kit available)
- Minimum Fireplace Opening (H x W x D): 24 5/8" x 34 1/4" x 17 3/4"
- Viewing Area: 518 sq. in.
- Venting: Two 3" liners (intake and exhaust), 10 ft to 45 ft
- Ignition System: Electronic (SIT Proflame II)
- Max. Input: 40,000 BTU/hr natural gas; 36,000 BTU/hr propane
- Blower: Included
- Certification: Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50)
- Mobile Home Approved: Yes
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Inserts – President’s Limited Lifetime Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
