The Napoleon Built-in 500 Series 32 is a stainless steel grill head for an outdoor kitchen island, with 4 stainless steel burners and 7.5 mm stainless steel WAVE cooking grids. Napoleon rates it at 48,000 BTU with 786 sq in of total cooking space. It has no rear rotisserie burner; for that, see the Built-in 700 Series 32. Order BI32NSS for natural gas or BI32PSS for propane.
Key Features
- 4 stainless steel burners, 48,000 BTU total

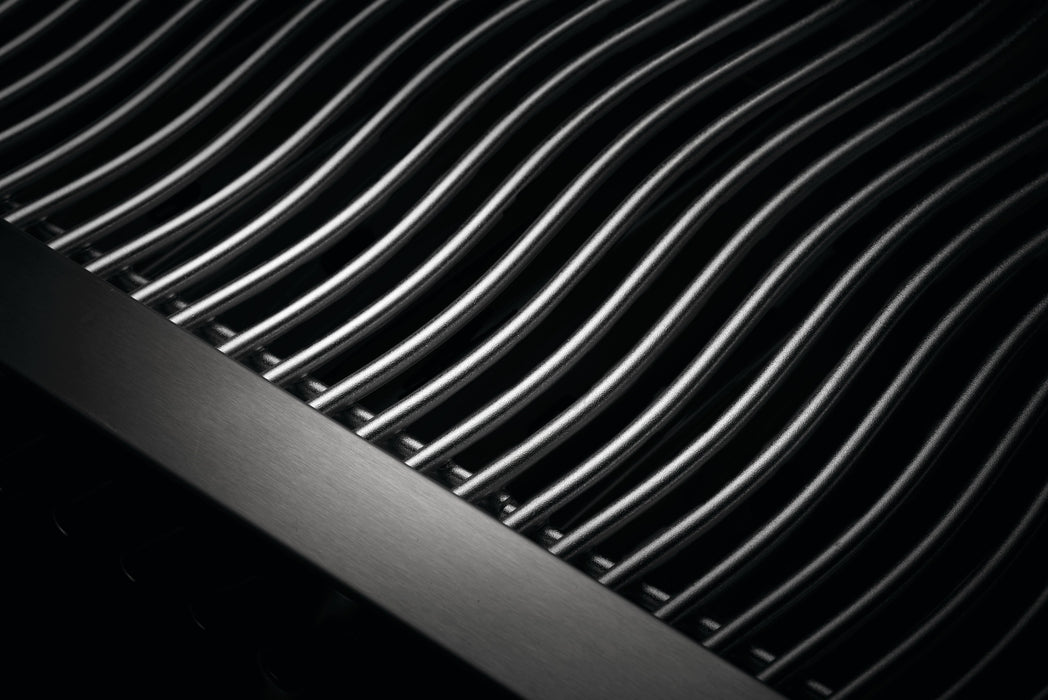

- 7.5 mm stainless steel WAVE cooking grids
- JETFIRE ignition lights each burner with a jet of flame; no battery needed
- ACCU-PROBE temperature gauge in the lid
- Integrated trim for a clean install in the same 32" opening as the 700 Series 32
What to Order With It
Specifications
| Order numbers |
BI32NSS (natural gas), BI32PSS (propane) |
| Main burners |
4 |
| Total heat output (Napoleon rating) |
48,000 BTU |
| Main cooking area |
29.5 x 18" (32 burgers) |
| Total cooking area |
786 sq in |
| Rotisserie kit included |
Optional |
| Rear burner |
None |
| Ignition |
JETFIRE |
| Opening for installation |
30" to 32" W x 19 3/8" to 19 3/4" D x 10 1/4" H (Napoleon brochure) |
| Zero clearance liner |
BI-3623-ZCL |
| Height |
24", 33.75" with lid open |
| Width |
33.5" |
| Depth |
27.6" |
| Shipping weight |
160 lb |
Installing It
Napoleon built-in grill heads drop into an island opening and need a non-combustible enclosure (masonry, brick, concrete board or a metal frame). In an island with combustible framing, use the matching Napoleon zero clearance liner. The island countertop must also be non-combustible. A licensed gas fitter should make the gas connection, and the lights need a grounded, GFI-protected outlet. Check the clearances in the owner's manual before you finalize the island drawing.
Downloads
Warranty
Napoleon Limited Lifetime Warranty for Prestige, Prestige PRO and Built-in Series grills, for the original purchaser of a grill bought from an authorized Napoleon dealer: lifetime on the lid, aluminum castings, stainless steel cooking grids and stainless steel tube burners; 15 years on stainless steel sear plates, porcelain-enameled cast iron grids, the infrared rotisserie burner, infrared side or bottom burners and all other parts. Communal or commercial use reduces coverage to 2 years. Labor and installation are not covered. Register the grill with Napoleon to confirm coverage. The full terms are in the Built-in 500 and 700 Series Owner's Manual (N415-0788).
