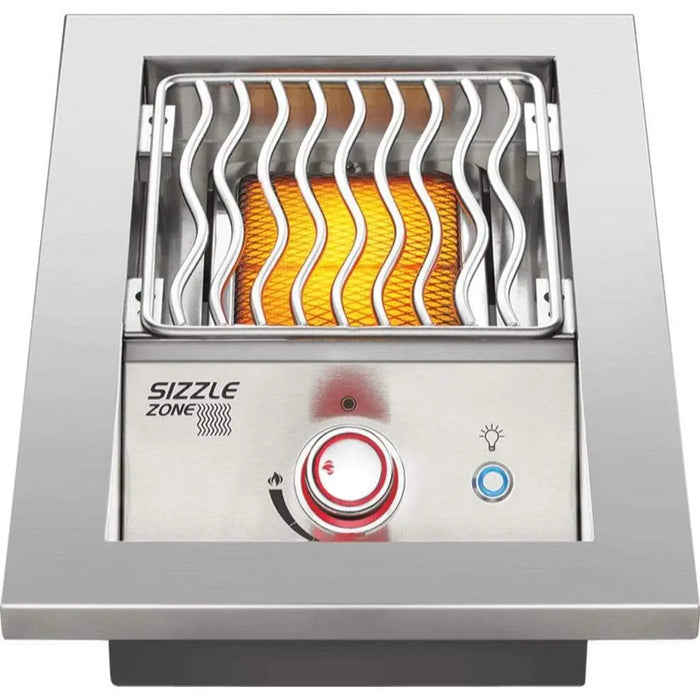

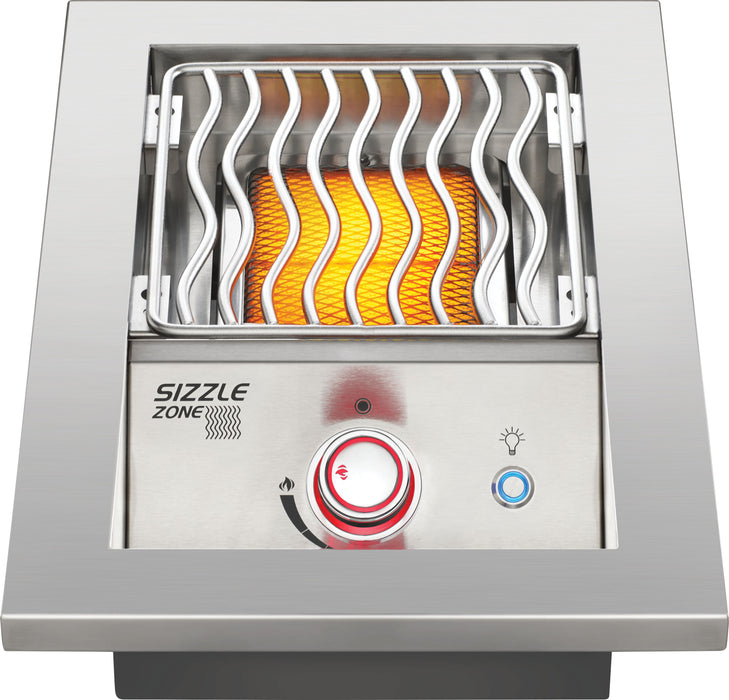

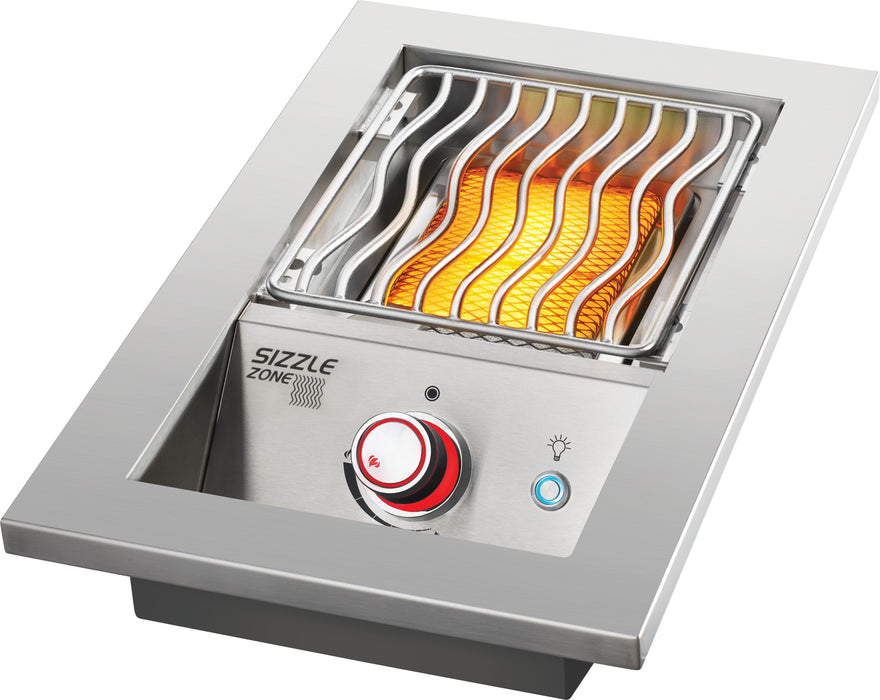

The Napoleon Built-in 700 Series 10" Single Infrared Burner is a drop-in burner for an outdoor kitchen countertop, rated at 10,000 BTU. The infrared SIZZLE ZONE gets hot enough to sear a steak while the main grill cooks at a lower temperature, and it works as a side burner for sauces too. Order BIB10IRNSS (natural gas) or BIB10IRPSS (propane) in stainless steel, or BIB10IRNMK / BIB10IRPMK with a matte black cover to match the matte black 700 Series 32 and OASIS kitchens.
Key Features

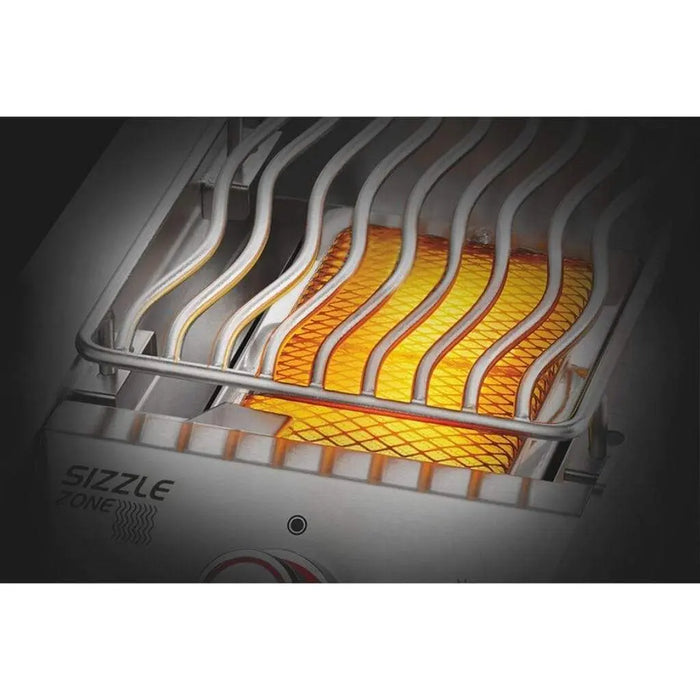

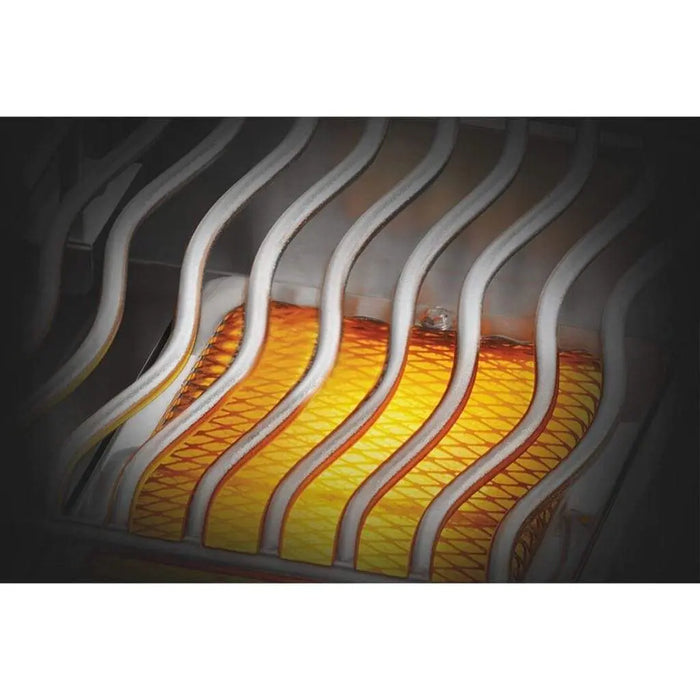

- 10,000 BTU infrared SIZZLE ZONE burner; Napoleon rates it up to 1800°F
- 7.5 mm stainless steel WAVE cooking grid

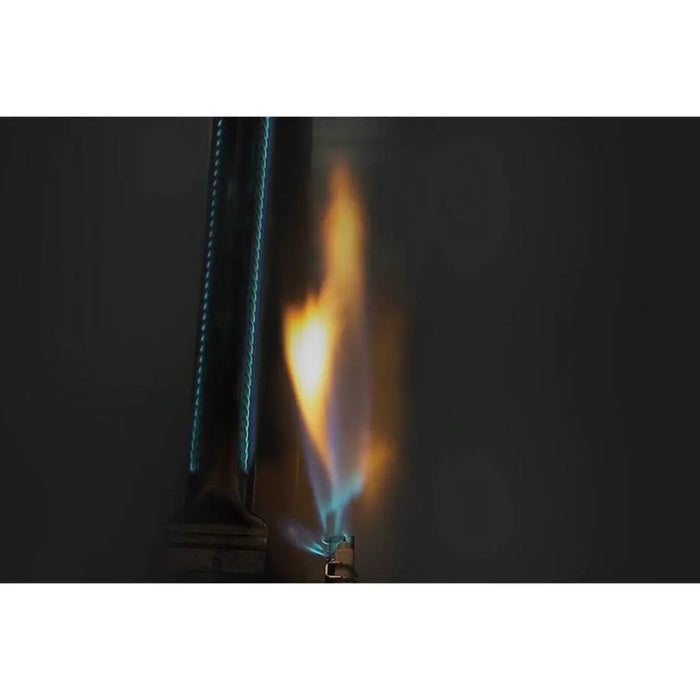

- JETFIRE ignition; no battery needed

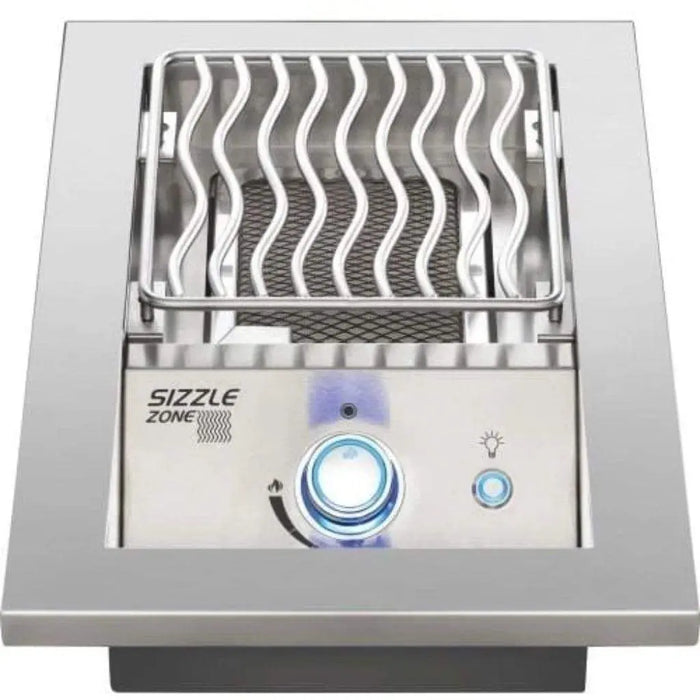

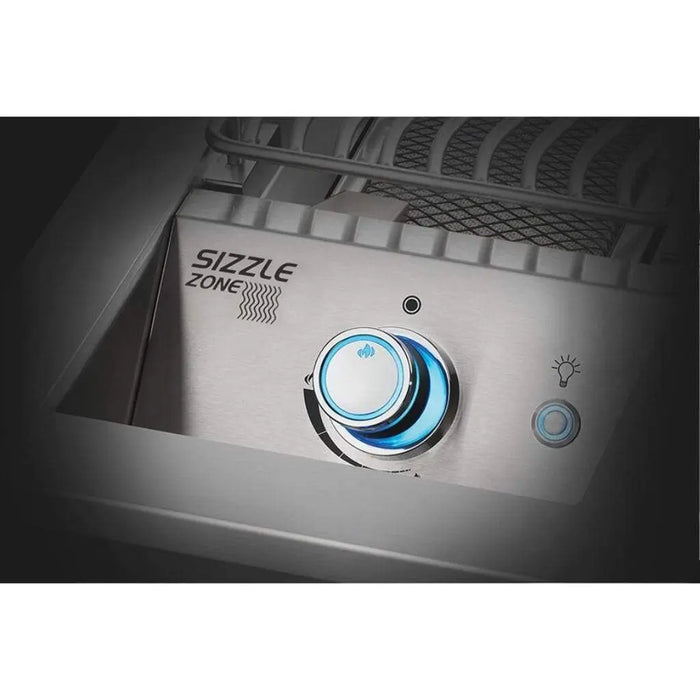

- Backlit knob glows blue and turns red while the burner is on
- Seamless trim for a clean drop-in install
- Cover included
What to Order With It
Specifications
| Order numbers |
BIB10IRNSS (natural gas), BIB10IRPSS (propane), BIB10IRNMK / BIB10IRPMK (matte black) |
| Main burners |
1 |
| Total heat output (Napoleon rating) |
10,000 BTU |
| Cooking area |
9 x 10.5" |
| Total cooking area |
93 sq in |
| Height |
6.9" |
| Width |
13.5" |
| Depth |
22" |
| Shipping weight |
21.5 lb |
Drop-in burners need a non-combustible countertop and island, or the matching Napoleon zero clearance liner where one is listed. Have a licensed gas fitter make the gas connection, and check the clearances in the owner's manual before cutting the opening.
Napoleon notes that a Built-in 700 Series burner installed without a Built-in 700 Series grill head needs the N370-1091-SER power supply kit to light its control knobs, and the N750-0087 extension wire if it sits more than 3 ft from the grill head. Ask us for either part when you order.
Downloads
Warranty
Napoleon Limited Lifetime Warranty for Prestige, Prestige PRO and Built-in Series grills, for the original purchaser of a grill bought from an authorized Napoleon dealer: lifetime on the lid, aluminum castings, stainless steel cooking grids and stainless steel tube burners; 15 years on stainless steel sear plates, porcelain-enameled cast iron grids, the infrared rotisserie burner, infrared side or bottom burners and all other parts. Communal or commercial use reduces coverage to 2 years. Labor and installation are not covered. Register the grill with Napoleon to confirm coverage. The full terms are in the Built-in 500 and 700 Series Owner's Manual (N415-0788).
