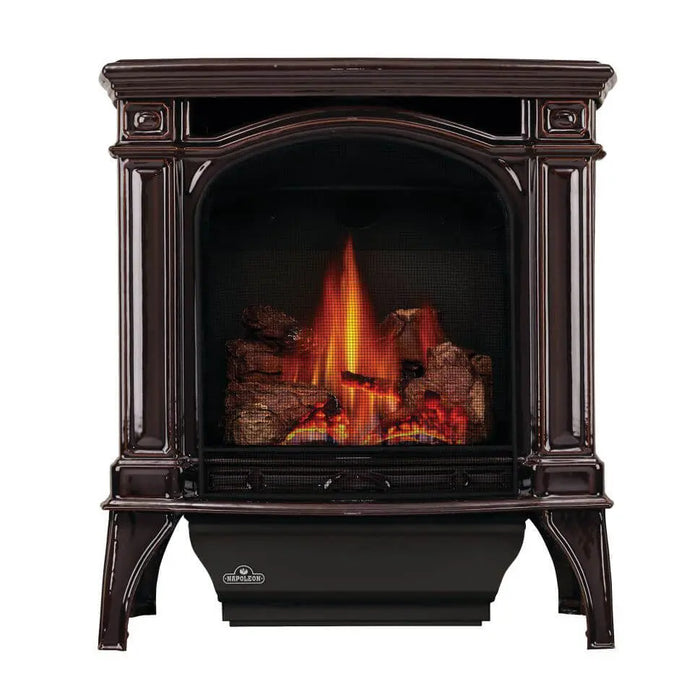

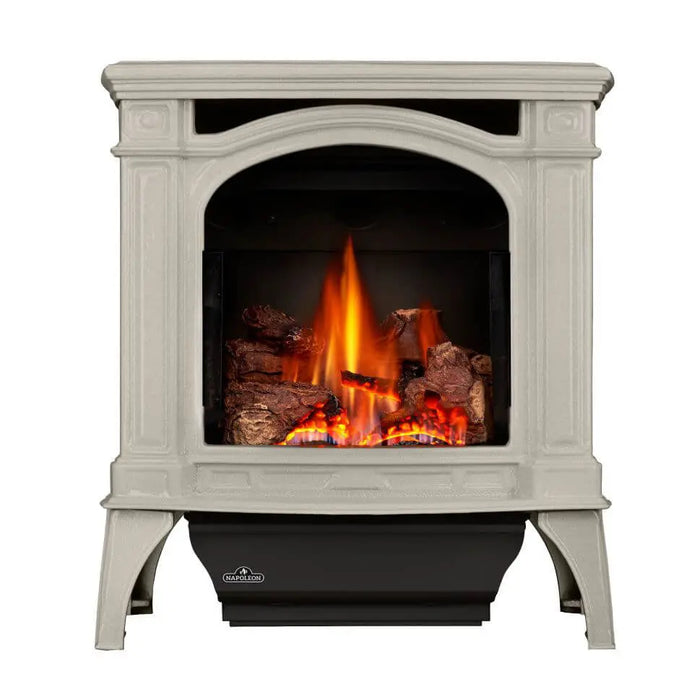

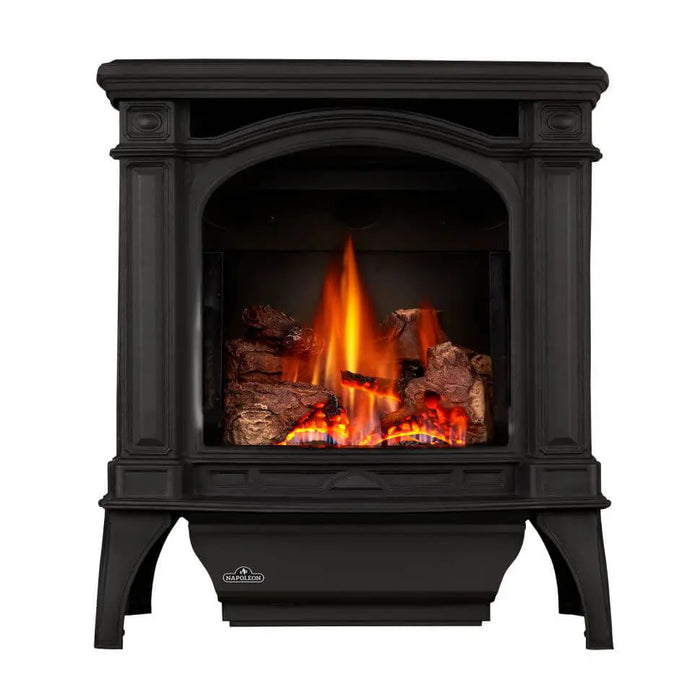

Napoleon Bayfield Direct Vent Gas Stove
The Napoleon Bayfield™ is a small cast iron direct vent gas stove with an 18" x 15" window onto a PHAZER® log set. The PHAZERAMIC™ burner system creates a realistic flame over glowing embers, and accent lights brighten the firebox.
The Bayfield is rated up to 24,500 BTU/hr input. It uses electronic ignition with a Proflame II remote control included and a battery back-up control system, and vents at 45° through 4" / 7" direct vent pipe. It is certified as a vented decorative gas appliance and is approved for mobile home installation. A variable speed blower kit is optional.
Key Features
- Up to 24,500 BTU/hr input
- PHAZERAMIC™ burner system with PHAZER® log set
- Accent lights
- Heat radiating ceramic glass with standard safety barrier
- Flame/heat adjustment
- Proflame II with remote control
- Battery back-up control system
- 100% SAFE GUARD™ gas control system
- Approved for mobile home installation
- President’s Limited Lifetime Warranty
What to Order With It
The Bayfield is complete as shipped. Popular add-ons:
Optional:
Specifications
- Type: Direct Vent
- Fuel Type: Natural Gas (propane conversion kit available)
- Dimensions (H x W x D): 25 5/8" x 23 1/2" x 17 1/2"
- Viewing Area: 18" x 15"
- Venting Diameter: 45° 4" / 7"
- Ignition System: Electronic (Proflame II, remote included)
- Max. Input: 24,500 BTU/hr (natural gas)
- Blower: Optional (GSB25KT)
- Certification: Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50)
- Mobile Home Approved: Yes
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Stoves – President’s Limited Lifetime Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
