Napoleon Ascent Multi-View Direct Vent Gas Fireplace
The Napoleon Ascent™ Multi-View Gas Fireplace is available as a See-Through or a three-sided Peninsula. Choose a log set or glass media to set the style in any room of your home.
The clean face design keeps the fire the focal point, with electronic ignition and battery back-up for operation during a power outage. Media kits and decorative panels are available to create the perfect backdrop in every room.
Play video
Key Features
- Up to 30,000 BTU/hr input

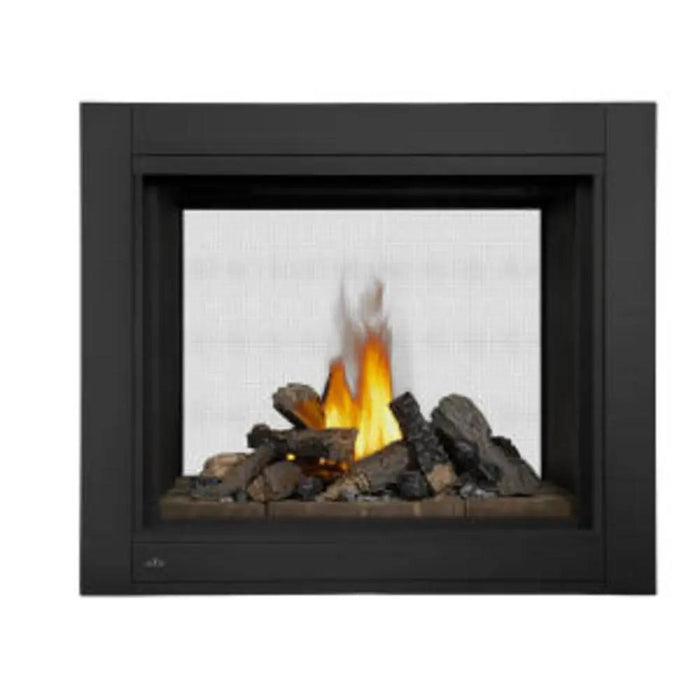

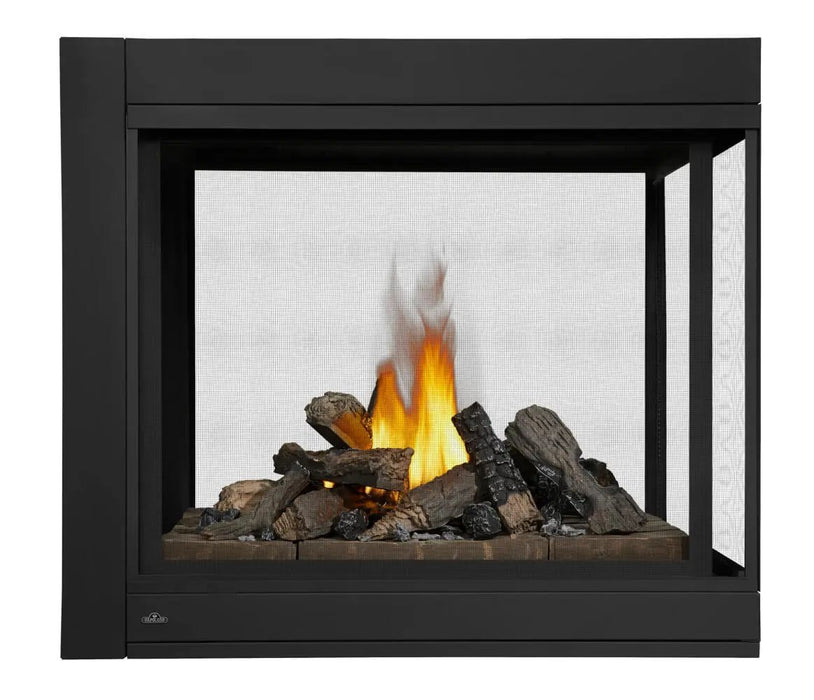

- See-Through (BHD4ST) or three-sided Peninsula (BHD4P) configuration

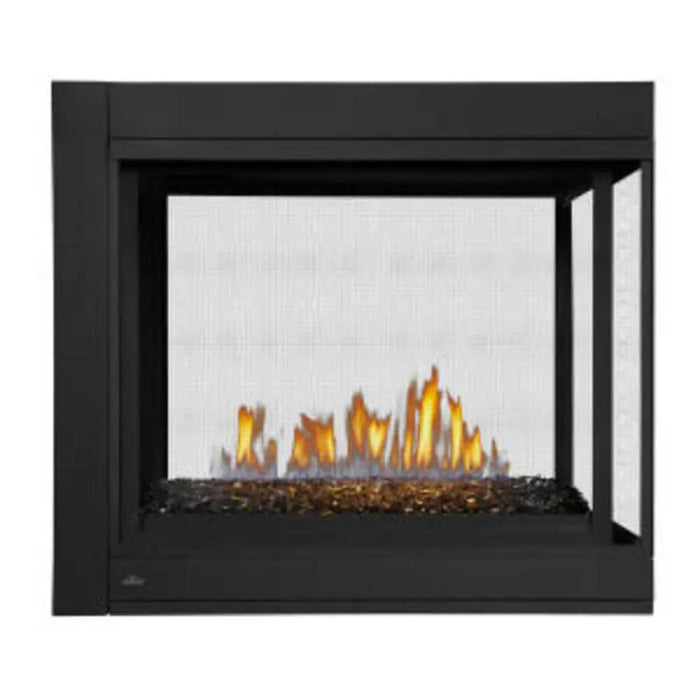

- Two burner options: log set or glass media (Topaz embers included with the glass versions)

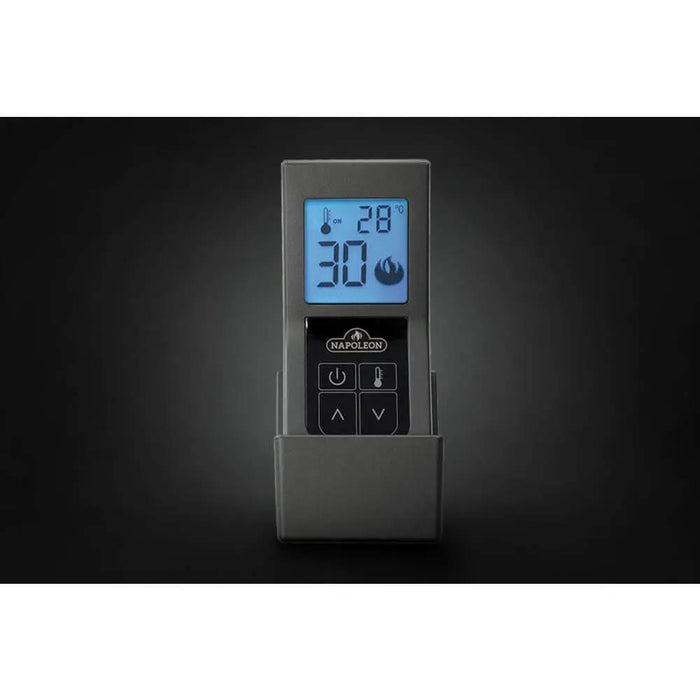

- Electronic ignition with battery back-up control system

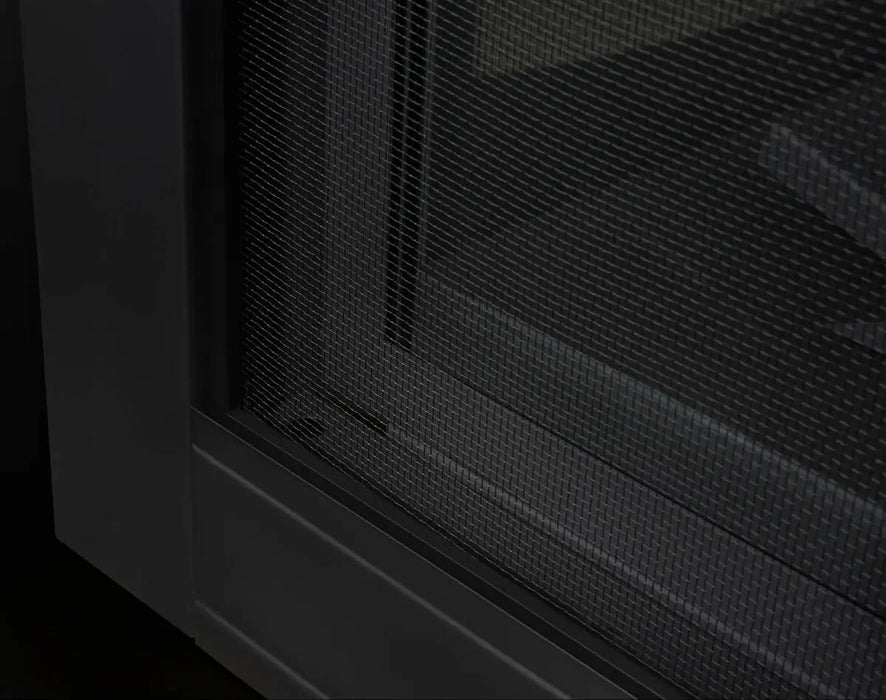

- Tempered heat-resistant glass with safety screen included
- Firestop included
- Optional Ambient-Glow embers and mineral rocks, plus glass beads or embers for the glass versions
- Optional MIRRO-FLAME™ porcelain reflective panels or Newport™ standard brick panels (log versions)
- Approved for bedroom, bathroom and bed-sitting room installation; certified for mobile home installation
- President’s Lifetime Limited Warranty
What to Order With It
The log set or Topaz glass ember bed (depending on version) and the safety screen are included. Popular add-ons:
Optional:
Specifications
| Models |
BHD4STN (See-Through, logs) / BHD4STGN (See-Through, glass) / BHD4PN (Peninsula, logs) / BHD4PGN (Peninsula, glass) |
| Type |
Direct Vent |
| Style |
See-Through or Peninsula (3 sided) |
| Fuel Type |
Natural Gas |
| Ignition |
Electronic (IPI) with battery back-up |
| Certification |
Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50) |
| Maximum Input, Natural Gas |
30,000 BTU/hr |
| Venting |
5" exhaust / 8" air intake (reducible to 4"/7" — see manual) |
| Warranty |
President’s Lifetime Limited Warranty |
Appliance Dimensions
| Overall Width |
45" |
| Overall Height |
38-1/4" |
| Overall Depth |
25-1/8" |
| Minimum Enclosure Height |
50" (measured from the bottom of the appliance) |
Framing dimensions vary with the finishing support position and finishing material thickness. Refer to the installation manual for complete framing, venting and clearance requirements for the See-Through and Peninsula versions.
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Fireplaces – President’s Lifetime Limited Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
