Napoleon Ascent Linear 56" Direct Vent Gas Fireplace
Transform your living space into a stunning haven with the Napoleon Ascent Linear 56" Direct Vent Gas Fireplace! Ideal for both residential homes and commercial establishments, the Ascent boasts a sleek 56-inch-wide design, providing a captivating view of its graceful, linear flames. For a clean, finished look, consider the optional 5/8" black finishing trim, and rest assured with the included safety barrier, ensuring peace of mind for you and your guests.
Tailor the Ascent to your décor: the Topaz CRYSTALINE™ ember bed is included, and optional standard birch, driftwood or split oak logs, a Beach Fire log set, glass beads or embers, Shore Fire, Woodland and mineral rock kits and Ambient-Glow embers let you change the look. Elevate the visual appeal further by upgrading your firebox with a black reflective liner, adding remarkable depth to the experience.
Operating the Napoleon Ascent Linear 56" Direct Vent Gas Fireplace is effortless, thanks to the electronic ignition system. It offers various control options, including an optional on/off remote, on/off remote with a thermostat, and a wall-mounted thermostat. Additionally, for homes where Direct Vent configurations aren't feasible, there's the option of an optional Power Vent Kit, and you can enhance efficiency with an optional heat blower.
Play video
Key Features
- Clean face design with high quality safety barrier included
- Available in Natural Gas and Propane (Conversion Kit required)
- SIT Proflame II system (remote control not included)
- Optimized burner performance (for all vent and fuel configurations)

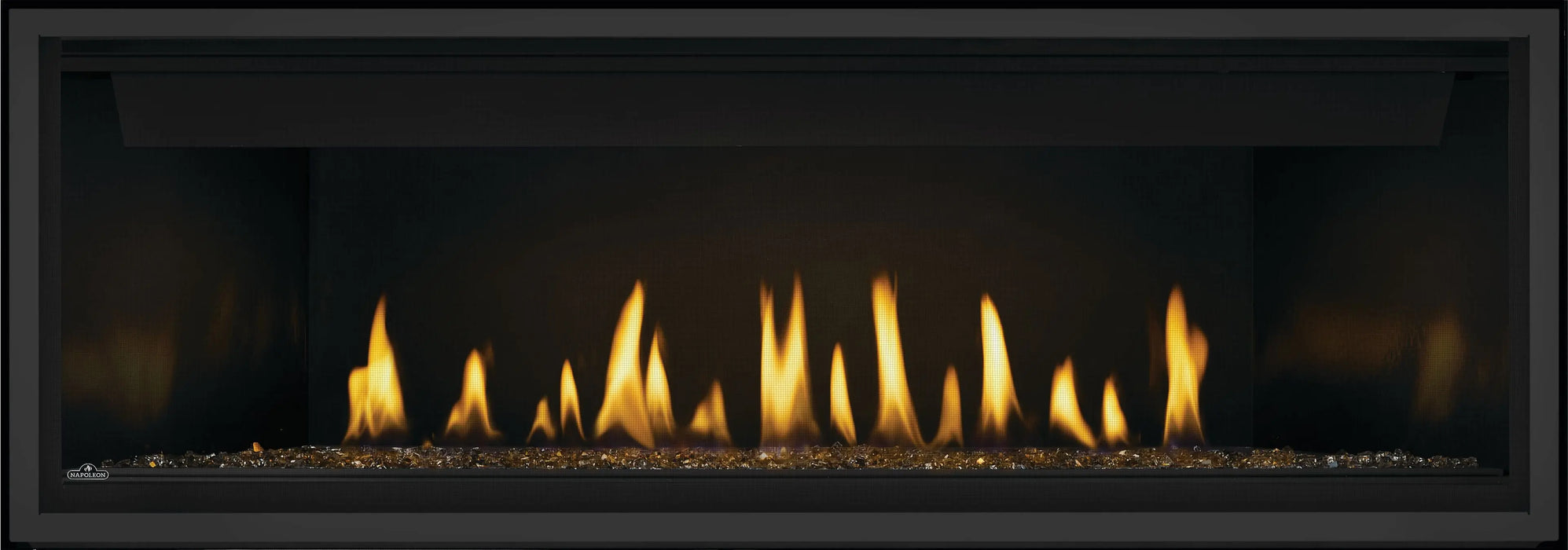

- Includes CRYSTALINE™ topaz glass ember bed
- Divinity™ flame pattern provides heightened peaks and valleys
- Non-combustible material (cement board) included, no steel framing required
- Stainless steel flex connector
- Easy access air control for fast and precise air shutter adjustments
- Fuel saving electronic ignition
- Electronic Ignition including High/Low Flame adjustment
- Optional MIRRO-FLAME™ Porcelain Reflective Radiant Panels or Ledgestone panels available
- Optional 5/8" black 4-sided finishing trim
- Optional log sets (standard birch, driftwood or split oak, or Beach Fire) and media: Shore Fire, Woodland and Mineral Rock kits, Ambient-Glow embers, and glass embers and glass beads in various colors
- Optional blower kits available
- eFIRE App allows you to customize your enjoyment with the convenience of your mobile device (optional)
- Optional Universal Heat Management (UHM) system redirects warm air into the room and reduces mantel clearances; a Hot Air Distribution (LHAD) kit is also available
- No hearth extension required
- Outdoor Room Certified
What to Order With It
The Topaz CRYSTALINE™ ember bed is included. Everything below is optional; Napoleon recommends a log set plus glass or a media enhancement.
Optional:
Specifications
| Model |
BL56NTE (natural gas) / BL56PTE (propane) |
| Type |
Direct Vent |
| Style |
Linear, single sided |
| Fuel Type |
Natural Gas or Propane |
| Ignition |
Electronic |
| Certification |
Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50) |
| Outdoor Room |
Outdoor Room Certified |
| Maximum Input, Natural Gas |
28,000 BTU/hr |
| Maximum Input, Propane |
26,500 BTU/hr |
| Viewing Area |
49" W x 14-1/4" H |
| Venting |
Top 5" exhaust / 8" air intake (reducible to 4"/7" — see manual) |
| Heat Management Kit |
UHM or LHAD (optional) |
| Warranty |
President’s Lifetime Limited Warranty |
Appliance Dimensions
| Overall Height |
38-13/16" |
| Overall Depth |
18-5/16" |
Minimum Framing Dimensions
| Framing Width |
56-1/2" |
| Framing Height |
39-3/8" |
| Framing Depth |
18-9/16" |
A minimum of 1 ft of vertical rise is required directly off the top of the unit on this model. Framing height is measured allowing for finished floor and hearth thickness. Leave a 14" wide area centered along the front of the appliance clear above the unit for vent clearance, and allow for finishing material thickness when constructing the enclosure. Refer to the installation manual for complete framing, venting and clearance requirements.
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Fireplaces – President’s Lifetime Limited Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
