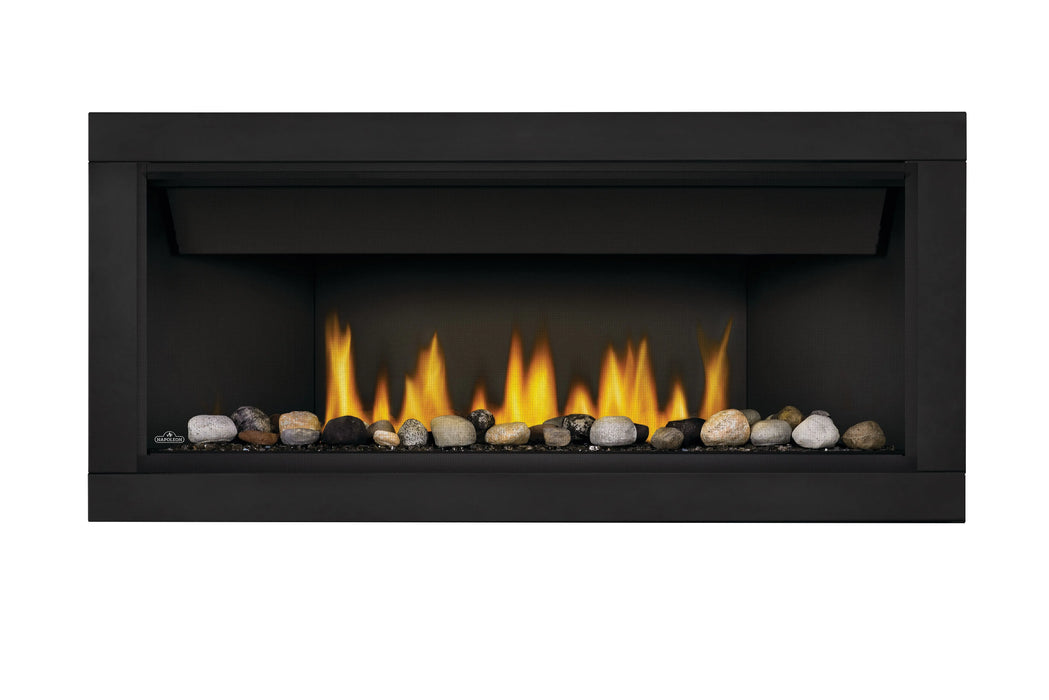

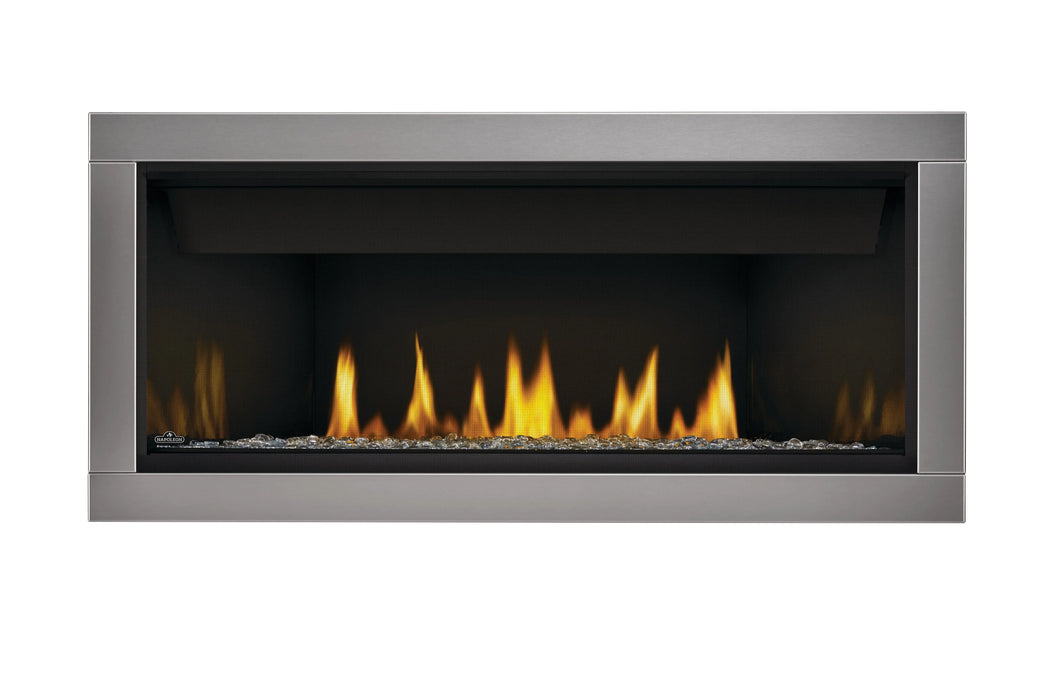

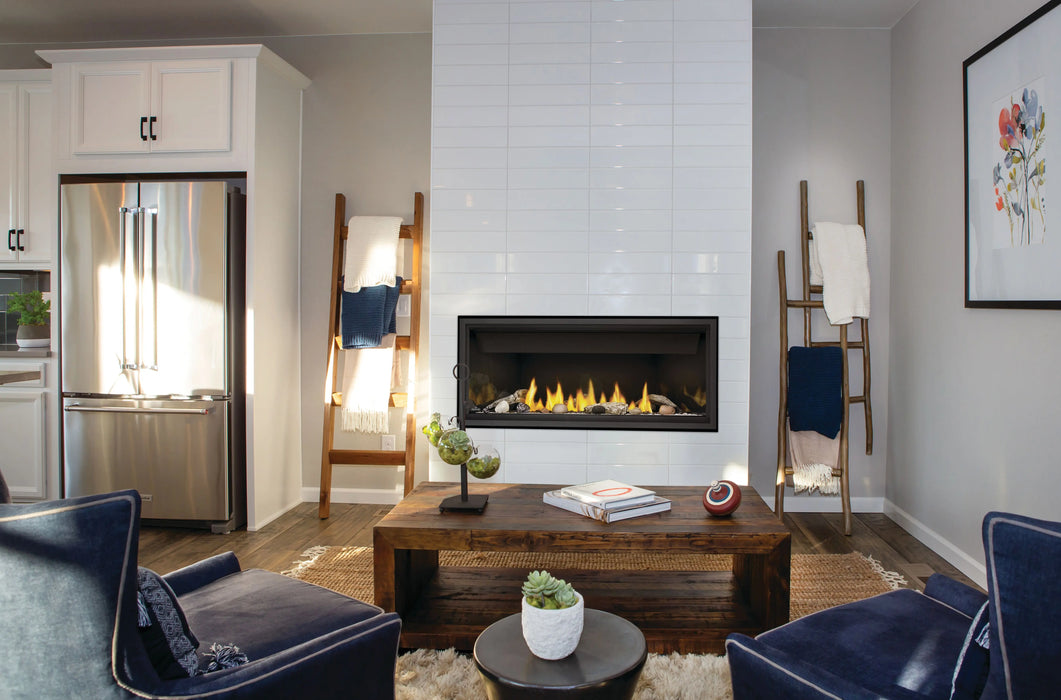

Napoleon Ascent Linear 46" Direct Vent Gas Fireplace
The Napoleon Ascent Linear 46" Direct Vent Gas Fireplace is a stunningly designed linear fireplace that combines striking aesthetics with outstanding performance. Its clean face design effortlessly complements any interior decor or can be personalized to become the focal point of your space. The captivating Divinity flame pattern featured in this fireplace is sure to captivate both you and your guests. This fireplace is accompanied by Topaz fireglass, which can be interchanged or paired with various other media enhancements, allowing you to craft a truly distinctive and tailored display.
Starting up this fireplace is a breeze thanks to the user-friendly electronic ignition system, and a battery back-up feature provides peace of mind during emergencies or power outages. It has a maximum input of 24,000 BTU/hr on natural gas or propane. Safety is a top priority, and a safety barrier is included with this fireplace to help protect your loved ones. While the unit comes with manual low/high flame adjustment as a standard feature, there are numerous other control options available, including the eFire Bluetooth app. Regardless of how you choose to customize your fireplace, the Napoleon Ascent Linear 46" Direct Vent Gas Fireplace guarantees quality and reliability well into the future.
Play video
Key Features
- Clean face design with high quality safety barrier included
- Available in Natural Gas and Propane (Conversion Kit required)
- SIT Proflame II system (remote control not included)
- Optimized burner performance (for all vent and fuel configurations)
- Includes CRYSTALINE™ topaz glass ember bed
- Divinity™ flame pattern provides heightened peaks and valleys
- Non-combustible material (cement board) included, no steel framing required
- Stainless steel flex connector
- Easy access air control for fast and precise air shutter adjustments
- Fuel saving electronic ignition with battery back-up
- Electronic Ignition including High/Low Flame adjustment
- Optional MIRRO-FLAME™ Porcelain Reflective Radiant Panels or Ledgestone panels available
- Optional 5/8" black 4-sided finishing trim

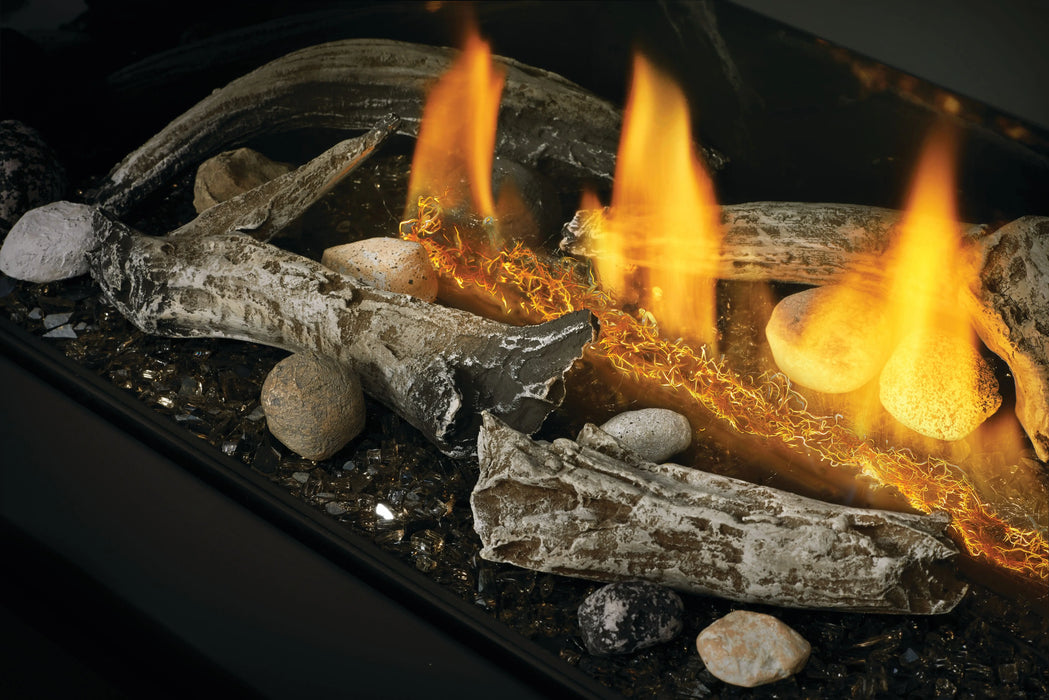

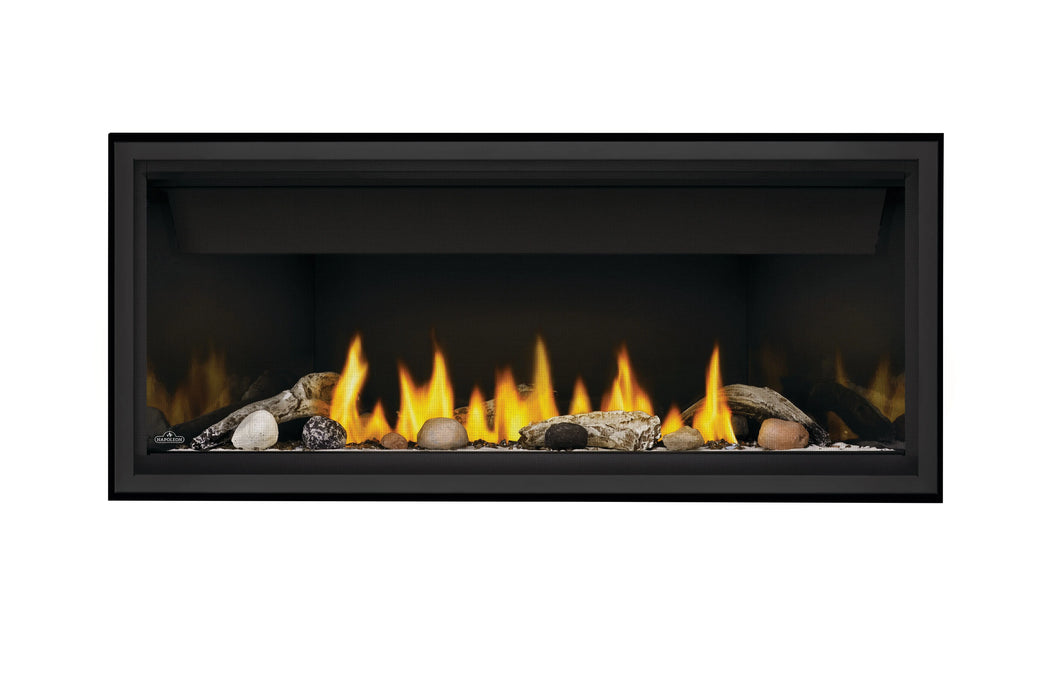

- Optional log sets (standard birch, driftwood or split oak, or Beach Fire) and media: Shore Fire, Woodland and Mineral Rock kits, Ambient-Glow embers, and glass embers and glass beads in various colors
- Optional blower kits available
- eFIRE App allows you to customize your enjoyment with the convenience of your mobile device (optional)
- Optional Universal Heat Management (UHM) system redirects warm air into the room and reduces mantel clearances; a Hot Air Distribution (LHAD) kit is also available
- No hearth extension required
- Outdoor Room Certified
What to Order With It
The Topaz CRYSTALINE™ ember bed is included. Everything below is optional; Napoleon recommends a log set plus glass or a media enhancement.
Optional:
Specifications
| Model |
BL46NTE-1 (natural gas) / BL46PTE-1 (propane) |
| Type |
Direct Vent |
| Style |
Linear, contemporary, single sided |
| Fuel Type |
Natural Gas or Propane |
| Ignition |
Electronic with battery back-up |
| Certification |
Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50) |
| Outdoor Room |
Outdoor Room Certified |
| Maximum Input, Natural Gas |
24,000 BTU/hr |
| Maximum Input, Propane |
24,000 BTU/hr |
| Viewing Area |
41-11/16" W x 16-3/4" H |
| Venting |
Top 4" exhaust / 7" air intake |
| Heat Management Kit |
UHM or LHAD (optional) |
| Item Weight |
157.6 lbs. |
| Assembly |
Required |
Appliance Dimensions
| Overall Width |
46" |
| Overall Height |
38-13/16" |
| Overall Depth |
18-5/16" |
Minimum Framing Dimensions
| Framing Width |
47-3/8" |
| Framing Height |
39-3/8" |
| Framing Depth |
18-9/16" |
Framing height is measured allowing for finished floor and hearth thickness. Leave a 14" wide area centered along the front of the appliance clear above the unit for vent clearance, and allow for finishing material thickness when constructing the enclosure. Refer to the installation manual for complete framing, venting and clearance requirements.
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Fireplaces – President’s Lifetime Limited Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
