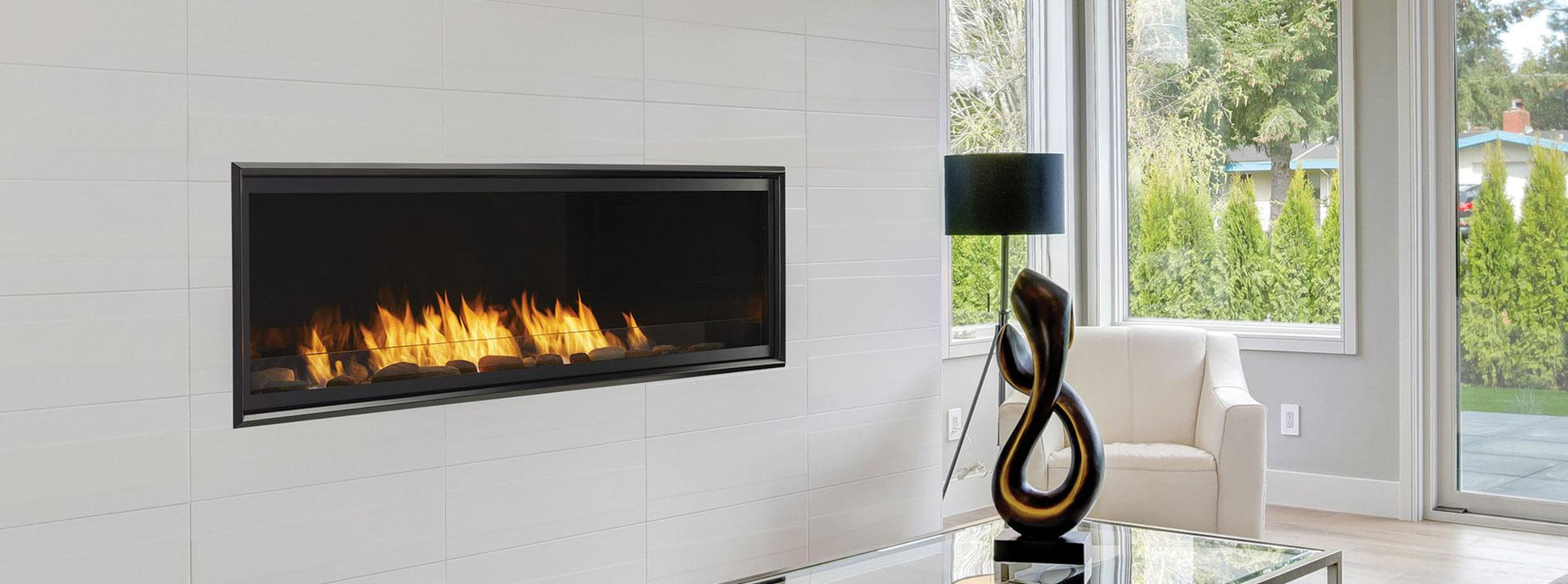

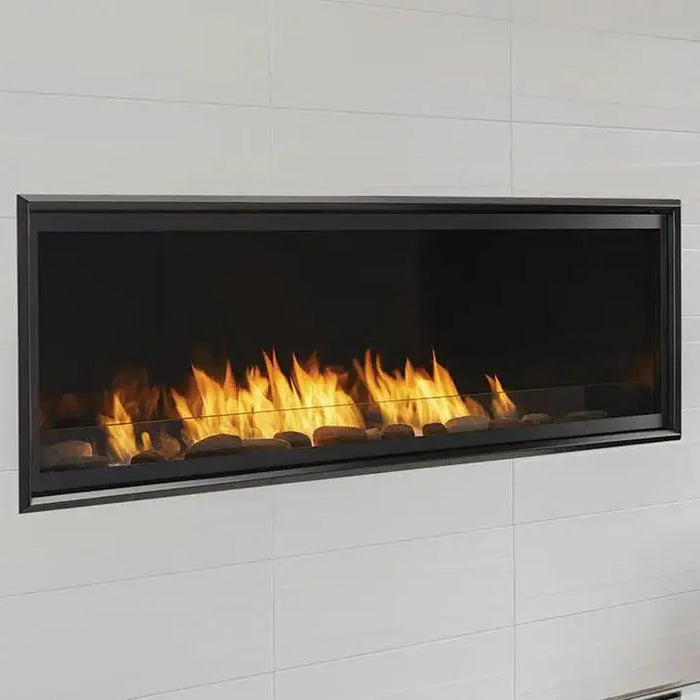

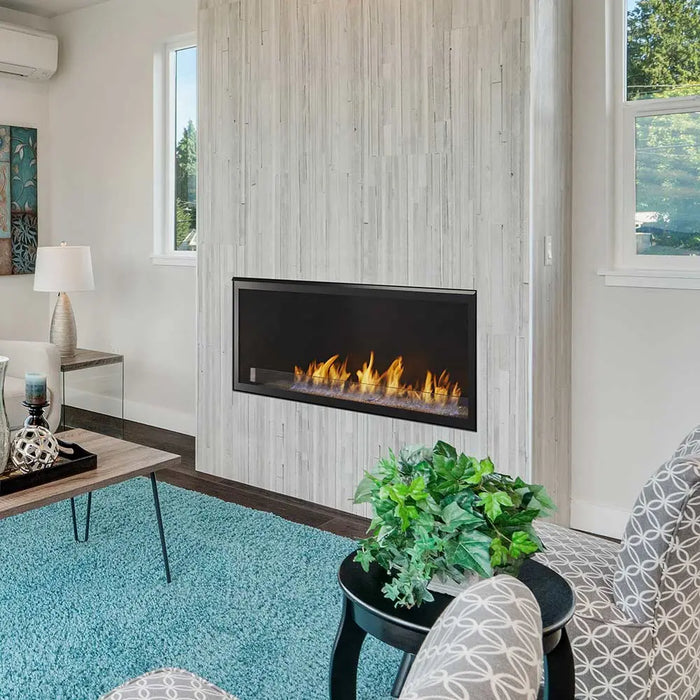

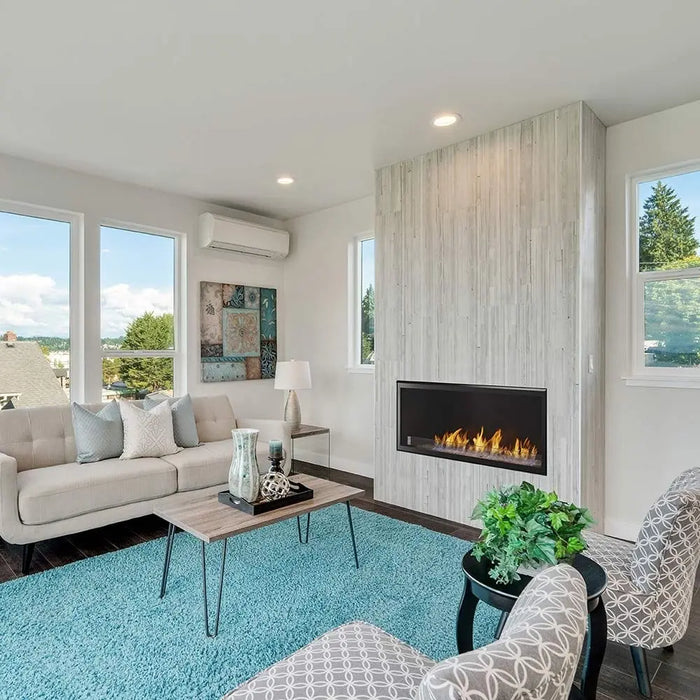

Monessen 42" Artisan Vent Free Modern Linear Fireplace

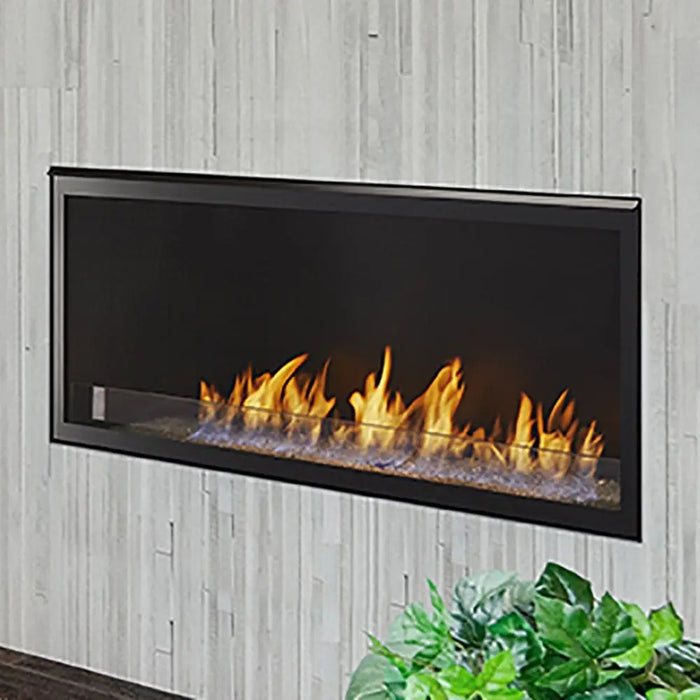

The Monessen Artisan 42 is a vent-free linear gas fireplace with a 42 in. x 17 in. opening, crushed glass media and IntelliFire Touch 2.0 electronic ignition. Order numbers: AVFL42NIF-BU, AVFL42NIF-RB, AVFL42PIF-BU, AVFL42PIF-RB.
The 42 comes in a standard version (BU, up to 34,000 BTU/hr) and a reduced BTU version (RB, 24,500 BTU/hr) for smaller rooms and lower mantels. Choose the fuel and version above.
What's Included
- Vent-free linear fireplace with burner and IntelliFire Touch 2.0 controls
- Framed mesh screen
- Crushed glass media, four bags
- 7-1/4 in. non-combustible board for the wall above the fireplace (must be installed)
- Air deflector glass
- Wall switch
- Battery pack for backup in a power cut (4 AA batteries not included)
- Gas shut-off valve and flexible gas connector
- Two anchoring screws

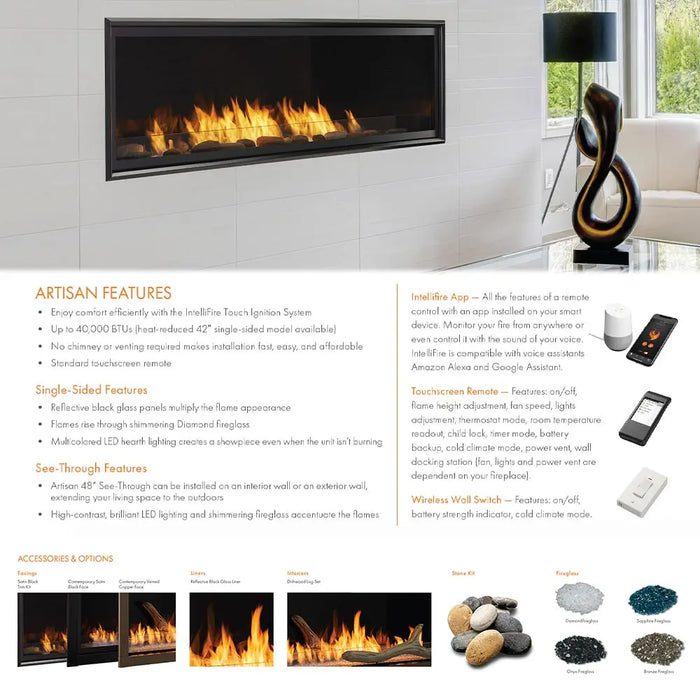

Key Features
- 42 in. x 17 in. viewing area
- IntelliFire Touch 2.0 electronic ignition with an oxygen depletion sensor (ODS) pilot
- Works from the included wall switch; the remote comes with the optional LED light kit
- Only 13-3/8 in. deep
- Can be finished right up to the opening with non-combustible material
- Shuts down automatically after 9 hours of continuous operation
- LED lights, remote and Black Magic glass are optional on the 42 (standard on the larger sizes)
What to Order With It
Nothing else is required to complete it.

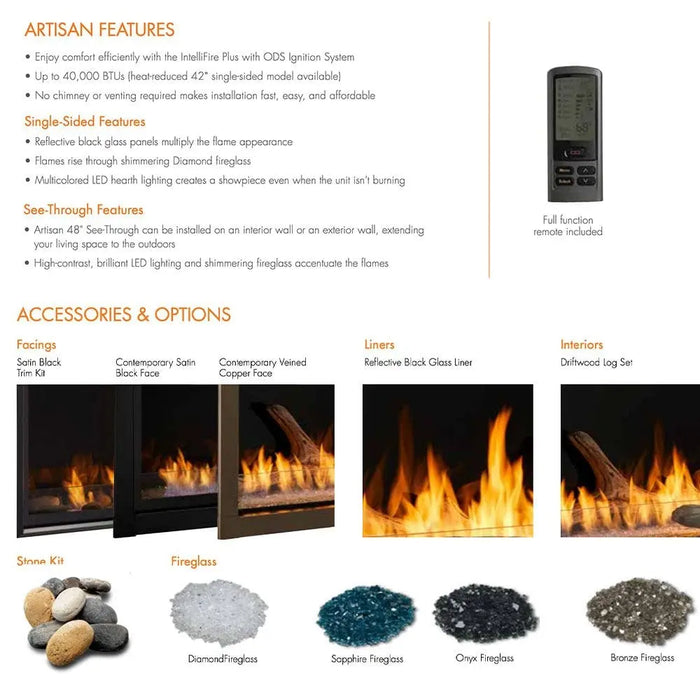

Optional:

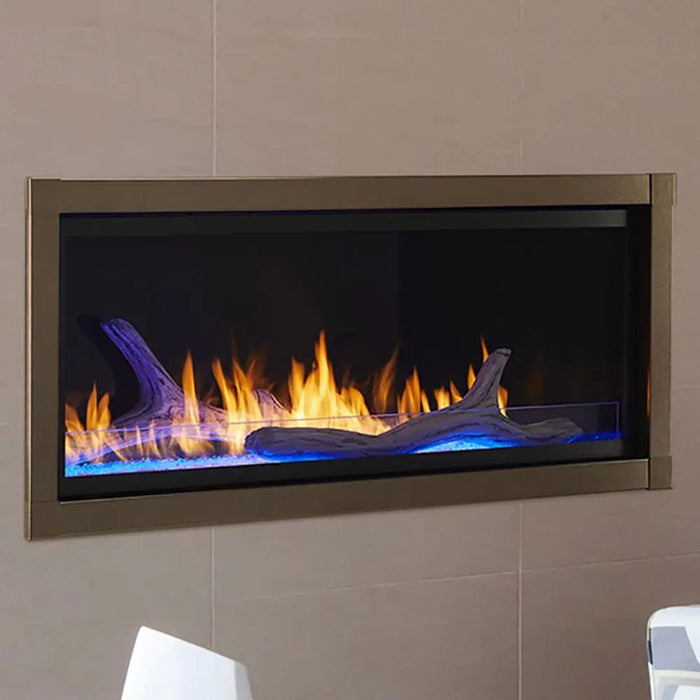

Log sets:
Interior panels:
Fronts:
Trim kits:
Light kits:
Media:
Controls and remotes:
Mantels and shelves:
Other Monessen mantels, shelves and stone sets can be ordered on request.
The driftwood log set and the stone kit cannot be used together.
Specifications
| Model |
AVFL42 |
| Type |
Vent-free linear gas fireplace |
| Viewing Area |
42 in. x 17 in. |
| Ignition |
IntelliFire Touch 2.0 electronic ignition (IPI) with ODS pilot |
| Gas Supply |
Natural gas 5.0 to 10.0 in. w.c. Propane 11.0 to 13.0 in. w.c. 1/2 in. connection. The gas line enters from the left side or the bottom. |
| Electrical |
Junction box wired to 110-120 VAC. The control runs on a 6 volt transformer, or on 4 AA batteries in a power cut (lights do not run on batteries). |
| Weight |
195 lb |
| Safety Listing |
UL listed to ANSI Z21.11.2, unvented room heaters |
| Use |
Indoor. Not for a bedroom or bathroom. May be installed in an aftermarket manufactured (mobile) home where local codes allow. Not convertible between gases: order the fuel you have. |
Order numbers:
| Order Number |
Fuel |
BTU/hr |
| AVFL42NIF-BU |
Natural gas |
34,000 max, 23,500 min |
| AVFL42NIF-RB |
Natural gas, reduced BTU |
24,500 max, 17,500 min |
| AVFL42PIF-BU |
Propane |
33,000 max, 26,000 min |
| AVFL42PIF-RB |
Propane, reduced BTU |
24,000 max, 19,000 min |
The manual rates the propane BU model at 33,000 BTU/hr and the propane RB model at 24,000 BTU/hr; Monessen's price list says 34,000 and 24,500.

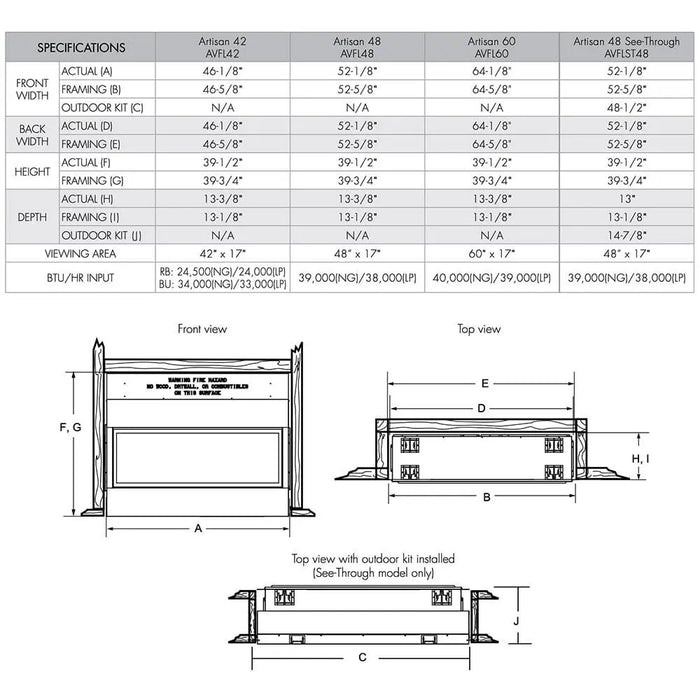

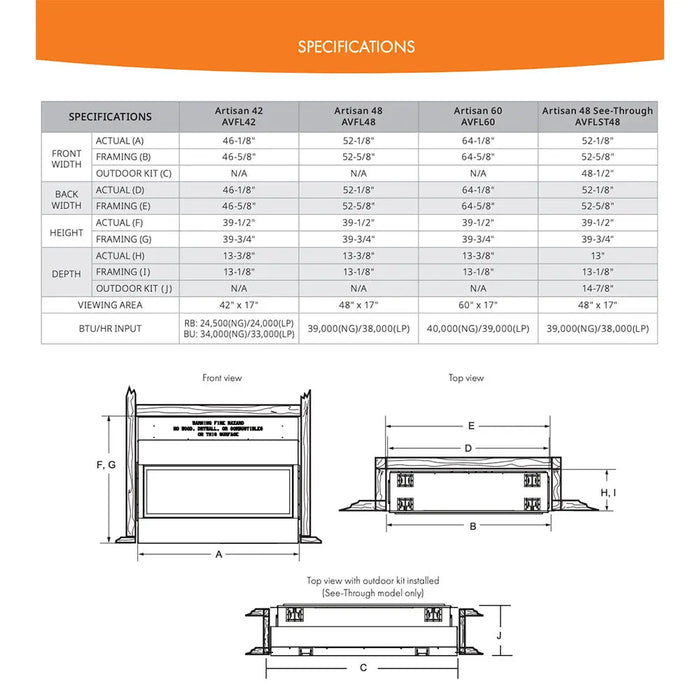

Dimensions and Framing
| Width |
46-1/8 in. |
| Height |
39-1/2 in. (40-1/4 in. to the top of the standoffs) |
| Depth |
13-3/8 in. |
| Framing Width |
46-5/8 in. |
| Framing Height |
39-3/4 in. |
| Framing Depth |
13-1/8 in. (13-3/4 in. when the face is covered with non-combustible finish, install option 2) |
Clearances to Combustibles
| Side Wall |
6 in. from the inside of the opening to a combustible side wall |
| Back |
May be placed against a combustible back wall |
| Ceiling |
36 in. above the opening |
| In Front |
36 in. to curtains, furniture and other combustible objects |
| Floor |
Hard metal or wood surface the full width and depth. Not directly on carpet, vinyl or tile. |
| Above the Fireplace |
The supplied 7-1/4 in. non-combustible board must be installed across the full width and must not be covered with drywall or other combustible material |
Combustible mantel, measured from the top of the opening:
| Mantel Depth |
Standard (BU) Models |
Reduced BTU (RB) Models |
| 3 in. |
17-1/2 in. |
See manual |
| 6 in. |
19 in. |
14 in. |
| 8 in. |
20 in. |
15-1/2 in. |
| 12 in. |
22 in. |
18 in. |
A vent-free heater takes its air from the room. The room must have at least 50 cu. ft. of volume for every 1,000 BTU/hr of all appliances in it, or extra ventilation must be provided as the manual describes. Input ratings are for elevations up to 2,000 ft.; reduce 4 percent for each 1,000 ft. above that.
Vent-free gas appliances are not allowed in every state, city or room. Check your state and local codes before you order. Installation and service must be done by a qualified installer.
Warranty
Covered by the Hearth & Home Technologies limited warranty for Monessen products (form 4021-645N, 12/23), which is printed in the owner's manual. Coverage starts on the date of installation and applies to products bought from an authorized dealer. See the manual for the coverage periods, conditions and exclusions.
