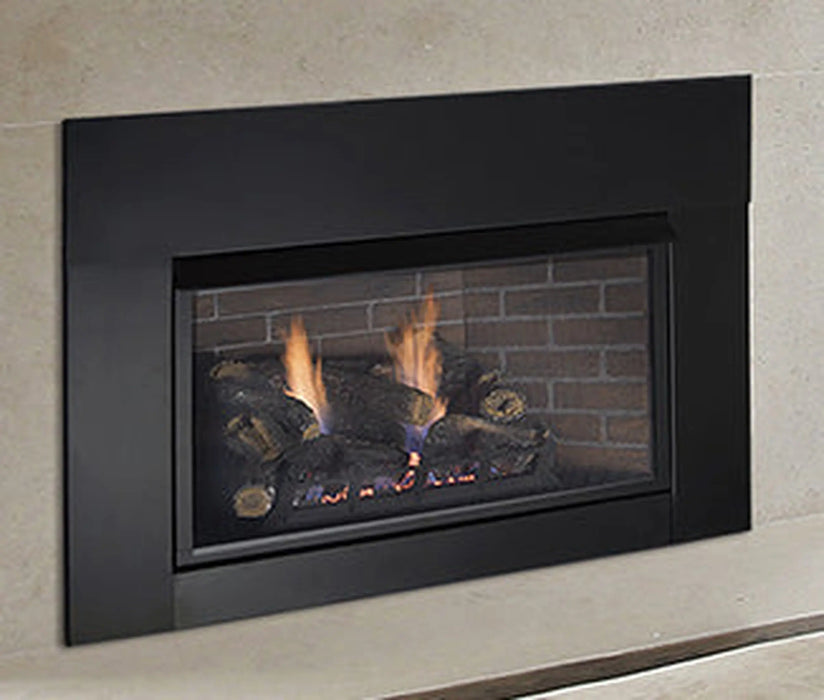

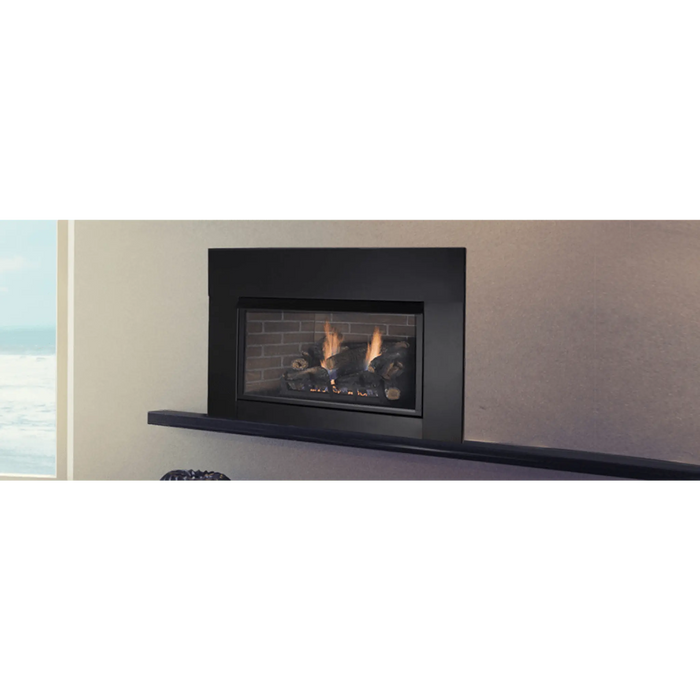

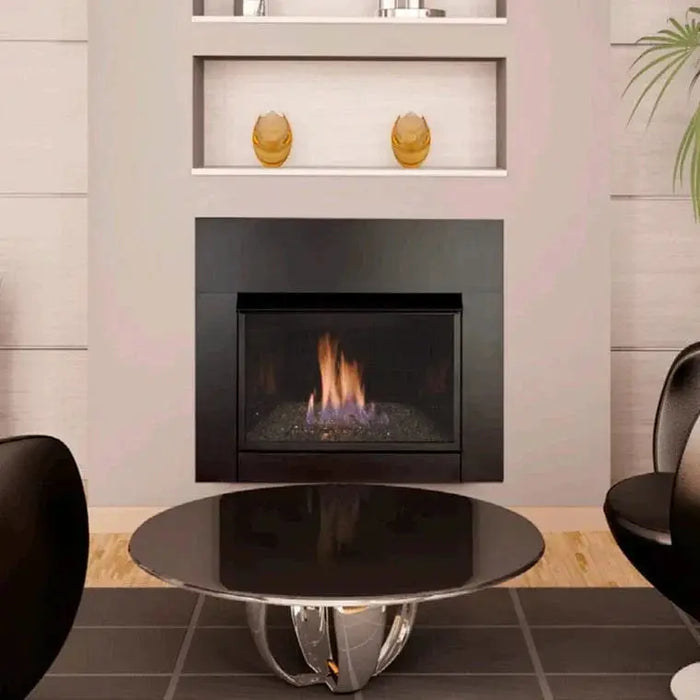

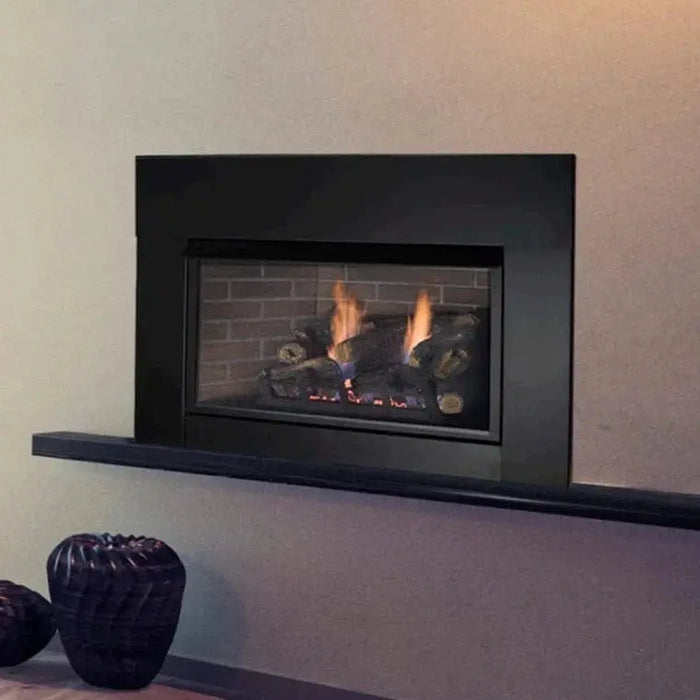

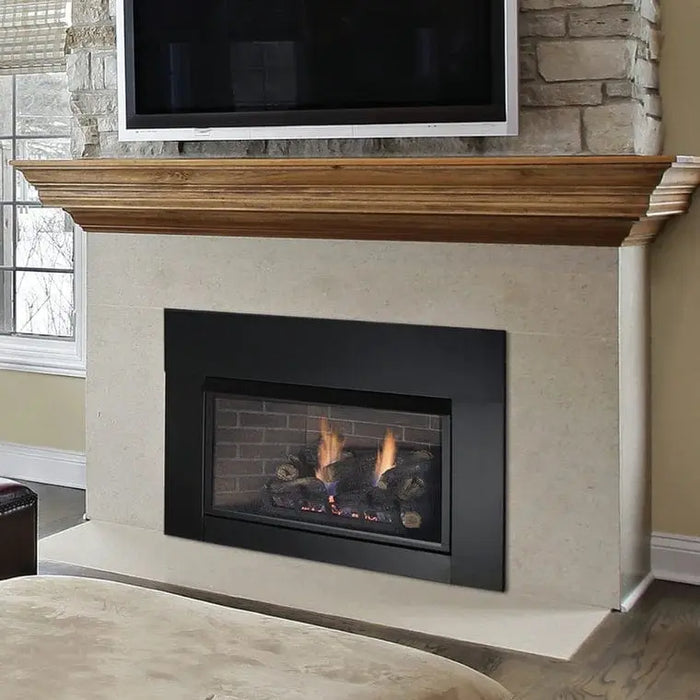

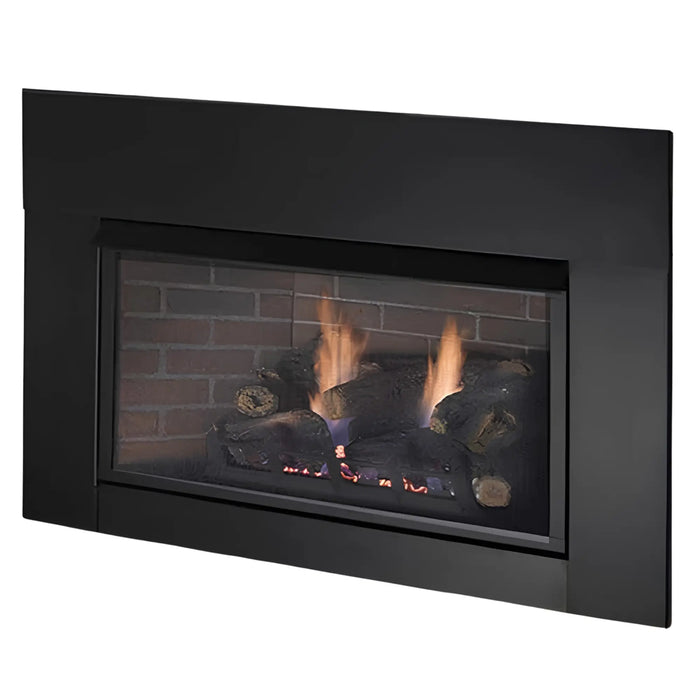

Monessen 33" Solstice Traditional Style Vent Free Gas Insert Fireplace
The Monessen Solstice 33 is a vent-free gas insert that slides into an existing masonry or listed factory-built fireplace. It has an 18 in. Natural Blaze burner rated up to 28,000 BTU/hr and a blower. It comes in natural gas or propane, with millivolt or IPI control. Order numbers: VFI33LNV, VFI33LNI, VFI33LPV, VFI33LPI.

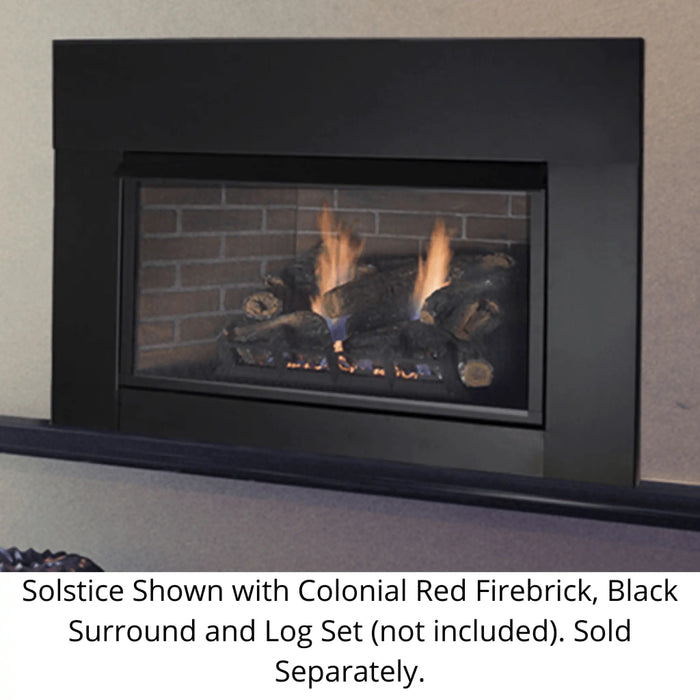

A log set, a surround and an interior liner are required and sold separately. Choose one of each from the lists below.
What's Included
- Vent-free insert with factory-installed 18 in. Natural Blaze burner and controls
- Blower (135 CFM per Monessen's price list)
- Canopy (must be installed)
- Mesh screen front
- 18 in. flex line with on/off shut-off valve
- Volcanic rock and rock wool
- Two anchoring screws
Key Features
- Up to 28,000 BTU/hr on natural gas, 27,000 on propane
- Blower included
- Millivolt or IPI control, both with an oxygen depletion sensor (ODS) pilot
- Fits a fireplace opening as small as 33 in. wide x 23-7/8 in. high x 15-1/4 in. deep

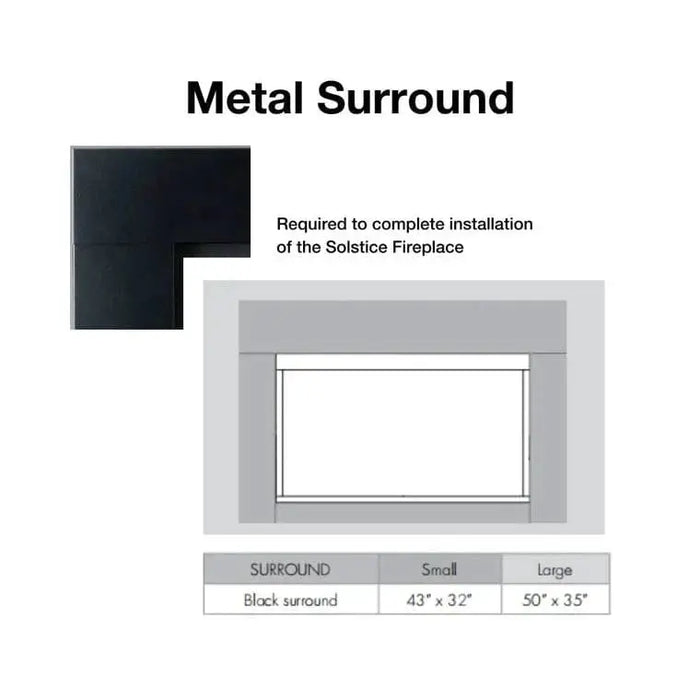

- Two surround sizes: 32 in. high x 43 in. wide, or 35 in. high x 50 in. wide
- Monessen's data sheet rates it for up to 1,400 sq. ft.
What to Order With It
Required, sold separately:

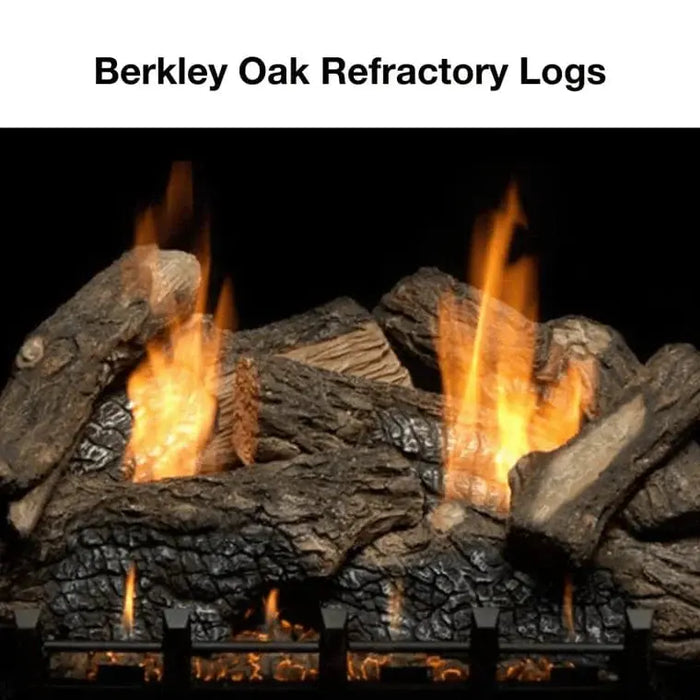

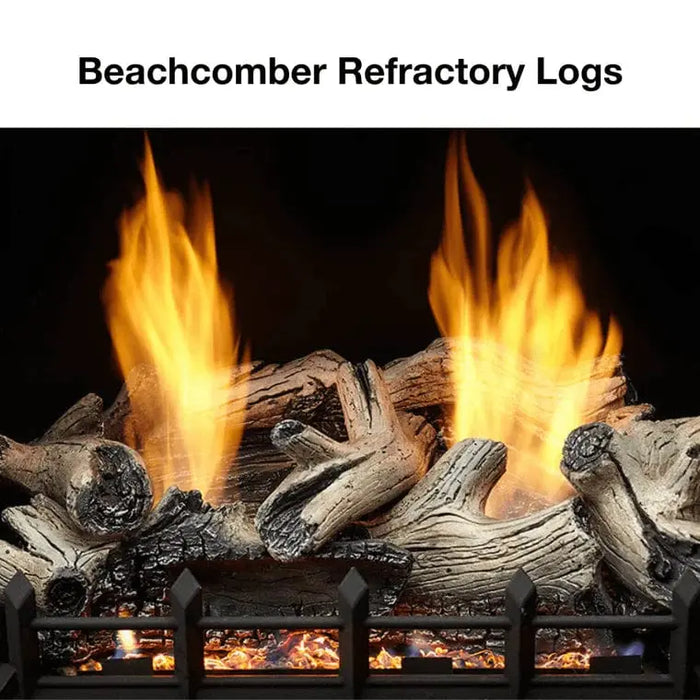

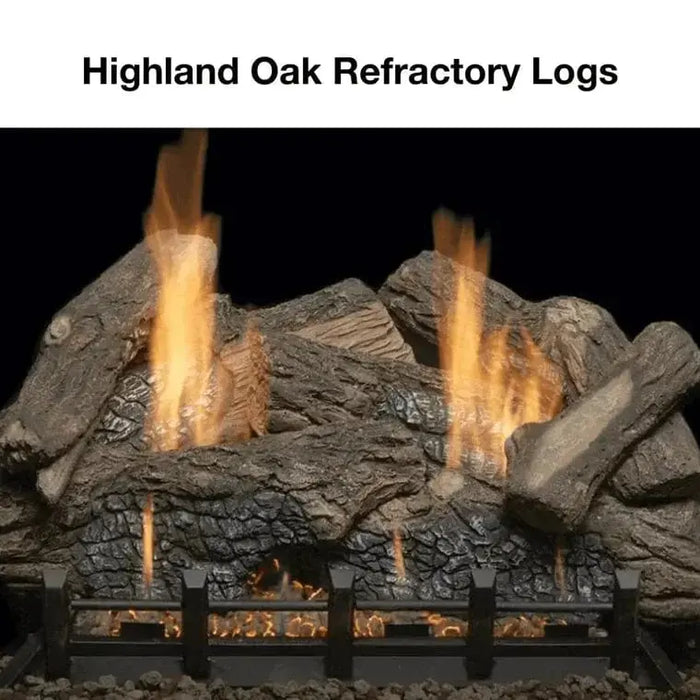

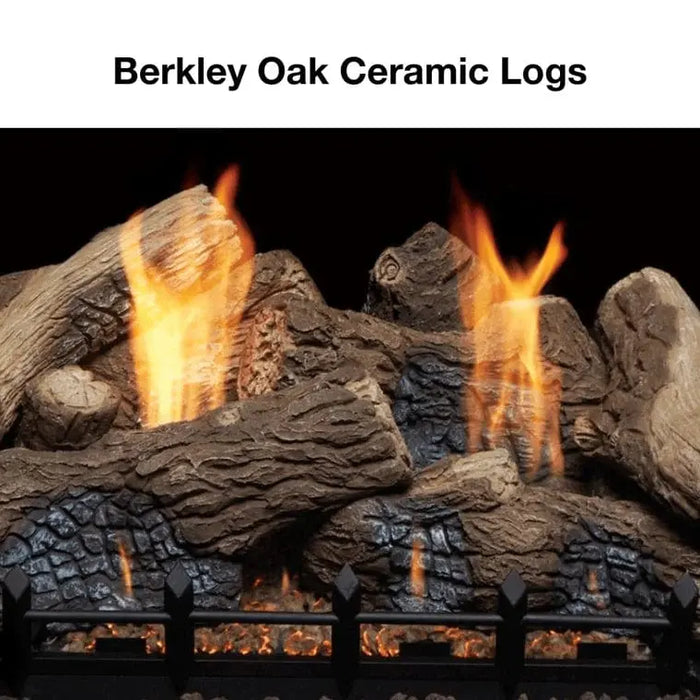

Log sets:
Surrounds:

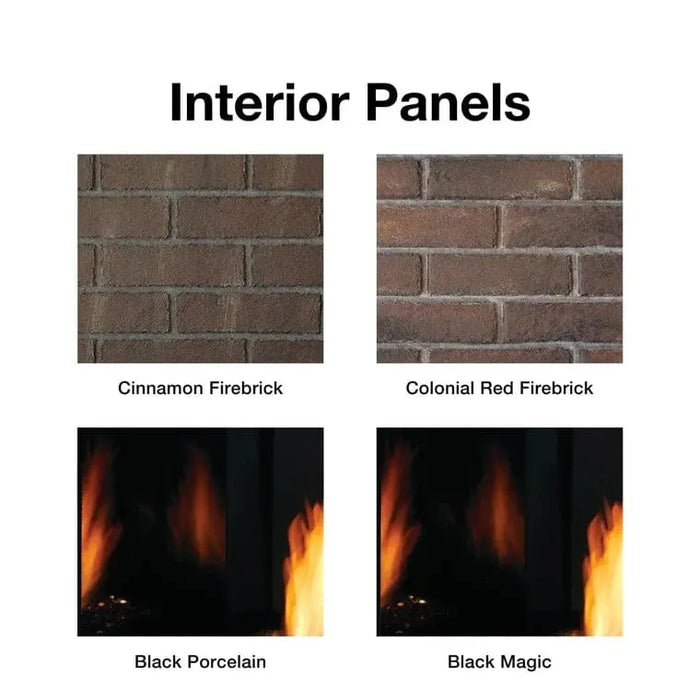

Interior panels:

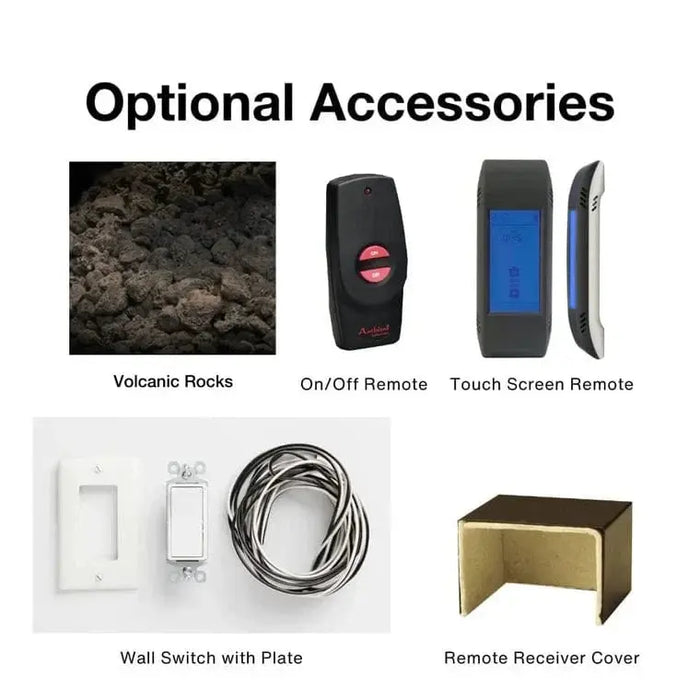

Optional:
Controls and remotes:
Other accessories:
Specifications
| Model |
VFI33L |
| Type |
Vent-free gas fireplace insert |
| Input, Natural Gas |
28,000 BTU/hr maximum, 19,000 minimum |
| Input, Propane |
27,000 BTU/hr maximum, 22,000 minimum |
| Controls |
Millivolt with piezo ignitor (V models) or IPI electronic ignition (I models) |
| Gas Supply |
Natural gas 5.0 to 10.5 in. w.c. Propane 11.0 to 13.0 in. w.c. An 18 in. flex line with shut-off valve is included; it connects to 3/8 in. NPT female or 1/2 in. NPT male pipe. |
| Electrical |
Millivolt models need no power. IPI models run on a 6 volt adapter plugged into the 120V junction box, with battery backup for on/off operation in a power cut. |
| Blower |
Included. 120 volts, 60 Hz, 1 amp, grounded three-prong plug |
| Shipping Weight |
74 lb (VFI33LNV); 72 lb (VFI33LNI, VFI33LPV); 76 lb (VFI33LPI) |
| Safety Listing |
ANSI Z21.11.2, unvented heaters |
| Use |
Indoor. Not for a bedroom or bathroom. May be installed in an aftermarket manufactured (mobile) home where local codes allow. Not convertible between gases: order the fuel you have. |
Order numbers:
| Order Number |
Fuel |
Control |
BTU/hr |
| VFI33LNV |
Natural gas |
Millivolt |
28,000 max, 19,000 min |
| VFI33LNI |
Natural gas |
IPI |
28,000 max, 19,000 min |
| VFI33LPV |
Propane |
Millivolt |
27,000 max, 22,000 min |
| VFI33LPI |
Propane |
IPI |
27,000 max, 22,000 min |

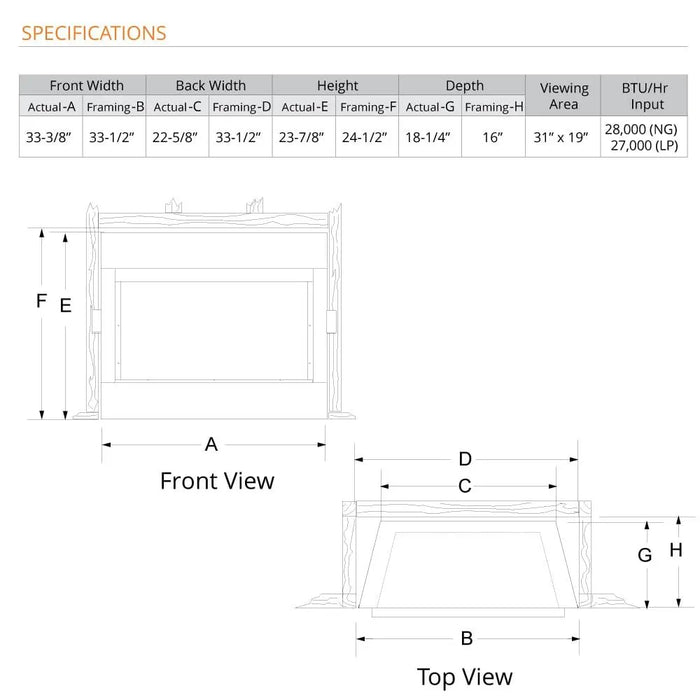

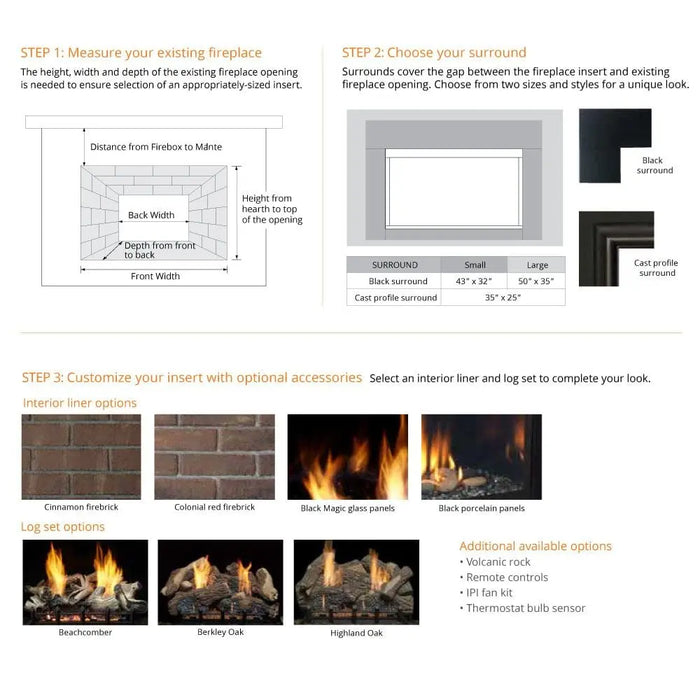

Dimensions and Framing
| Width |
33-3/8 in. |
| Back Width |
22-5/8 in. |
| Height |
23-7/8 in. |
| Depth |
18-1/4 in. |
| Minimum Fireplace Opening, Front Width |
33 in. |
| Minimum Fireplace Opening, Back Width |
22-3/4 in. |
| Minimum Fireplace Opening, Height |
23-7/8 in. |
| Minimum Fireplace Opening, Depth |
15-1/4 in. |
Clearances to Combustibles
| Side Wall |
9 in. from the inside of the insert to a combustible side wall |
| Back |
May be placed against a combustible back wall |
| Ceiling |
42 in. above the top of the firebox opening |
| In Front |
42 in. to curtains, furniture and other combustible objects |
| Mantel |
A mantel may project 2-1/2 in. at 8 in. above the opening, up to 12 in. at 26 in. above the opening. See the manual figure for depths in between. |
| Floor |
Secure it to the floor or hearth with the two screws supplied. On carpet, vinyl or tile it needs the hearth or a metal or wood base under the whole unit. |
The canopy supplied with the insert must be installed.
A vent-free heater takes its air from the room. The room must have at least 50 cu. ft. of volume for every 1,000 BTU/hr of all appliances in it, or extra ventilation must be provided as the manual describes. Input ratings are for elevations up to 2,000 ft.; reduce 4 percent for each 1,000 ft. above that.
Vent-free gas appliances are not allowed in every state, city or room. Check your state and local codes before you order. Installation and service must be done by a qualified installer.
Warranty
Covered by the Hearth & Home Technologies limited warranty for Monessen products (form 4021-645N, 12/23), which is printed in the owner's manual. Coverage starts on the date of installation and applies to products bought from an authorized dealer. See the manual for the coverage periods, conditions and exclusions.
