Monessen 30" Lyric Contemporary Vent Free Gas Burner (Burner Only)

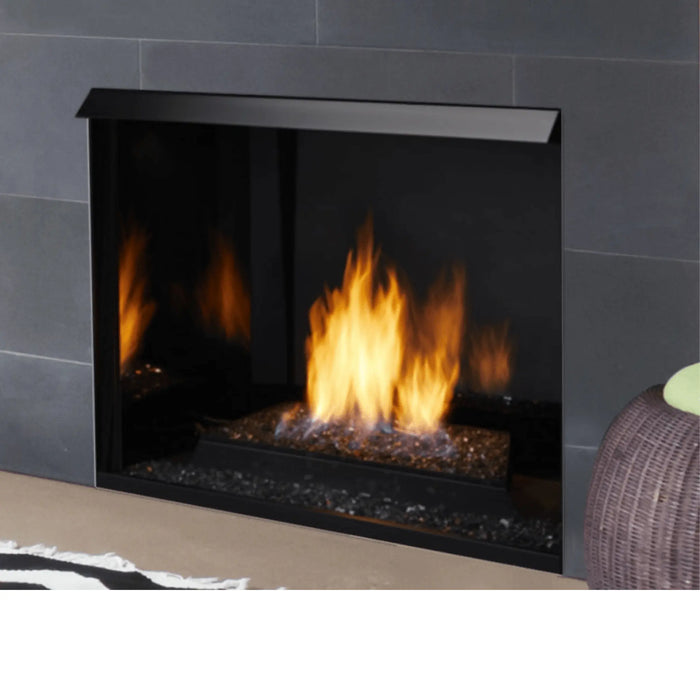

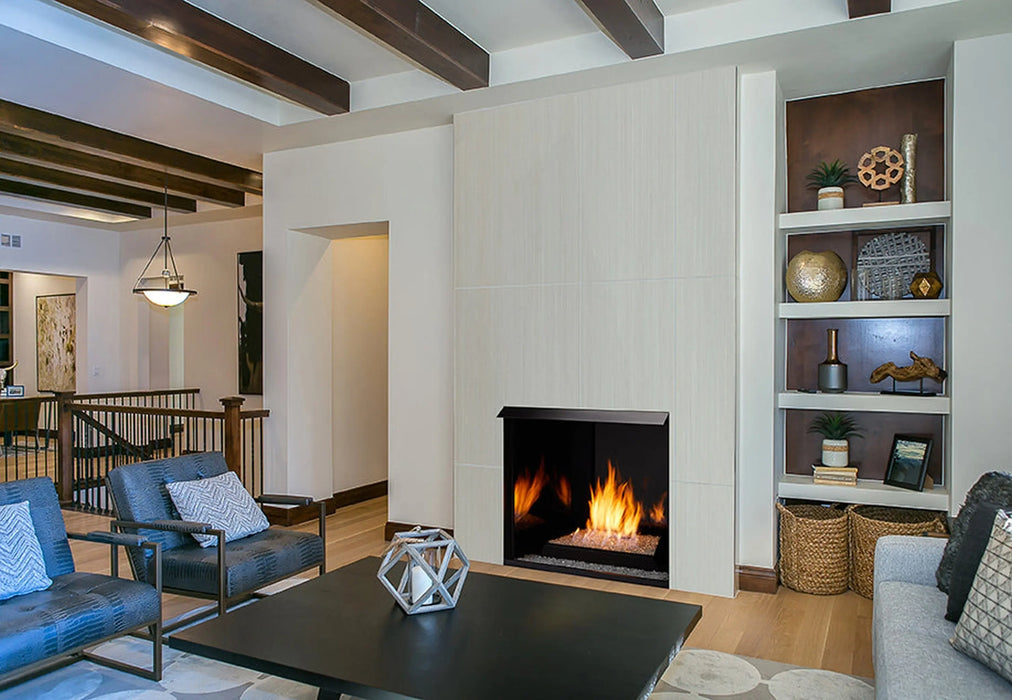

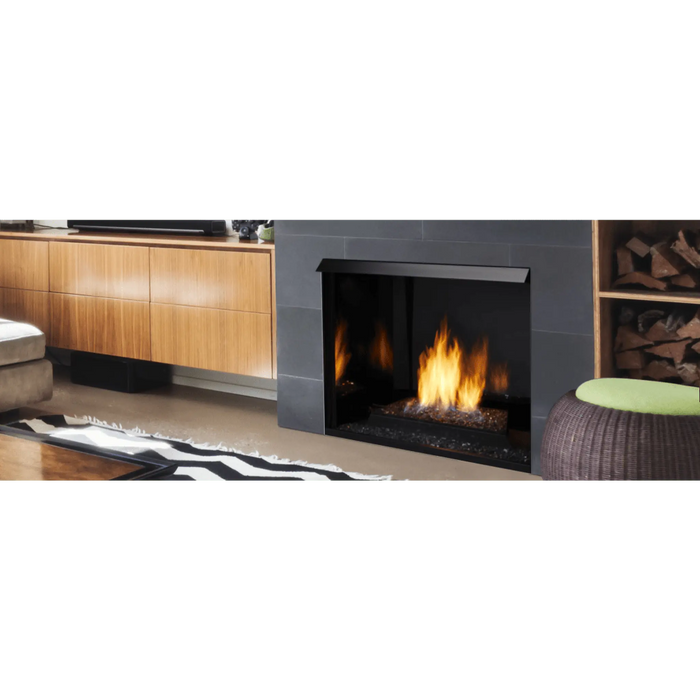

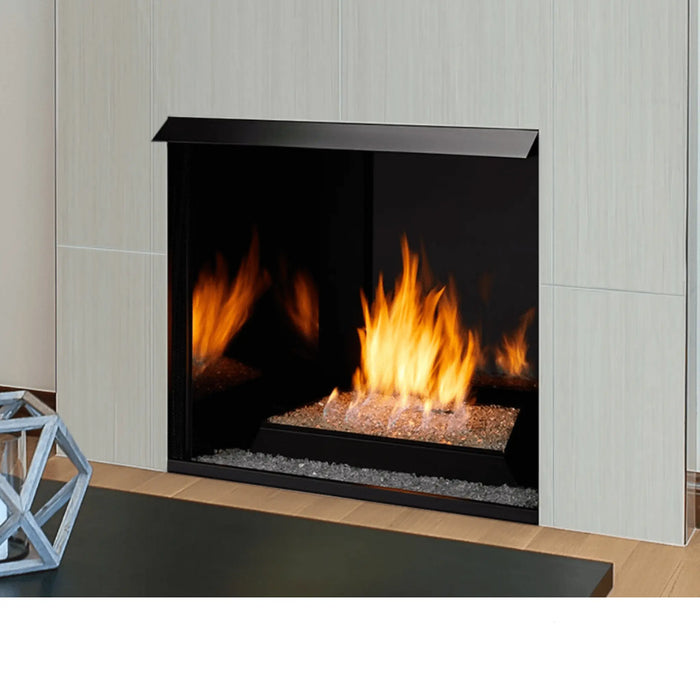

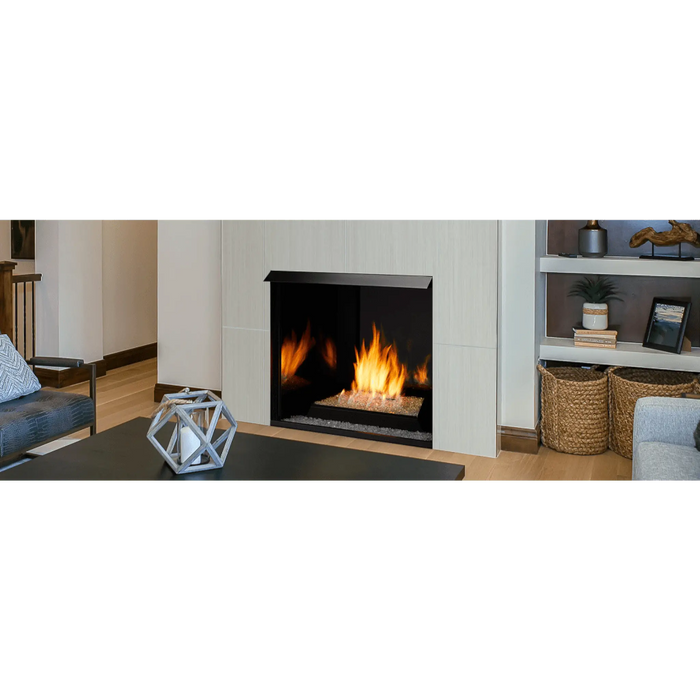

The Monessen Lyric 30 is a contemporary gas burner that burns through fire glass instead of logs. It can be installed vent-free or vented, and comes in natural gas or propane with millivolt control. Order numbers: LYR30NV, LYR30PV.
What's Included
- Burner assembly
- Three bags of Onyx fire glass
- Anchoring bracket and three screws
Key Features
- Up to 37,000 BTU/hr

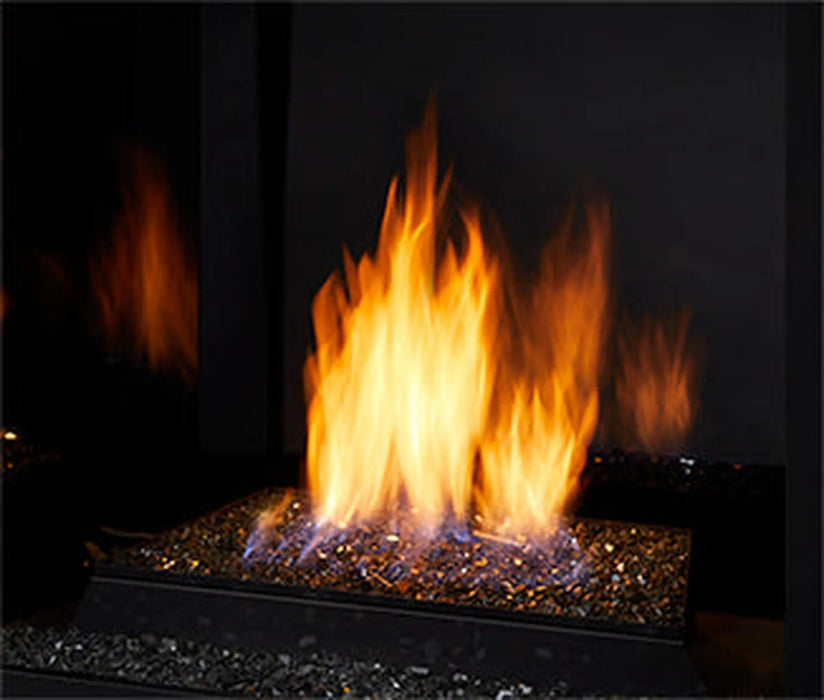

- Fire glass ember bed in place of logs
- Auto-spark igniter
- Dual listed: vent-free or vented
- Monessen's data sheet rates it for up to 1,850 sq. ft.
What to Order With It
Nothing else is required: three bags of Onyx fire glass come with the burner.
Optional:
Media:
Controls and remotes:
Other accessories:
To change the glass color, the 30 in. Lyric takes three bags (6.75 lb). A vented installation needs the damper fixed open; Monessen lists the C-CLAMP damper clamps for this. A thermostat may be used only on a vent-free installation.
Specifications
| Order Numbers |
LYR30NV, LYR30PV |
| Type |
Contemporary vent-free / vented gas burner |
| Input, Natural Gas |
37,000 BTU/hr maximum, 25,000 minimum |
| Input, Propane |
36,000 BTU/hr maximum, 28,000 minimum |
| Control |
Millivolt with battery auto-spark igniter |
| Media |
Three bags of Onyx fire glass included |
| Gas Supply |
Natural gas 5.0 to 10.5 in. w.c. Propane 11.0 to 13.0 in. w.c. Inlet at the right rear. Not convertible between gases. |
| Electrical |
No household power. The millivolt valve powers itself. |
| Weight |
25 lb |
| Safety Listing |
UL listed as an unvented room heater (ANSI Z21.11.2) and for vented use (ANSI Z21.60) |
| Use |
Indoor, in a solid-fuel masonry fireplace, a UL 127 factory-built fireplace, or a listed vent-free firebox. Not for a bedroom or bathroom. May be installed in an aftermarket manufactured (mobile) home where local codes allow. |
Clearances to Combustibles
| Side Walls |
16 in. from the sides of the fireplace opening to a combustible wall |
| Ceiling |
42 in. above the top of the fireplace opening |
| In Front |
36 in. to curtains, furniture and other combustible objects |
| Floor |
At least 1-3/8 in. above combustible flooring that is within 14 in. of the fireplace base, unless 14 in. of non-combustible material is laid in front |
| Fireplace Depth |
11 in. minimum; 16 in. if there is a barrier of up to 3 in. in front of the burner |
Mantel clearances depend on the height of heat-resistant material above the opening and on whether a hood is fitted. See the tables and figures in the manual.
A vent-free heater takes its air from the room. The room must have at least 50 cu. ft. of volume for every 1,000 BTU/hr of all appliances in it, or extra ventilation must be provided as the manual describes. Input ratings are for elevations up to 2,000 ft.; reduce 4 percent for each 1,000 ft. above that.
Vent-free gas appliances are not allowed in every state, city or room. Check your state and local codes before you order. Installation and service must be done by a qualified installer.
Warranty
Covered by the Hearth & Home Technologies limited warranty for Monessen products (form 4021-645N, 12/23), which is printed in the owner's manual. Coverage starts on the date of installation and applies to products bought from an authorized dealer. See the manual for the coverage periods, conditions and exclusions.
