Monessen 24" Millivolt Control Glow Getter Burner (Burner Only)
The Monessen 24 in. Glow Getter is a gas log burner that can be installed vent-free or vented. This listing is the millivolt version, in natural gas or propane. Model numbers: GG24NV-B, GG24PV-B.
This is the burner only. A 24 in. or 30 in. log set is required and sold separately.
What's Included

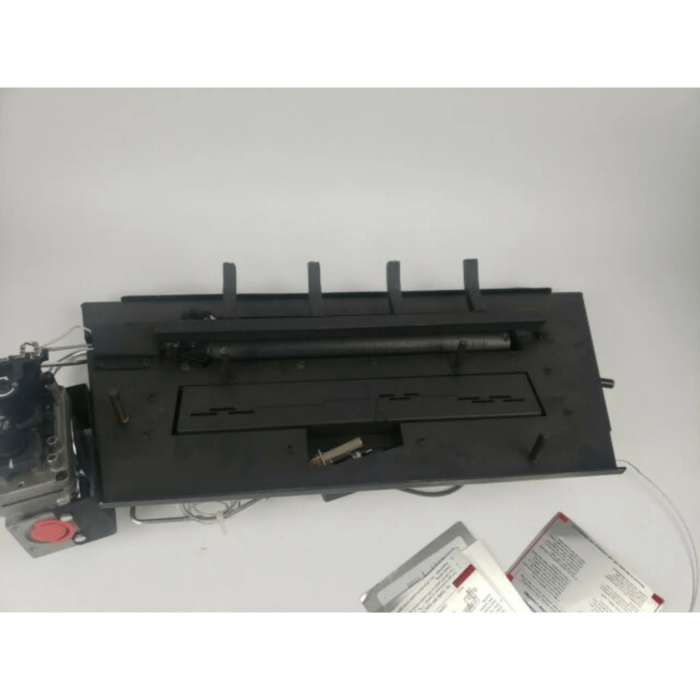

- Gas log burner assembly
- Grate
- On/off switch log and wire harness
- One bag of lava rock and one bag of rock wool
- Flex line and pipe fittings
- Damper stop for vented installations
- Two anchor screws
Key Features
- 37,000 BTU/hr on natural gas, 36,000 on propane
- Dual listed: vent-free, or vented in a fireplace with a working chimney
- Millivolt standing pilot with piezo igniter
- Oxygen depletion sensor (ODS) pilot
- Needs no household power
- Takes 24 in. or 30 in. Monessen log sets
What to Order With It
Required, sold separately: one log set.
Log sets:
Optional:
Controls and remotes:
Other accessories:
Same burner with the other control: 24" IntelliFire Plus Glow Getter Burner with Remote Control.
A thermostat control may be used only on a vent-free installation.
Specifications
| Model |
GG24NV-B / GG24PV-B |
| Type |
Vent-free / vented gas log burner |
| Control |
Millivolt standing pilot with piezo igniter |
| Log Size |
24 in. or 30 in. |
| Gas Supply |
Natural gas 5.0 to 10.0 in. w.c. Propane 11.0 to 13.0 in. w.c. 1/2 in. valve inlet at the right rear. Not convertible between gases: order the fuel you have. |
| Electrical |
No household power. The millivolt valve powers itself. |
| Weight |
28 lb |
| Safety Listing |
UL listed as an unvented room heater (ANSI Z21.11.2) and as a vented decorative log set (ANSI Z21.60) |
| Use |
Indoor, in a solid-fuel masonry fireplace, a UL 127 factory-built fireplace, or a listed vent-free firebox. Not for a bedroom or bathroom. May be installed in an aftermarket manufactured (mobile) home where local codes allow. |
Model numbers:
| Model Number |
Fuel |
BTU/hr |
| GG24NV-B |
Natural gas |
37,000 max, 26,000 min |
| GG24PV-B |
Propane |
36,000 max, 27,000 min |
Minimum Fireplace Size
The fireplace or firebox must be at least this big inside:
| With |
Front Width |
Back Width |
Depth |
Height |
| 24 in. Moxie or Charisma logs |
31 in. |
24 in. |
14 in. |
20 in. |
| 24 in. Dynamo logs |
33 in. |
26 in. |
14 in. |
20 in. |
| 30 in. Moxie or Charisma logs |
34 in. |
27 in. |
14 in. |
20 in. |
| 30 in. Dynamo logs |
36 in. |
29 in. |
14 in. |
20 in. |
If there is a barrier of up to 3 in. in front of the logs, the minimum depth is 16 in. Set the burner as close to the back wall as you can.
Clearances to Combustibles
| Side Walls |
9 in. from the side of the fireplace opening |
| Ceiling |
42 in. above the top of the fireplace opening |
| In Front |
36 in. to curtains, furniture and other combustible objects |
| Flooring |
Combustible flooring may run up to the fireplace. No carpet or vinyl within 14 in. of the face. |
Combustible mantel, measured from the top of the fireplace opening:
| Mantel Depth |
Without the Optional Hood |
With the Optional Hood |
| 3 in. |
14 in. |
8 in. |
| 6 in. |
17 in. |
11 in. |
| 9 in. |
20 in. |
14 in. |
| 12 in. |
23 in. |
17 in. |
In a vent-free firebox, the firebox manual's clearances also apply.
A vent-free heater takes its air from the room. The room must have at least 50 cu. ft. of volume for every 1,000 BTU/hr of all appliances in it, or extra ventilation must be provided as the manual describes. Input ratings are for elevations up to 2,000 ft.; reduce 4 percent for each 1,000 ft. above that.
Vent-free gas appliances are not allowed in every state, city or room. Check your state and local codes before you order. Installation and service must be done by a qualified installer.
Warranty
Covered by the Hearth & Home Technologies limited warranty for Monessen products (form 4021-645N, 12/23), which is printed in the owner's manual. Coverage starts on the date of installation and applies to products bought from an authorized dealer. See the manual for the coverage periods, conditions and exclusions.
